Castolin Castotig 2002 ( mw2000?)

[Macfun]

Not wanting to hijack this, but can anyone confirm the gas inlet fitting and thread pitch on the rear of the 2002.
Doug

Hi Doug.

Good excuse to go to the workshop !!


Measured thread pitch is 19 tpi.
Outside thread diameter is ... Well I'm not used with english values ...
Here it is.
HTH.



[HughF]

1/4bsp if memory serves. 1/4bsp is 19tpi...



[Richard.]

They are 1/4 yes.



[Macfun]

I will have mine apart this week and will take photos for you guys so we can identify the various mosfets and igbts

Hello @HughF.

Any chances that you did the works ?

Kind regards



[HughF]

Hello @HughF.

Any chances that you did the works ?

Kind regards

Not yet, I have been really busy with my dayjob. I will try and look tonight for you.



[Macfun]

Hi guys !!

Any chance that @HughF or @Dutch Welder took pictures of the 7 hidden components behind the primary board ?



[Dutch Welder]

I didn't, and it's already been sold.



[Macfun]

Not yet, I have been really busy with my dayjob. I will try and look tonight for you.

Hi all !

In the meantime, I ordered one FRO169 at Ali..... (13 USD + 5 USD shipment).
Didn't expect it so early, but it knocked at my mailbox today.
So I have the one from the Castotig, and this one.
Now ... how could I test this component to know what's inside ?
2 diodes like the FRO174, or ... ?
I've access to good DMM (Fluke). Something else needed ?

Your help is appreciated.

private image upload



[Alexandr]

I was fortunate this welder came complete with torch, brandnew earth clamp & wire, and foot pedal.

I can imagine it might be hard to find a torch, especially with the Euro connector - maybe it's a hint you might need to modify to allow a standard torch.

Doug

Hi, Doug!
I have buyed my first tig machine Castotig 2002 with torch only.
Please help me with pinout of foot pedal.
Maybe you can disassembly pedal and imagine electric diagram of it?



[Alexandr]

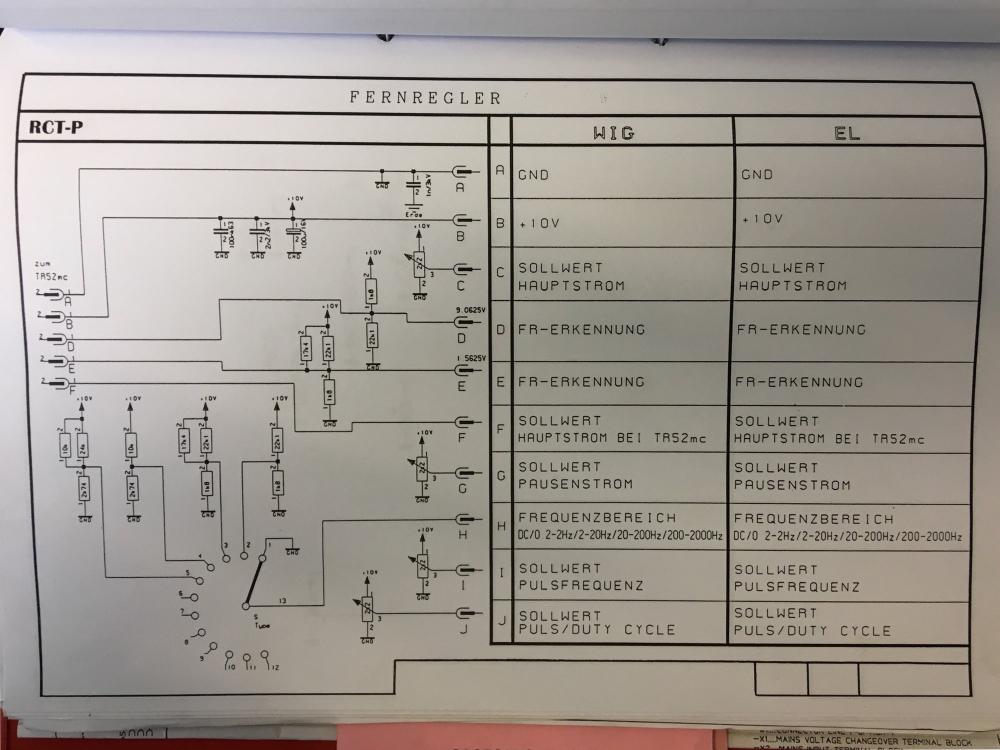

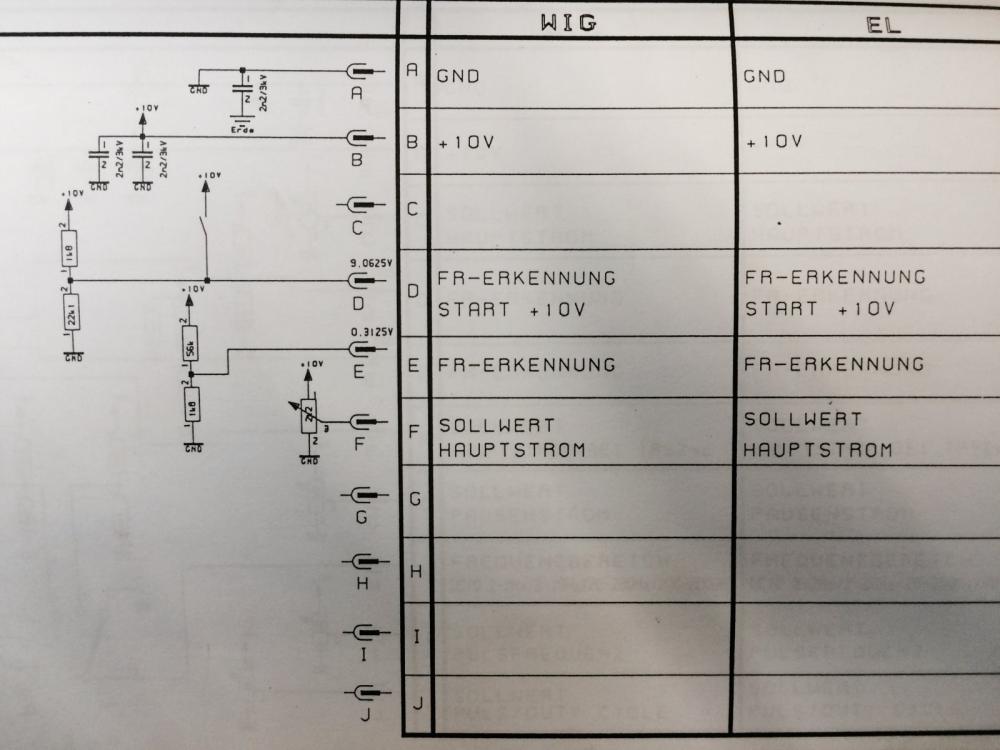

And I have found schemes of pedal and impulse controller for Fronius MW2000. I hope pedal for Castotig 2002 are as same as Fronius MW2000.



[Jim Davey]

They are the same.



[Alexandr]

I can't understand schematics. All points marked +10v must be connected together?



[Macfun]

B seems to be the 10V supply at connector.



[Alexandr]

I hope you're right.
I wish to assembly both items.



[Alexandr]

Can anyone help with pinout of connector? Where is A,B,C.... etc?
I can measure specified voltages in connector (+10v etc), but how I can find where other pins without voltages?

And if exist pulse controller, pedal must be connected to PC?



[Alexandr]

Maybe buy this item on Aliexpress? And use it as case for assembly pedal for my Castotig 2002?
https://aliexpress.ru/item/40008421...earchweb0_0,searchweb201602_,searchweb201603_



[Macfun]

I've no idea of remote units, I don't have.

Concerning pinout, it is usually written on the back of the connector ...
Check this thread related to torch pinout :
https://www.mig-welding.co.uk/forum/threads/castolin-castotig-2002-acdc-torch-harness-pinout.98122/



[Alexandr]

Maybe anybody have disassembled castotig 2002?



[Macfun]

I partially did, mine is in "not working" condition up to now.
Bought as is, no torch, and containment does not help.

Добрый вечер !
(google translate)



[Alexandr]

Can you mfke a photo of back of pedal connector?
What is wrong with your welder?
