Elliott TV2 Milling Machine

Smouser · Nov 11, 2022

Neilj said:
I've got a manual for the Victoria (Elliot) U2 / V2 models, which look very similar below the multi purpose head. You're welcome to a copy of that if it helps?

Yes please, it might be of interest.

WvW said:
Pm sent with omnimill manual

Thank you WvW.

Still looking for the ELLIOTT Omnimil 01 & 02 Millers manual too.

minimutly · Nov 12, 2022

Smouser said:
Yes please, it might be of interest.

Thank you WvW.

Still looking for the ELLIOTT Omnimil 01 & 02 Millers manual too.

I wouldn’t be wasting too much time on the manuals, most are sales blurbs. And the only complicated bit on yours is the head, which you should investigate thoroughly - quill bearings and auto feed etc Does it have auto feed?

Smouser · Nov 12, 2022

minimutly said:
I wouldn’t be wasting too much time on the manuals, most are sales blurbs. And the only complicated bit on yours is the head, which you should investigate thoroughly - quill bearings and auto feed etc Does it have auto feed?

It will 99% require new bearings and oil seals.

As far as I can tell all the bearings in the motors are still original (got some new ones on order). When the seller ran the machine very briefly it was not exactly very quiet so I suspect the bearings is still the original ones.

Regarding the auto-feed I am not too sure. Hence the plan to get the motors sorted (already dug the starpoint out so they can be wired for delta and run on 230v 3 phase power via VFD). Once I can power the machine I can see and hear how it runs and make an assessment to see if I can use the machine as is for a while or if I need to do work on it immediately.

It looks like it has got auto feed

Smouser · Nov 12, 2022

Brad93 said:
The TV2 is a frankenstein machine

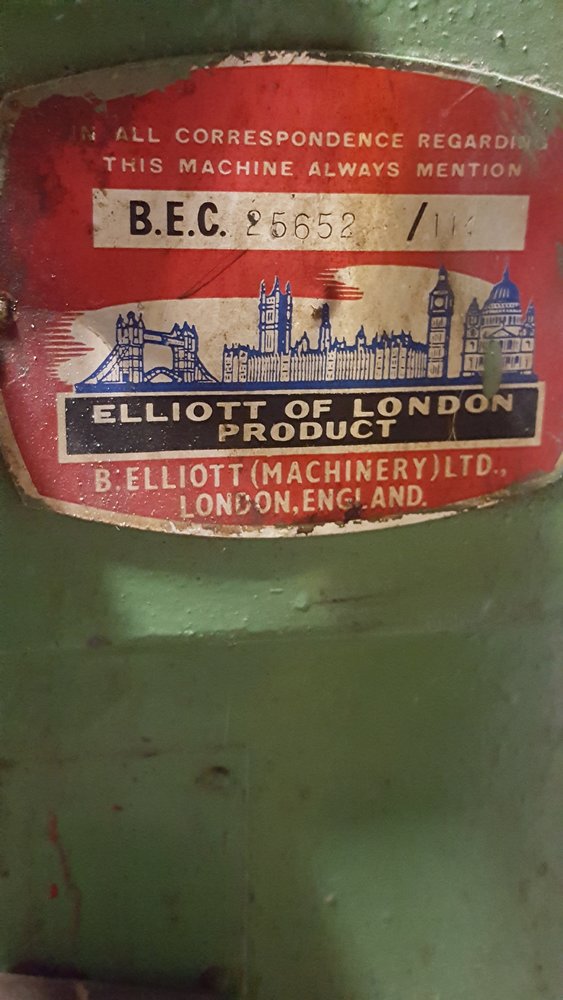

That is probably the best description. Even the data plates of ours are not exactly the same :laughing:

Seadog · Nov 12, 2022

Smouser said:
It looks like it has got auto feed

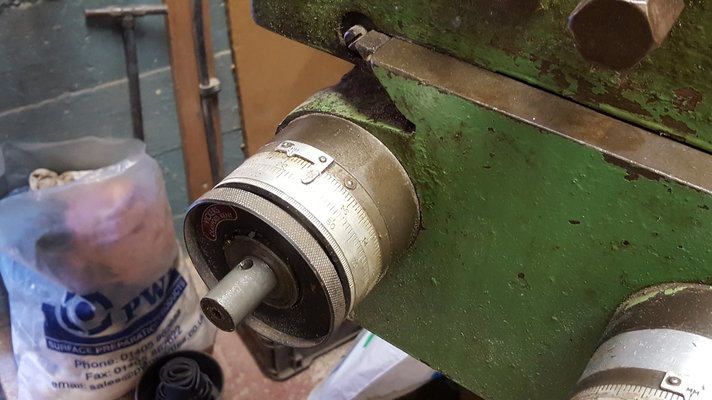

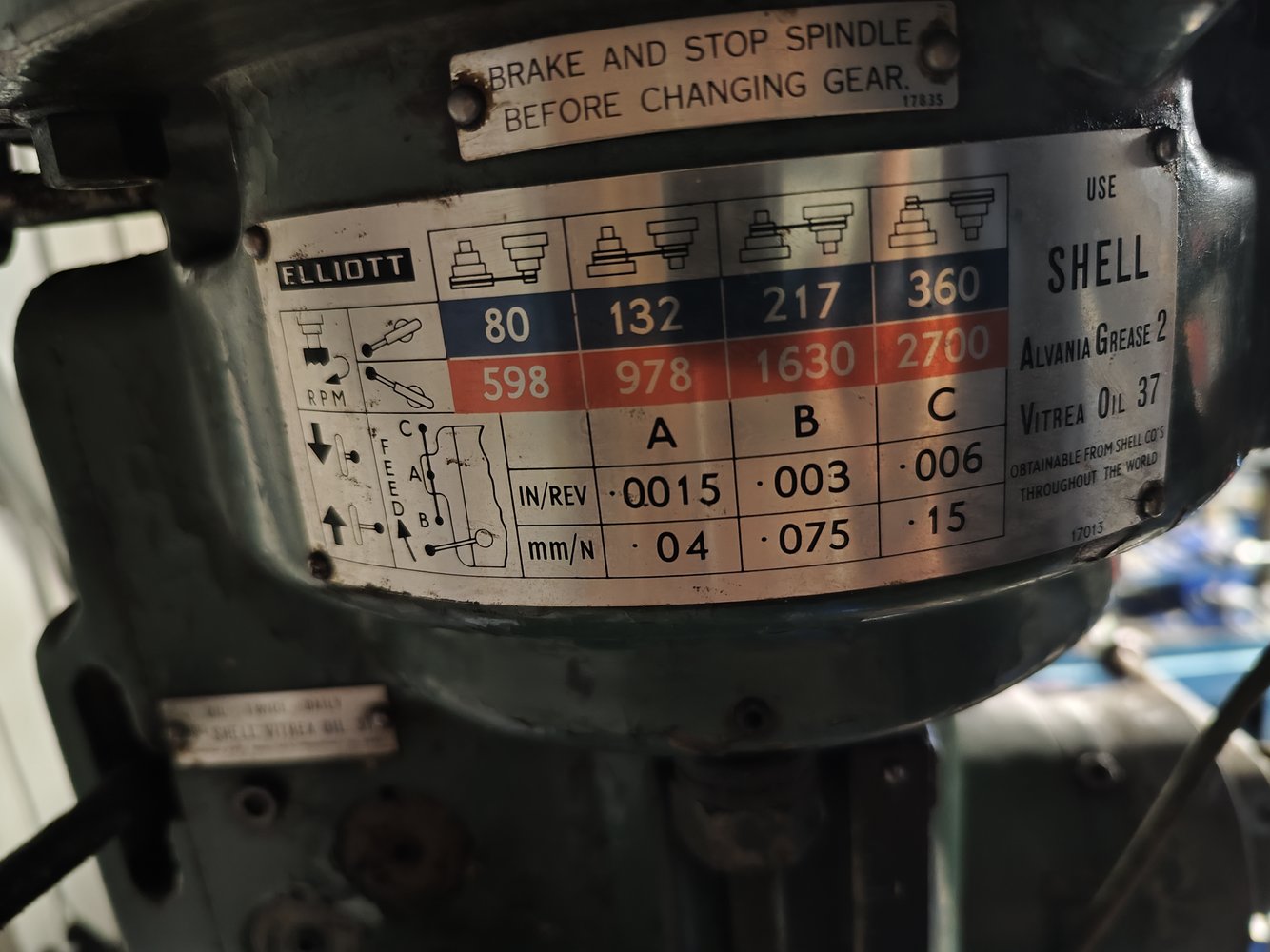

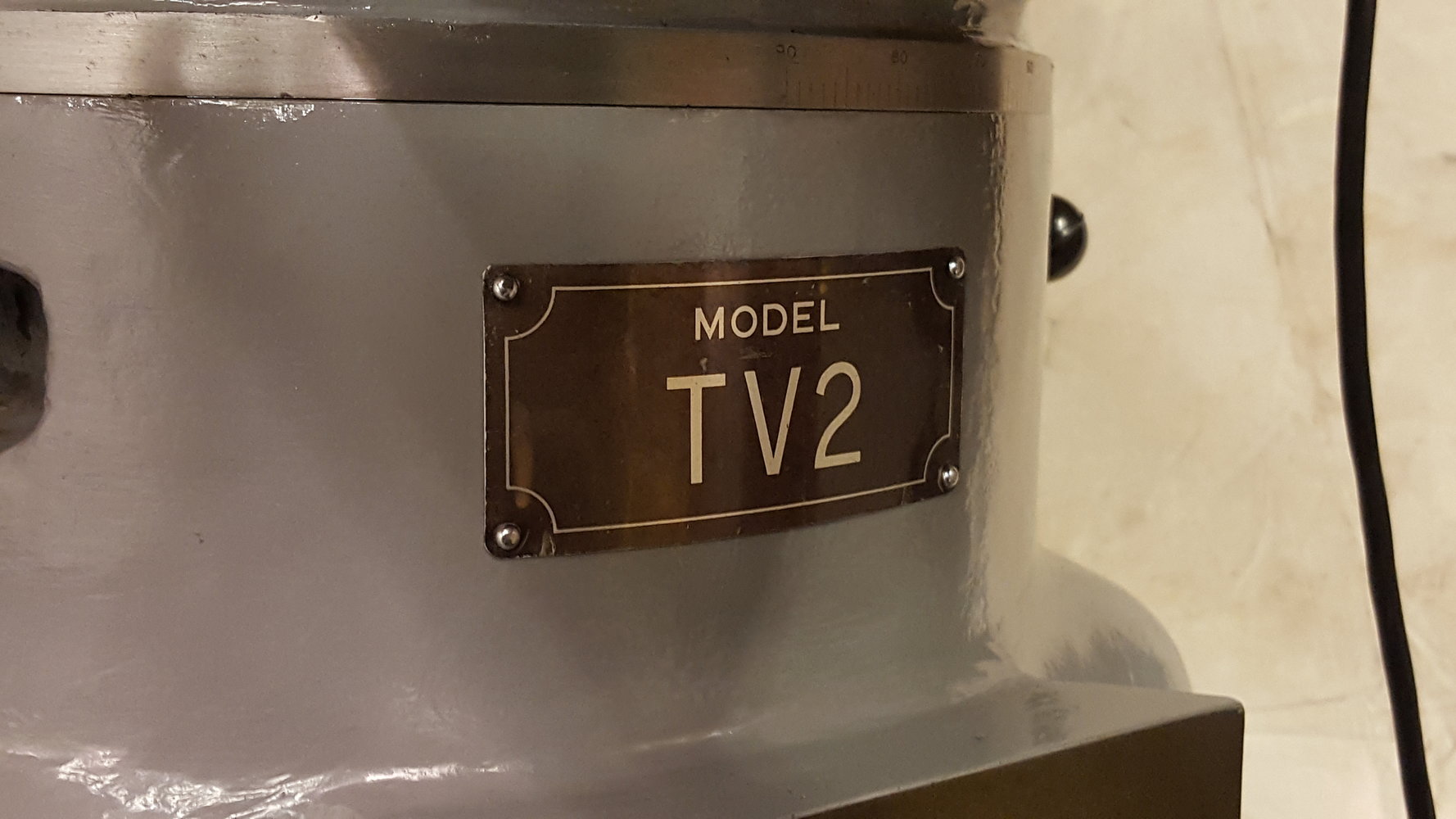

It shows it on the data plate, which I'm sure you've spotted.

Smouser · Nov 13, 2022

I found the manual for the Milmor machine, only two more manuals to get!!

Elliott MILMOR Milling Machine Manual

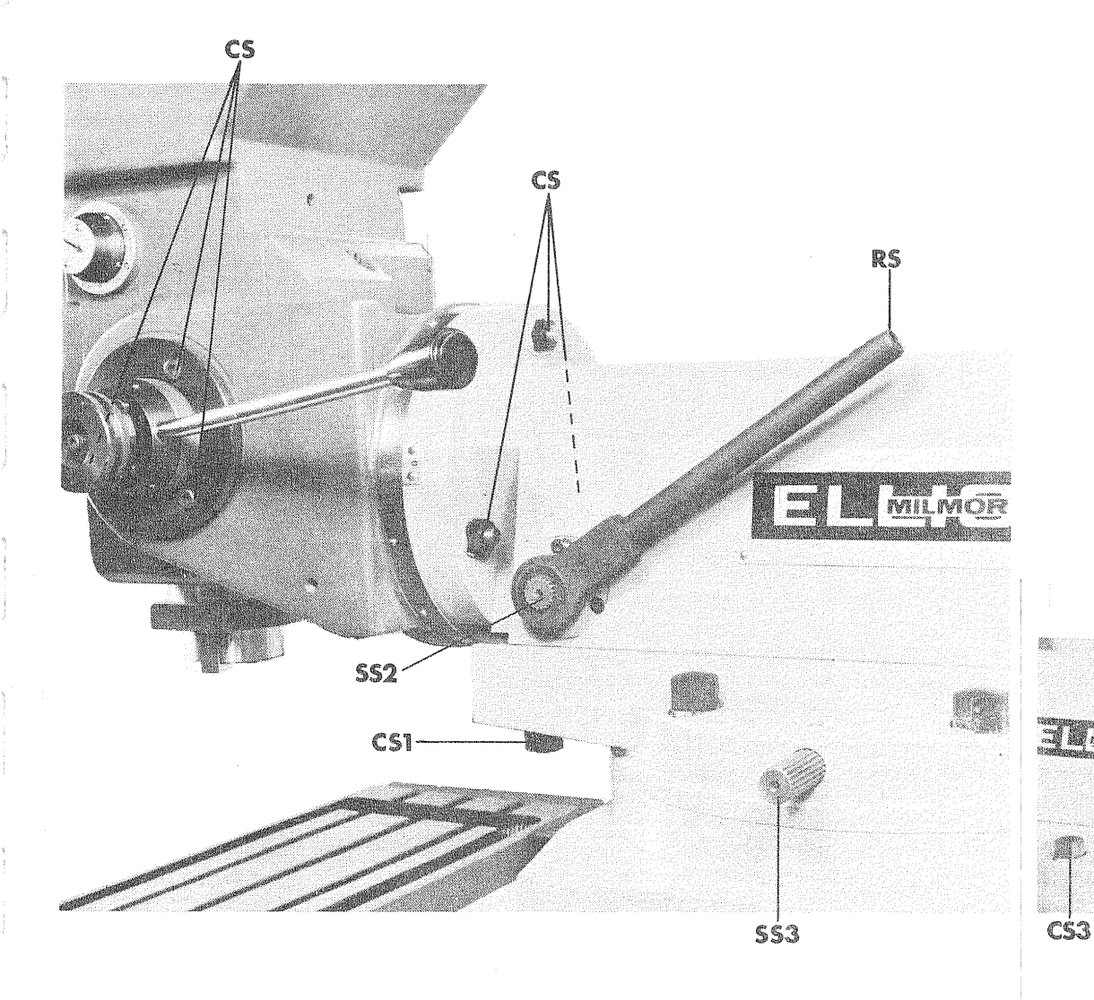

On the Milmor machine the head tilting splines are being turned by a ratchet (RS on image). It was possibly the same for my TV2.


Brad93 · Nov 14, 2022

Smouser said:
I found the manual for the Milmor machine, only two more manuals to get!!

Elliott MILMOR Milling Machine Manual

On the Milmor machine the head tilting splines are being turned by a ratchet (RS on image). It was possibly the same for my TV2.

View attachment 372542

Nope
mine has star wheels for the tilting head and ram adjustment

indy4x · Nov 14, 2022

Smouser said:
I said google at your own peril lol.

The Ranger did really well! I was twitching all the way back home

You were right, I wasn't going to Google it but after reading a few comments .......

If it pays its way then why not

If that had been me driving the Ranger with that lot on the back, think I'd have been twitching too

Rick Moore · Nov 17, 2022

fizzy · Nov 17, 2022

500kg? An Elliot at 500kg :laughing:

Elliott and 500kg don't belong in the same sentence!
Just goes to show the Police never patrol any more - cameras only care about speed.
Ranger did well though I hope to get one asap.

Rick Moore · Nov 17, 2022

In the spec the gross weight is 1196kg, that won't include the slotter

Rick Moore · Nov 17, 2022

Smouser · Nov 17, 2022

Rick Moore said:

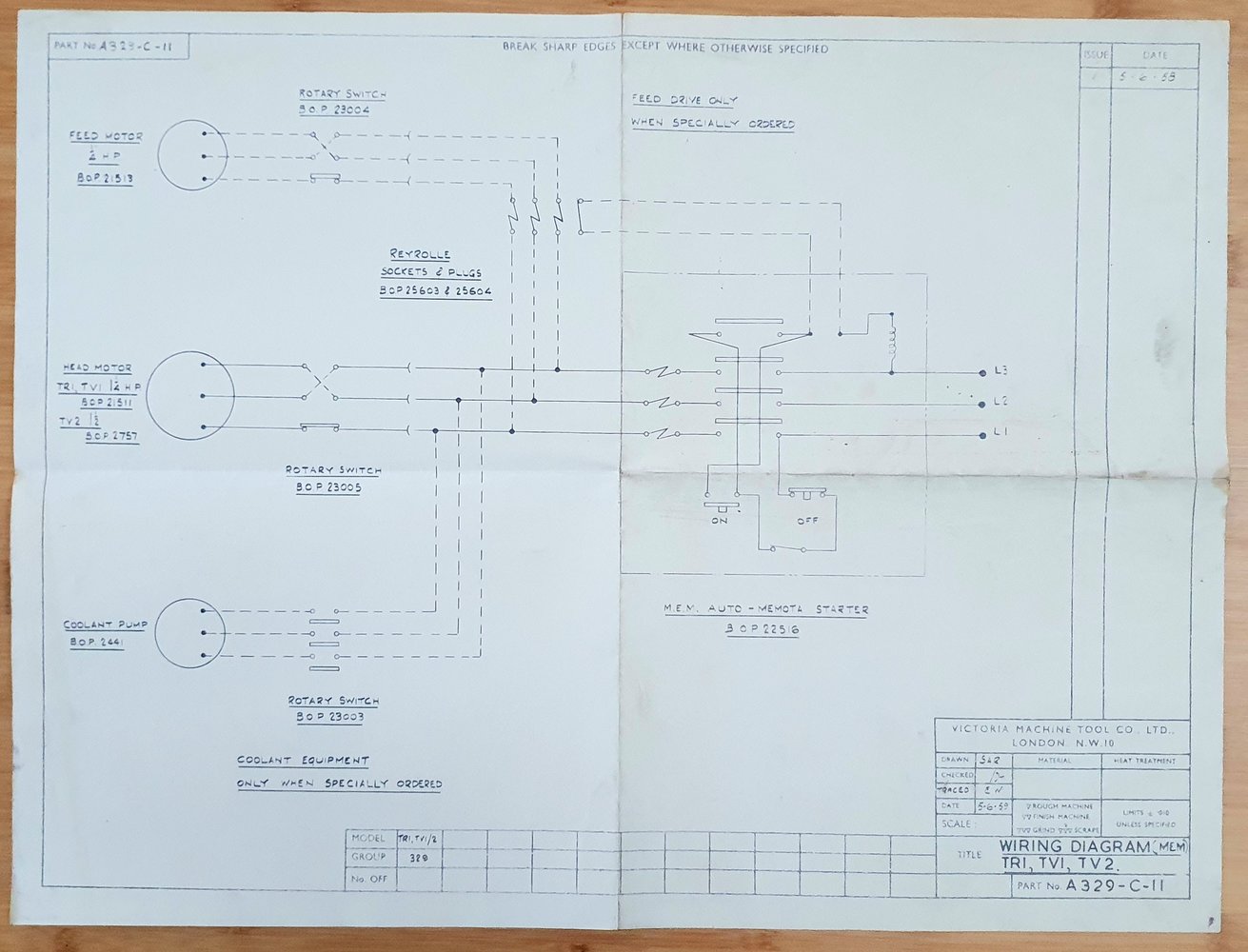

View attachment 373028

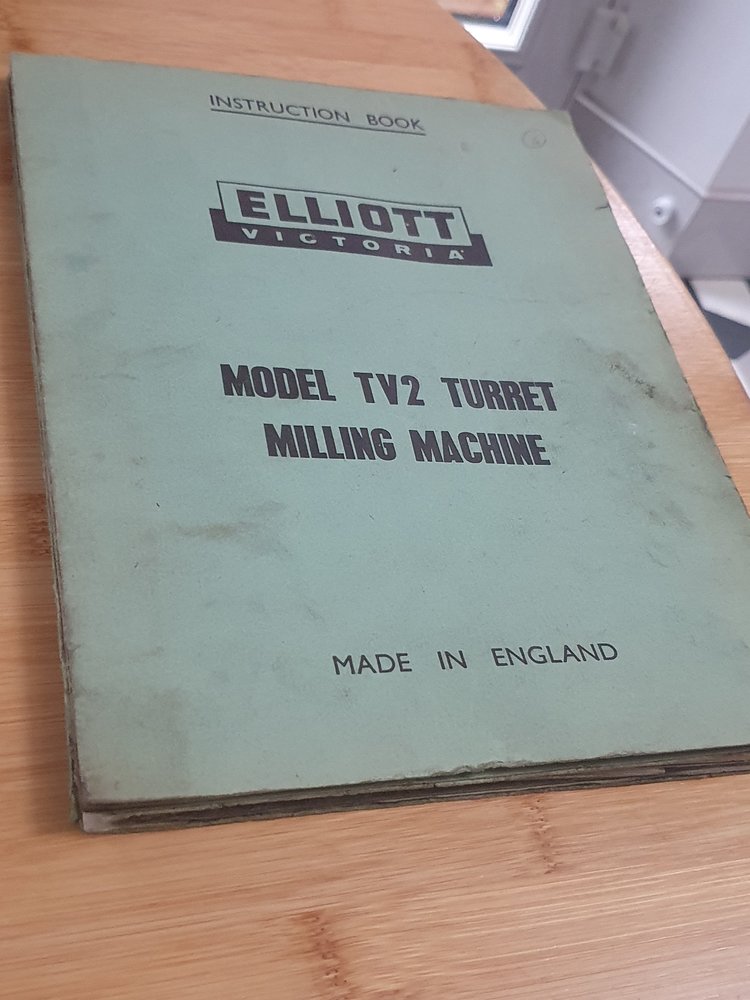

I had to hunt @Rick Moore down from another forum. So glad I found him. He might possibly be the only one with a manual!!!

Rick, post a few photos of your milling machine. The information and photos of the machines are hard to come by!

Rick Moore · Nov 17, 2022

Smouser said:
I had to hunt @Rick Moore down from another forum. So glad I found him. He might possibly be the only one with a manual!!!

Rick, post a few photos of your milling machine. The information and photos of the machines are hard to come by!

Ill take a few photos, is there any particular aspect you would like to see ?

Brad93 · Nov 17, 2022

wouldn't mind a few photos from
that manual if it's got schematics because mine got taken apart two years ago and still sits in boxes!

Rick Moore · Nov 17, 2022

Brad93 said:
wouldn't mind a few photos from
that manual if it's got schematics because mine got taken apart two years ago and still sits in boxes!

No schematics I'm afraid.

Rick Moore · Nov 17, 2022

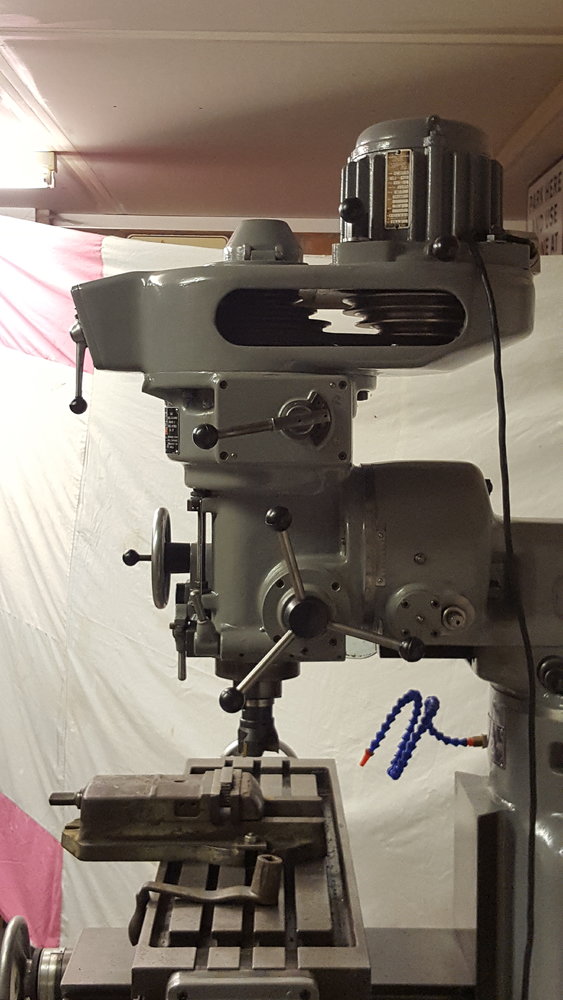

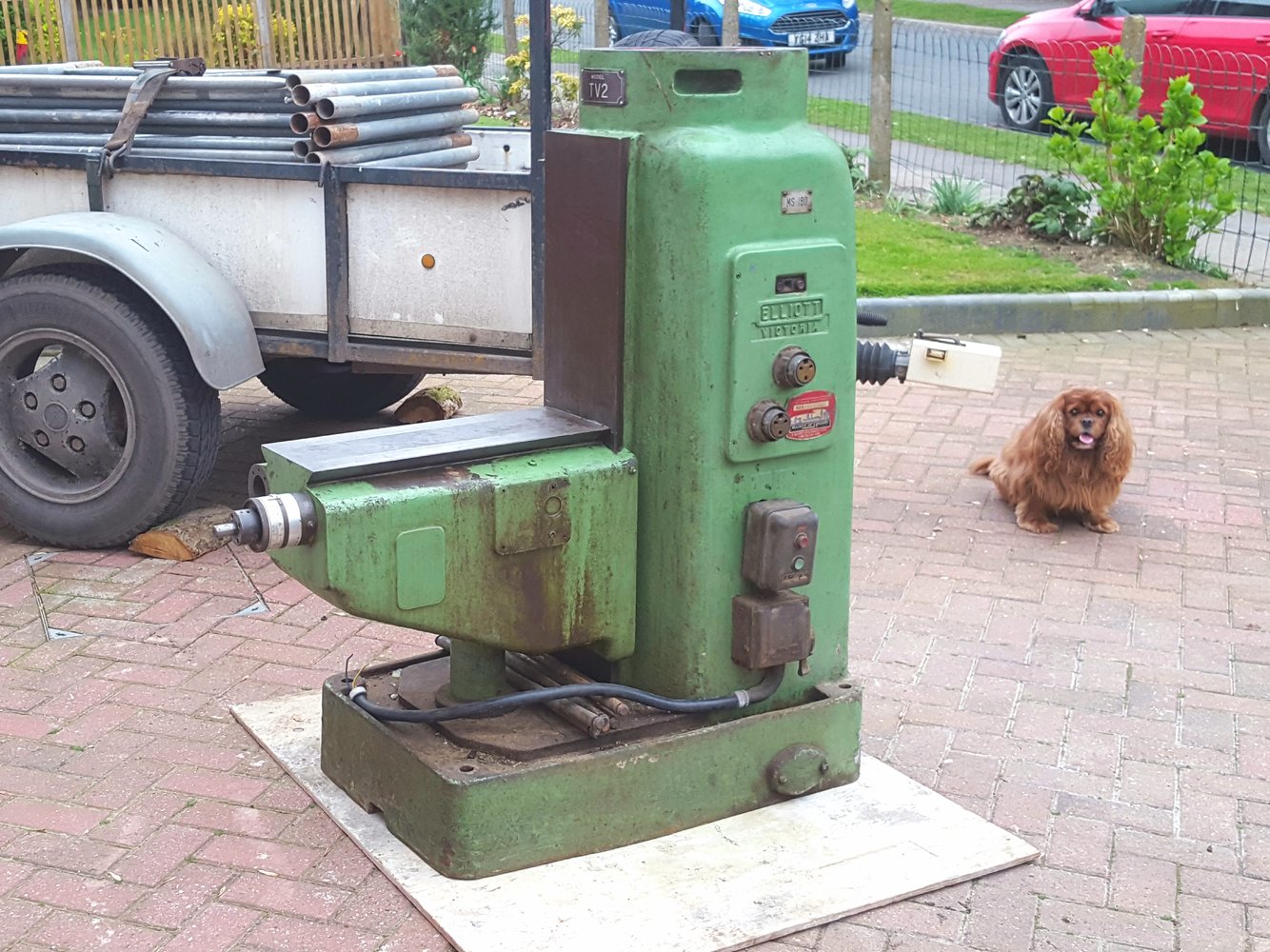

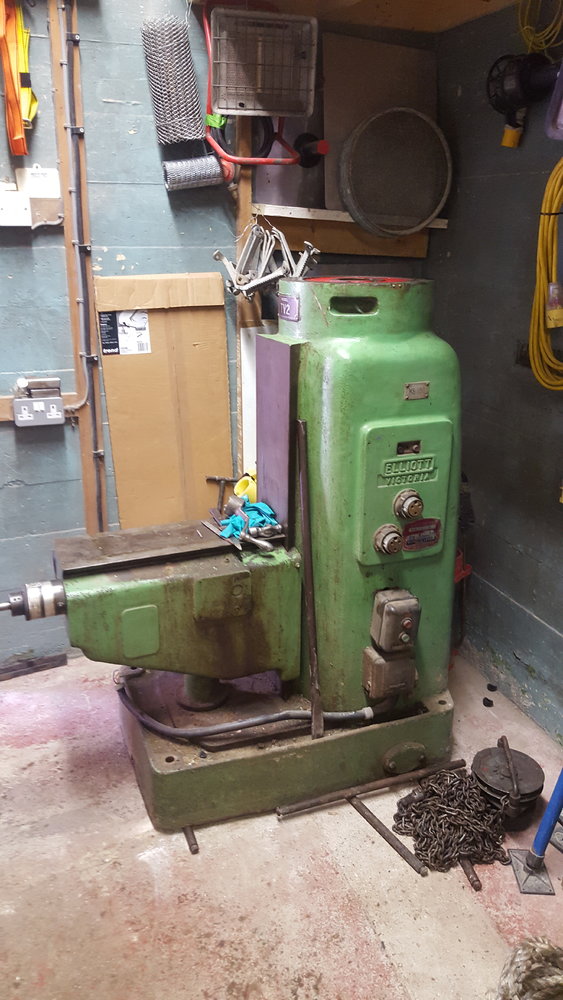

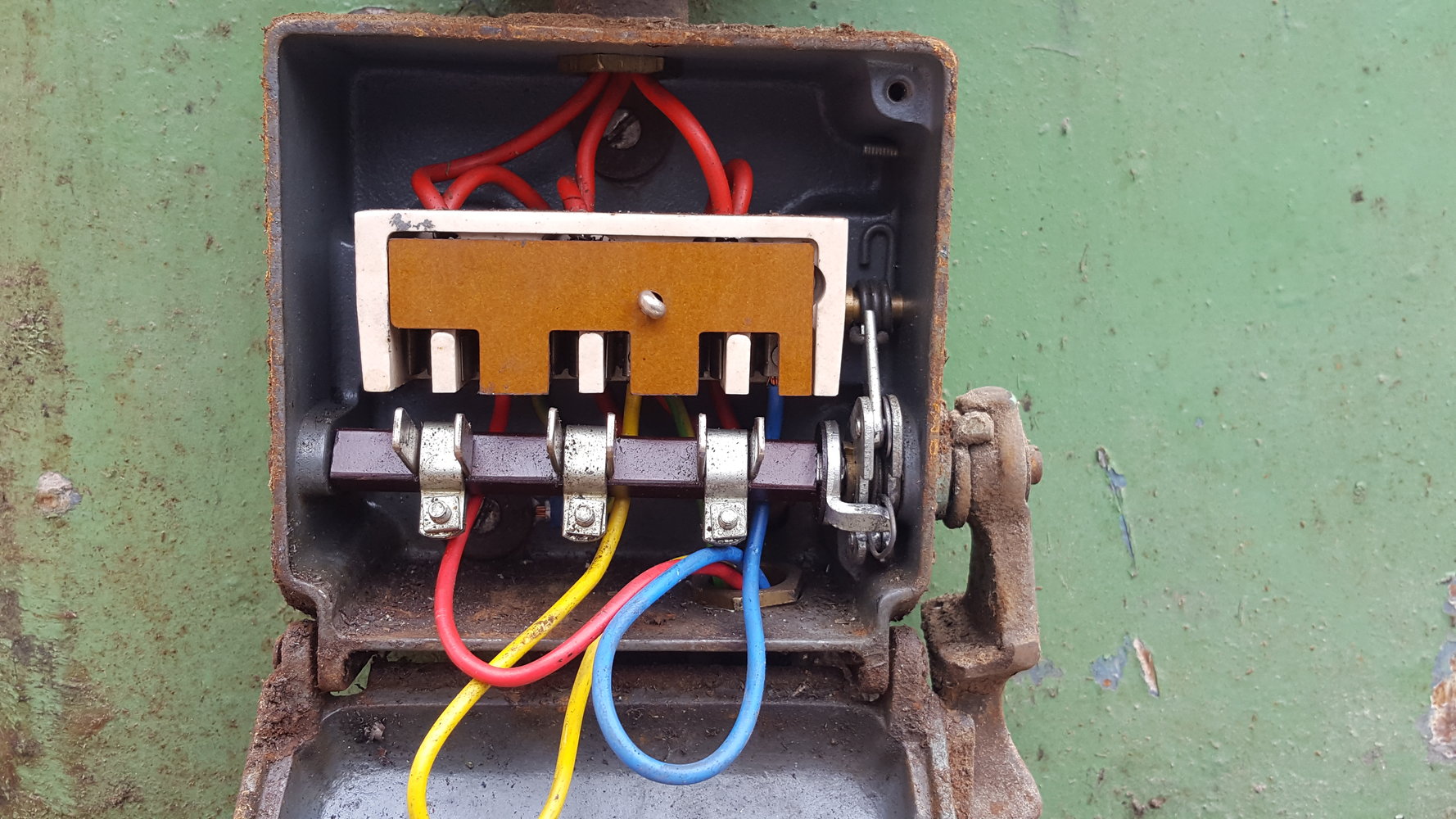

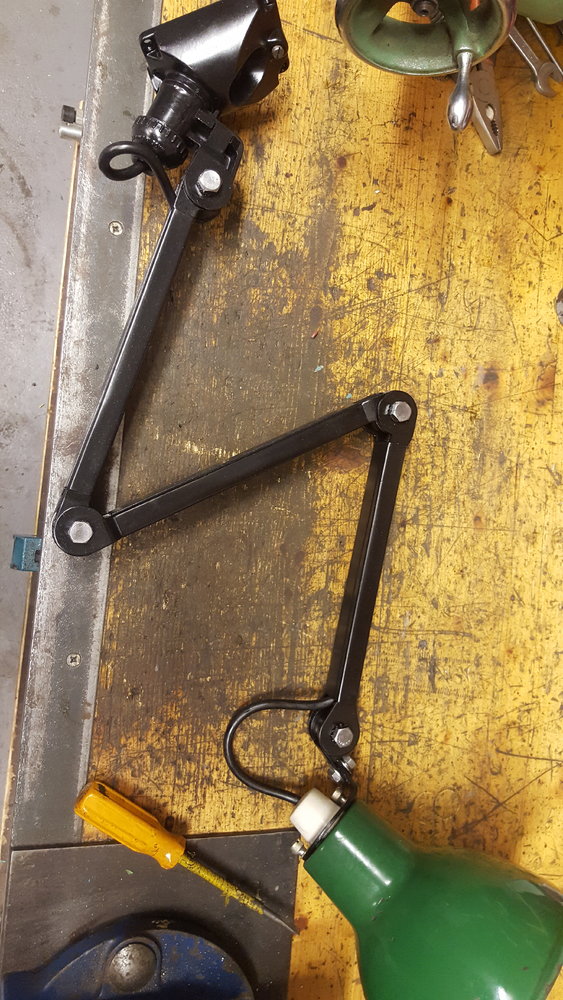

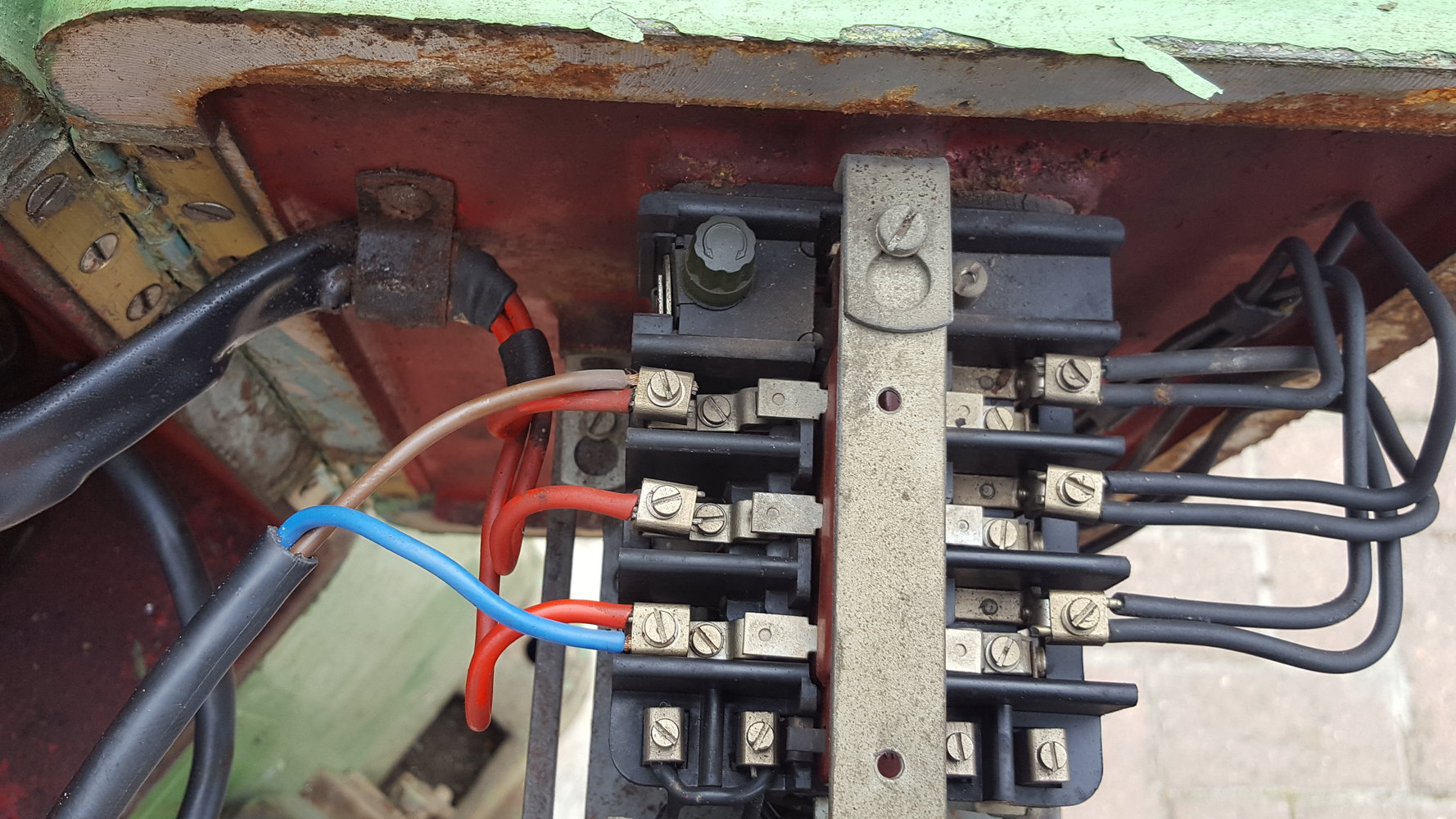

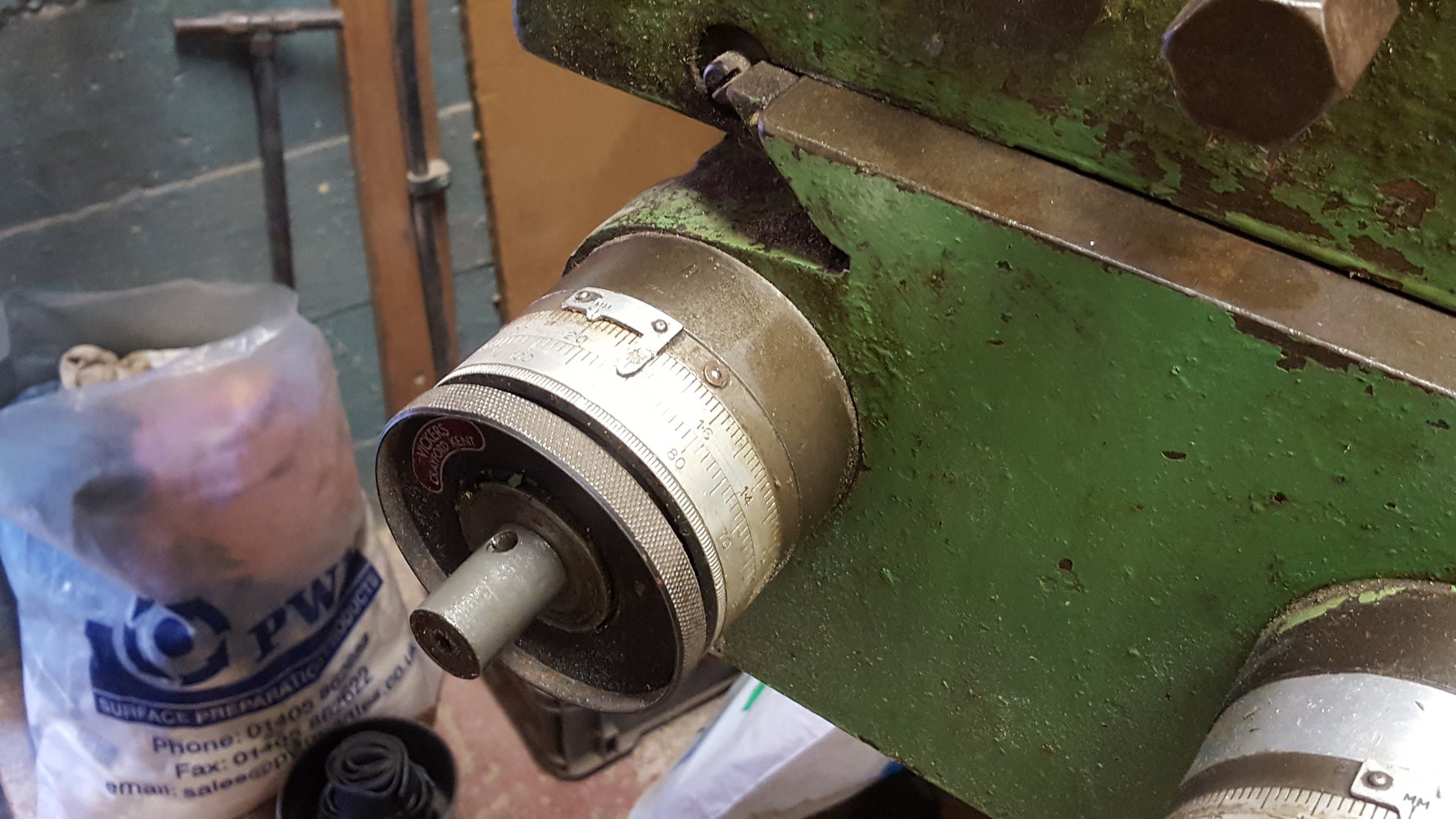

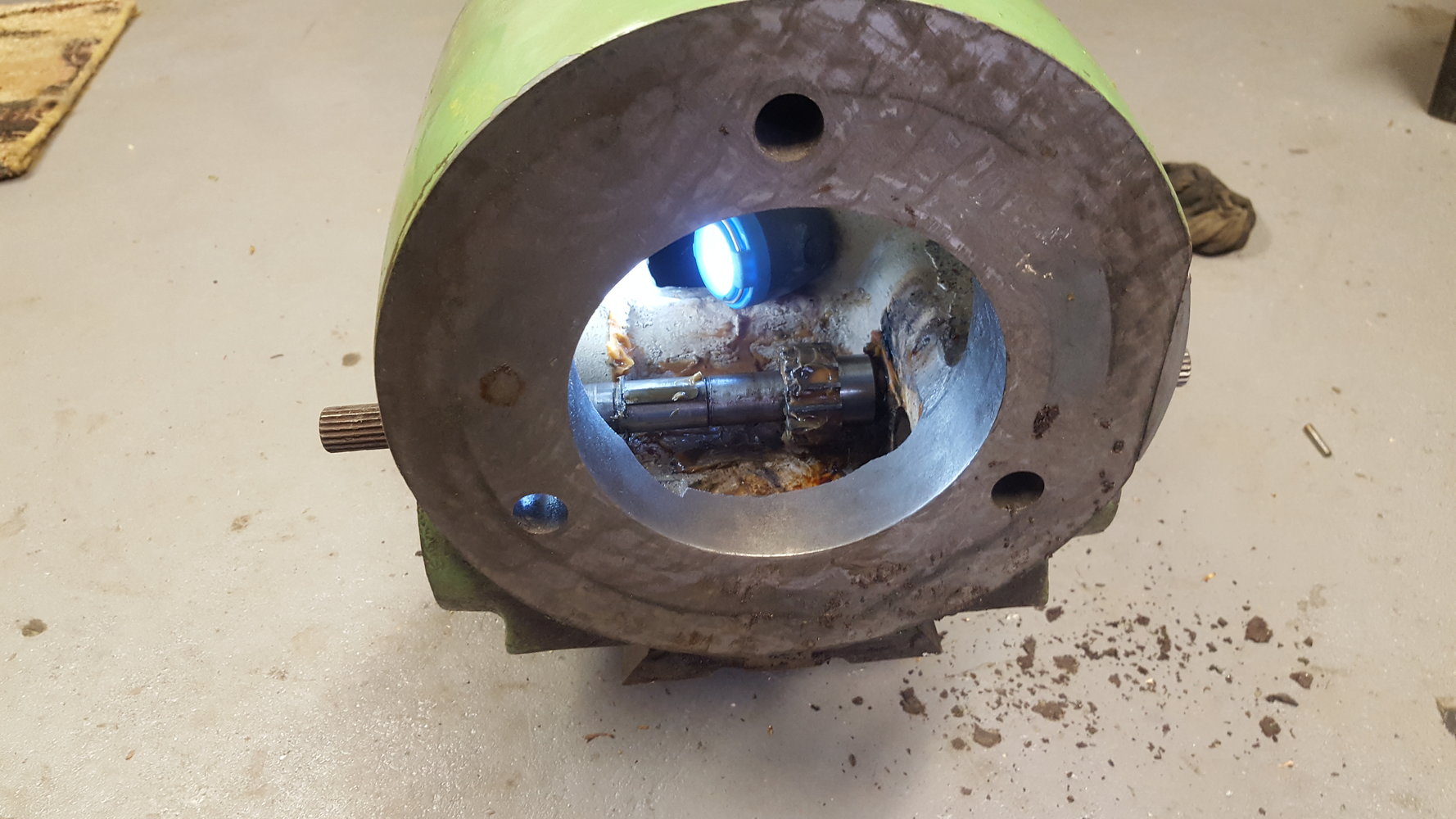

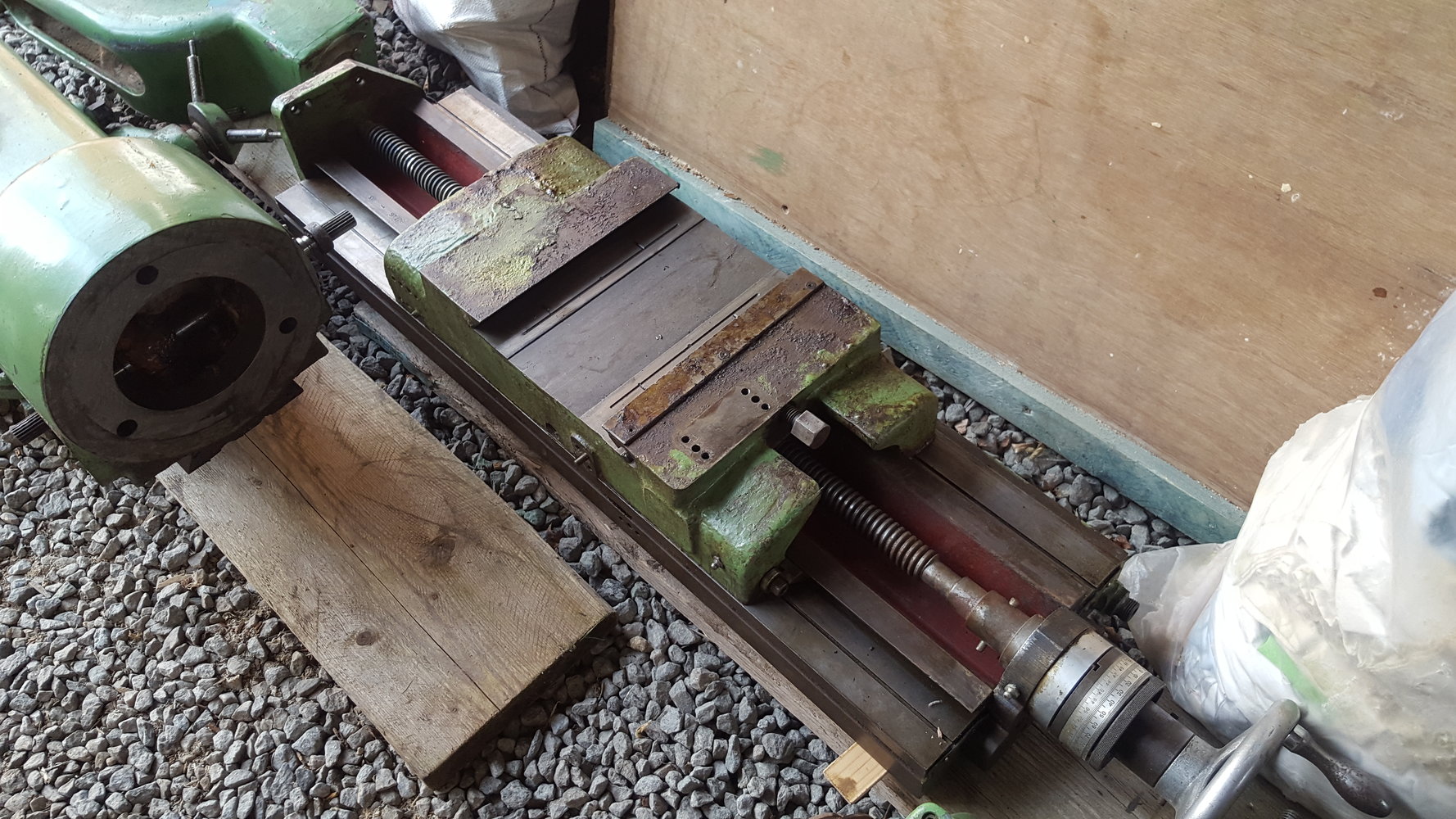

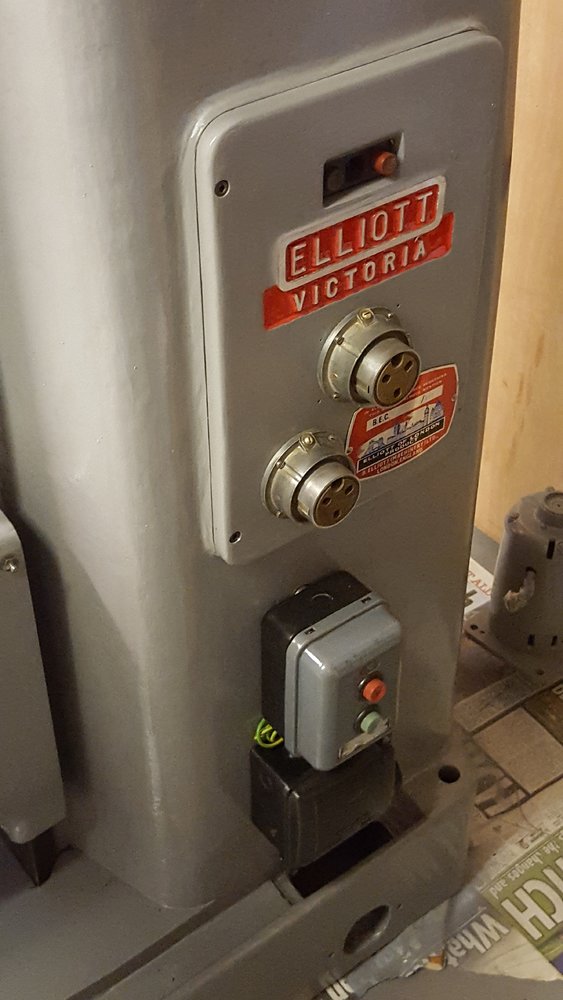

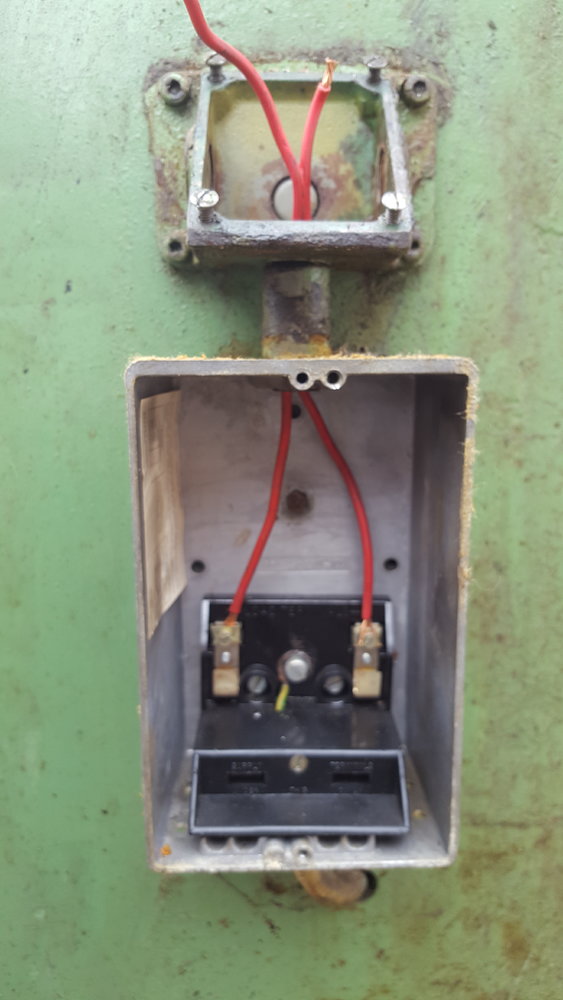

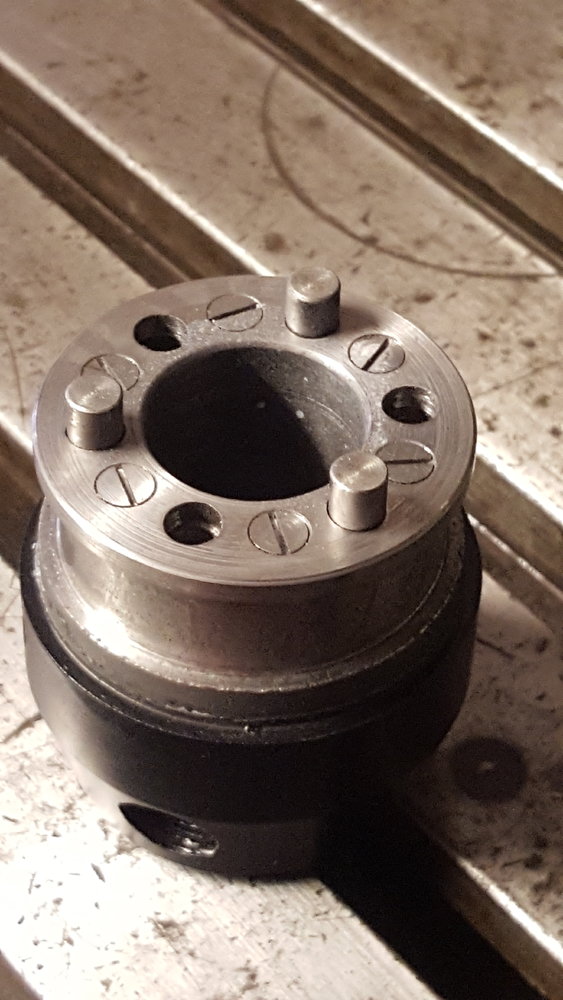

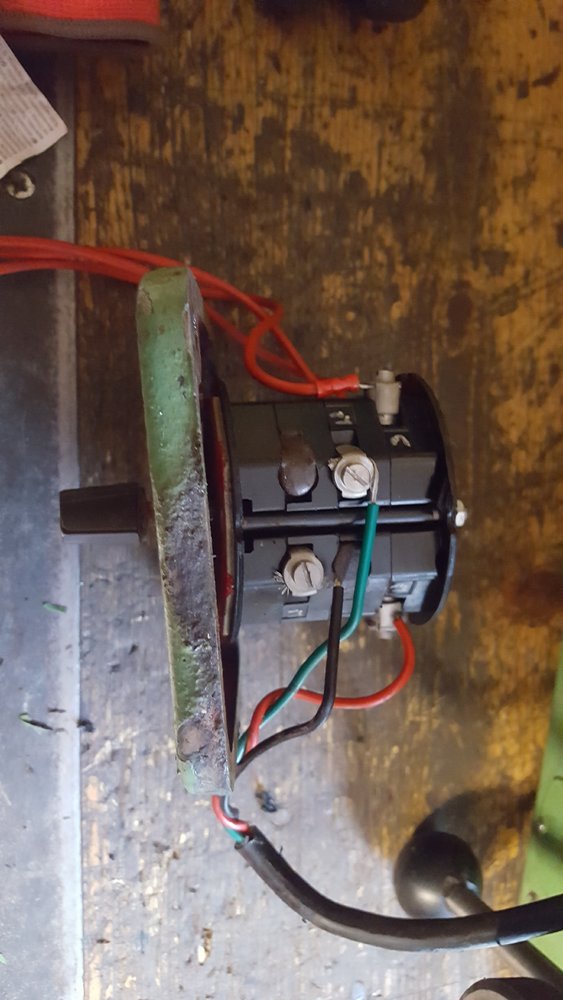

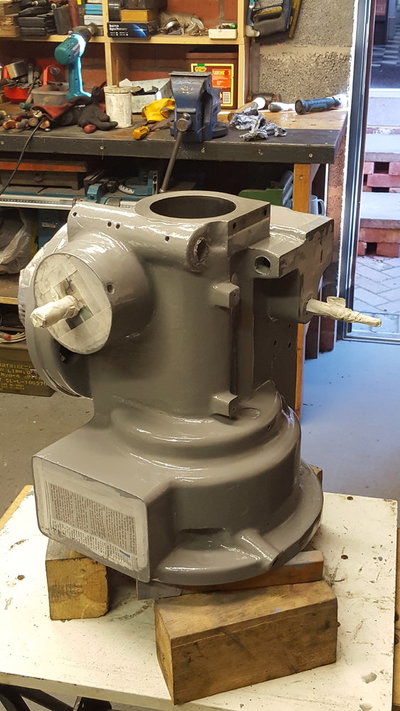

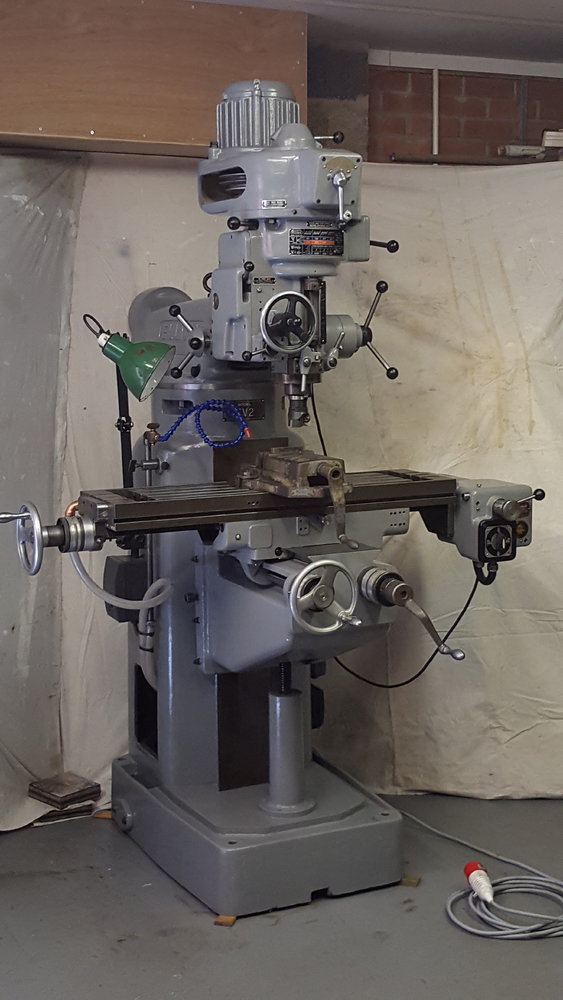

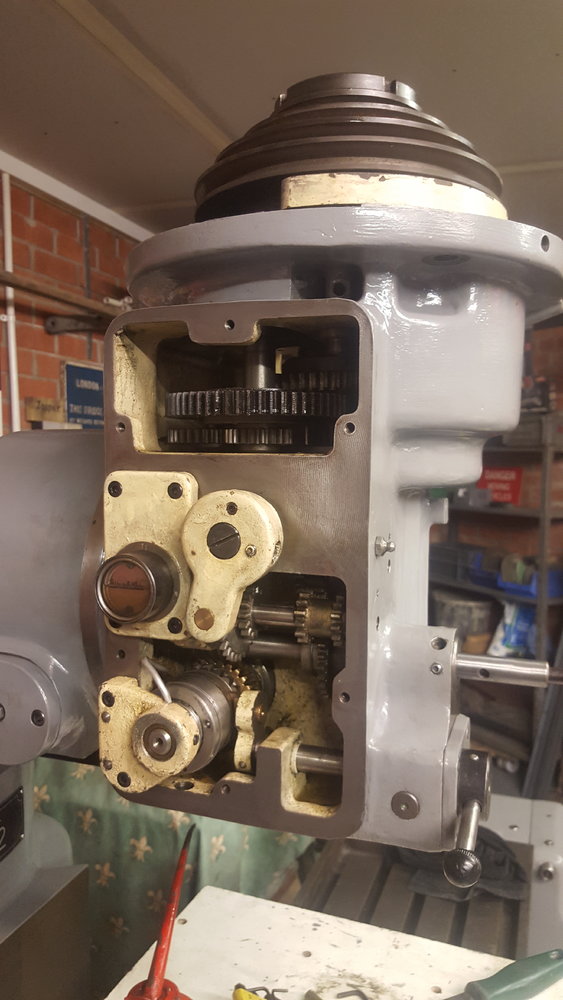

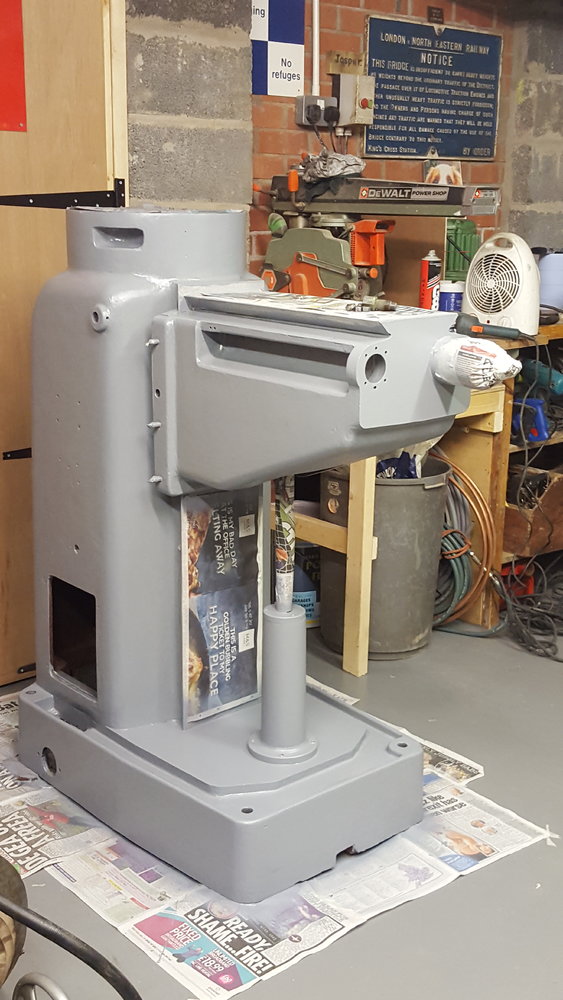

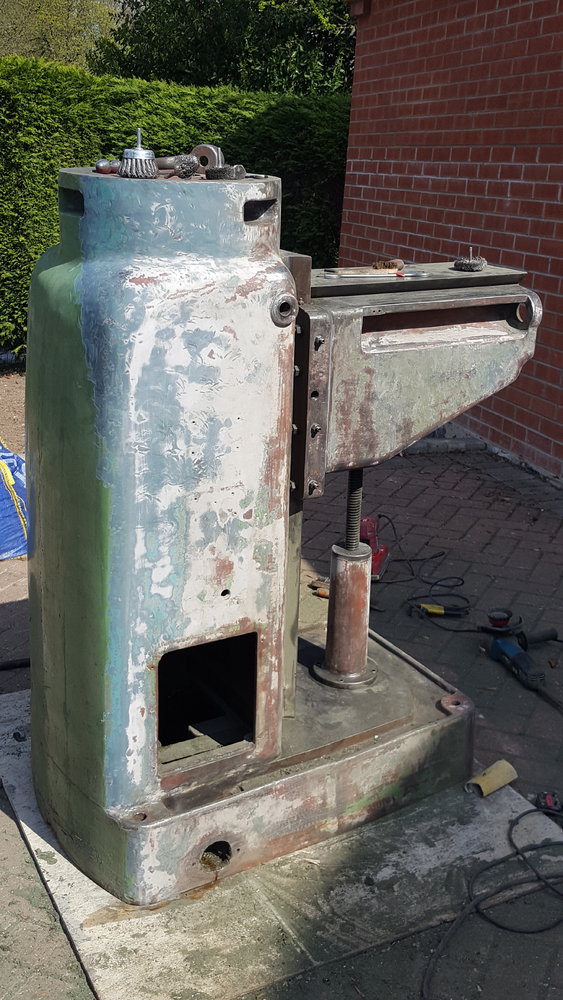

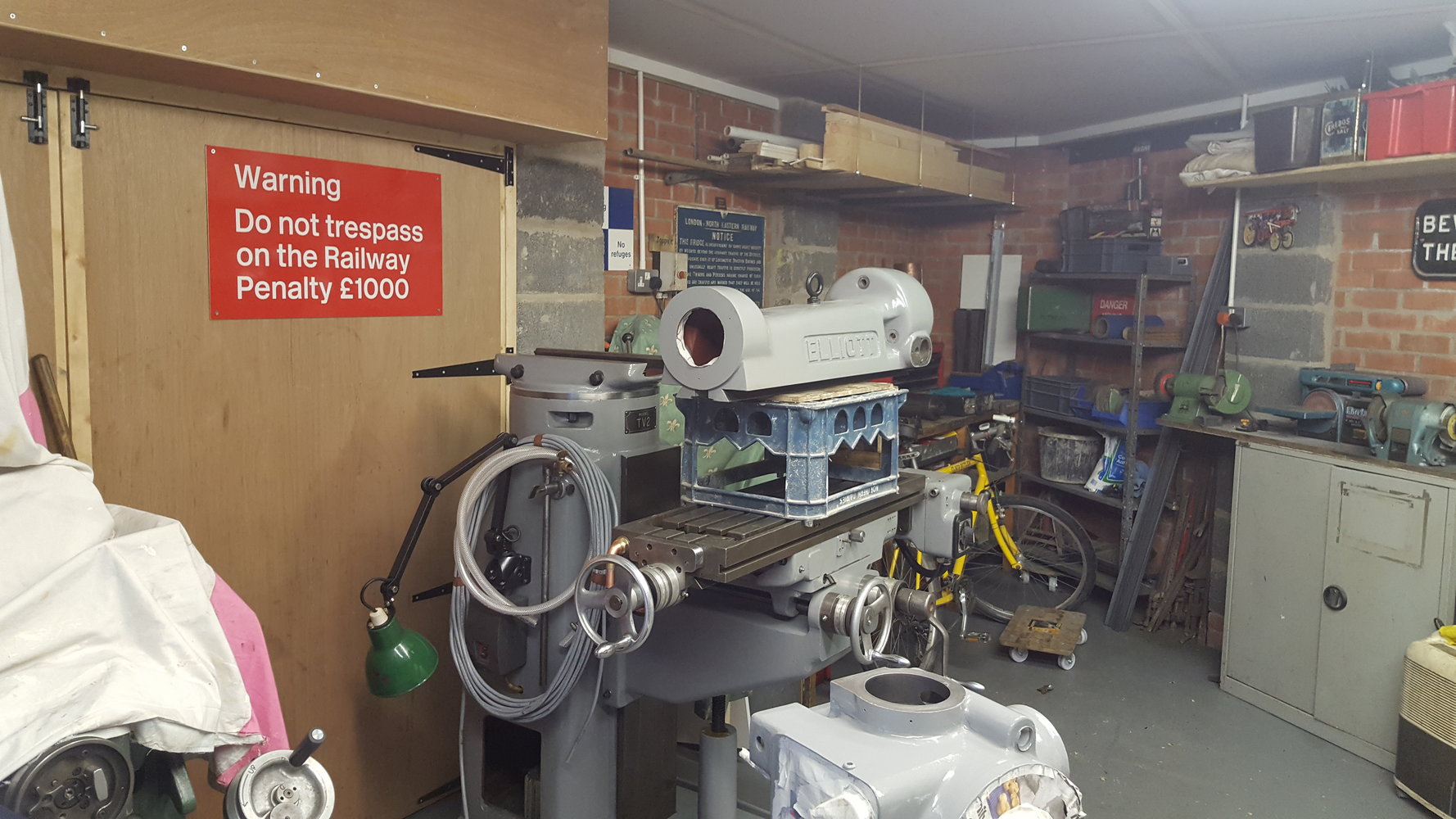

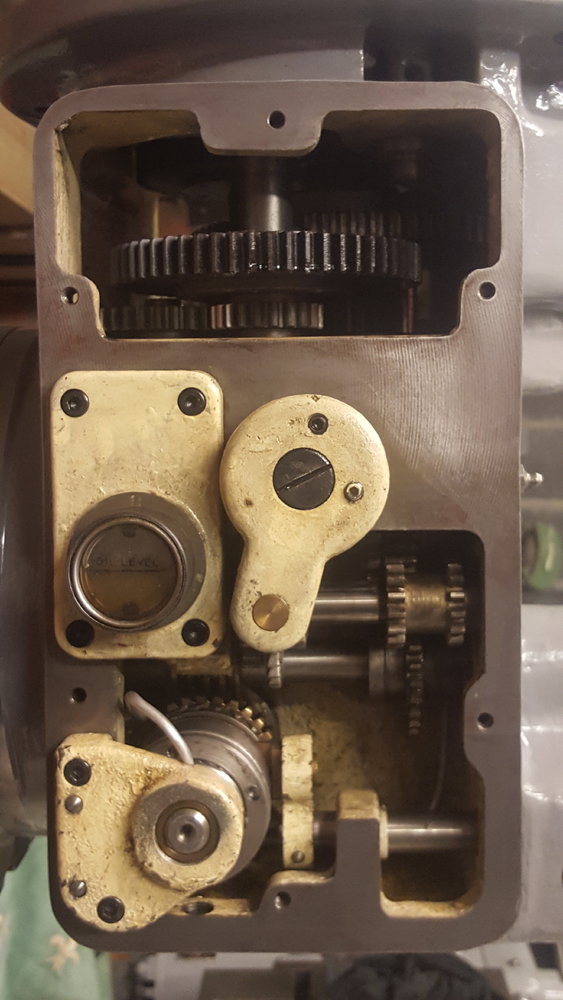

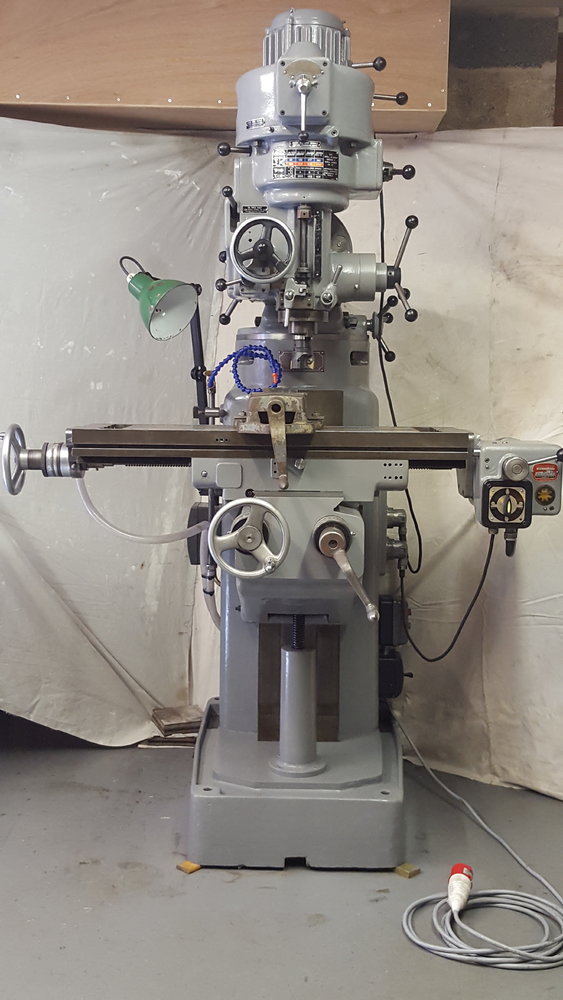

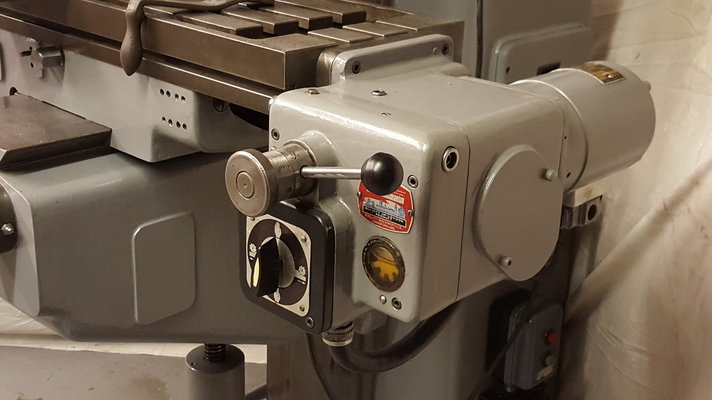

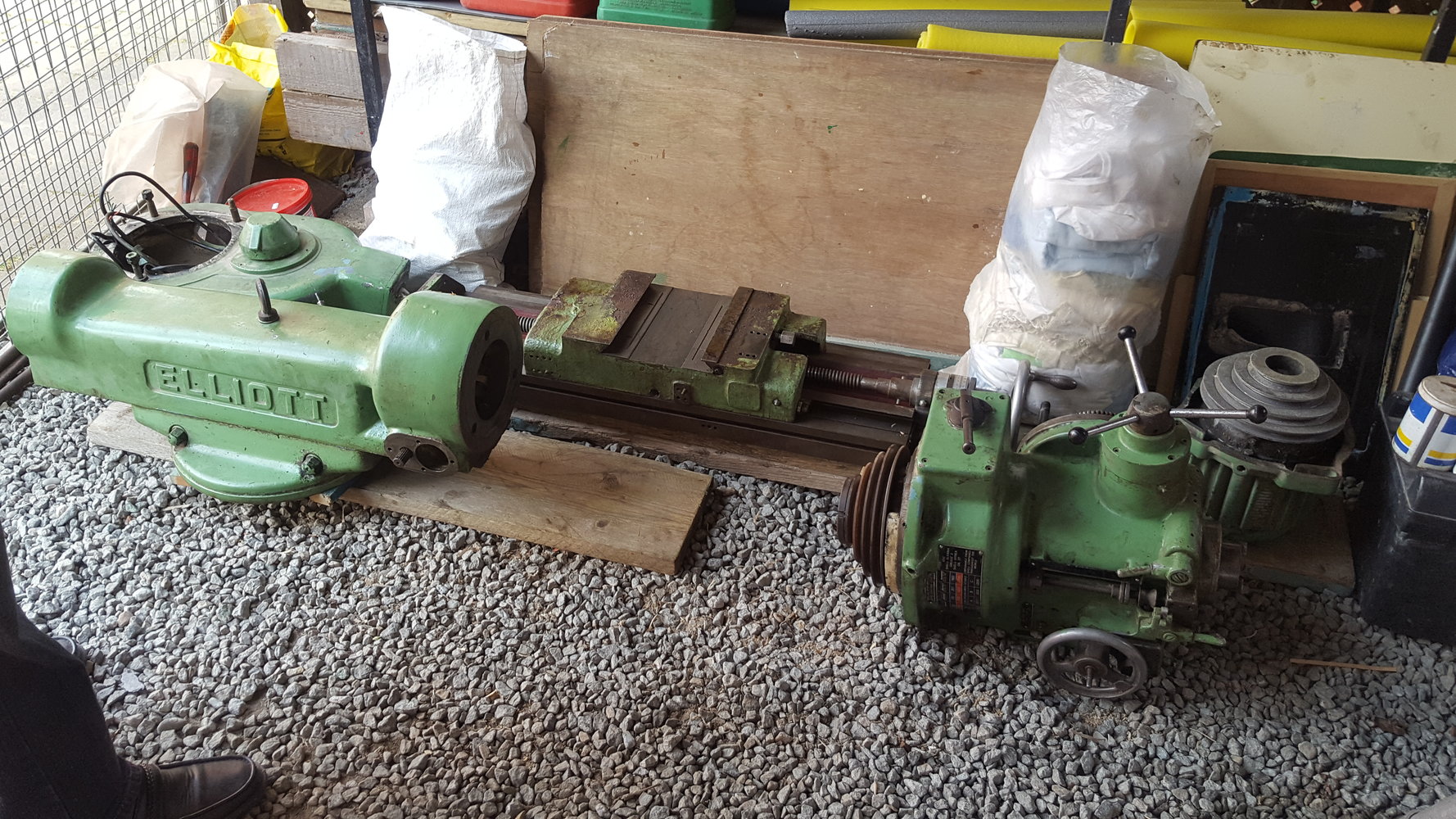

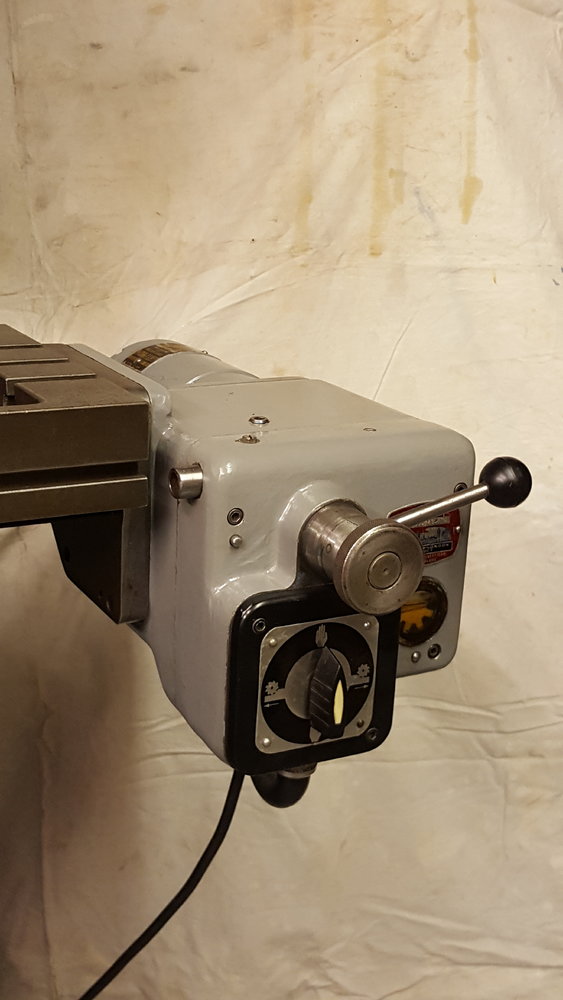

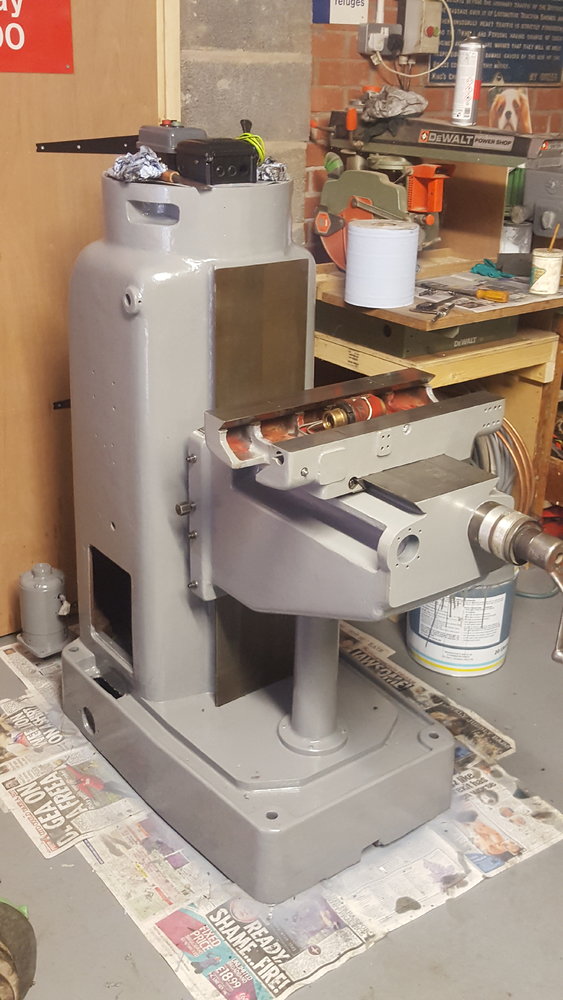

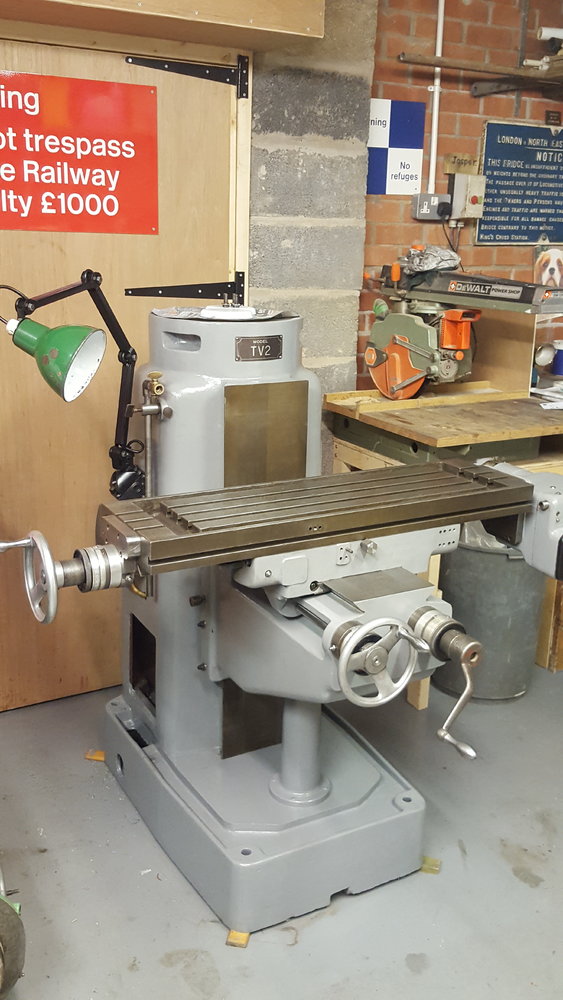

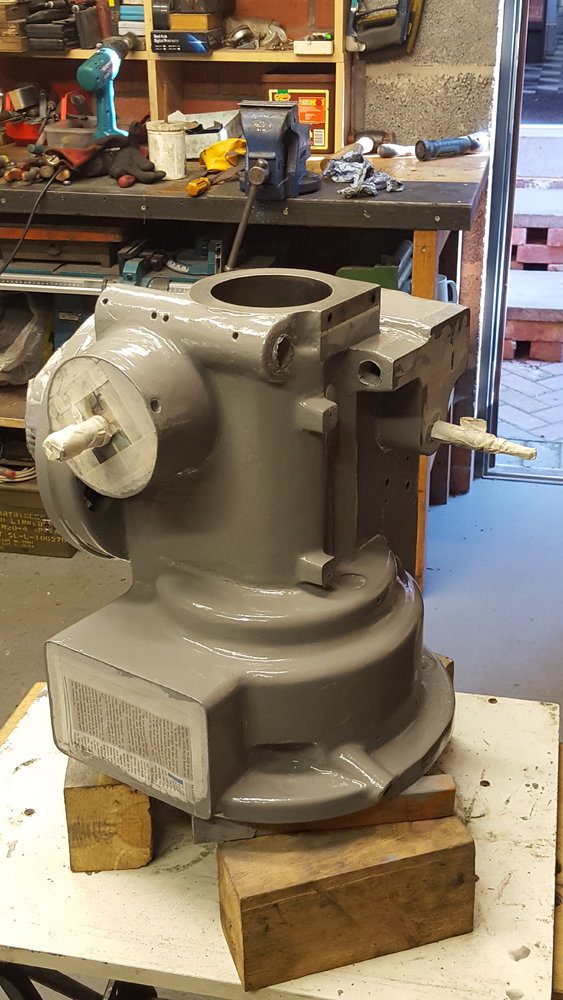

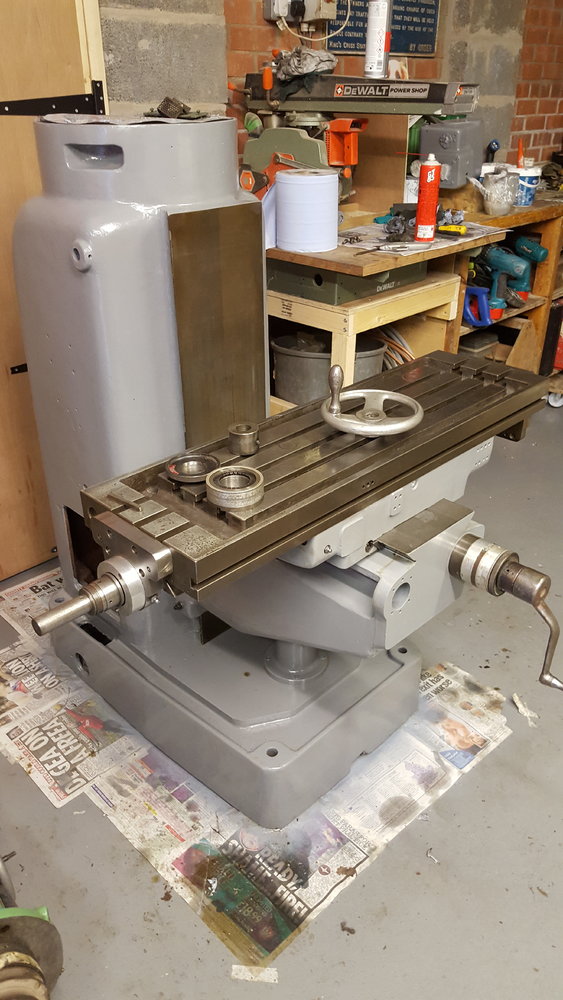

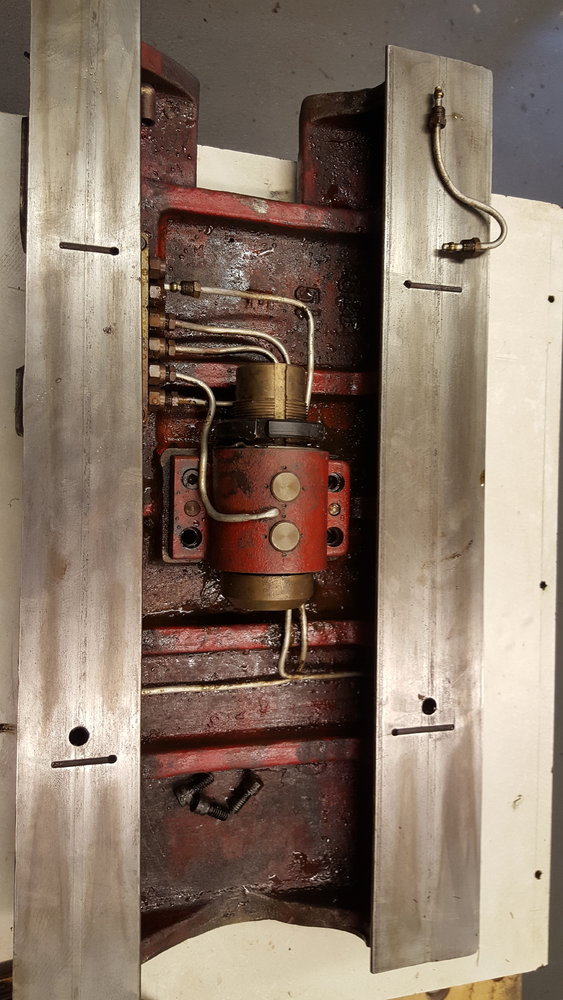

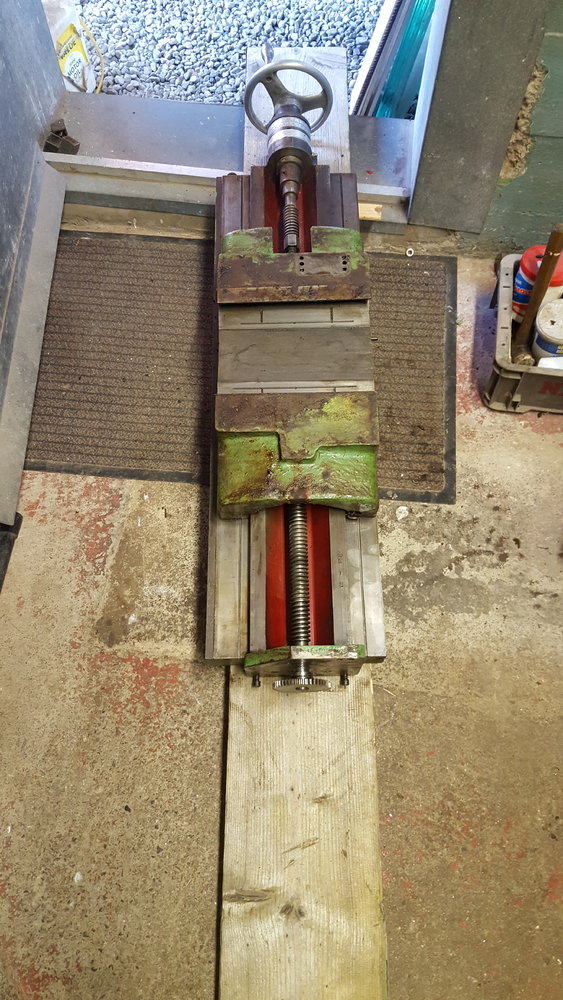

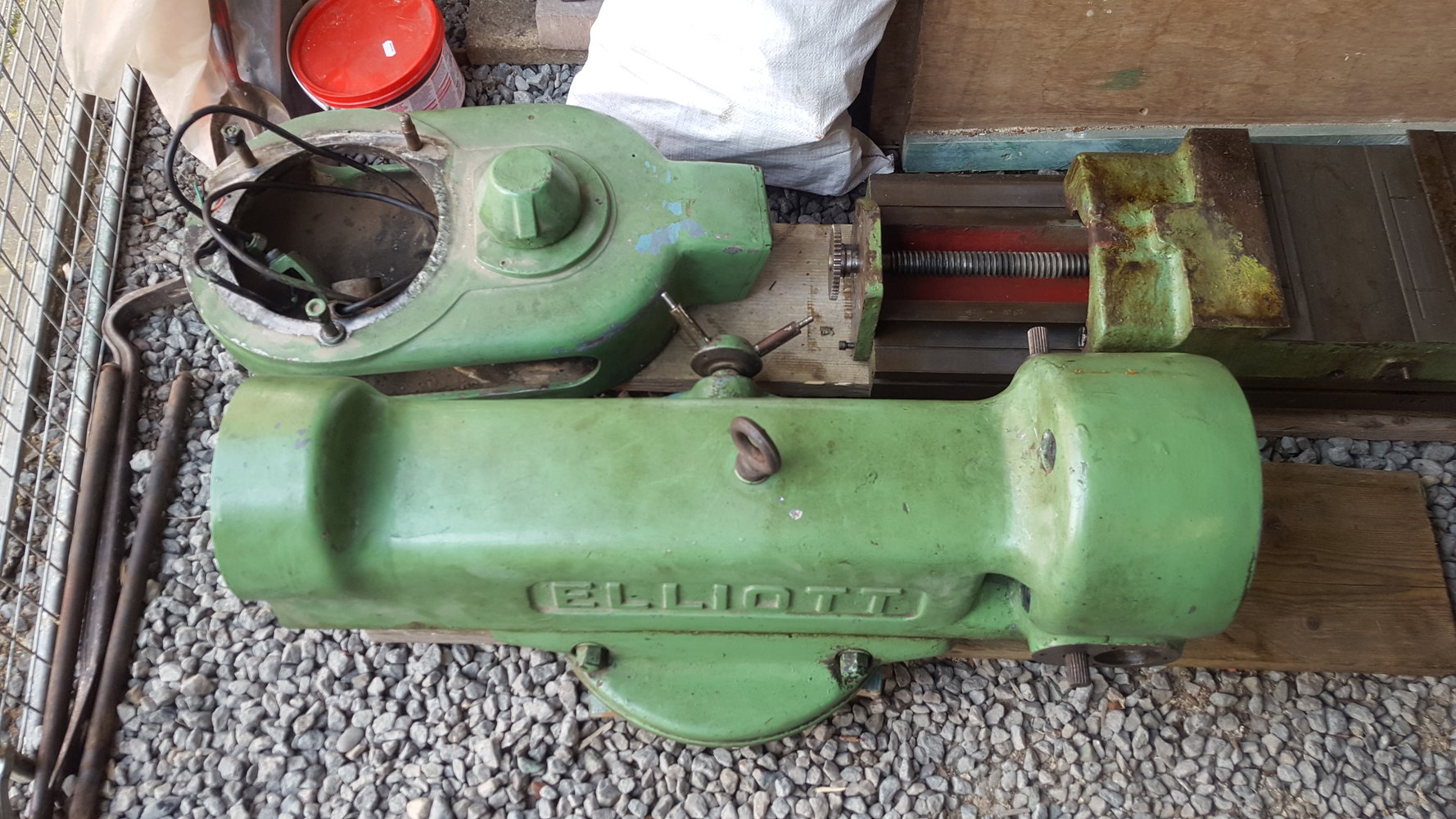

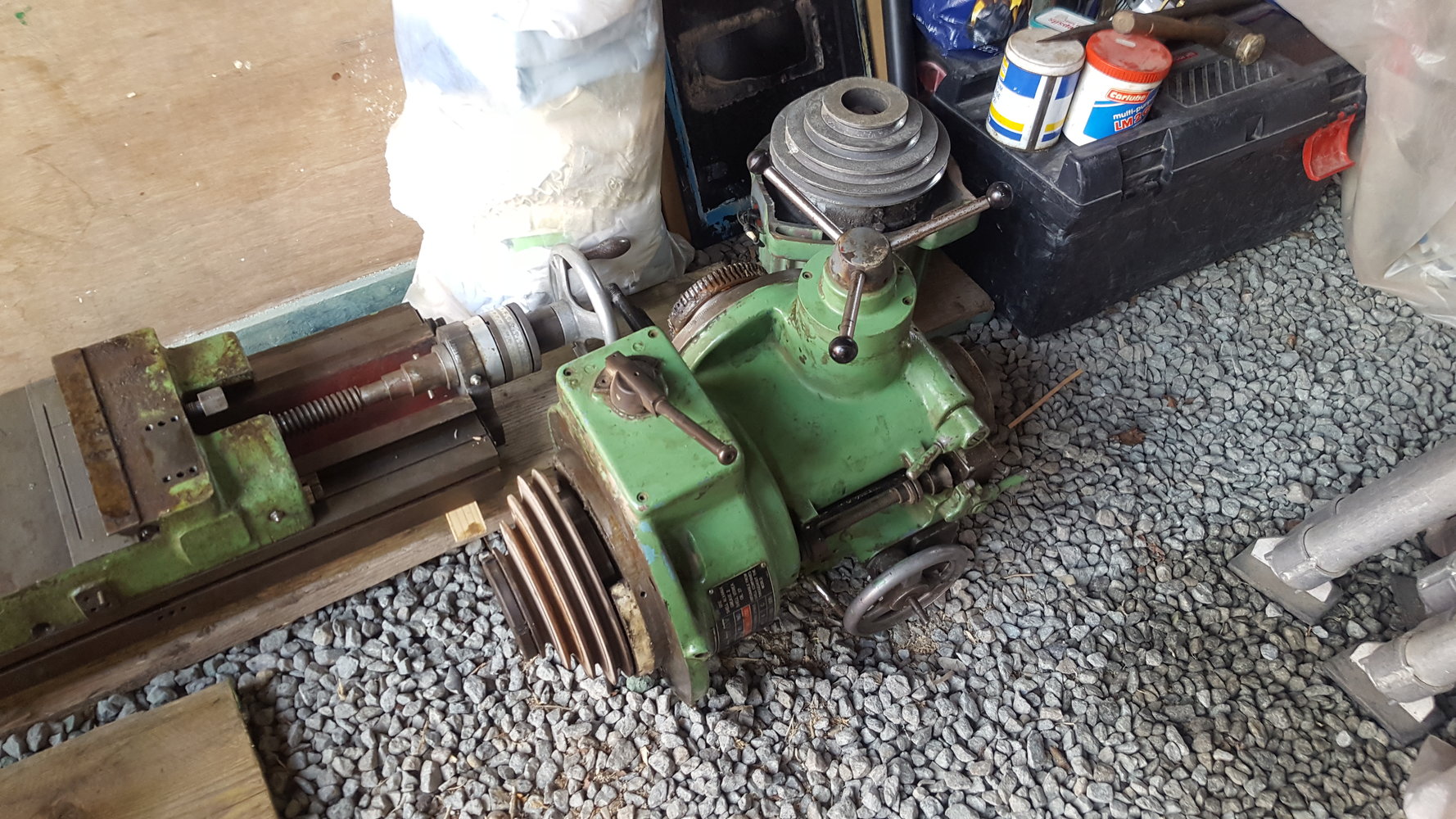

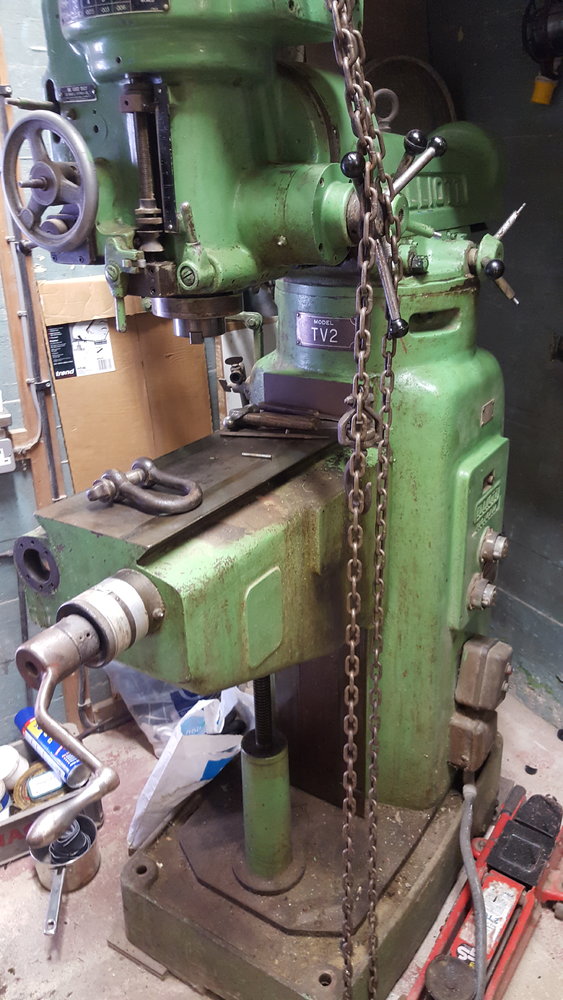

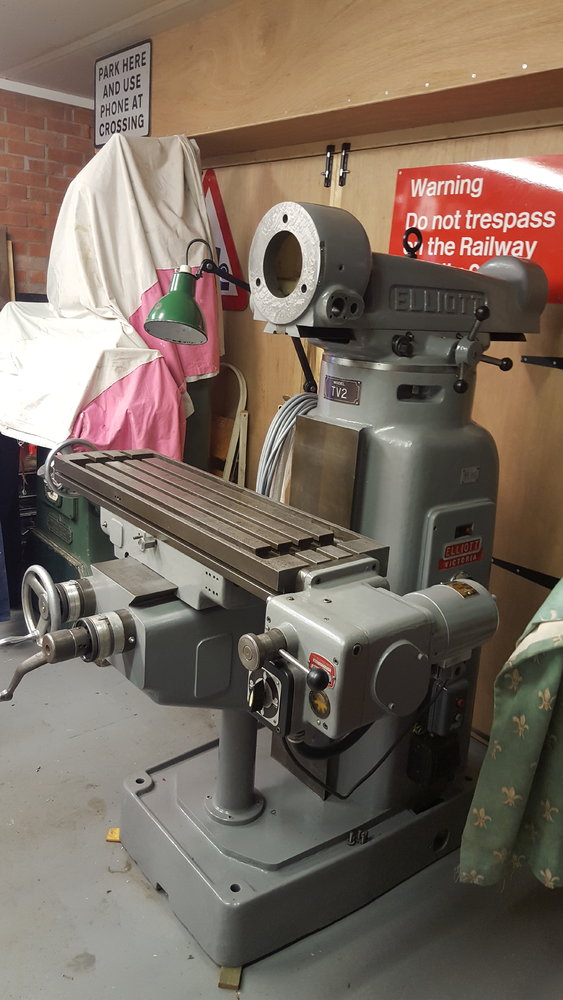

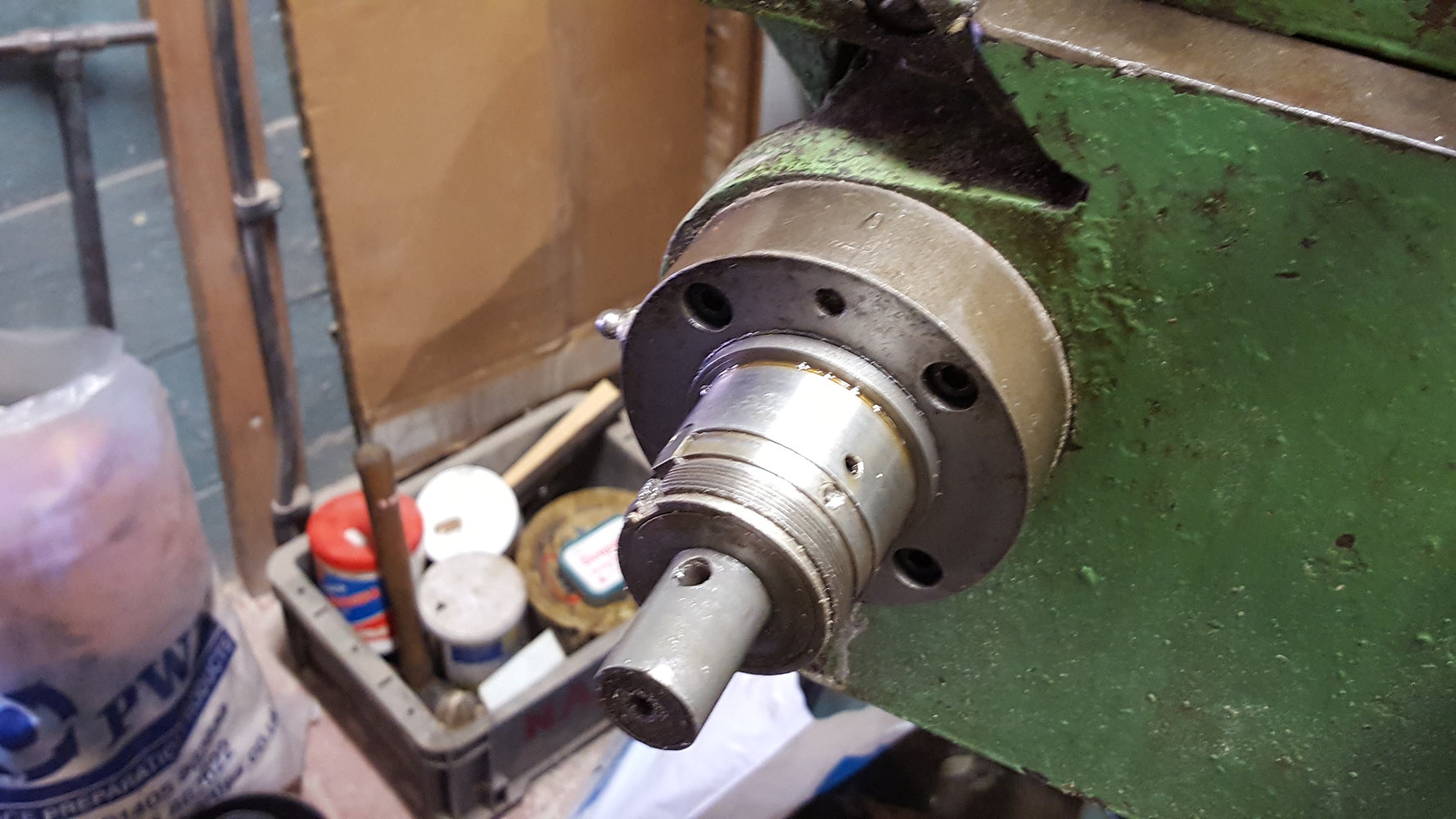

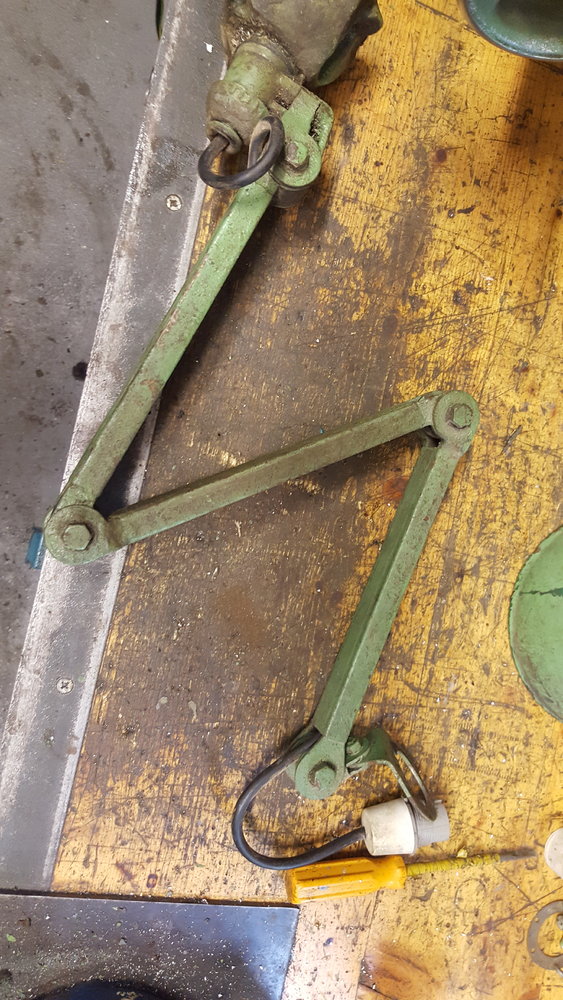

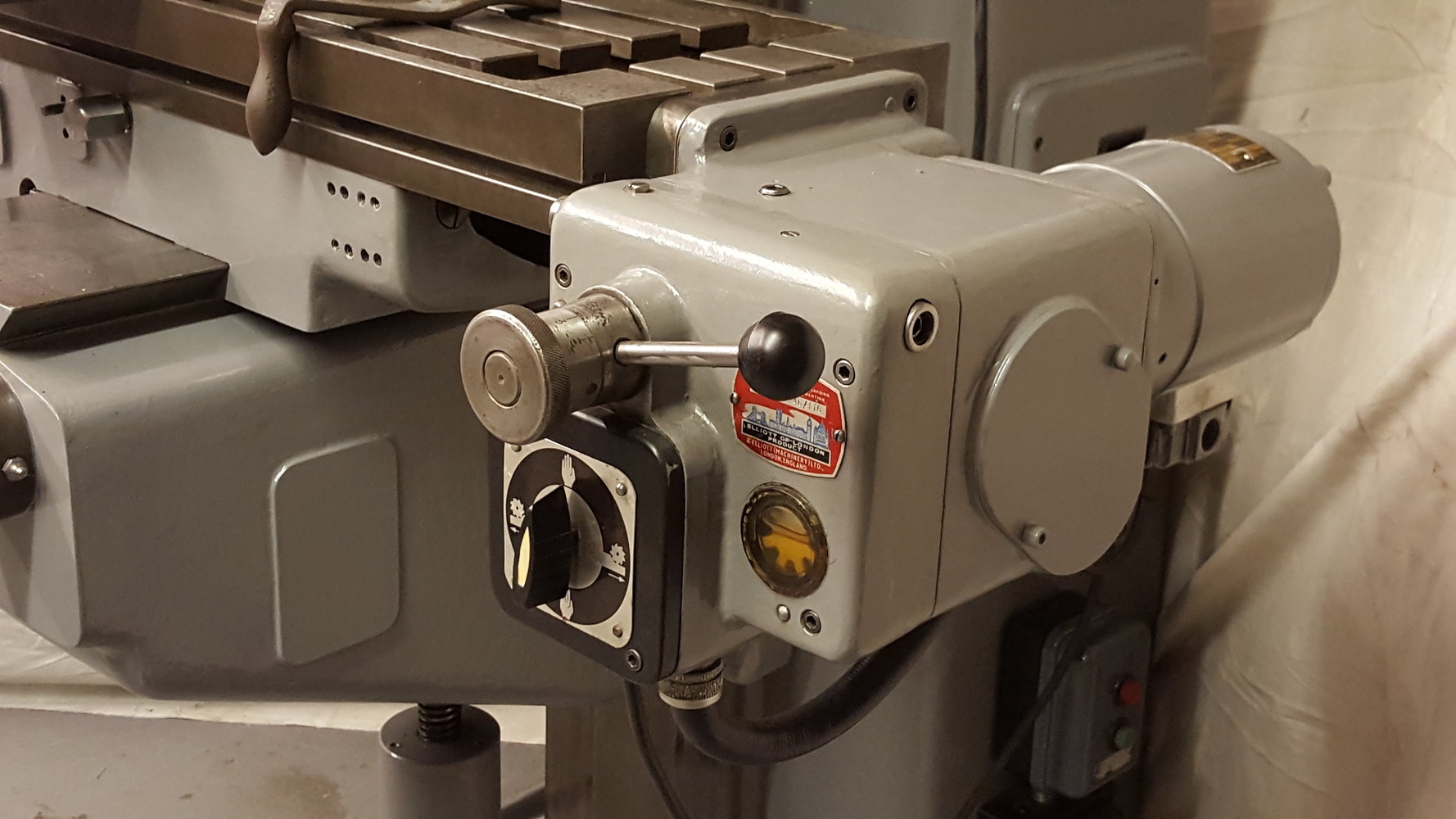

Forgot I had these on file. Pics of strip down and repaint, there is another 60 or so.

Rick Moore · Nov 17, 2022

Took about two months work. Removing the Knee was avoided.

Rick Moore · Nov 17, 2022

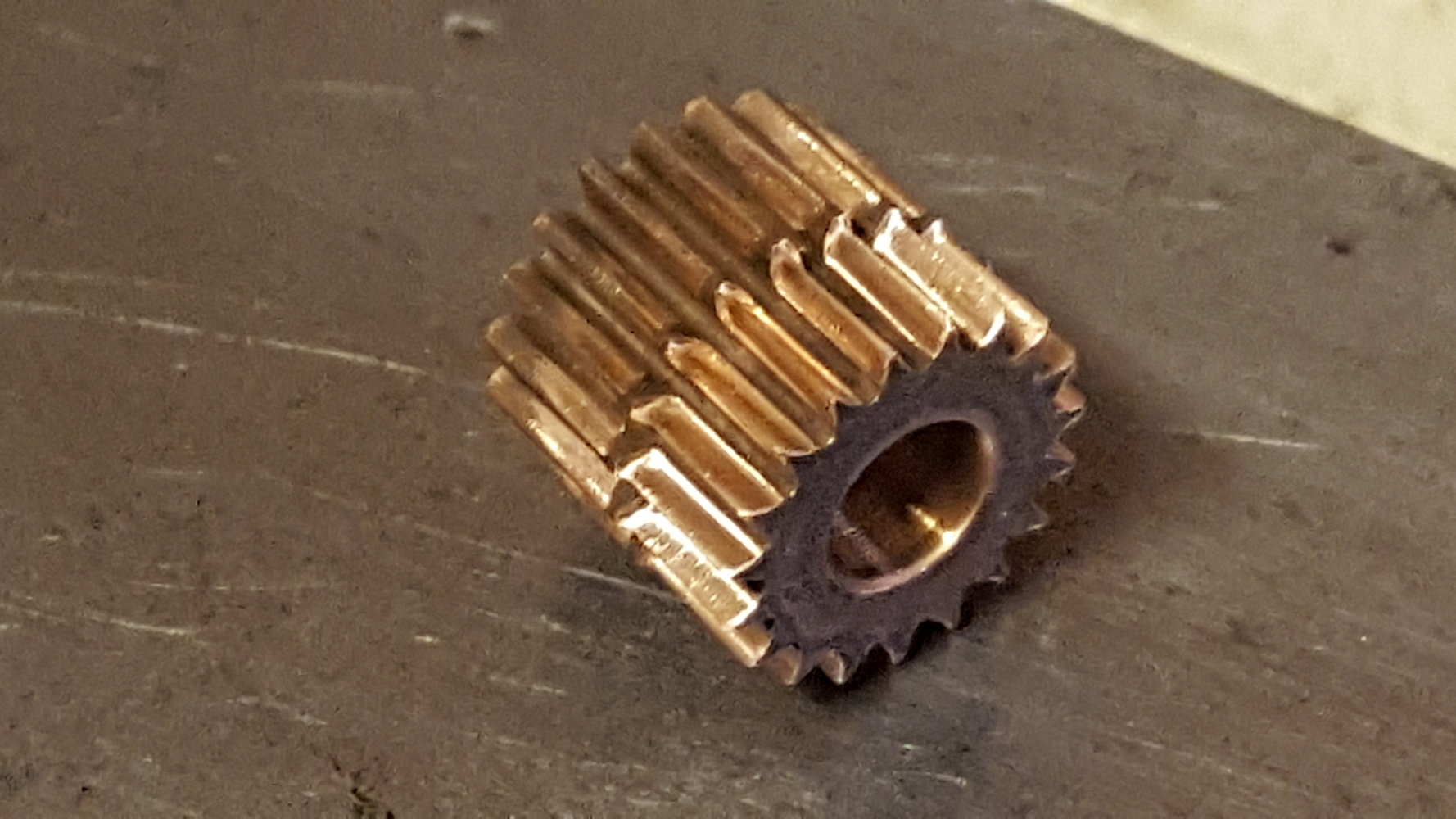

I still need to make the small brass gear for one of the dual indicator wheels.

Rick Moore · Nov 17, 2022

I would like to remake the auto traverse shut off bar and brackets that are missing if someone has photos and dimensions please. It must have been smashed off because I had to drill out the broken bolts from the front of the table.
