Looking for TR50mc

[diazden]

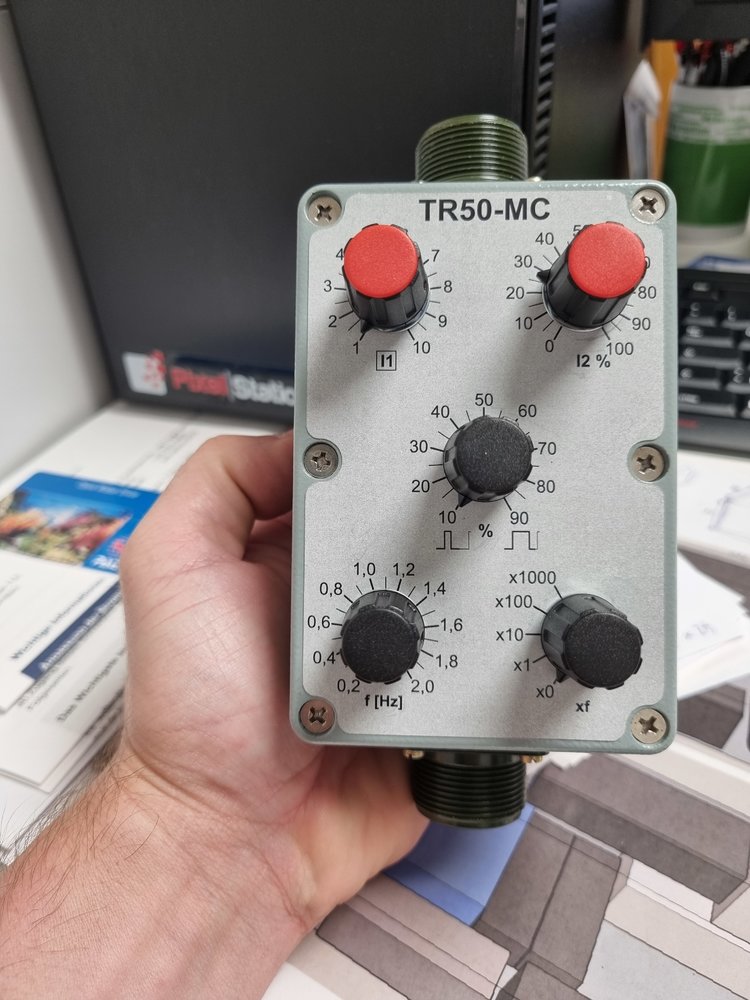

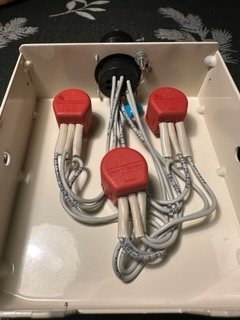

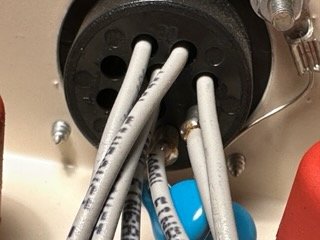

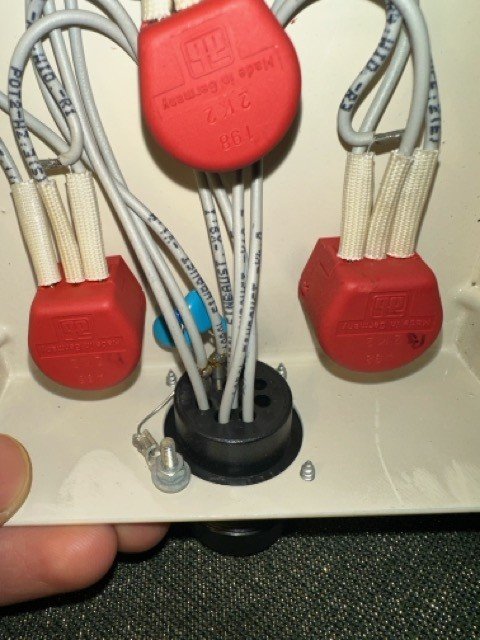

It's easier for me to swap the wires in the JST connectors , because I did fit heatshrink tubing after soldering the terminals in the pots,
Mate , thank you for helping me , appart from the reversed connections it works beautifully.
Now I would like to make a pedal .
Do you by any chance have made a PCB for it?
If so , can you please share the files with me?
Thank you
Mariano



[diazden]

Swapped the terminals on the potentiometers JST connectors, and at least the Amps control works as it should . The rest of the pots should work as well , as they were wired exactly the same.I will try to weld tomorrow, and report.
Regards
Mariano



[diazden]

Here you go.

View attachment 412468

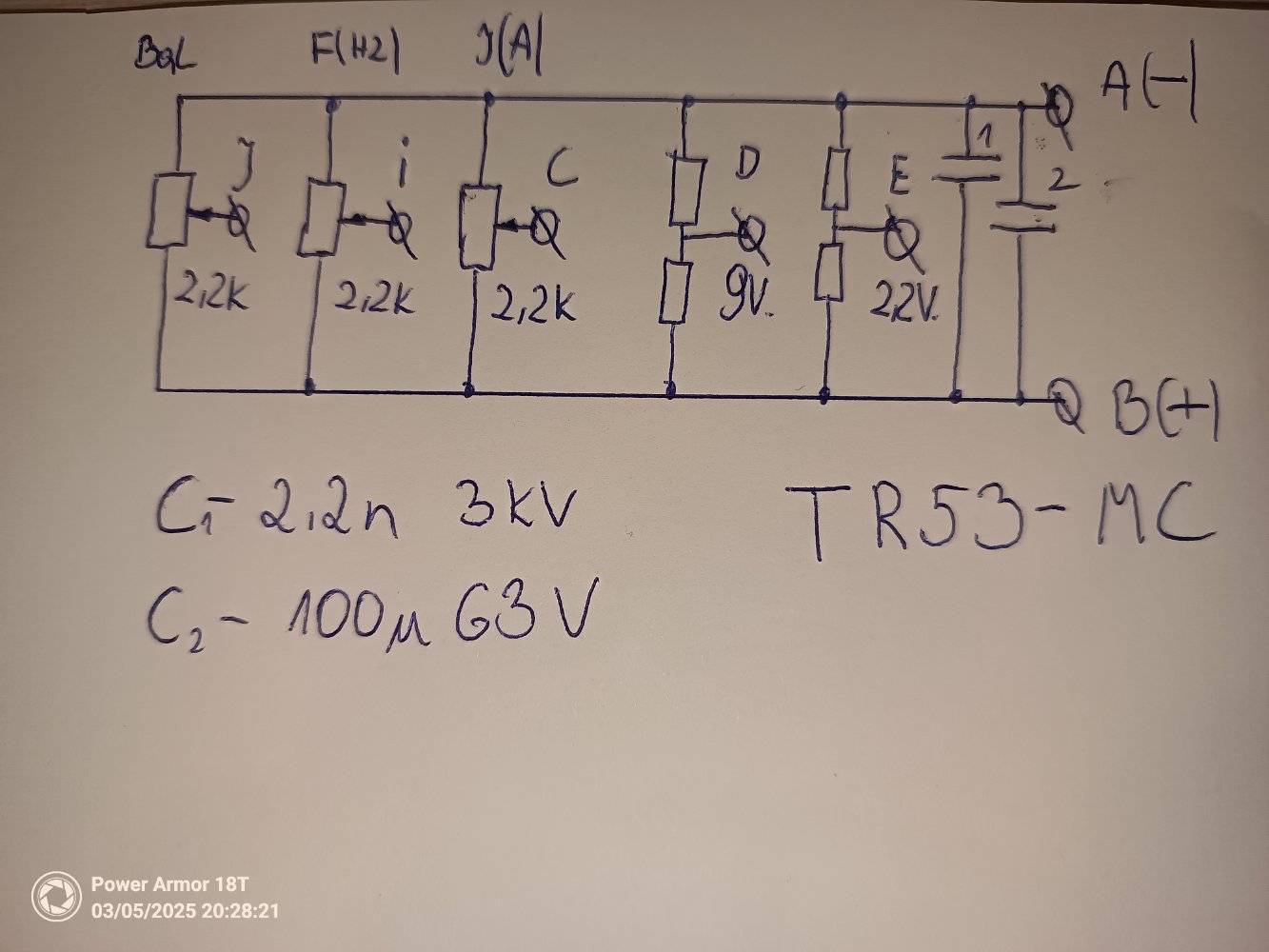

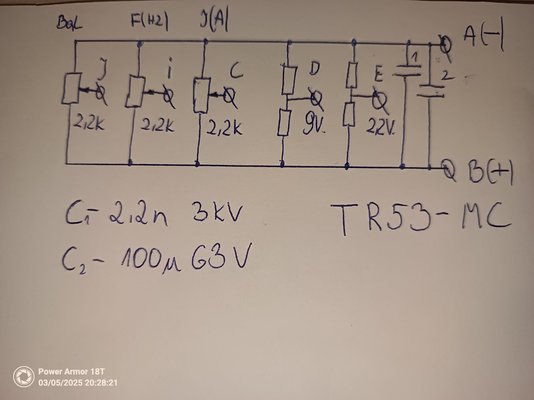

Hi Jan ,I can’t read the values of the components on the left side of the picture, specially the capacitors, can you please take a zoomed photo?
Thank you
Mariano



[Jan-DIY]

2n2 3kV ceramic caps

CCH-2N2/3000V SR PASSIVES - Kondensator: Keramik | 2,2nF; 3kV; Y5P; ±10%; THT; 7,5mm | TME - Elektronik Bauteile

SR PASSIVES CCH-2N2/3000V | Kondensator: Keramik; 2,2nF; 3kV; Y5P; ±10%; THT; 7,5mm - Das Produkt ist bei TME erhältlich. Prüfen Sie unser reichhaltiges Angebot.

www.tme.eu



[diazden]

Thank you so much mate.
Did you have any PCB files for the pedal?
If so , can you please share them with me? That will get me out of a lot of headaches
Thanks again
Mariano



[PatH]

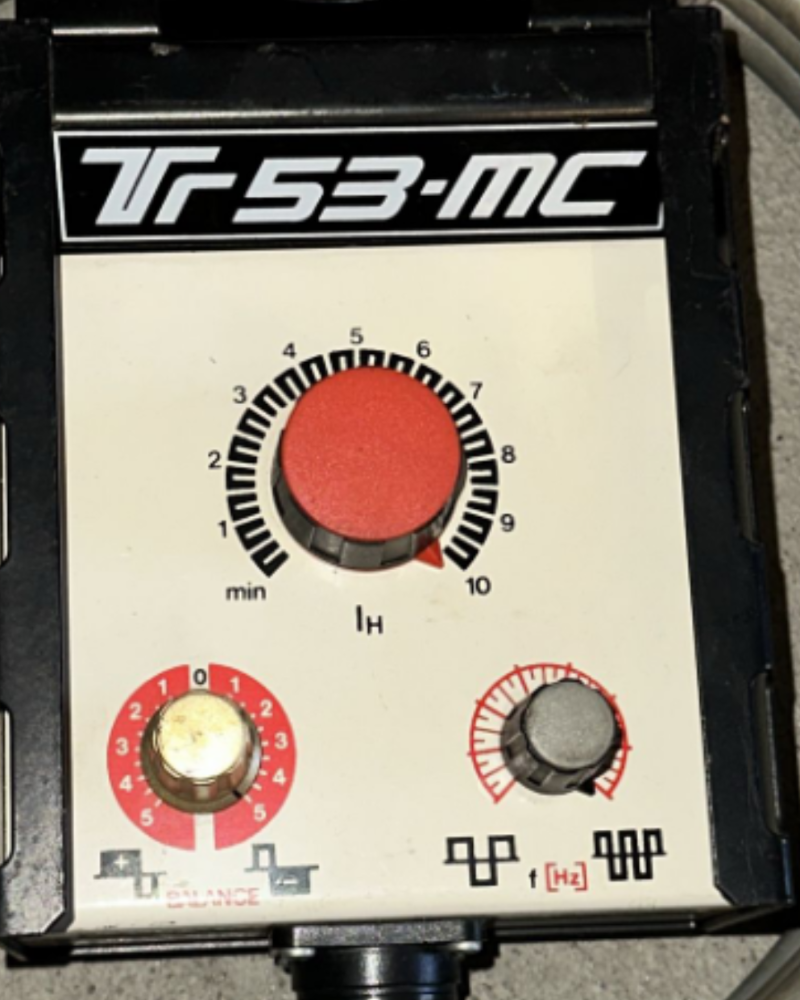

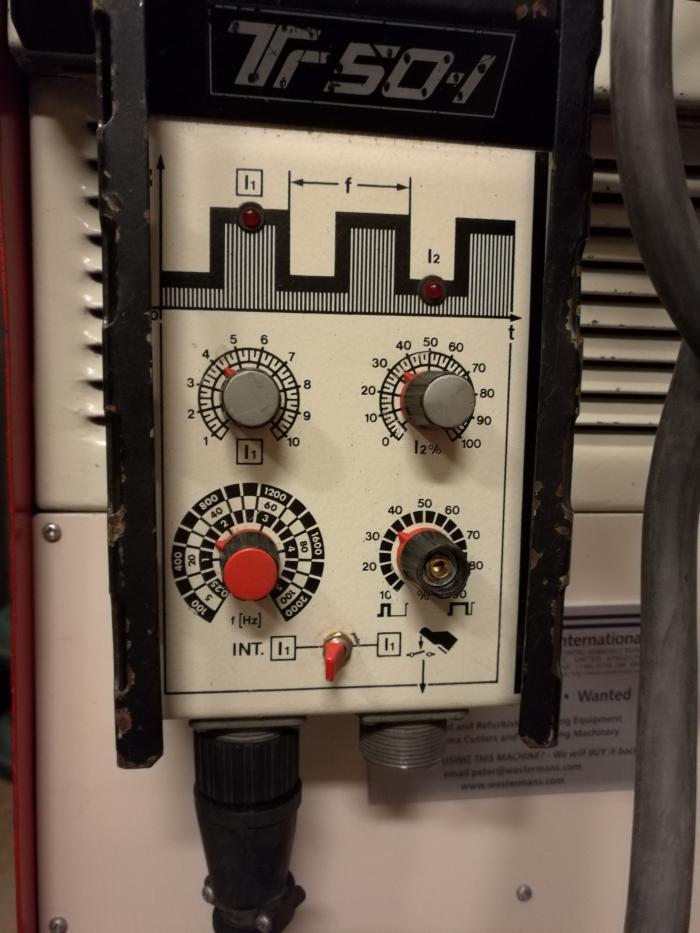

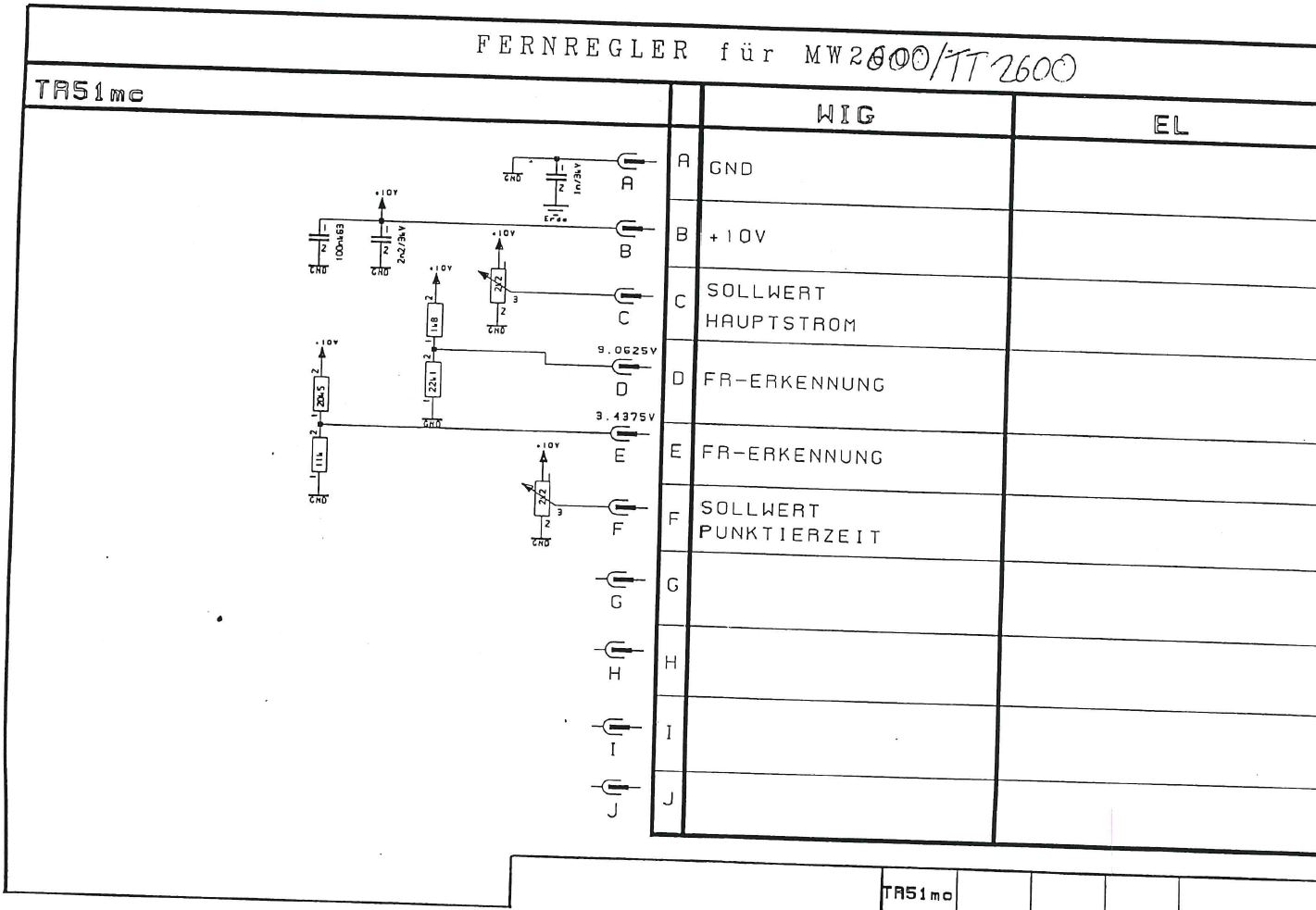

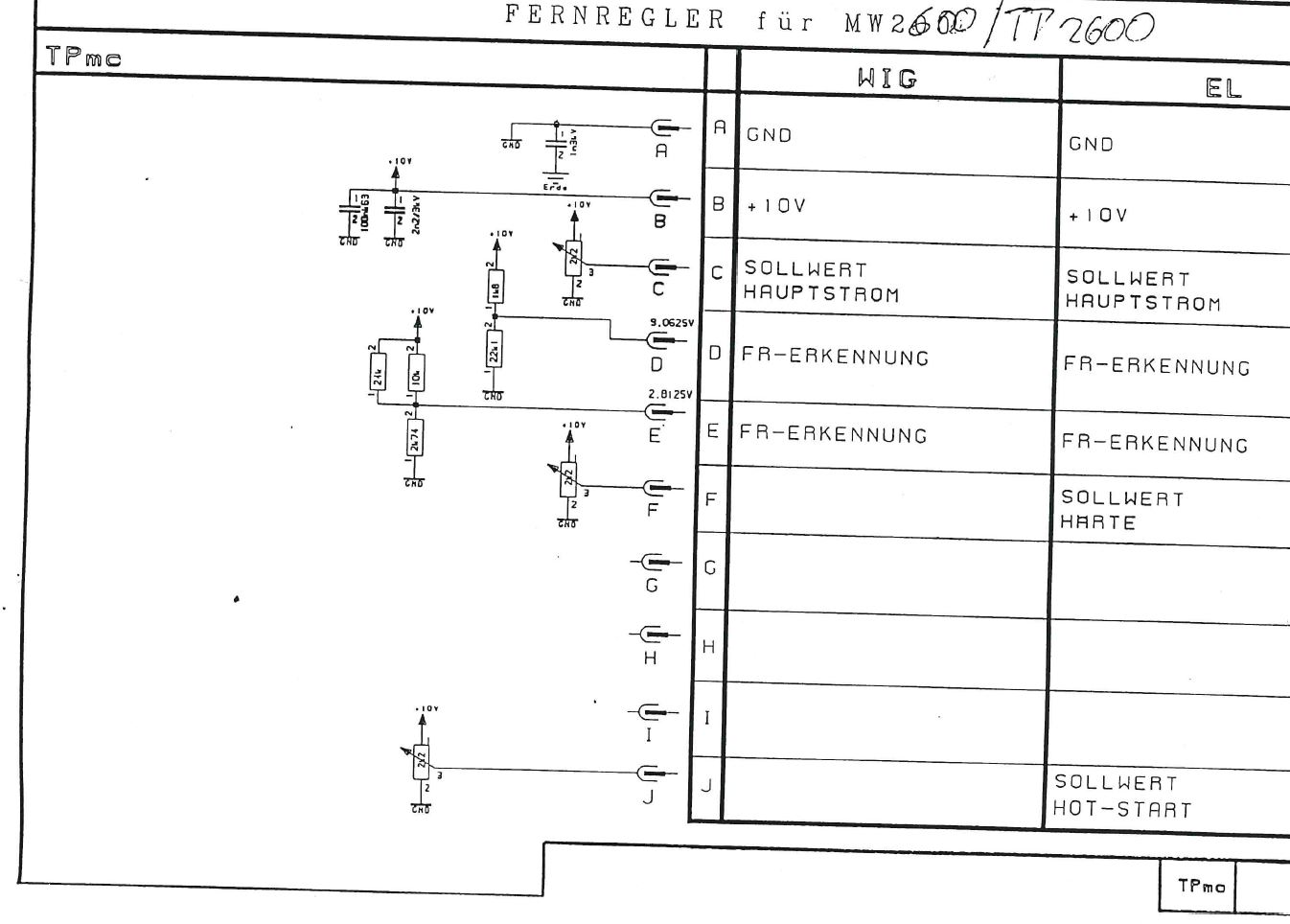

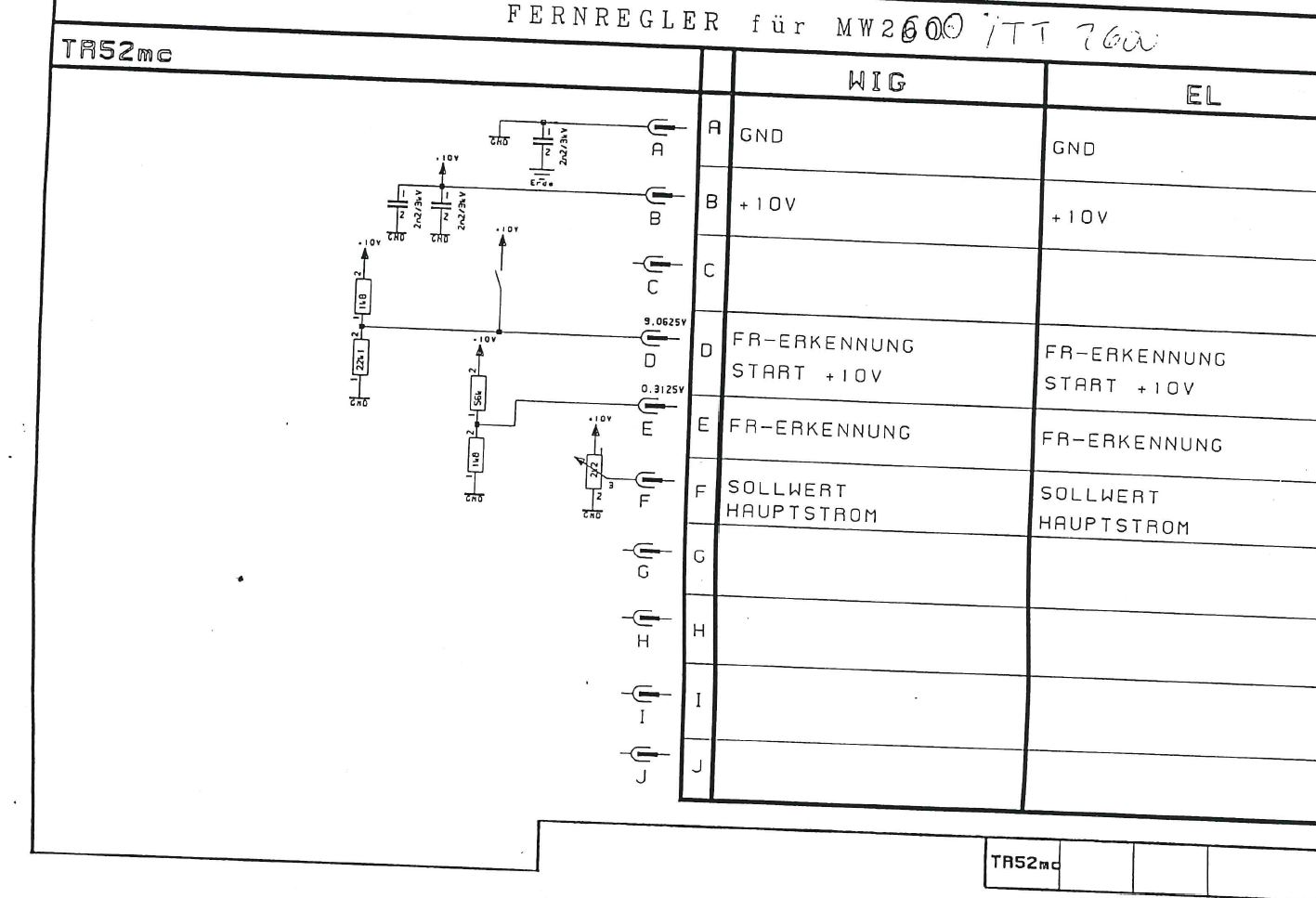

Does anyone have schematics for TR50-1? Used for Fronius MW450 and TT330/450?
Want to retrofit pulse control into panel, since TIG without pulse isn't fun ;-)



[Mario78]

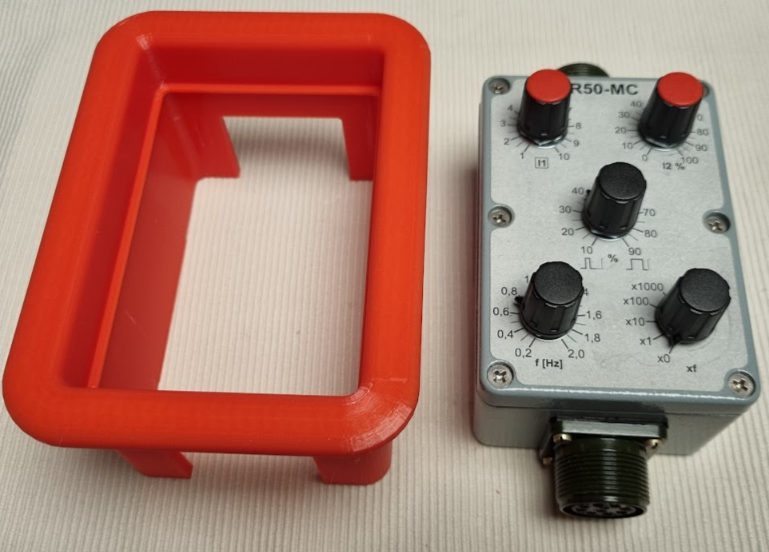

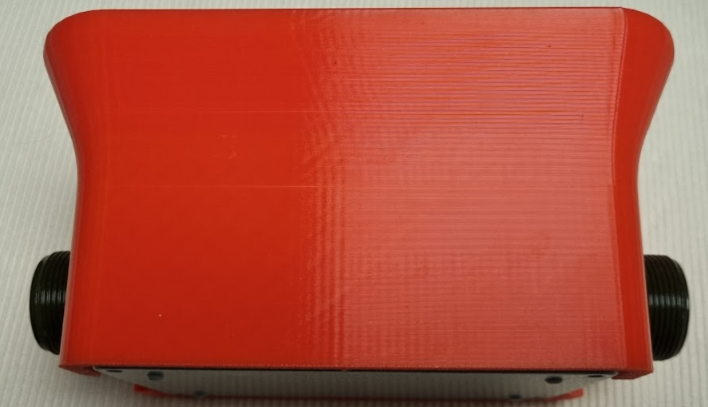

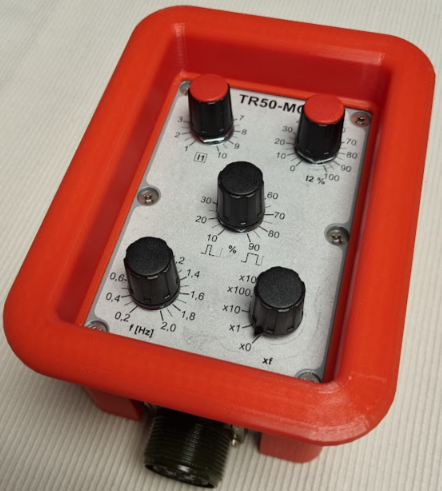

Label is finish and sticked to the housing.
