Modifying a 3D scan.

[Agroshield]

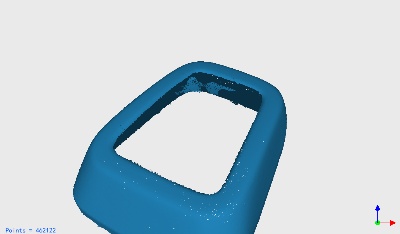

From what I can read in your scanner manual, it outputs a .ply file (it will be about 2440 x 1220 x 18).

There is a mesh workbench in FreeCAD: https://wiki.freecadweb.org/Mesh_Workbench

It looks like you import your ply there, trim off what you do not want (see 'cutting' in link above), and resave. If the corners stay the same and it just needs to be narrower or shorter or both, you'd need to create two halves (four quarters) as separate files, then boolean them back together into one piece.



[Ruffian]

Put it into sketchup
Convert to mesh.
Split the bodies and then minimise the width.



[ajlelectronics]

I have found the .ply file but it is too large to upload, apparently.



[Pete.]

You can import the .ply into meshmixer.

How big is the file?



[ajlelectronics]



[ajlelectronics]

You can import the .ply into meshmixer.

How big is the file?

8Mb.



[Pete.]

You can email that. You might even be able to attach it here if you just change the extension to jpg.

I'll take a look at it if you like but even though I have meshmixer installed I've never actually used it.



[ajlelectronics]

Meshmixer file (I think)...



[daedalusminos]

That would be so easy to model from scratch using the scan as a guide. If the sides are straight I'd go for a tapered extrude (or may be loft), if they are curved or bulged I'd got for an extrude along path.



[ajlelectronics]

That would be so easy to model from scratch using the scan as a guide. If the sides are straight I'd go for a tapered extrude (or may be loft), if they are curved or bulged I'd got for an extrude along path.

Be my guest!

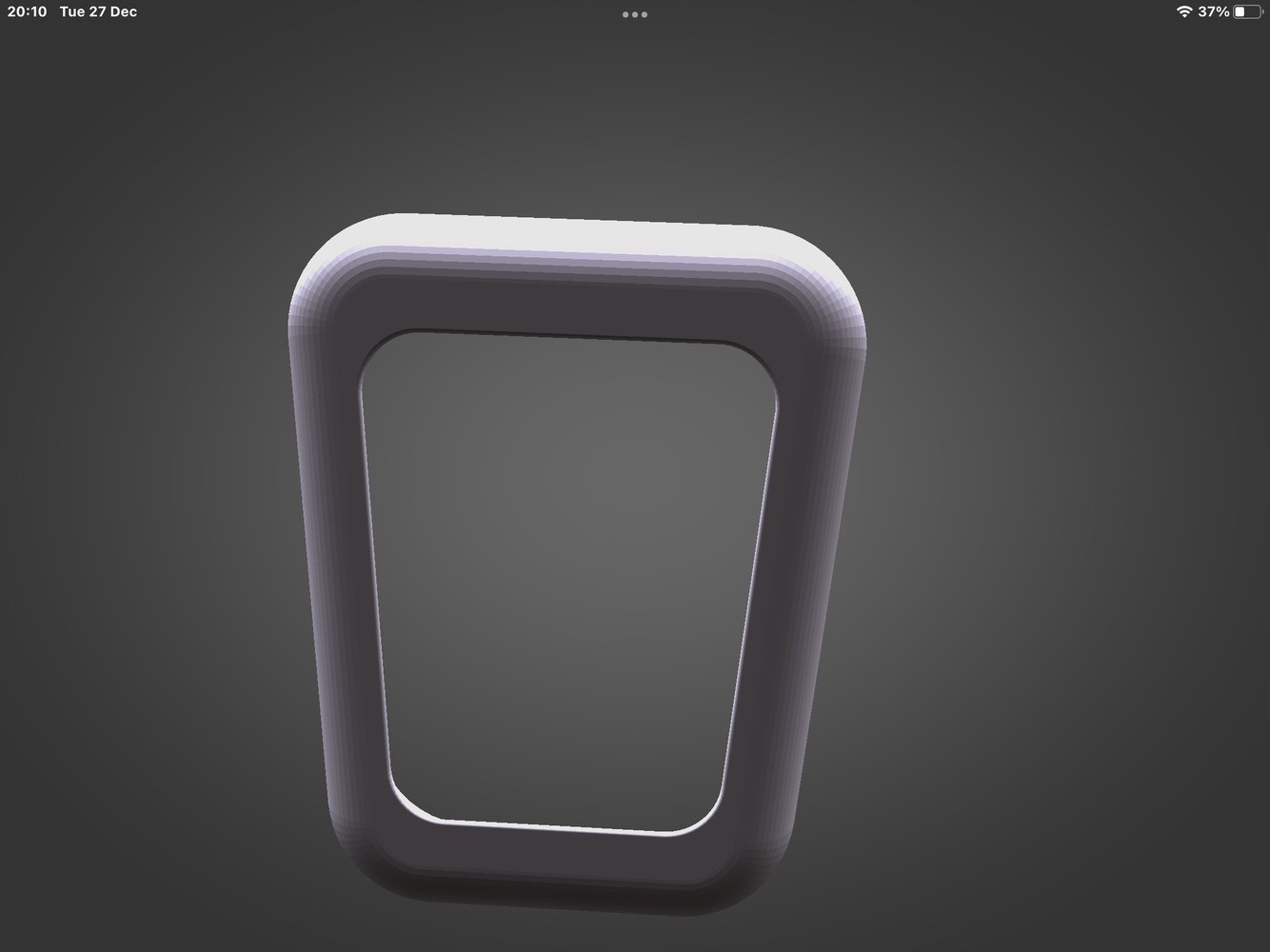

Best I managed was



[ajlelectronics]

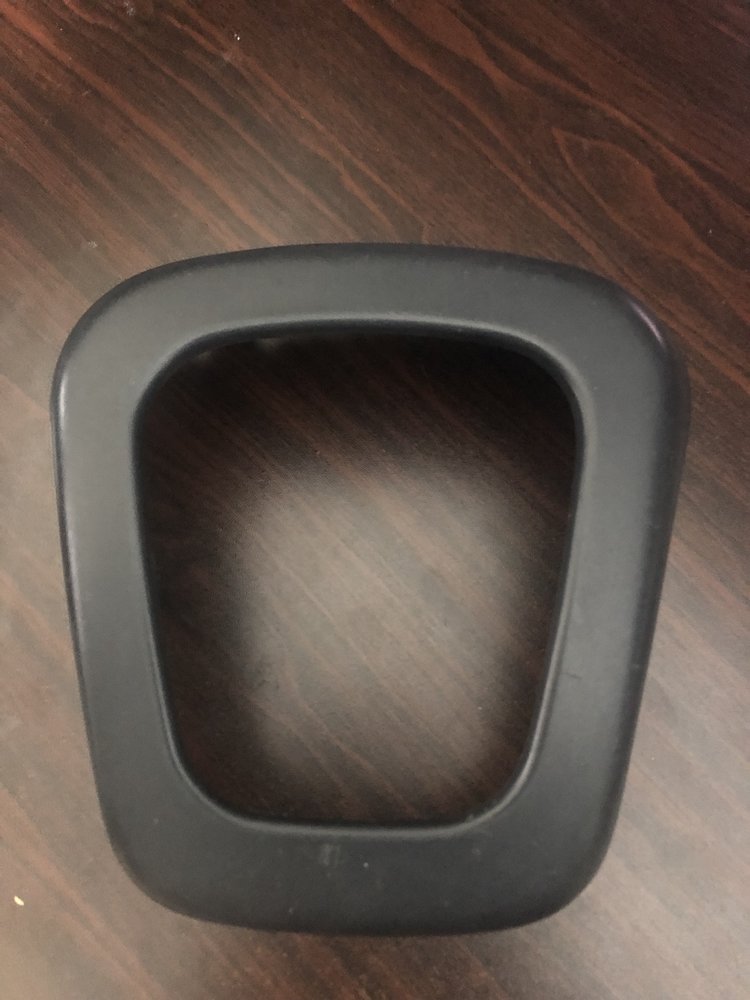

Here is a different cover. I actually prefer this one I think.



[ajlelectronics]

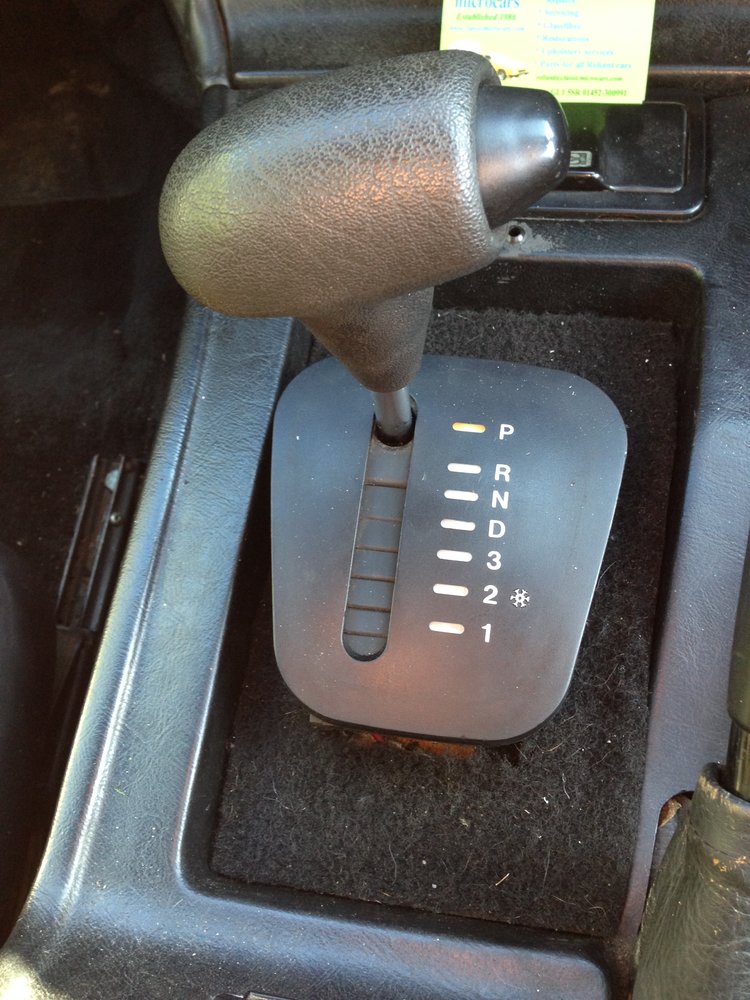

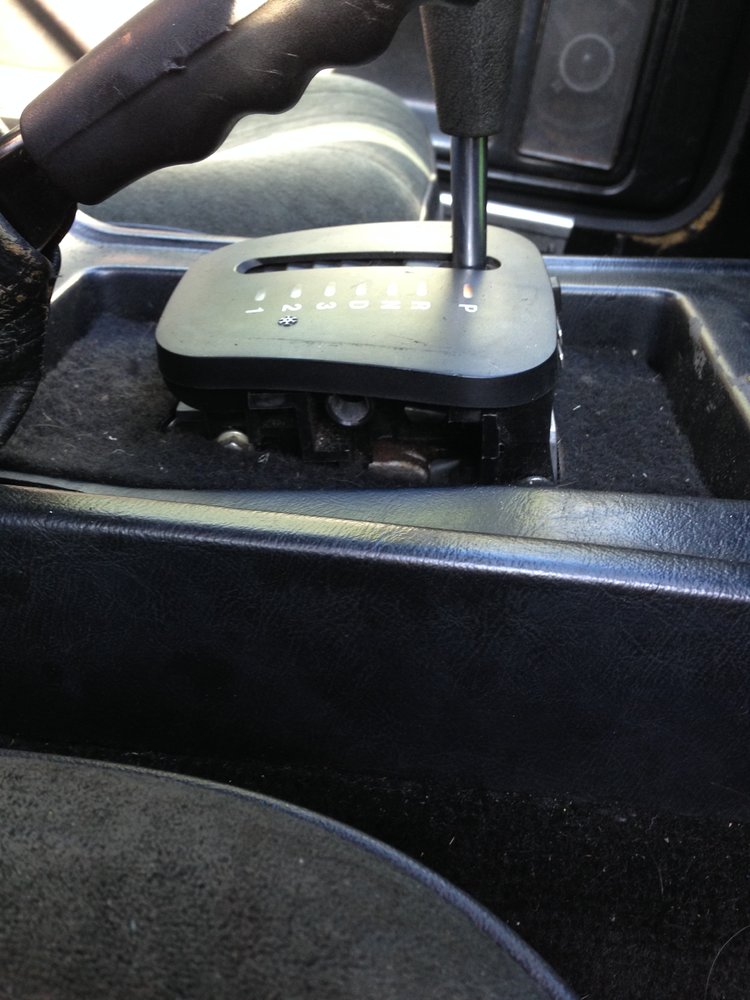

This is where it needs to go.



[daedalusminos]

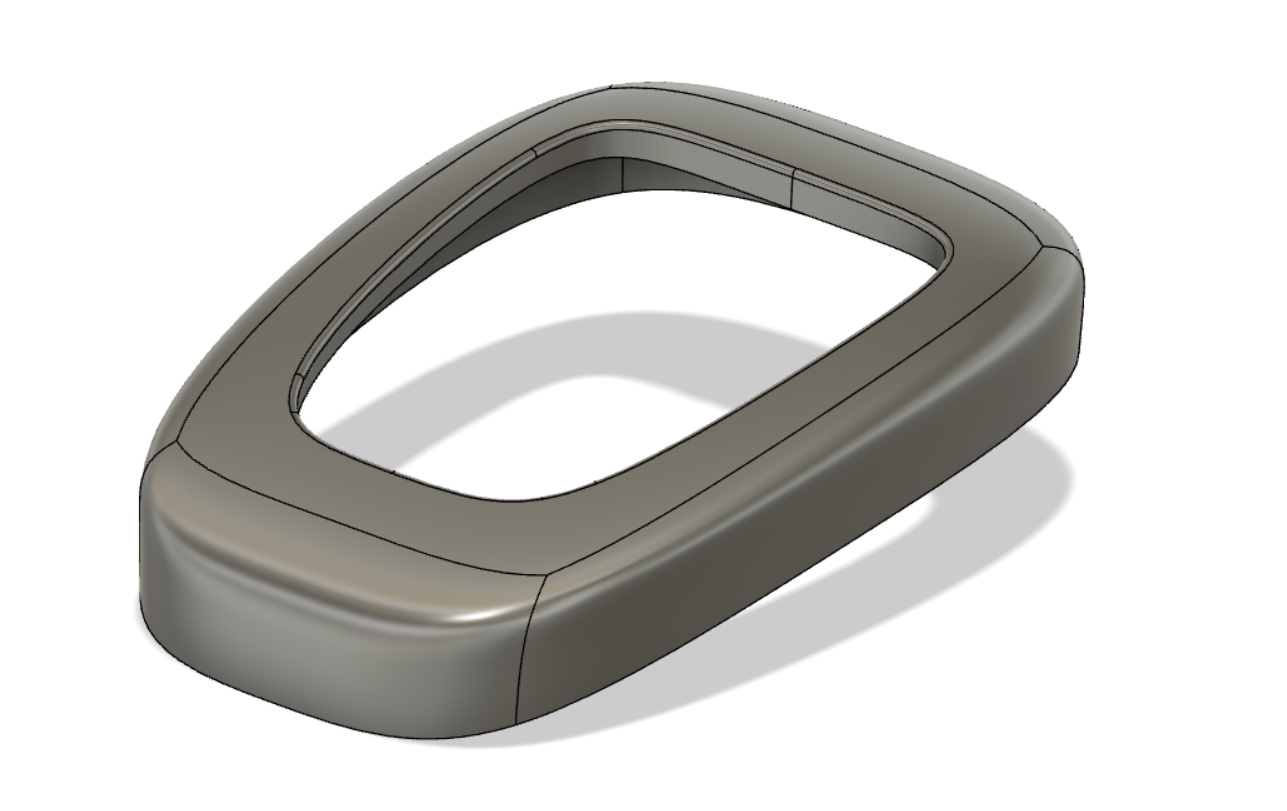

This was 10mins with F360 just to show what can be achieved. It's by no means to scale or accurate, but if you want something more custom this would be the way to go, you'd start by scanning the area the item needs to fit then model a shroud to fit.



[Dev]

A radius gauge and calipers are a lot easier to work from in my experience. The beauty of 3D printing is if it takes a couple of iterations to get It just right that’s fine.

Even a photo, calibrated to the right size, will do.



[ajlelectronics]

This was 10mins with F360 just to show what can be achieved. It's by no means to scale or accurate, but if you want something more custom this would be the way to go, you'd start by scanning the area the item needs to fit then model a shroud to fit.

View attachment 378472

That is just amazing and far beyond my capabilities! How do you feel about creating the design for some beer tokens? I have my own car and a customer's car that needs them. They will be slightly different as it is a non standard installation.



[daedalusminos]

That is just amazing and far beyond my capabilities! How do you feel about creating the design for some beer tokens? I have my own car and a customer's car that needs them. They will be slightly different as it is a non standard installation.

How proficient are you at F360? It really is quite simple - you need to be able to sketch and extrude and a bit of form manipulation (you may not have done that but I can show you)



[ajlelectronics]

How proficient are you at F360? It really is quite simple - you need to be able to sketch and extrude and a bit of form manipulation (you may not have done that but I can show you)

I have a copy and have tried it out. Then abandoned it in favour of a simpler learning curve like learning Swahili.


I use Design Spark Mechanical which is the only one that seemed to make sense to me and is what I did the image in post number one with.



[daedalusminos]

Is your copy of F360 still installed and active - now might be a good time to fire it up and follow along?



[ukracer]

Is your copy of F360 still installed and active - now might be a good time to fire it up and follow along?

If you want an onlooker I don't mind following along as well. Not that I need one but learning is always good.



[daedalusminos]

No problem, currently at the pub, but I may post something later. It'll be a series of illustrated posts rather than a video unfortunately
