My not so mini English wheel

[Brad93]

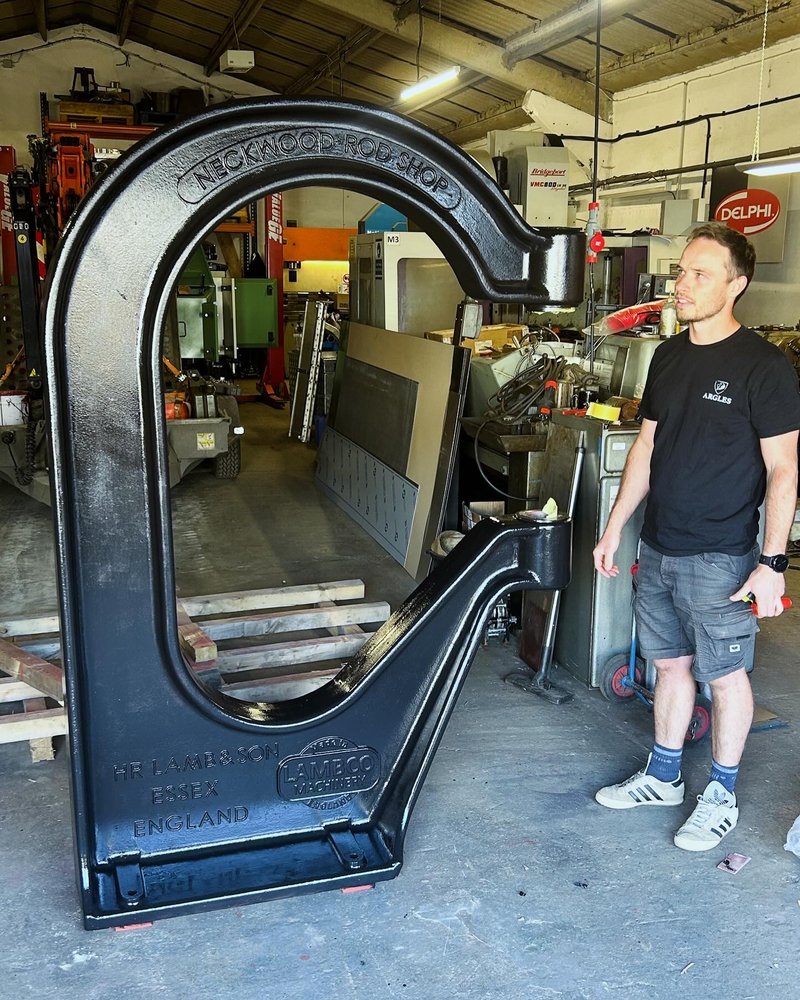

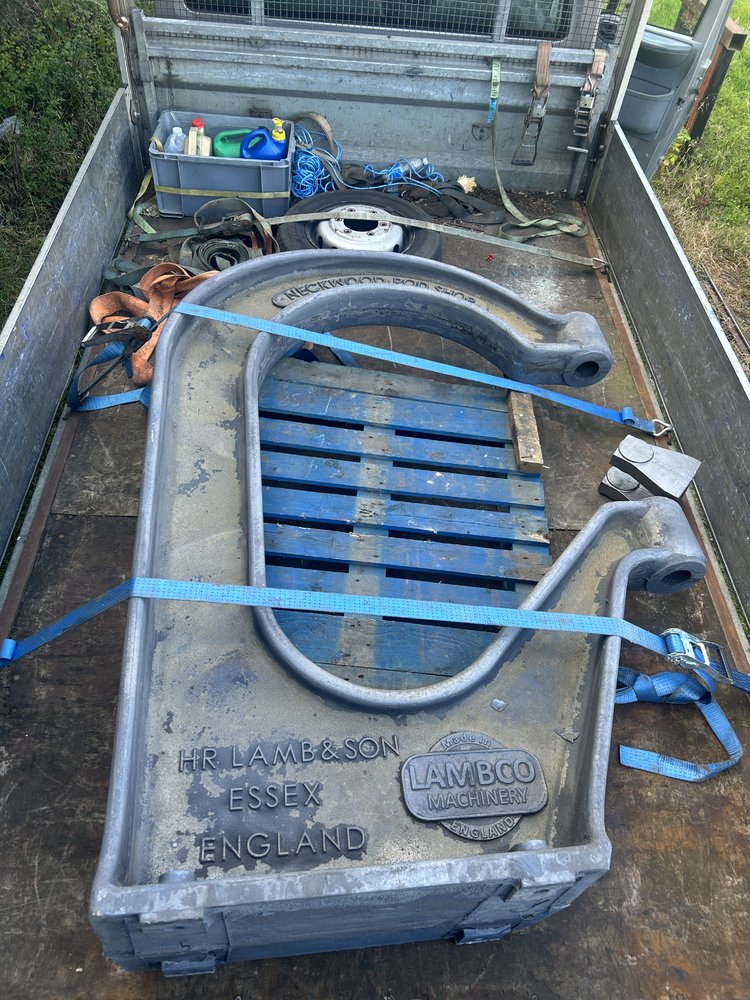

Picked up the big one today , that’s a 14’ transit .

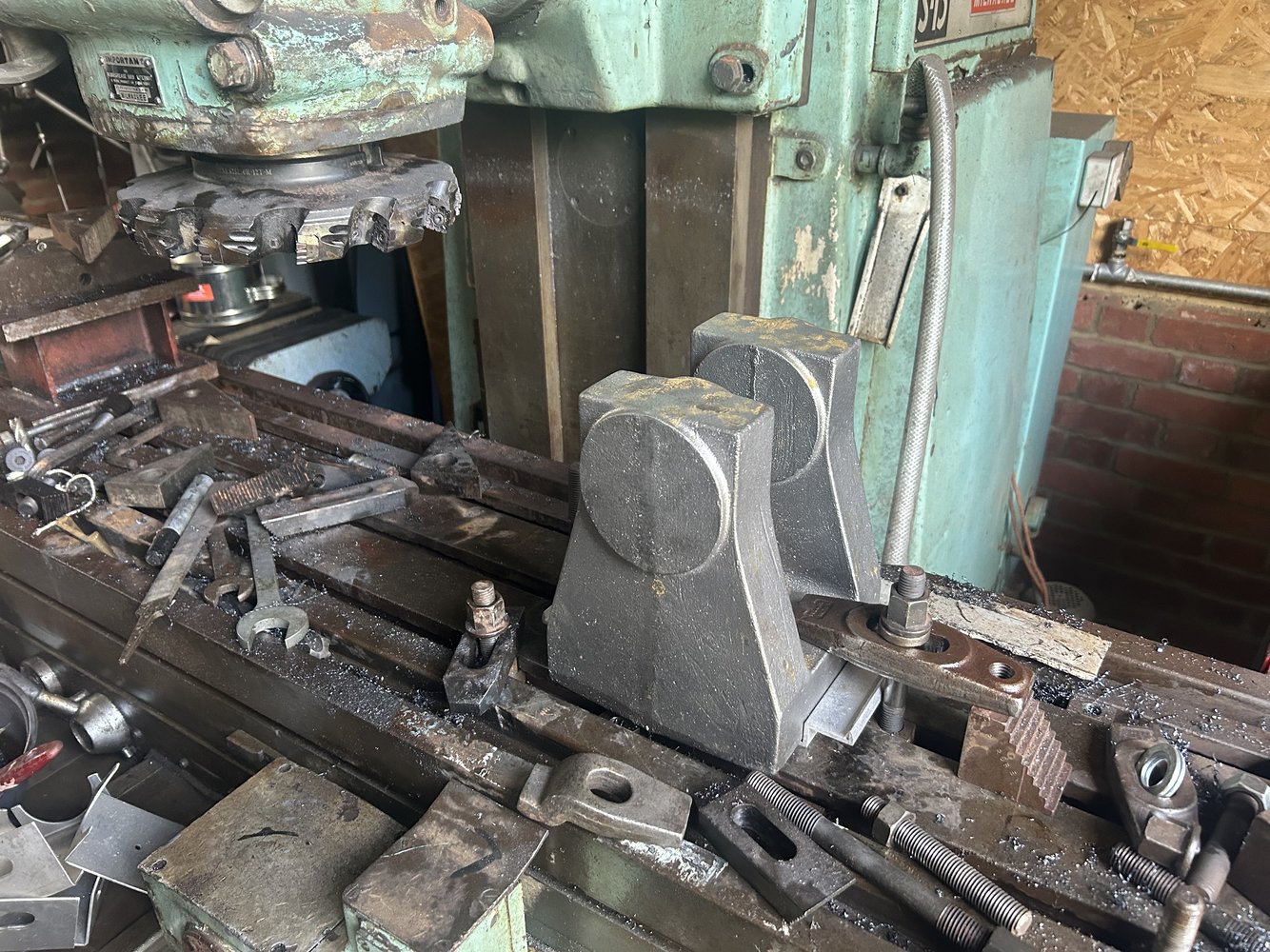

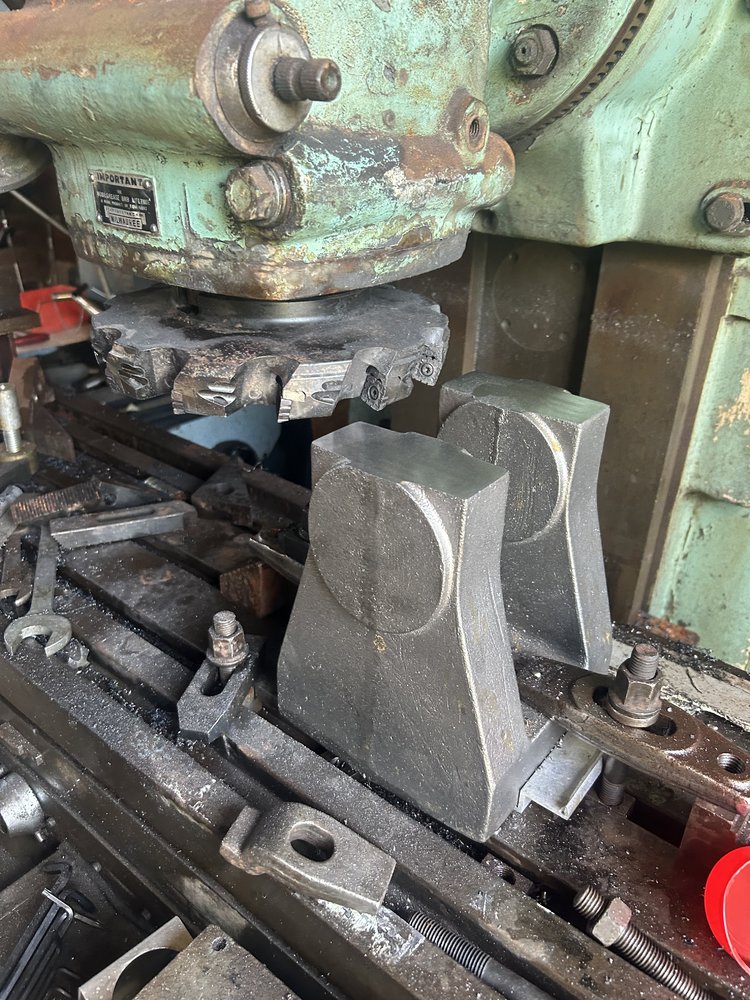

Quick datum face on the top wheel bracket , even that’s 30kg so with wheel that assembly is going to be a heavy lump!

View attachment 456122 View attachment 456123 View attachment 456124

That's a bit of a lump isn't it



[Bki26]

Picked up the big one today , that’s a 14’ transit .
Quick datum face on the top wheel bracket , even that’s 30kg so with wheel that assembly is going to be a heavy lump!

View attachment 456122

With the weight of that beast I would have been driving very slowly



[pressbrake1]

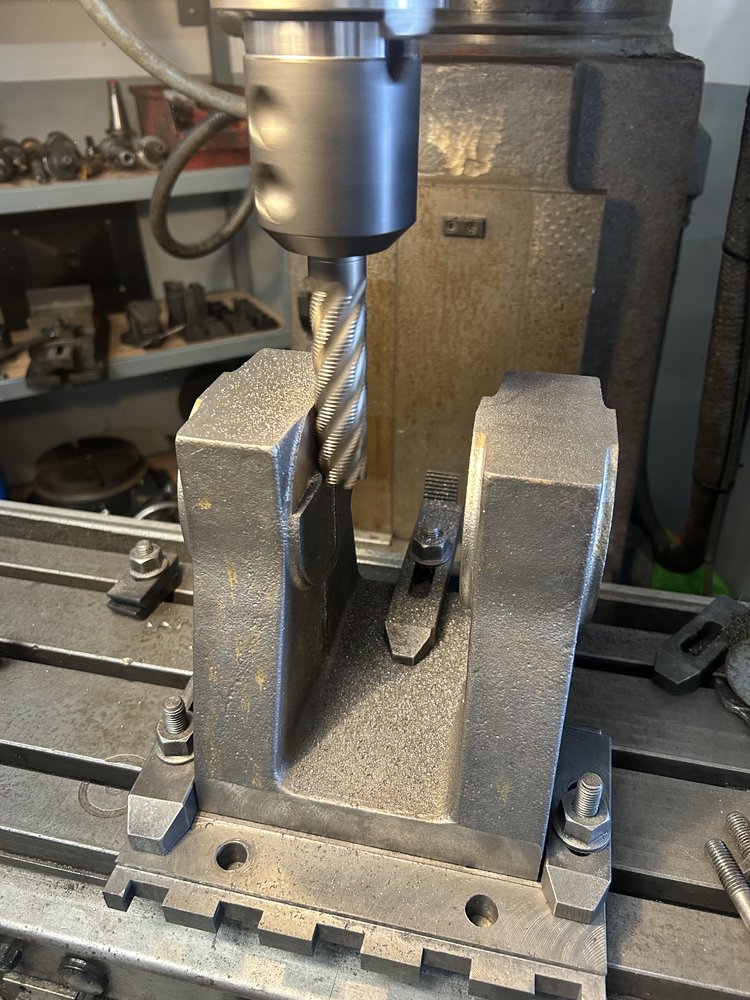

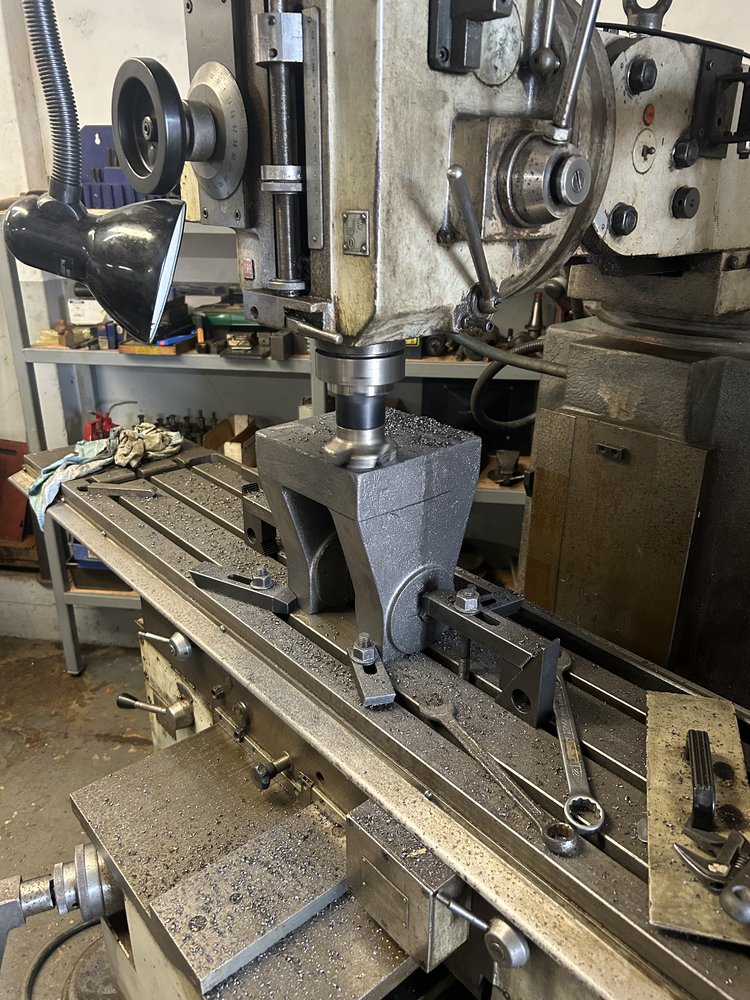

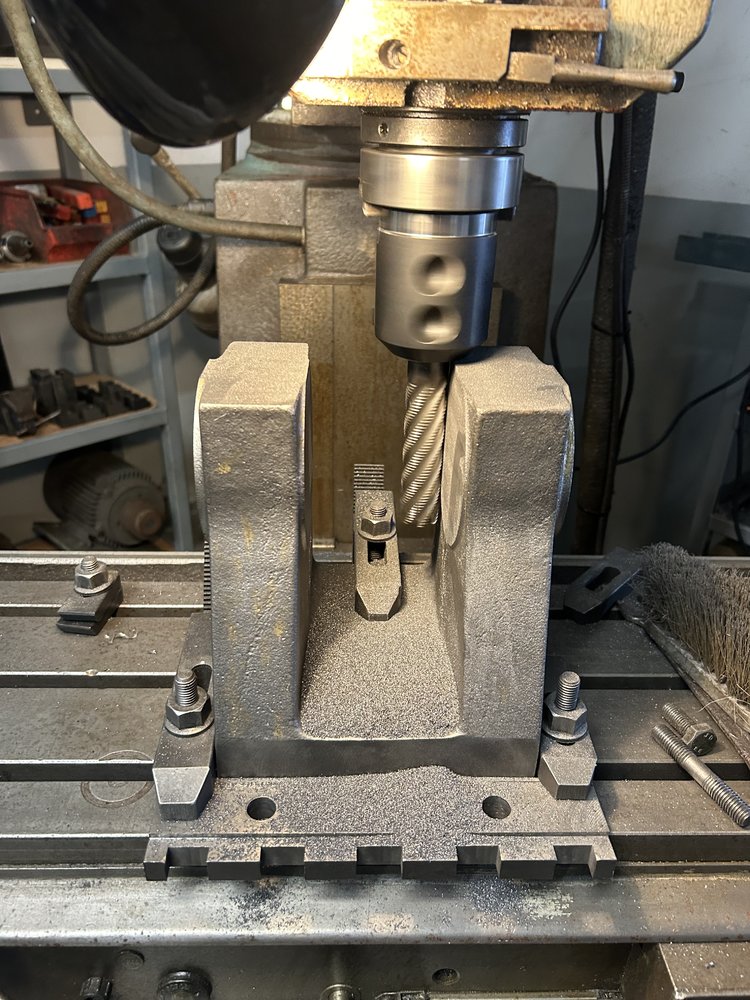

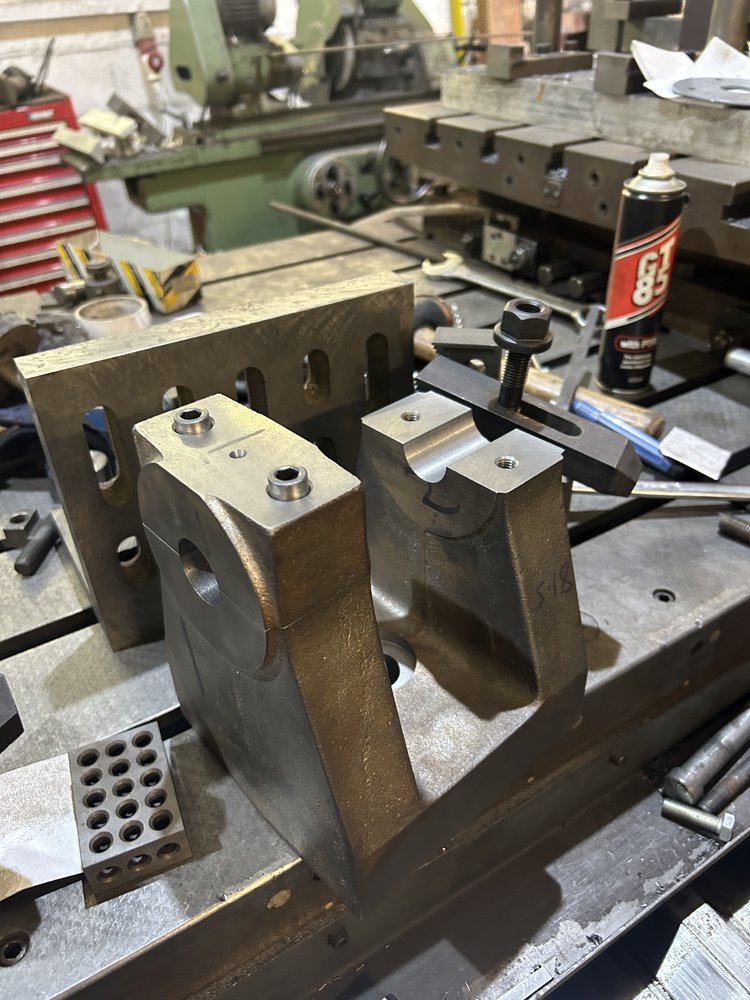

Actually more convenient to use a milling machine for this bit !



[pressbrake1]

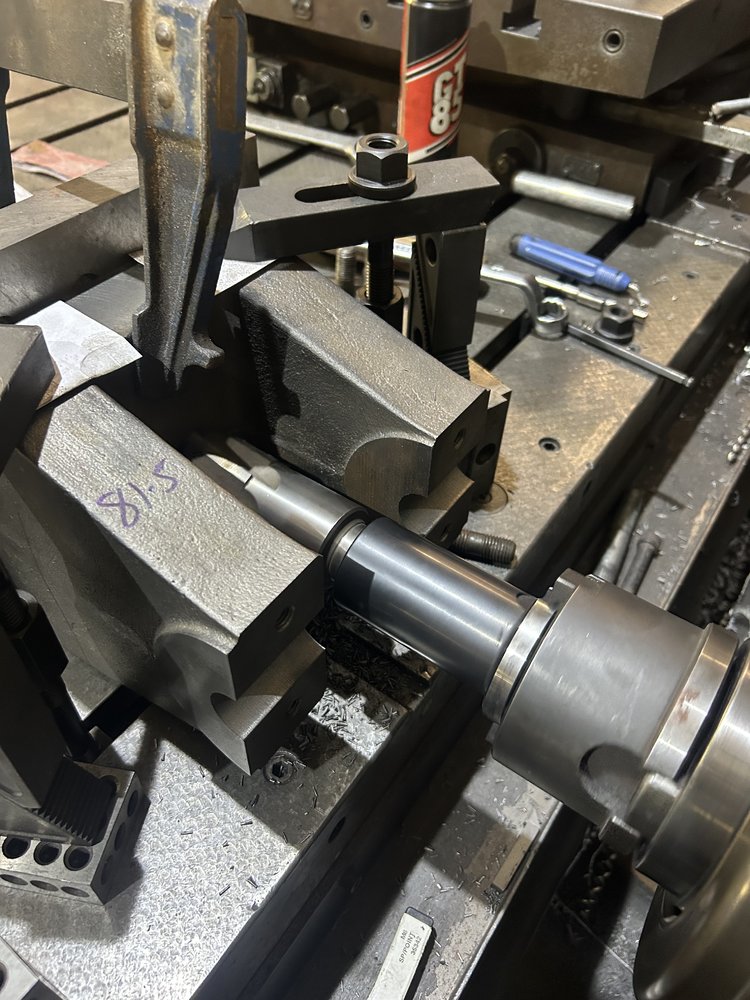

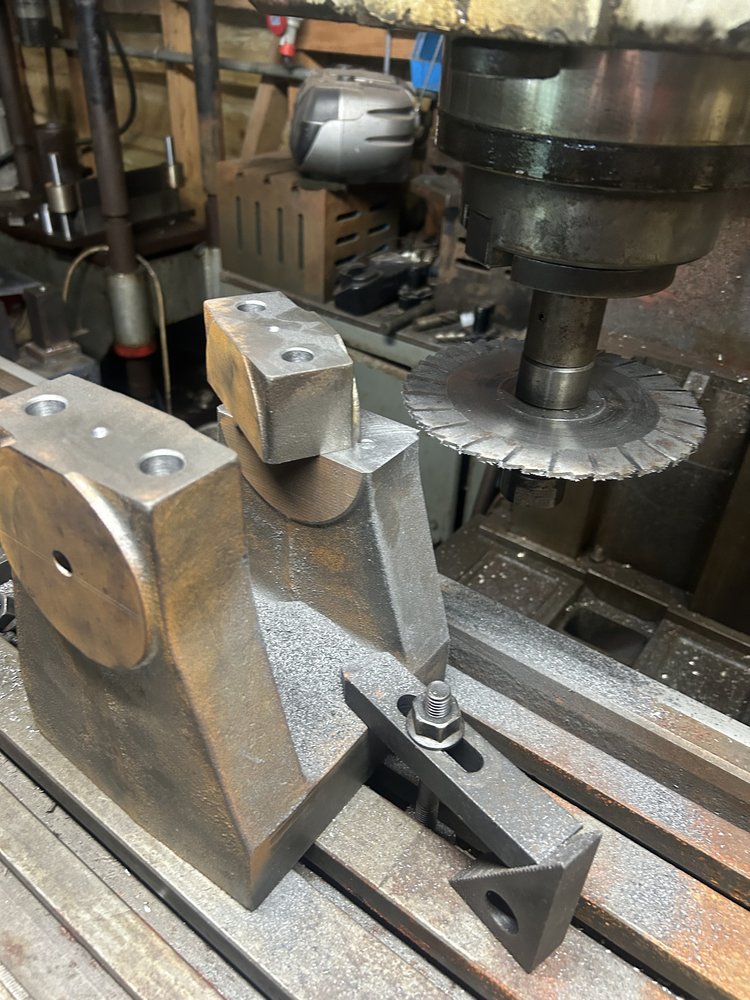

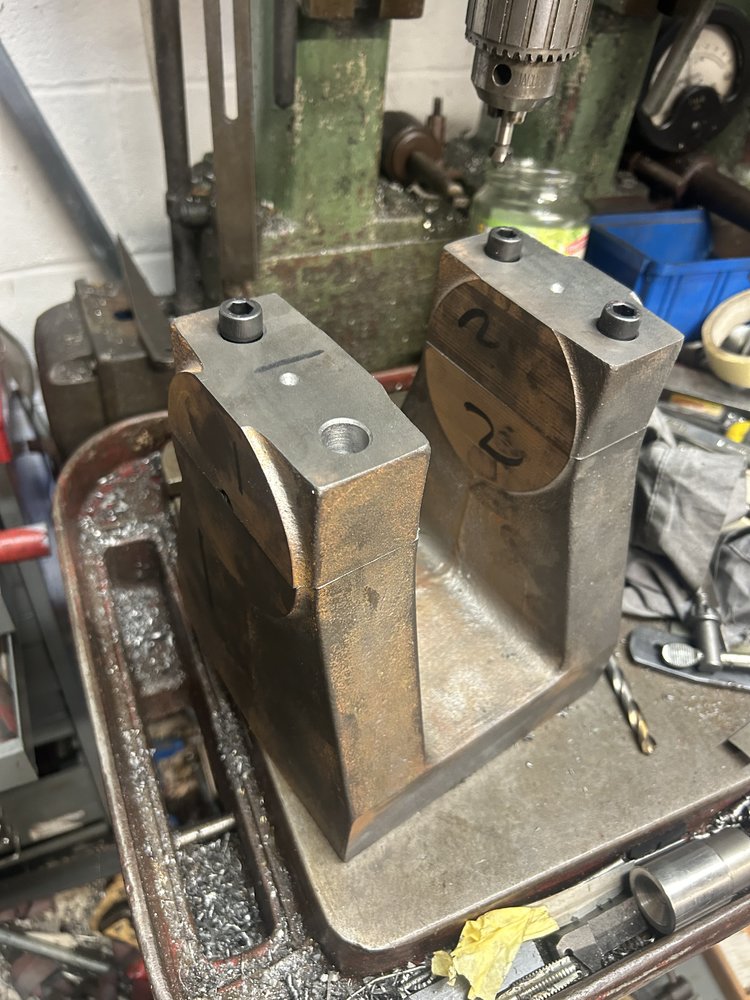

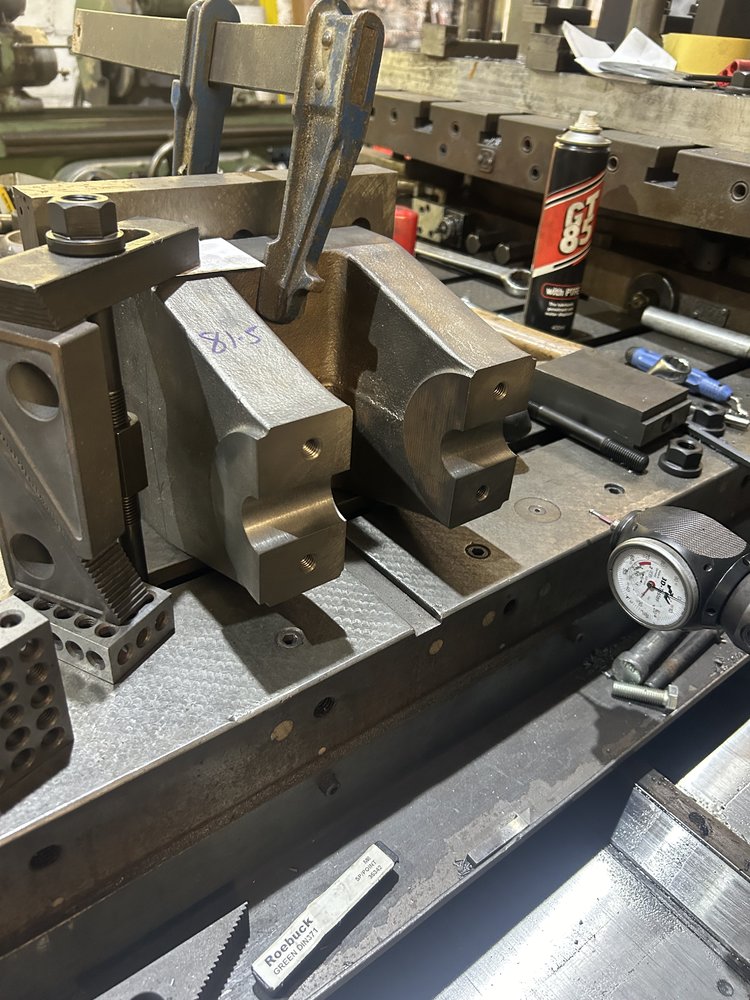

Split for shaft bore



[Brad93]

Actually more convenient to use a milling machine for this bit !

View attachment 456336 View attachment 456337 View attachment 456338

I don't recognise the mill? Looks like a FNK25?



[pressbrake1]

Pictures



[dieselsamurai]

I don't recognise the mill? Looks like a FNK25?

Yeah definately looks like one i had one a while back fantastic bit of kit but almost had to give it away in the end :-(



[pressbrake1]

Yeah definately looks like one i had one a while back fantastic bit of kit but almost had to give it away in the end :-(

The little mill is my neighbours machine
I did the splitting on my fgv 32



[pressbrake1]

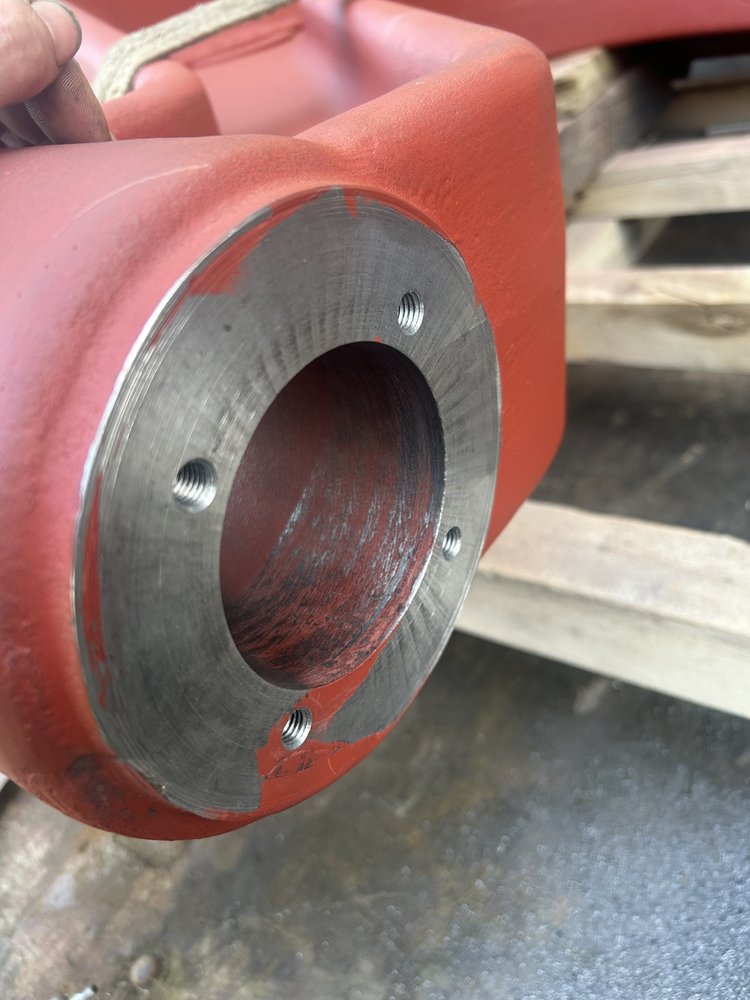

Progress with big wheel

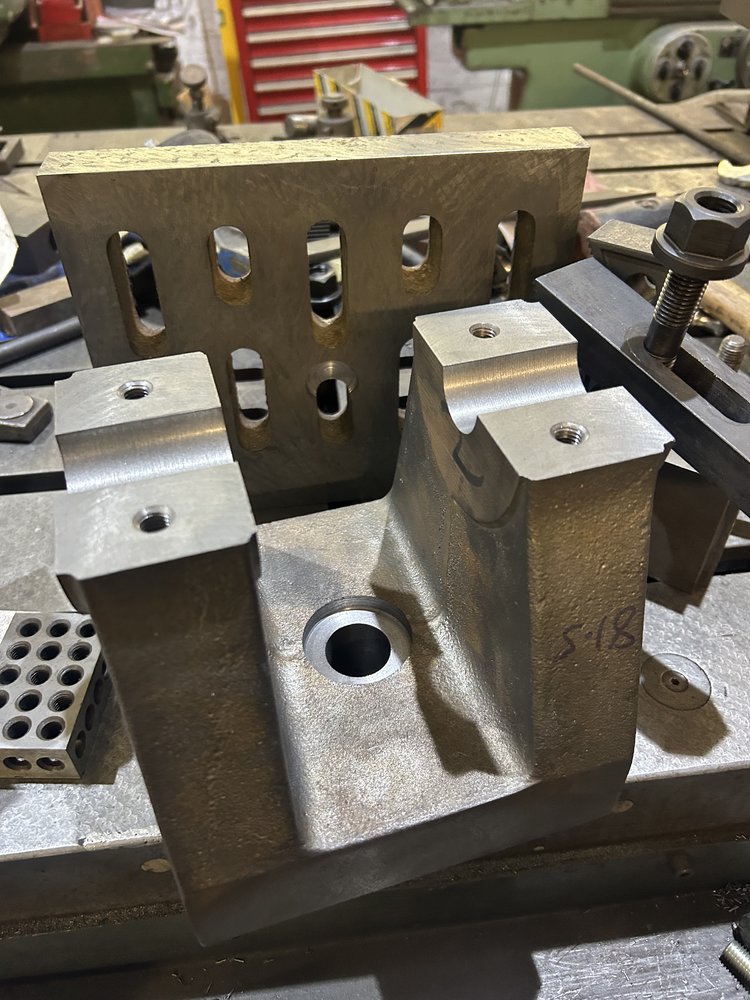

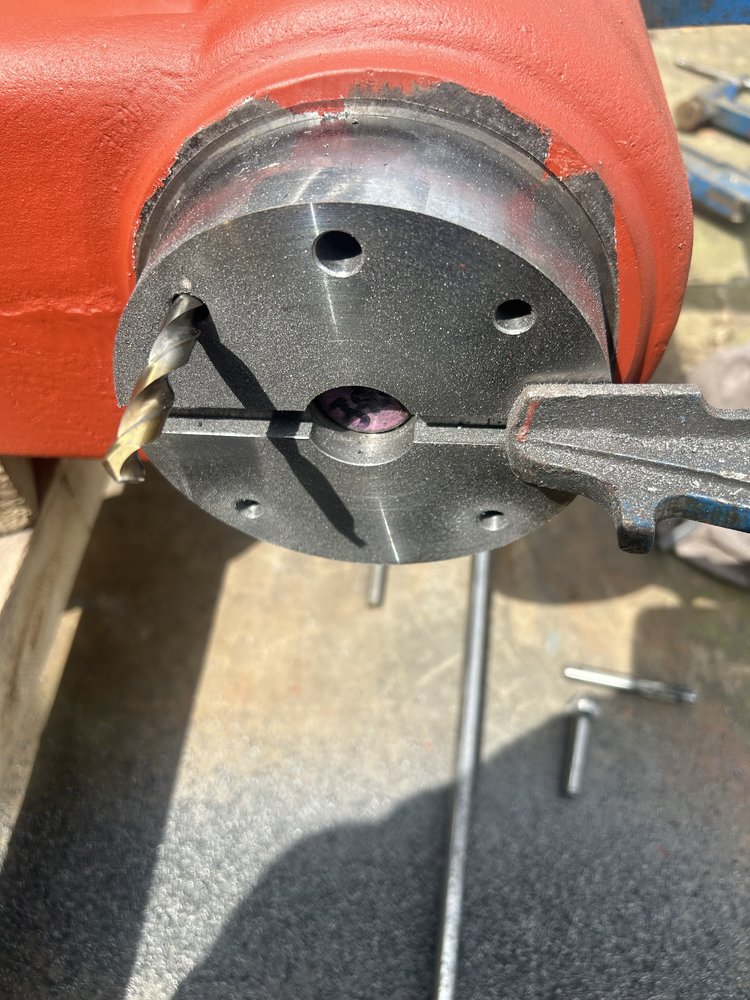

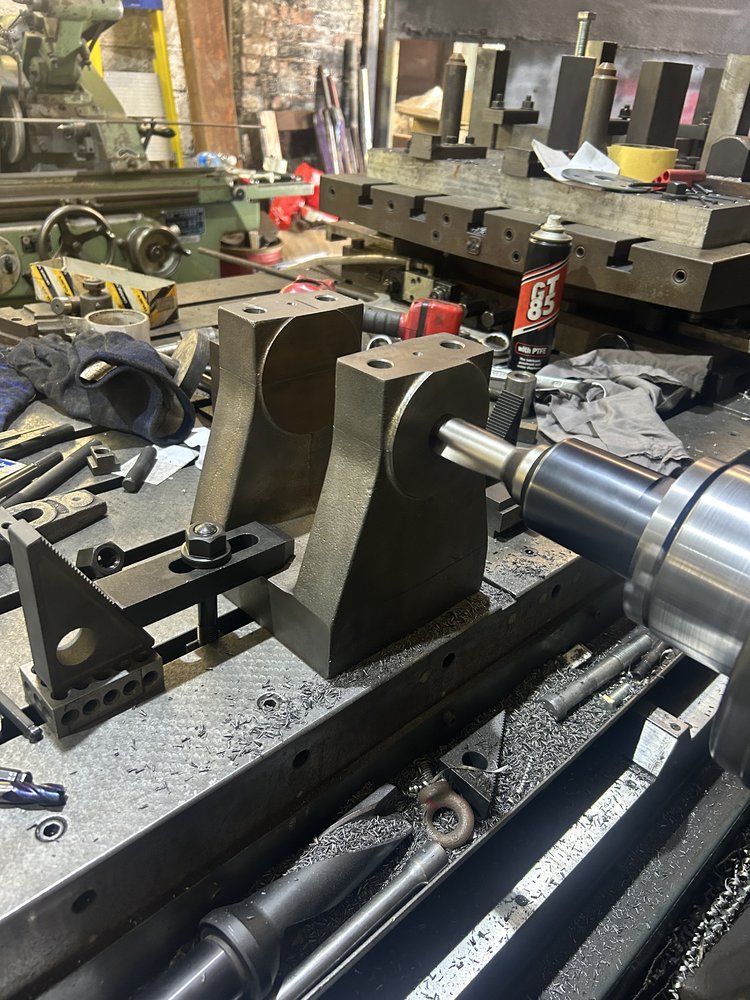

Made drilling and tapping jig



[Martin Hocking]

I’m by no means an expert but I’m pretty sure you’re supposed to drill with the sharp end…

(Looks amazing as always)



[pressbrake1]

I’m by no means an expert but I’m pretty sure you’re supposed to drill with the sharp end…

(Looks amazing as always)

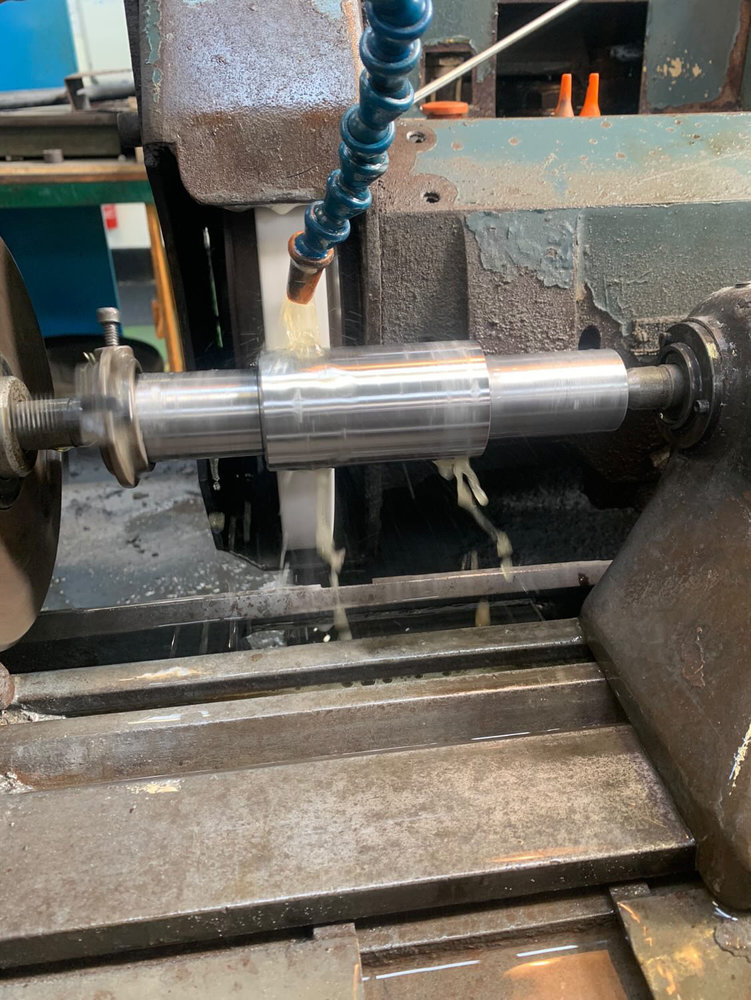

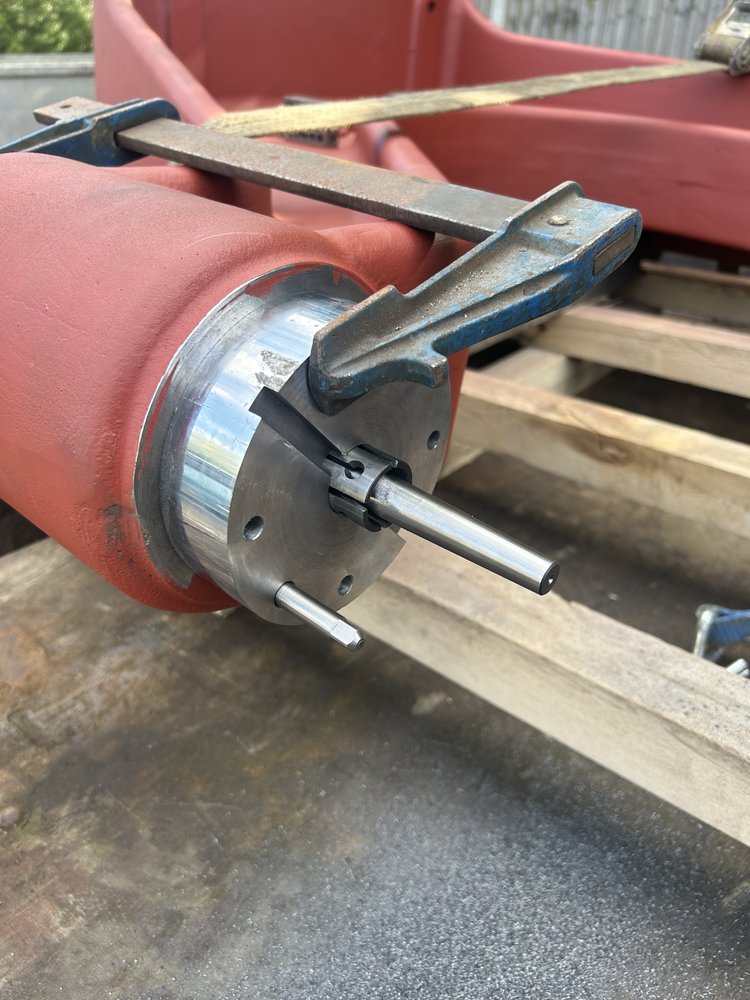

I was burnishing the bore



[pressbrake1]

All that’s left is everything



[Pigeon_Droppings2]

I was burnishing the bore

Need more of that on here...especially when they go off topic .

Great work as always...having a template/jig must save a lot of time I would think.



[Martin Hocking]

I was burnishing the bore

Precision comeback. I am impressed!



[pressbrake1]

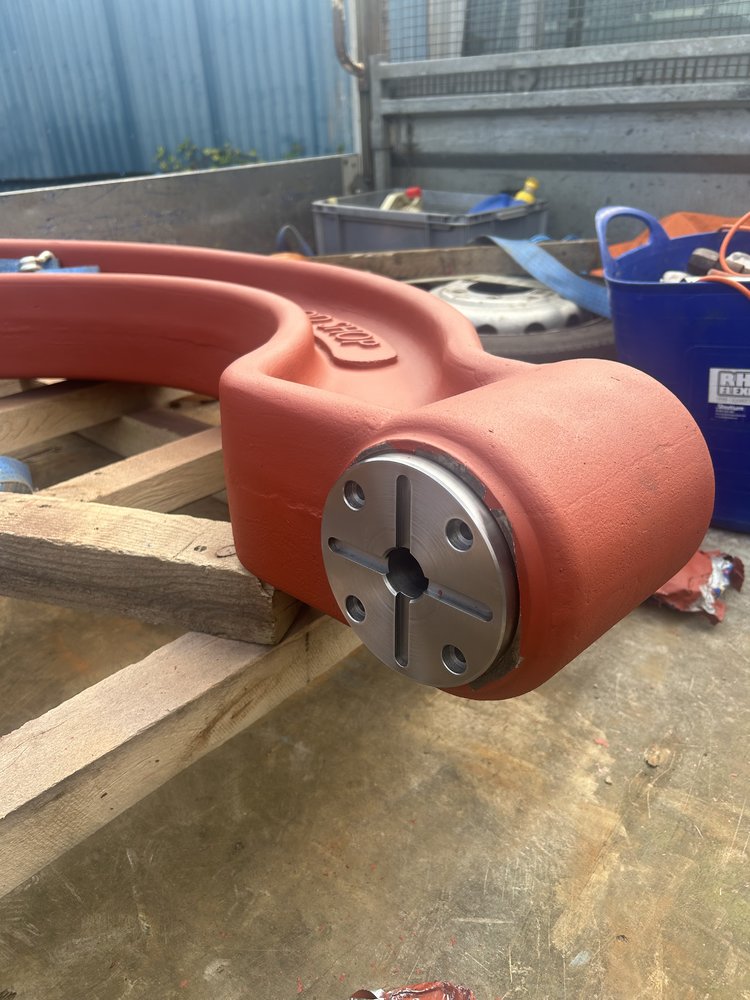

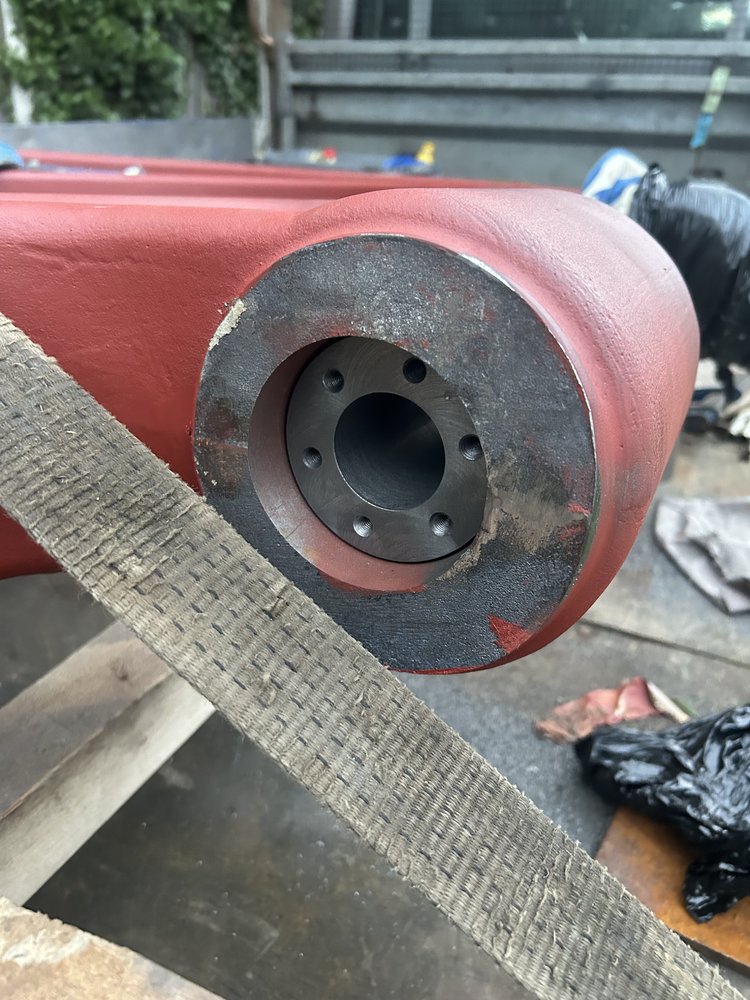

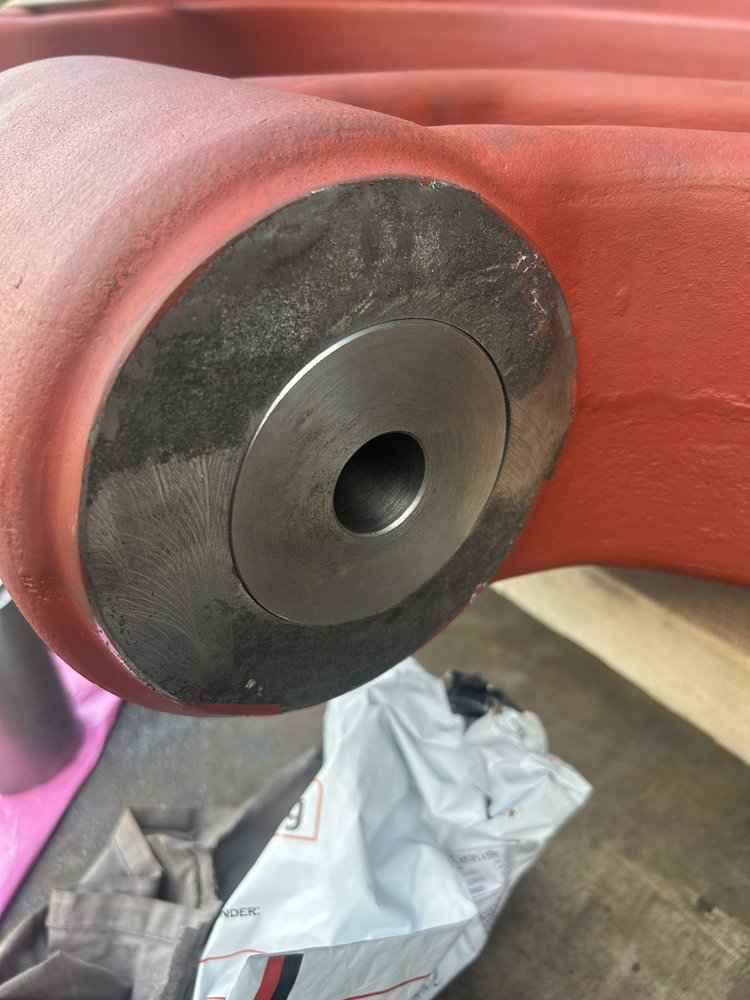

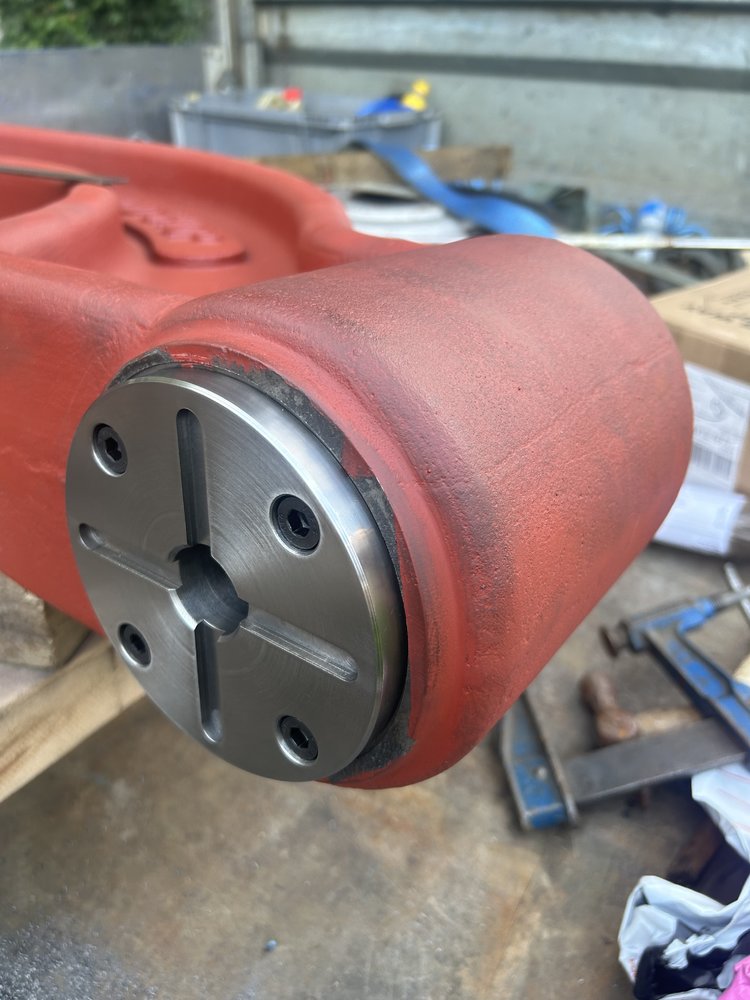

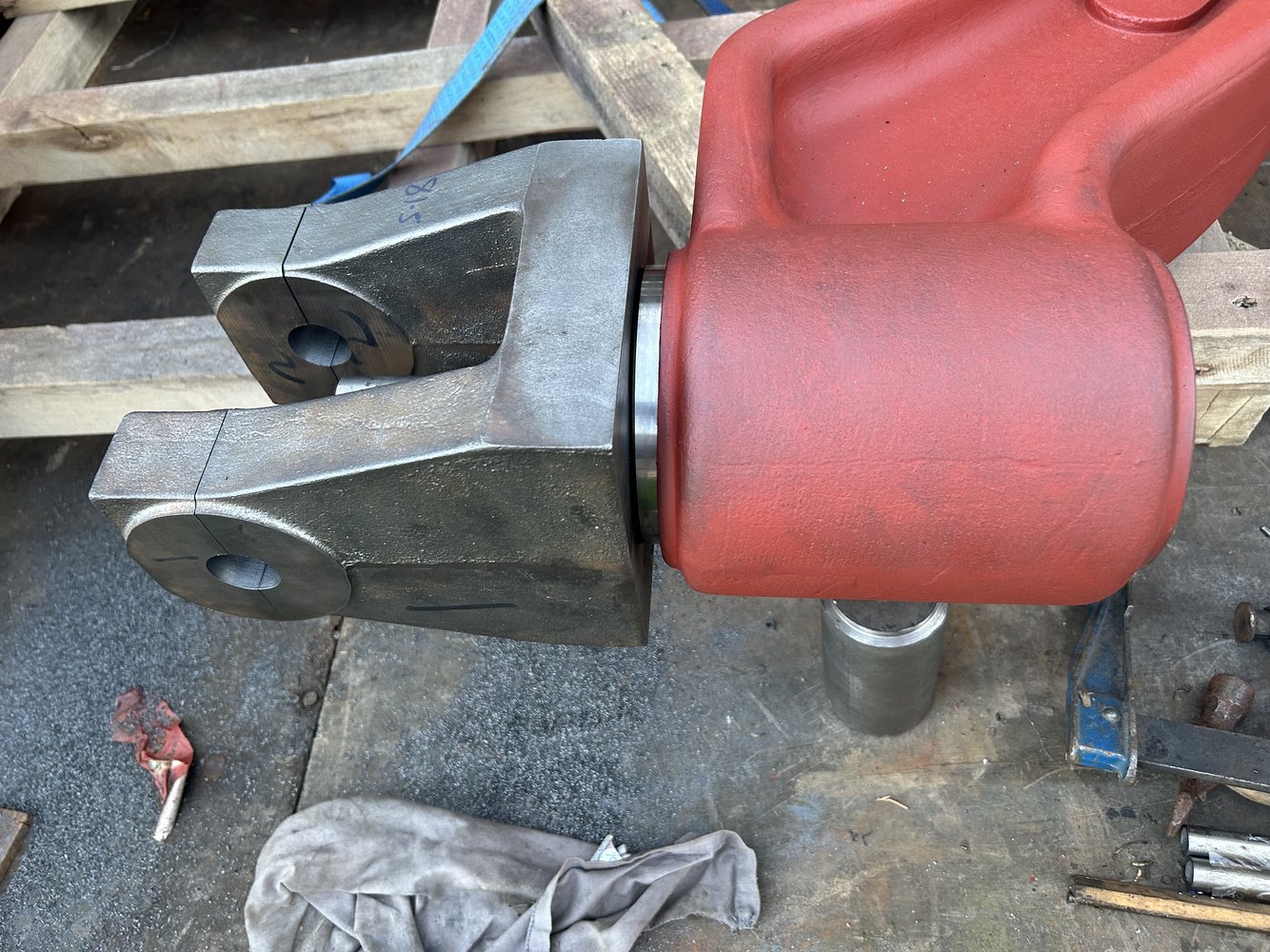

Finished top wheel mount



[pressbrake1]

Test



[pressbrake1]

Sunday chores

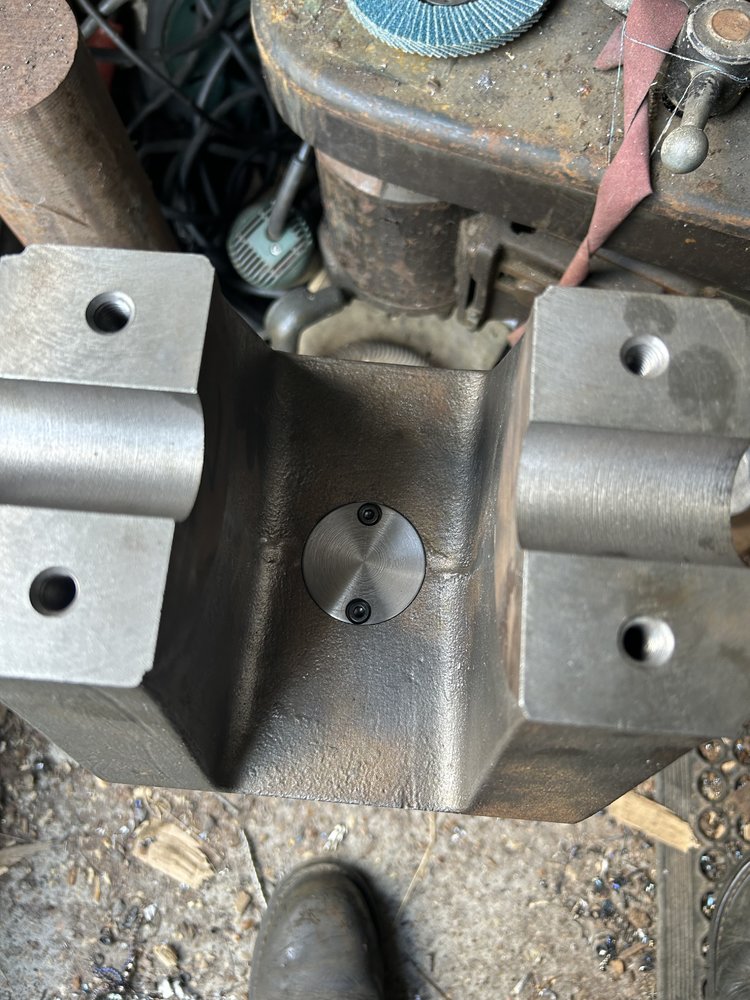

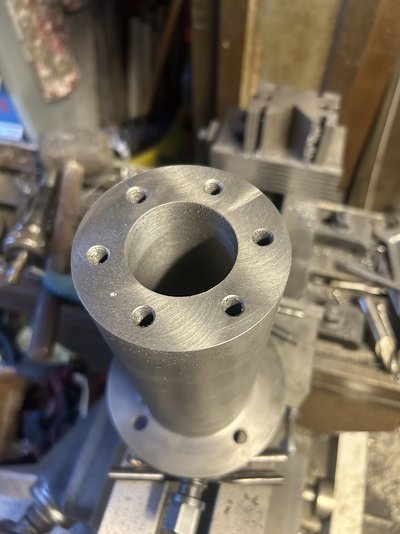

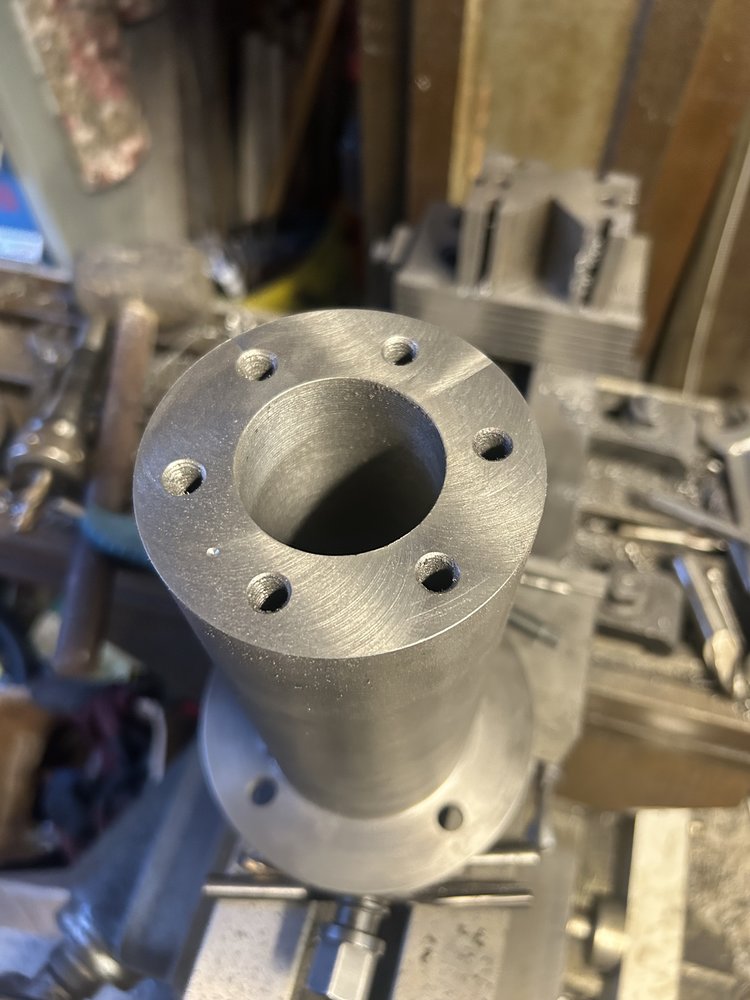

Became very painful as vevor dro is no longer repeating position on pcds so max effort for half arsed job



[pressbrake1]

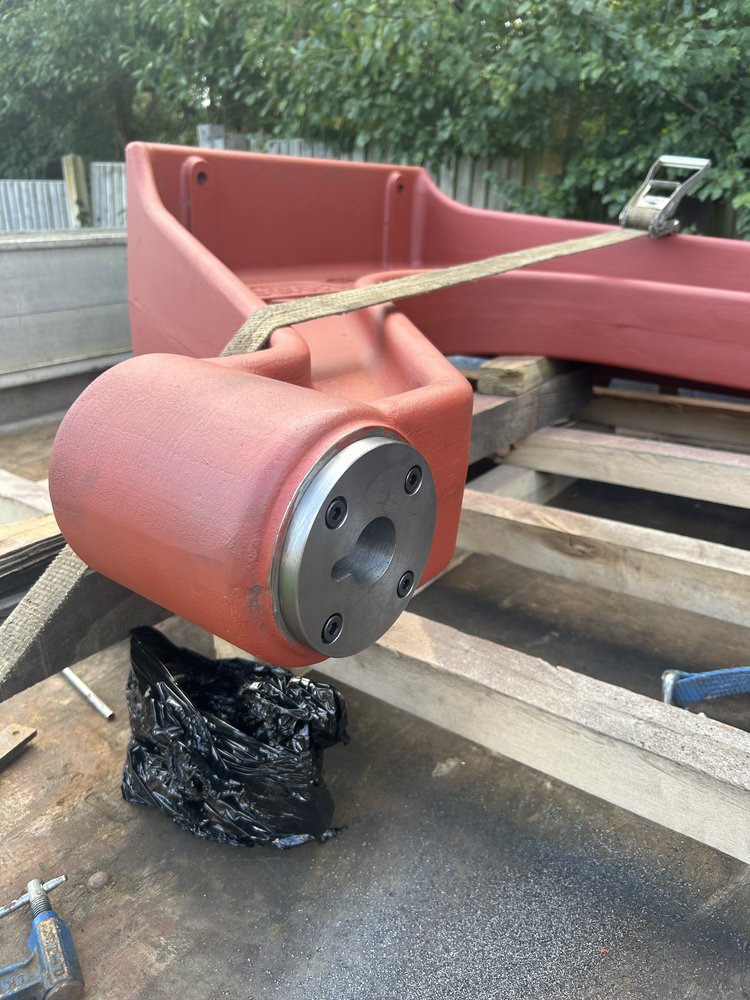

Paint



[scottmk1]

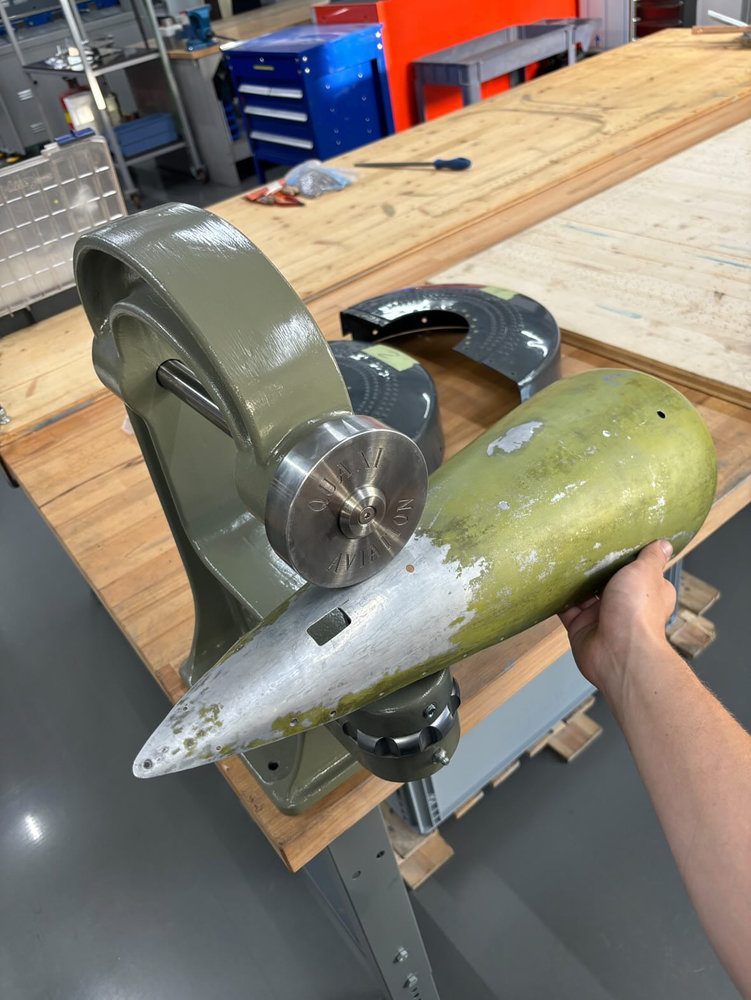

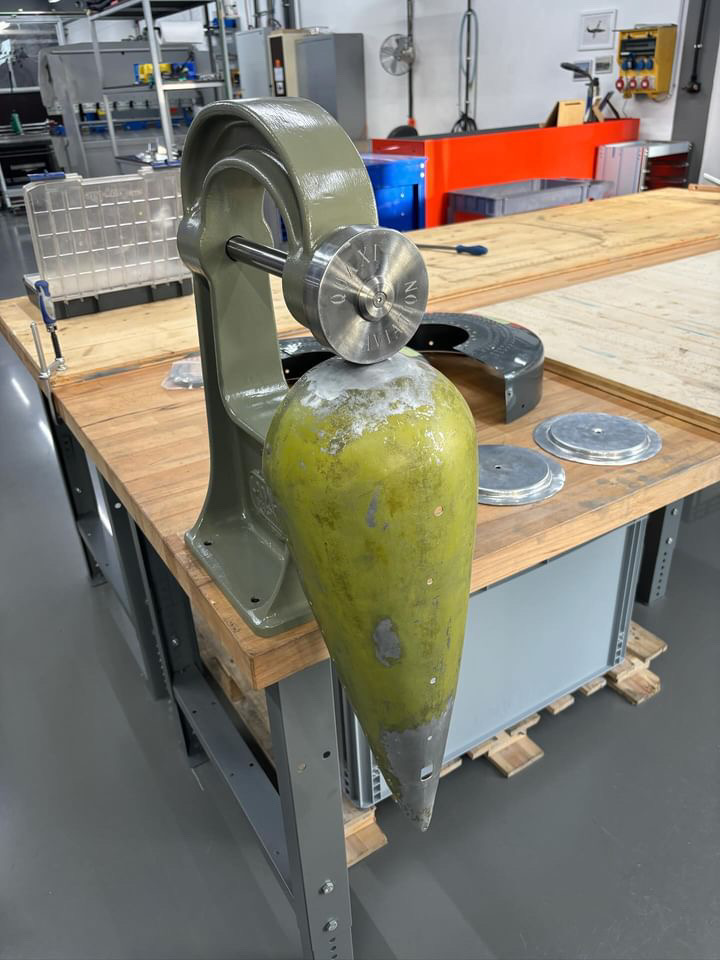

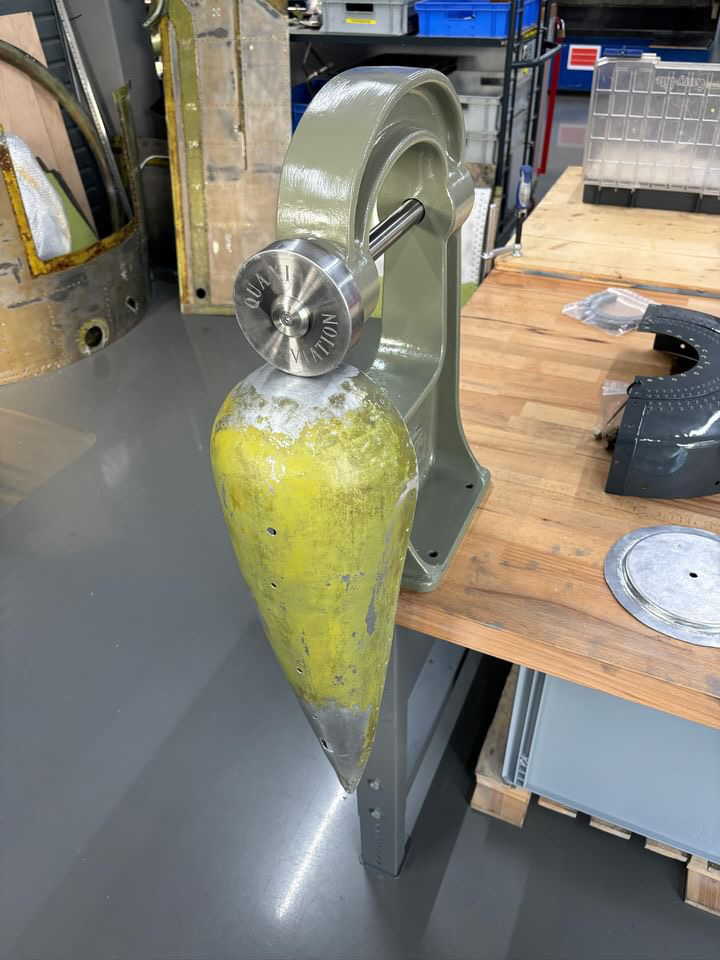

I’ve got one like that but it’s just a wee one, at least that’s what she said!



[pressbrake1]

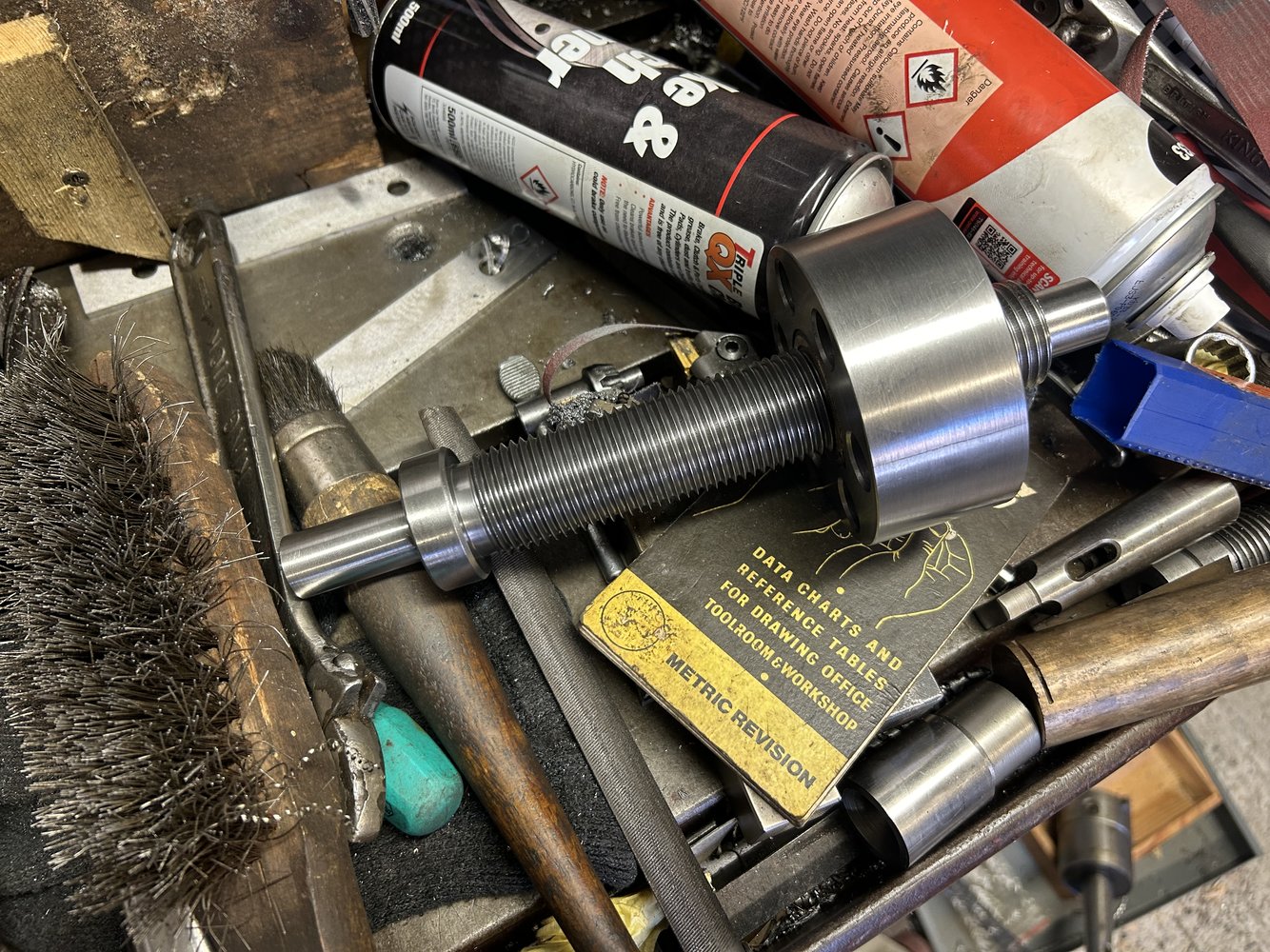

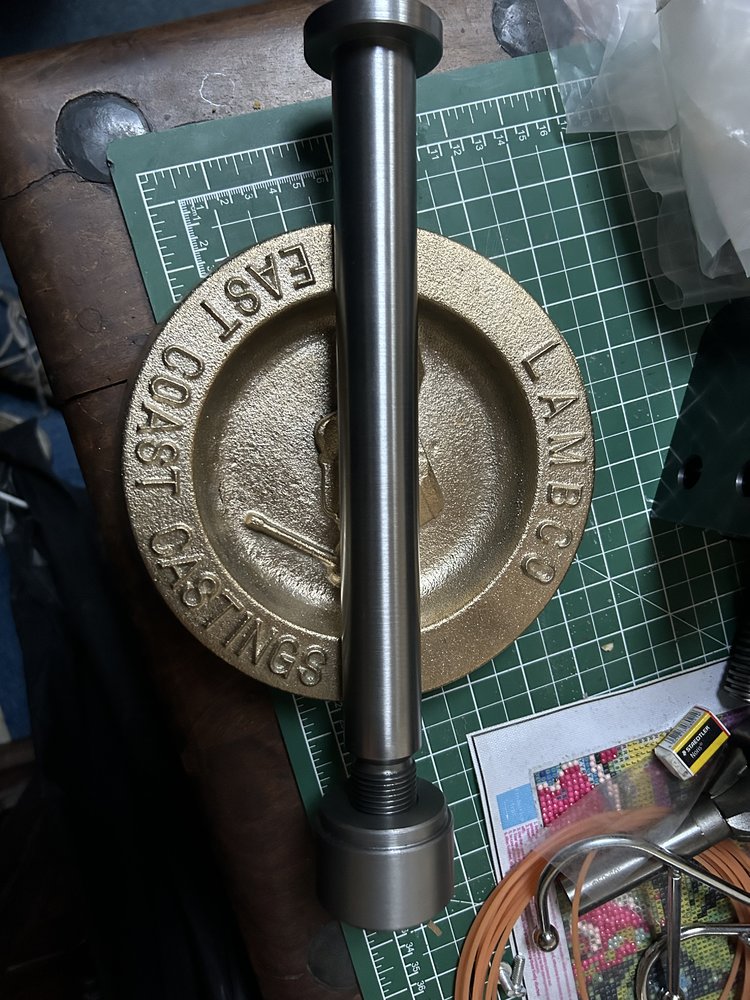

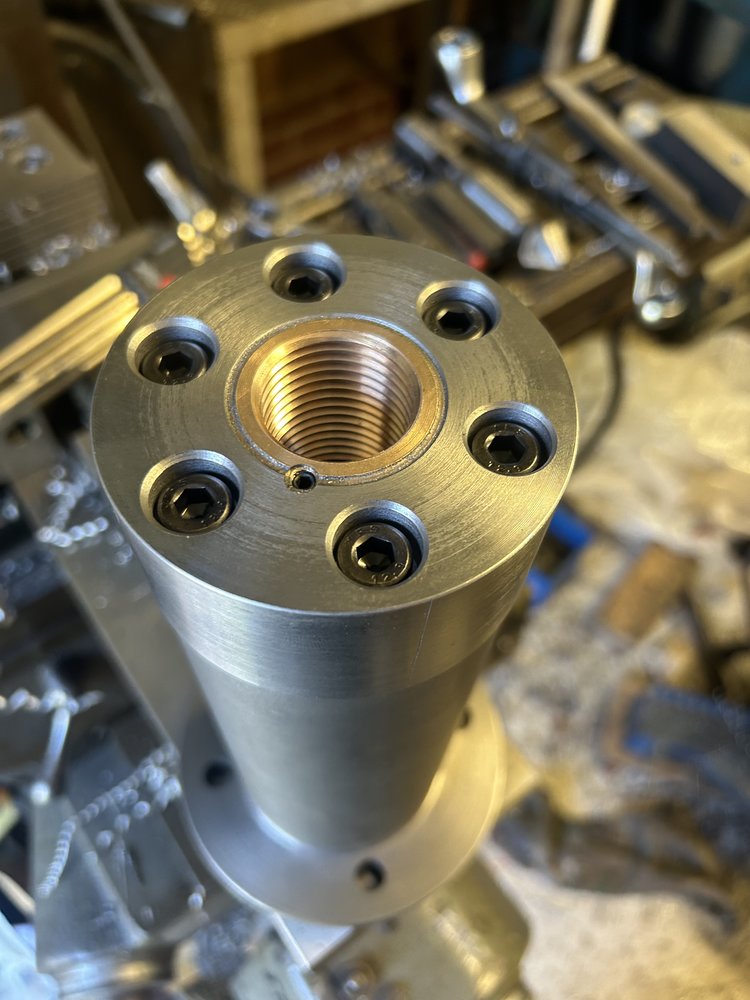

Recut screw to finer pitch
I had originally cut to match edwards but decided to go finer like my smaller machines that have good feel
