However, my oil filler one is further forward - more where your cap is resting, so no problem with access. Which model is yours/hers?

Hers: E36 325 M50TU IIRC From M52 onwards the filler was further forwards, so basically 328 onwards. Mine: M52 and S54


25 Metres / 2hr 40 mins 0.3 layer 100% fill
18 metres / 2rh 5 min 0.3 layer 50% fill



[slim_boy_fat]

Hers: E36 325 M50TU IIRC From M52 onwards the filler was further forwards, so basically 328 onwards. Mine: M52 and S54


25 Metres / 2hr 40 mins 0.3 layer 100% fill
18 metres / 2rh 5 min 0.3 layer 50% fill

Mine is the M54. Great engines , but can't look at your S.......

I'm afraid your filament(?) figures mean absolutely nothing to me? Are you saying you could print one to fit the filter cover for me?



[130]

330? Yep, can do, probably be in orange - assuming that is the correct one there are two sizes



[slim_boy_fat]

330? Yep, can do, probably be in orange - assuming that is the correct one there are two sizes

Cheers, that would be great, colour doesn't matter. Mine needs the 38mm spanner/socket to remove [although I'll double check tomorrow, belt & braces, me....] if that helps.
Let me know that I'd owe you for your time/materials and P&P and I can square you up via P/Pal 'friend' if that'd suit you?



[130]

That tool is about 86mm,best measure You might have to give me an AF and sides



[slim_boy_fat]

330?

530i manual e60

AF and sides

You've lost me again



[wookie]

I'm afraid your filament(?) figures mean absolutely nothing to me?

25 Metres / 2hr 40 mins 0.3 layer 100% fill
18 metres / 2rh 5 min 0.3 layer 50% fill

The first one will use 25m of filament, take 2hr 40 to print in layers 0.3mm high with 100% fill which means completely solid
The second will use 18m of filament and only take 2hr 05 to print because it's 50% fill which means other than the first few and last few layers that will be solid the interior of it will look like a honeycomb and because you have less to print it uses less filament and takes less time.

You've lost me again

AF and sides, means he needs the Across the Flats measurement and the length of each flat side of the nut to make sure the tool he's gonna print for you will fit. You said you currently use a 38mm spanner/socket so that is the AF measurement.



[slim_boy_fat]

25 Metres / 2hr 40 mins 0.3 layer 100% fill
18 metres / 2rh 5 min 0.3 layer 50% fill

The first one will use 25m of filament, take 2hr 40 to print in layers 0.3mm high with 100% fill which means completely solid
The second will use 18m of filament and only take 2hr 05 to print because it's 50% fill which means other than the first few and last few layers that will be solid the interior of it will look like a honeycomb and because you have less to print it uses less filament and takes less time.

AF and sides, means he needs the Across the Flats measurement and the length of each flat side of the nut to make sure the tool he's gonna print for you will fit. You said you currently use a 38mm spanner/socket so that is the AF measurement.

Cheers, that's perfectly clear to me now [I'm totally unfamiliar with such modern devices/processes ]

I'll measure later to give @130 something to work with.



[130]

^ Cool, Some of these tools grip around the outside of the plastic filter housing lid because the lids are known to break. I have the old style 13mm hear dolt fixings on all mine but I have one of the later style in the shed.



[slim_boy_fat]

@130 OK, as near as I can measure it, it's AF 36.5mm [so say 37mm] and Flats 21.75mm

That sound enough for you to give me prices for both the solid and 'Crunchie Bar' versions?



[wookie]

@130 and @bigegg have you printed any test cubes ?

Here's a couple of good ones to test your setup...
https://www.thingiverse.com/thing:2525577
https://www.thingiverse.com/thing:2639527

I've done the first one a couple of times now and I'm getting closer with the settings to stop the underside of it drooping too much and ruining the detail.

@130 these spanners for @slim_boy_fat are you designing them yourself or getting the designs from Thingiverse ?



[130]

Depends what he needs, Pareto principle

The "car spanner" and funnel I drew for my wife, but if a drawing exists no point reinventing the wheel.

Freecad 2.0 has a shape generator so with number of sides and AF I can easlily generate a shape to use as a hole, draw a bigger circle with a handle too in sketch and then pad it to the tool thickness. Maybe write something funny in the handle for s??ts and giggles

I've never closely calibrated mine and adjusted drawings for interference fit. It's on the to do list.

Also temperature and material will make a difference to how it stretches and sags as will retraction setting so



[bigegg]

@130 and @bigegg have you printed any test cubes ?

[</QUOTE]

Waiting for an a-b usb cable.
Got octopi installed, and the pc upgraded.

Should start printing next week



[130]

@130 OK, as near as I can measure it, it's AF 36.5mm [so say 37mm] and Flats 21.75mm

That sound enough for you to give me prices for both the solid and 'Crunchie Bar' versions?

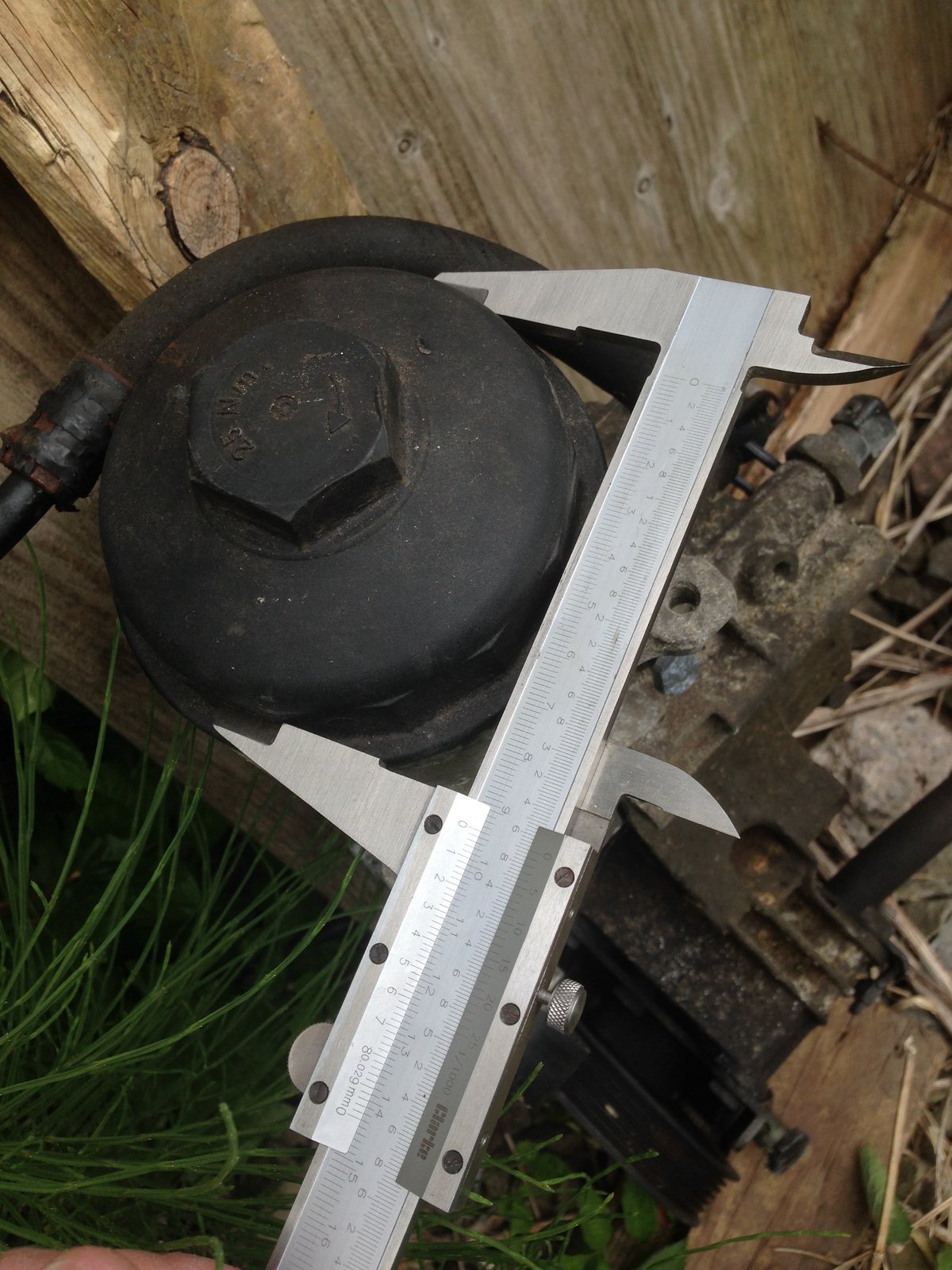

This is what I was meaning...………



[wookie]

@130 I like the spanner you've designed
So far I've not really gelled with Freecad, but you're clearly having good results with it.



[slim_boy_fat]

This is what I was meaning...………

Ah, first one as you've shown in pic 1which is AF. I did the 'Flats' from the pointy corner-to-pointy corner of the top hexagon. If I measure as you have in the last pic above it's 93.85 [say 94]

Hope this makes this easy for you?

If it's going to hugely expensive, please don't proceed with planning & drawing. I say this as I have no idea about 3D printing & what it takes to do and produce a finished article.....



[130]

Ah, first one as you've shown in pic 1which is AF. I did the 'Flats' from the pointy corner-to-pointy corner of the top hexagon. If I measure as you have in the last pic above it's 93.85 [say 94]

Hope this makes this easy for you?

If it's going to hugely expensive, please don't proceed with planning & drawing. I say this as I have no idea about 3D printing & what it takes to do and produce a finished article.....

I drew a couple of somethings inside 5'mins



[130]

@130 I like the spanner you've designed
So far I've not really gelled with Freecad, but you're clearly having good results with it.

you mean the big adjustable silver one?



[wookie]

you mean the big adjustable silver one?

No, we had a thread about that type of adjustable spanner awhile ago on here, I was referring to the doublesided black plastic one that fit the oil cap and rad cap, that's a nice bit of work.



[130]

No, we had a thread about that type of adjustable spanner awhile ago on here, I was referring to the doublesided black plastic one that fit the oil cap and rad cap, that's a nice bit of work.

Then I have no idea what spanner you mean
