Pipe Radiator ????

[jordhandson]

no

Brass Compression BSP Female Straight Adapter - ValvesTubesFittings

Brass compression x female BSPP threaded straight adapter to BS EN 1254-2. PN25 pressure rated, WRAS approved for potable water. Used with EN 1057 copper tube

www.valvestubesfittings.com

then

Wednesbury Copper Pipe 28mm x 3m - Screwfix

Order online at Screwfix.com. Table X. Half hard. FREE next day delivery available, free collection in 1 minute.

www.screwfix.com

better to keep your bsp fittings if your going to cast piping

Good point Gaz I will probably be welding in some metal bsp fiting to the rad part but I would hopefully think one can get bsp to mm fitting if I used 22mm copper pipe.



[gaz1]

for boiler better to go 28mm in and out then t off using y copper fittings

y copper fitting - Google Search

tee fittings restrict a little



[jordhandson]

looking to see what tanks are close by me theres this one do you recon it will do me for a while or do I need bigger

Stelstor Aquastel Stainless Indirect Vented Hot Water Cylinder 900 x 450 117L 5060162700809 | eBay

<p dir="ltr" style="margin-top:0; margin-bottom:0;">Stelstor Aquastel Stainless Indirect Vented Hot Water Cylinder 900 x 450 117L. Been stored in my shed for a few years, so outside is scruffy </p> <br>

www.ebay.co.uk



[jordhandson]

for boiler better to go 28mm in and out then t off using y copper fittings

y copper fitting - Google Search

tee fittings restrict a little

Gaz how do i get into the boiler with a 28mm the holes into the boiler are 1" BSP man I sound thick lol



[gaz1]

1" bsp fitting male or female it can be either on your boiler ive linked too female if your boiler is 1" bsp male fitting



[jordhandson]

Gaz how do i get into the boiler with a 28mm the holes into the boiler are 1" BSP man I sound thick lol

woops I gotcha with the

28mm x 1" BSP Brass Compression Female Straight Adapter​

dim or what



[JimmyS]

where's the cast piping? - I see a 1" BSP steel nipple at the top?

you will need a tee for an open vent or are you going to use another connection for a vent?

1" BSP and 28mm copper are same size in pipe terms



[jordhandson]

where's the cast piping? - I see a 1" BSP steel nipple at the top?

you will need a tee for an open vent or are you going to use another connection for a vent?

1" BSP and 28mm copper are same size in pipe terms

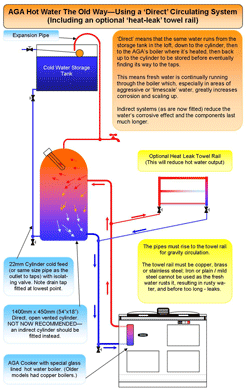

Jimmy I think gaz mean the rad by cast piping. here is something I got down off the net disregard the towel rail and the cooker will be my boiler. I think this is what you mean by venting,, Yes



[gaz1]

1" cast piping can be run into greenhouse

JTM 1 inch Galvanised Pre-Cut Tubing Screwed Both Ends - 100mm | Plumbing Superstore®

This galvanised pre-cut tubing is perfect for DIY projects, both light and more advanced. With threading on both ends, this tubing makes for simple installa...

www.jtmplumbing.co.uk

you can get longer
.
you can use galvanised on hot water central heating as wont hit the temps that affect the galv flaking off or breathing in issues



[gaz1]

the other type is expensive used on cast iron radiators

Milano - Brass Radiator Trim Kit - Pipe Connectors with Blanking and Bleed Plugs

Add the final, stylish touches to your new radiator with this pipe and blanking plug set from Milano. Intended to elevate your radiator from the everyday to the extraordinary, the set will create a sleek look that will make your radiator stand out from the crowd.Made from 1.2mm brass to give...

www.bestheating.com



[JimmyS]

That's heating pipe BS1387 medium grade / blue band tube - you can get cast but its normally in fairly old buildings. I think you will have some 6m lengths of 11/2" heating pipe for your rad?

Im not sure you will get much gravity circulation to the tank - if you are going to do it with gravity better with 28mm or inch pipe and you need a bit of head between the tank and boiler. Make sure its vented as if you dont get circulation the bloody thing will boil and you dont want it boiling with no where to go..



[JimmyS]

Needs to be vented as the Guy taking the unvented hot water cylinder course said - its not rocket science installing these - unless you do it wrong.



[jordhandson]

That's heating pipe BS1387 medium grade / blue band tube - you can get cast but its normally in fairly old buildings. I think you will have some 6m lengths of 11/2" heating pipe for your rad?

Im not sure you will get much gravity circulation to the tank - if you are going to do it with gravity better with 28mm or inch pipe and you need a bit of head between the tank and boiler. Make sure its vented as if you dont get circulation the bloody thing will boil and you dont want it boiling with no where to go..

Ah I forgot that picture didnt have a circulating pump thats what I intend to use



[jordhandson]

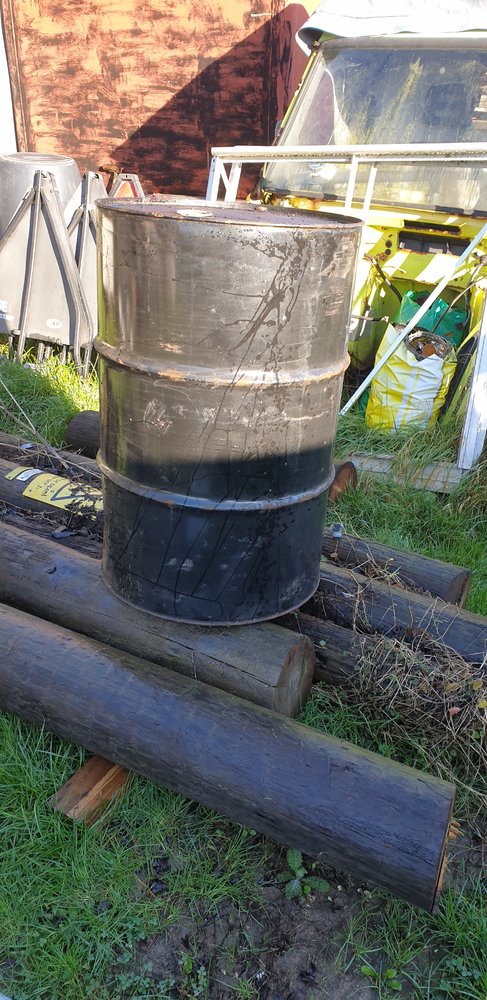

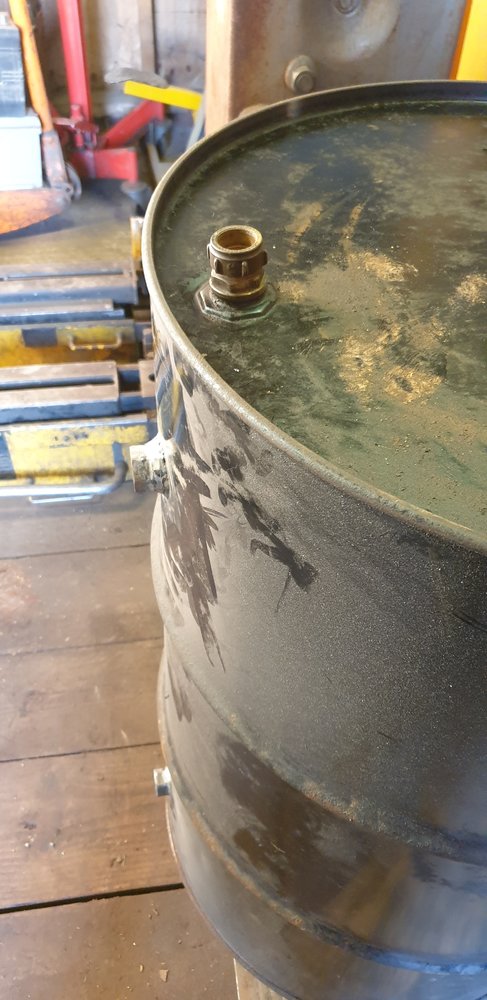

I have been looking at tanks a I have got a very clean 50 gallon drum

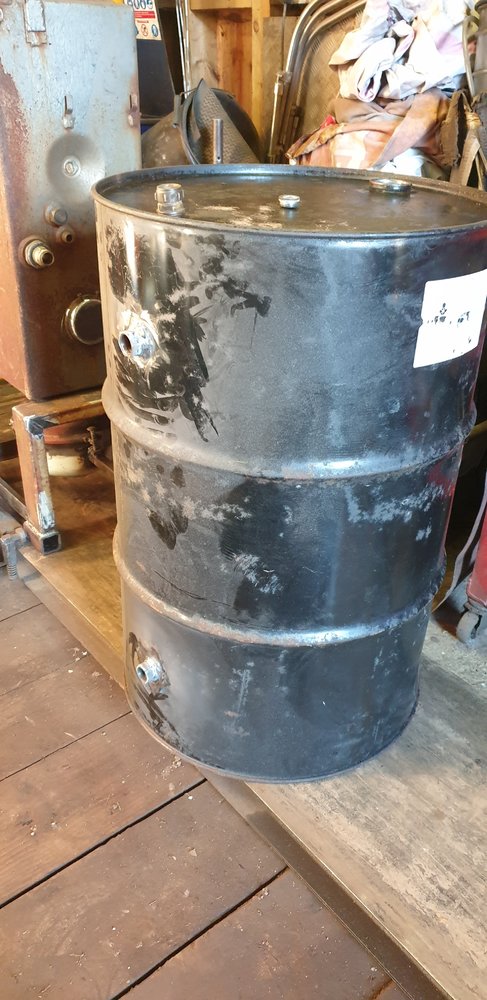

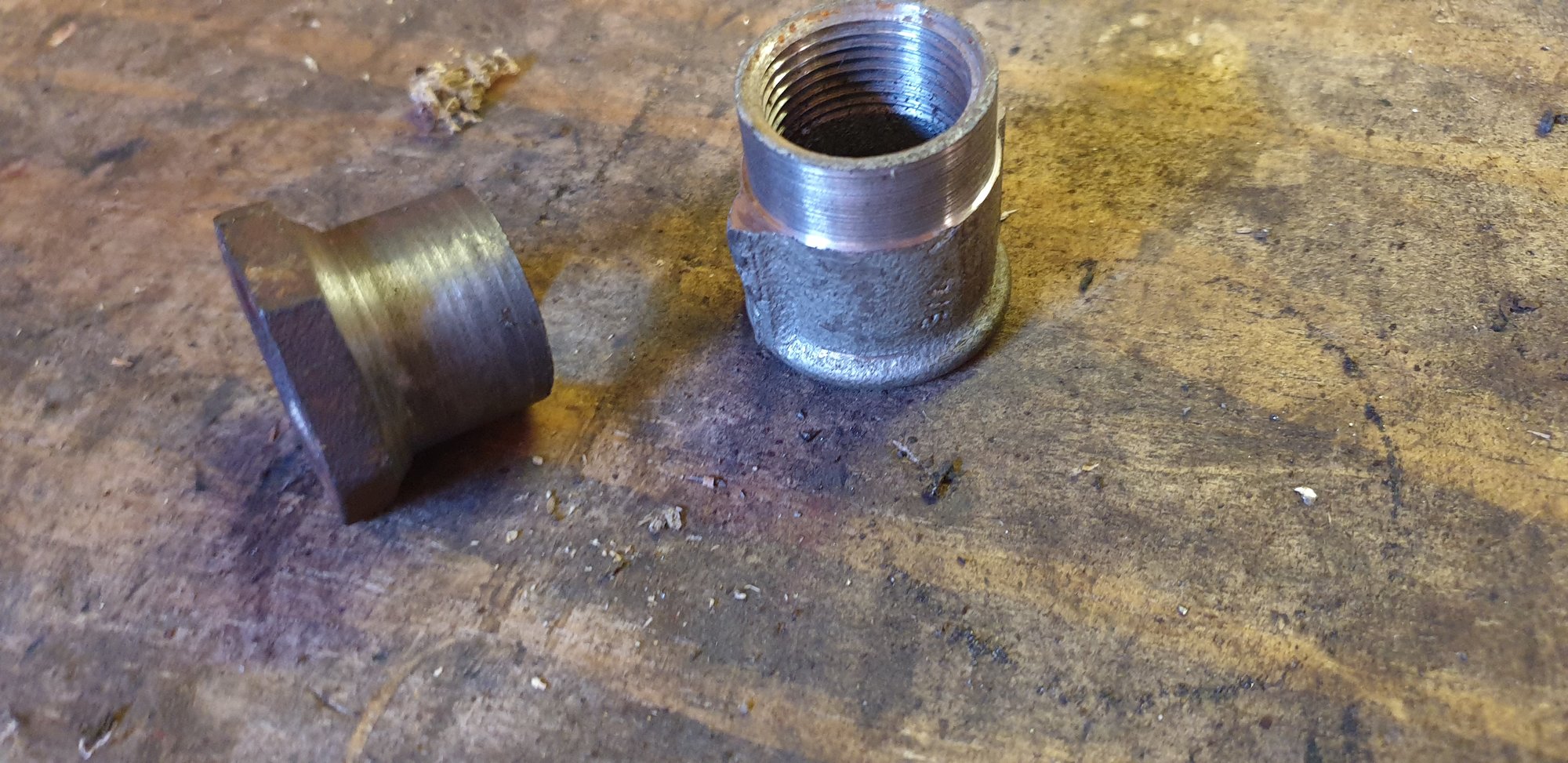

I am thinking as the water will not be held under pressure maybe a 50 gallon steel drum would be ok. I have pre-empted you giveing it the thumbs up and knocked up a couple of home made 3/4bsp tank fittings



and welded a to the side 150mm from the bottom and 150mm.



There is a ¾ bsp hold on the top of the tank I am hoping it will be ok to vent the system here as it will save me having to tee into the line.

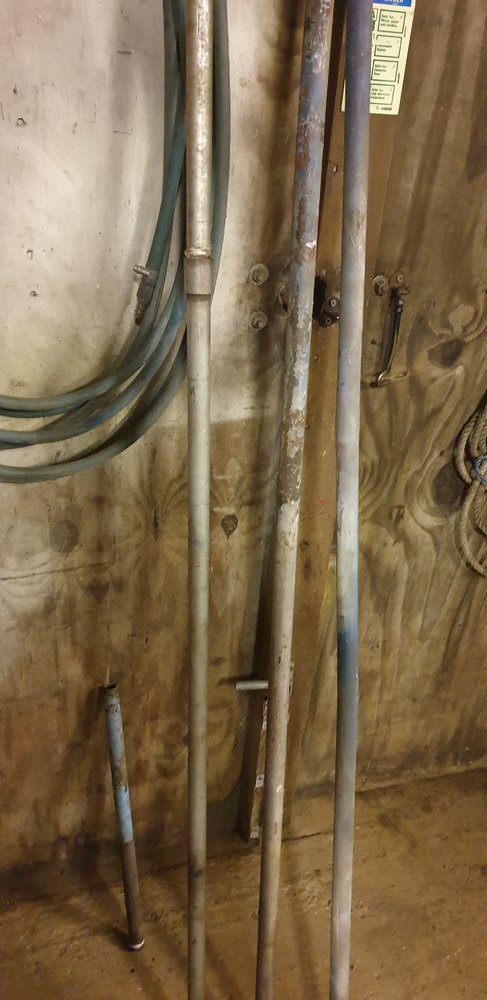

Also I have found some 3/4bsp galvanized pipe

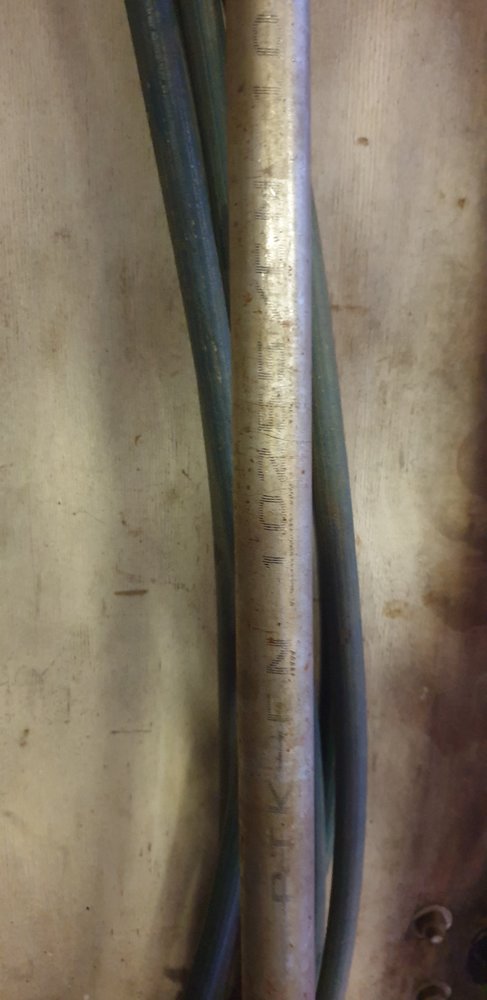

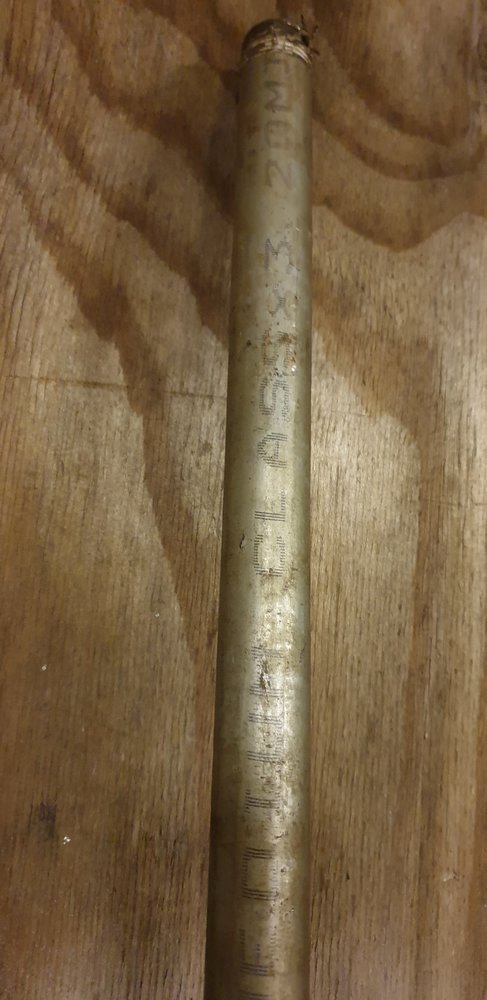

some of it has writing along the side



I am hoping this will be ok to use if only to test the boiler to see if it will heat up that much water.

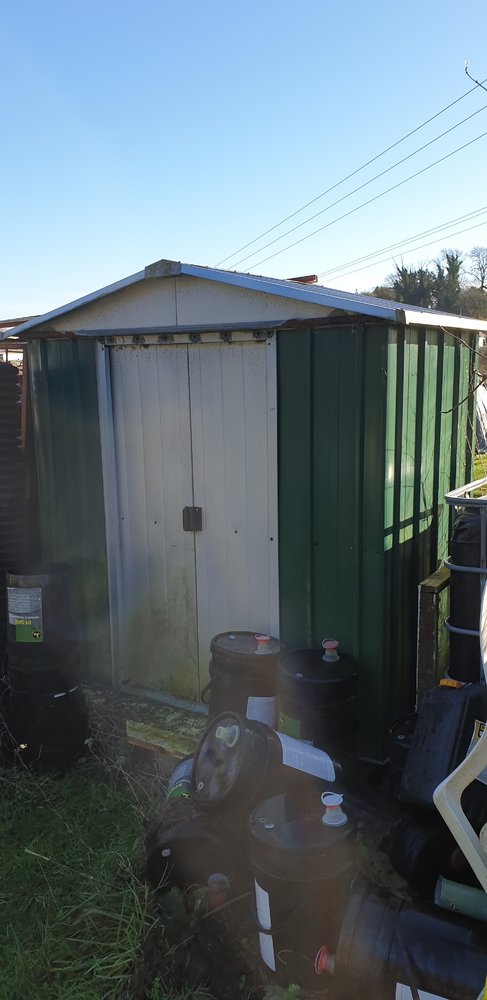

Also another bit of luck father has given me this shed its only a small one but more importantly its all metal,



I need to fit a steel floor in it but I reckon its going to do the job

hopefully should have a test next week fingers crosseed



[JimmyS]

Your pipe looks like the right stuff - used to be BS1387 tube either blue or red band but its classified as BS EN 10255 now so it looks like its galvanized heating pipe.

Top connection for a vent is ideal

You will need 4 connections in total 2 for the boiler and 2 for connecting the radiators to the buffer tank. I would use those 2 for the radiator connection with the top one as flow. heat should rise to top.

Other 2 I would put on other side and maybe one in middle and one at bottom for boiler connections.



[gaz1]

its wrong by the way blank off the top side connection

the method your using is the direct method not the indirect method that you have created

look up direct gravity fed heating system ignore the ones with a coil

reference is more on the heating of the water side of it

pump is on the return and so is feed from the tank

that system shouldnt be used nowadays but it still exists somewhere as they seperated central heating and hot water as it used to be together at one time



[jordhandson]

Your pipe looks like the right stuff - used to be BS1387 tube either blue or red band but its classified as BS EN 10255 now so it looks like its galvanized heating pipe.

Top connection for a vent is ideal

You will need 4 connections in total 2 for the boiler and 2 for connecting the radiators to the buffer tank. I would use those 2 for the radiator connection with the top one as flow. heat should rise to top.

Other 2 I would put on other side and maybe one in middle and one at bottom for boiler connections.

Cheers Jimmy before I fit the otherside fittings Im going to see if the boiler set up works.



[gaz1]

id forgotten about these
