which folder is this?

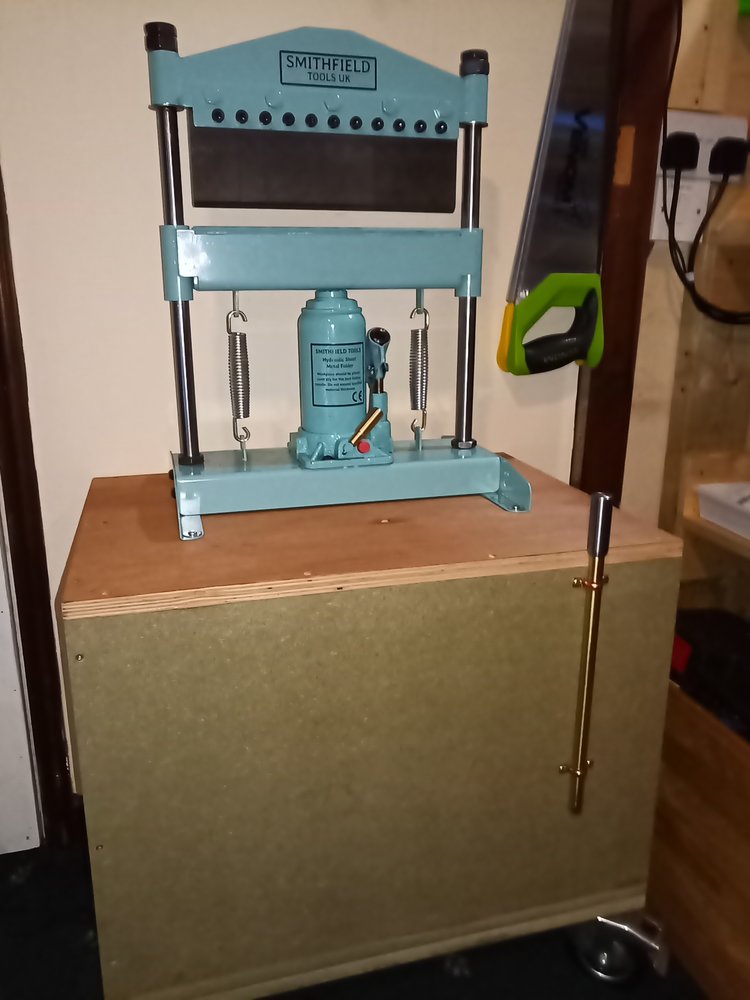

Hydraulic sheet metal folder bender press brake 305mm 12" | eBay

The S12 R/T hydraulic press brake has a folding capacity of 305mm (12"). This machine will fold 5mm thick steel up to 100mm, 3mm thick steel up to 200mm widths and 2mm thick steel for up to 305mm widths.

www.ebay.co.uk



[Munkul]

I'd cut it and rejoint it, if done well you'd never know

I don't have the skills or the tools I have a circular saw, a plane and random orbital sanders...
What would you do? i could cut it with two parallel edges with the circ saw, and get the edges nice, but how would you attach the pieces together with proper alignment?
Wood bothering isn't my forte...



[Munkul]

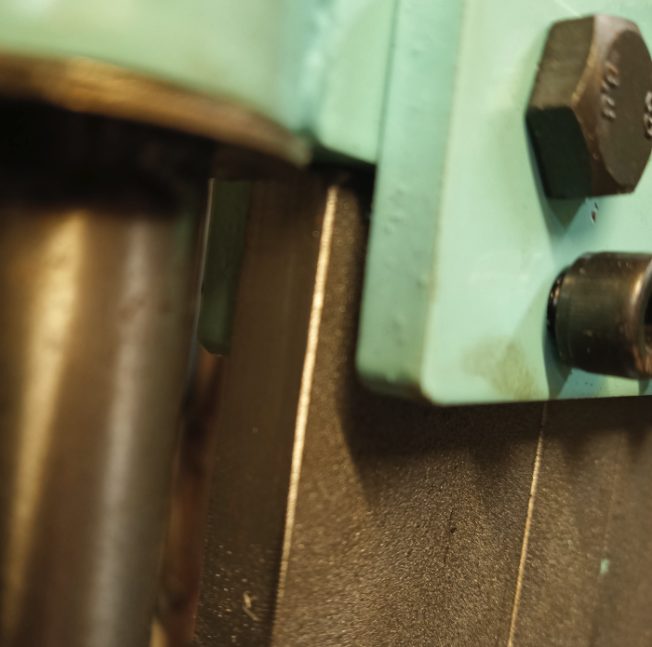

I bent up some 60mm x 5mm stainless today as inserts for it, it reduces the width of the V to about 25mm from the 33 as delivered, it lets you bend a tighter radius on thinner stuff and also lets you bend shorter distances between bends. Might even make more up to reduce the V width more.

I still have to dress off the tops of them.
View attachment 324306

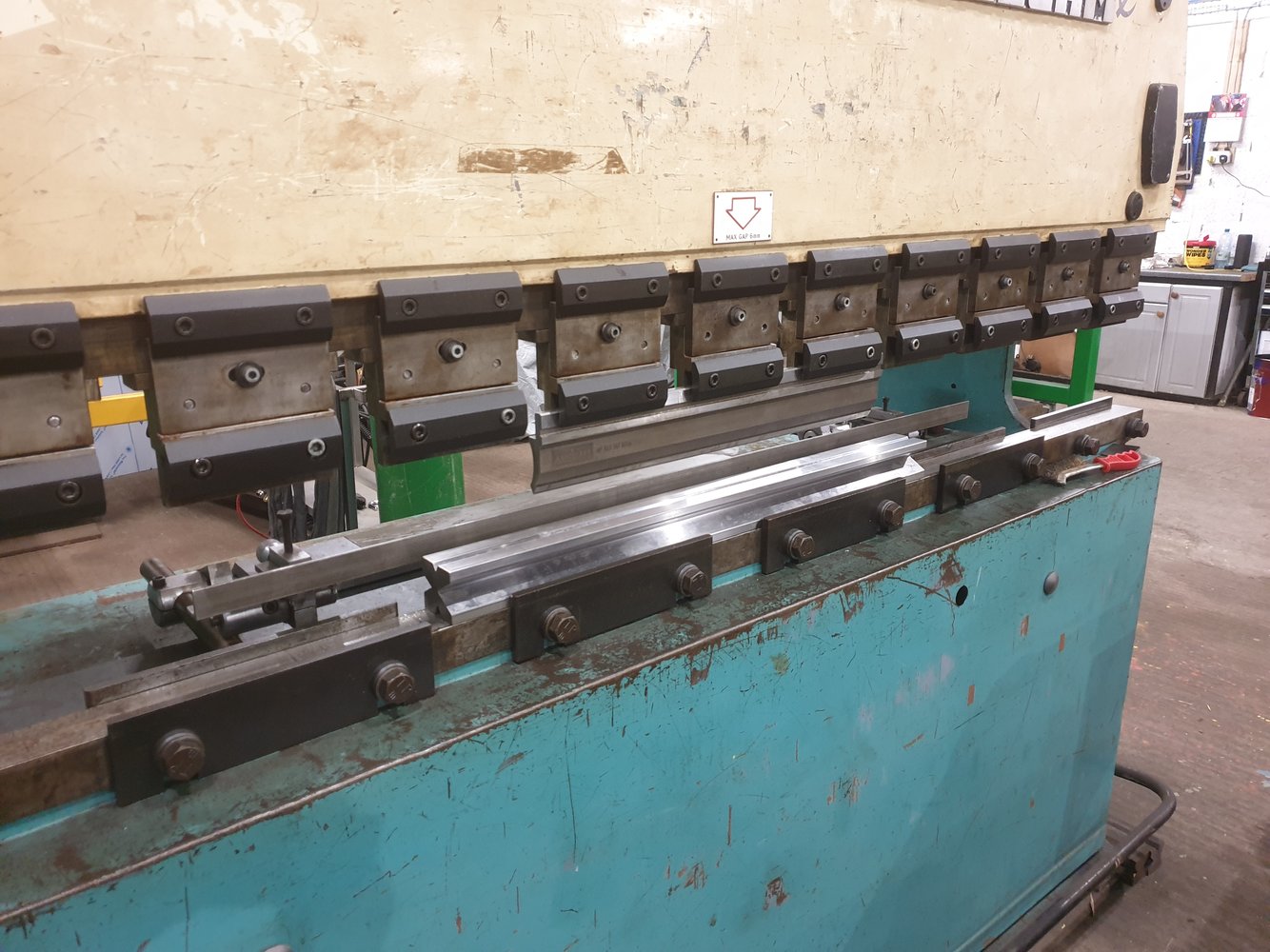

I'm surprised that you're OK with that setup... I'd have thought you'd be modifying that rough looking bottom tool to accept a length of 60x60 X form tooling. That way would make it more flexible too, as you could segment top and bottom tools properly... It would transform it from a toy into a proper mini brake, and air bending would be accurate as long as you're centered.



[Hood]

I'm surprised that you're OK with that setup... I'd have thought you'd be modifying that rough looking bottom tool to accept a length of 60x60 X form tooling. That way would make it more flexible too, as you could segment top and bottom tools properly... It would transform it from a toy into a proper mini brake, and air bending would be accurate as long as you're centered.

The bottom tooling would cost over half what the brake cost, unless you have any going free



[Munkul]

The bottom tooling would cost over half what the brake cost, unless you have any going free

I've got some very worn out bottom tooling but I keep it for bending rough stuff I think that's why you rarely see second hand tooling, as everyone keeps their old stuff so they can butcher it!



[Hood]

I've got some very worn out bottom tooling but I keep it for bending rough stuff I think that's why you rarely see second hand tooling, as everyone keeps their old stuff so they can butcher it!

And that is the reason I am satisfied with it the way it is
for now



[MCKDAVID]

I bent up some 60mm x 5mm stainless today as inserts for it, it reduces the width of the V to about 25mm from the 33 as delivered, it lets you bend a tighter radius on thinner stuff and also lets you bend shorter distances between bends. Might even make more up to reduce the V width more.

I still have to dress off the tops of them.
View attachment 324306

you've got me thinking about modifying mine now, I have a single blade 10mm thick works fine for what it is, but it can be a bit limiting, and I've often thought about making it multiple plates like yours. Then I could make up different formers, radiused bends, square bends etc...... would make it a lot more versatile.

How are your plates held in?, are they just clamped between the two upper carriers, then the bolts clamp them up tight to hold them in place, or is there a notch in the plates and the bolts tighten down onto a gib of somekind? think it would just be clamped directly, but any chance you could take a photo of the fixture / plates the next time you have them out...

cheers

edit, scrub that, just saw your ebay link, ok easy enough to copy....



[Hood]

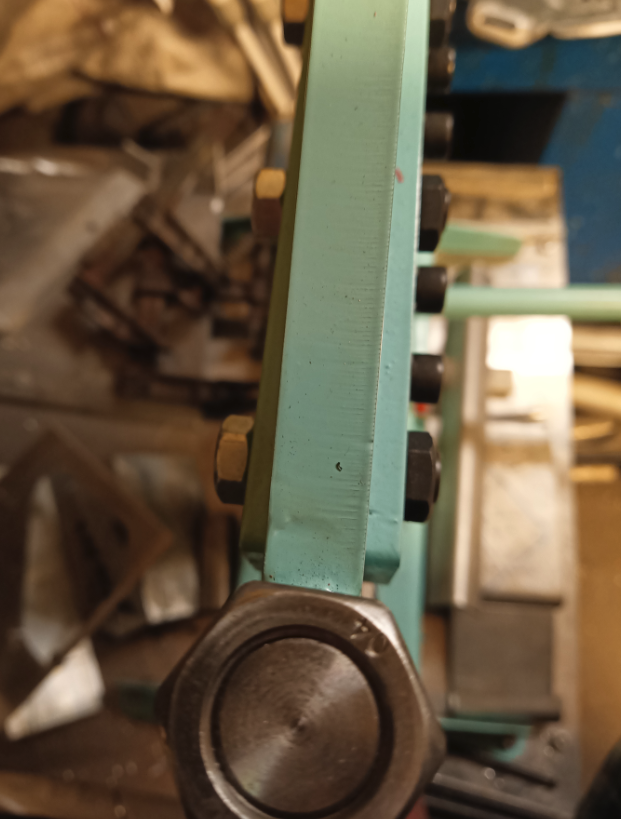

Aye just two plates bolted through the main plate then cap screws to clamp the tooling in.



[MCKDAVID]

^^ perfect cheers.... another job for the list.... hahahah



[Hood]

^^ perfect cheers.... another job for the list.... hahahah

Aye, I have a few of them



[MattF]

Aye, I have a few of them

I think we're all in that camp.



[mtt.tr]

I don't have the skills or the tools I have a circular saw, a plane and random orbital sanders...
What would you do? i could cut it with two parallel edges with the circ saw, and get the edges nice, but how would you attach the pieces together with proper alignment?
Wood bothering isn't my forte...

I would cut it with a tracksaw for simplicity, run it through the overhand then hand plane with a jointing plane. Which is done in a similar way to hand scraping/very similar feel.

Lot of guys just overhand it then cramp the living life out of which always leads to a visible join



[Munkul]

I would cut it with a tracksaw for simplicity, run it through the overhand then hand plane with a jointing plane. Which is done in a similar way to hand scraping/very similar feel.

Lot of guys just overhand it then cramp the living life out of which always leads to a visible join

I'm sorry but you're saying words that I just don't understand



[nickk]

Didn’t make it all,just cut some extra slots in a ready made plate,as it was more economic.
All done on my old Victoria mill,circa 1950-1970.
Can you guess what it fits to,prizes in the post(Hermes post,that is !).



[Onoff]

The spade carrier is finished
View attachment 323909View attachment 323910View attachment 323911View attachment 323912View attachment 323913View attachment 323914

all from the stainless scrap tub - apart from the nylon for the tyres.

Really like that! I looked and thought how...it's a field gun...



[nickk]

@Hood ,I’d be very interested to see the capacity of this ,as you explore its limits,particularly with mild.



[Hood]

Didn’t make it all,just cut some extra slots in a ready made plate,as it was more economic.
All done on my old Victoria mill,circa 1950-1970.
Can you guess what it fits to,prizes in the post(Hermes post,that is !).View attachment 324330

Not a clue, some form of catch plate?



[Hood]

@Hood ,I’d be very interested to see the capacity of this ,as you explore its limits,particularly with mild.

I never really do steel so likely won't be able to say on that.

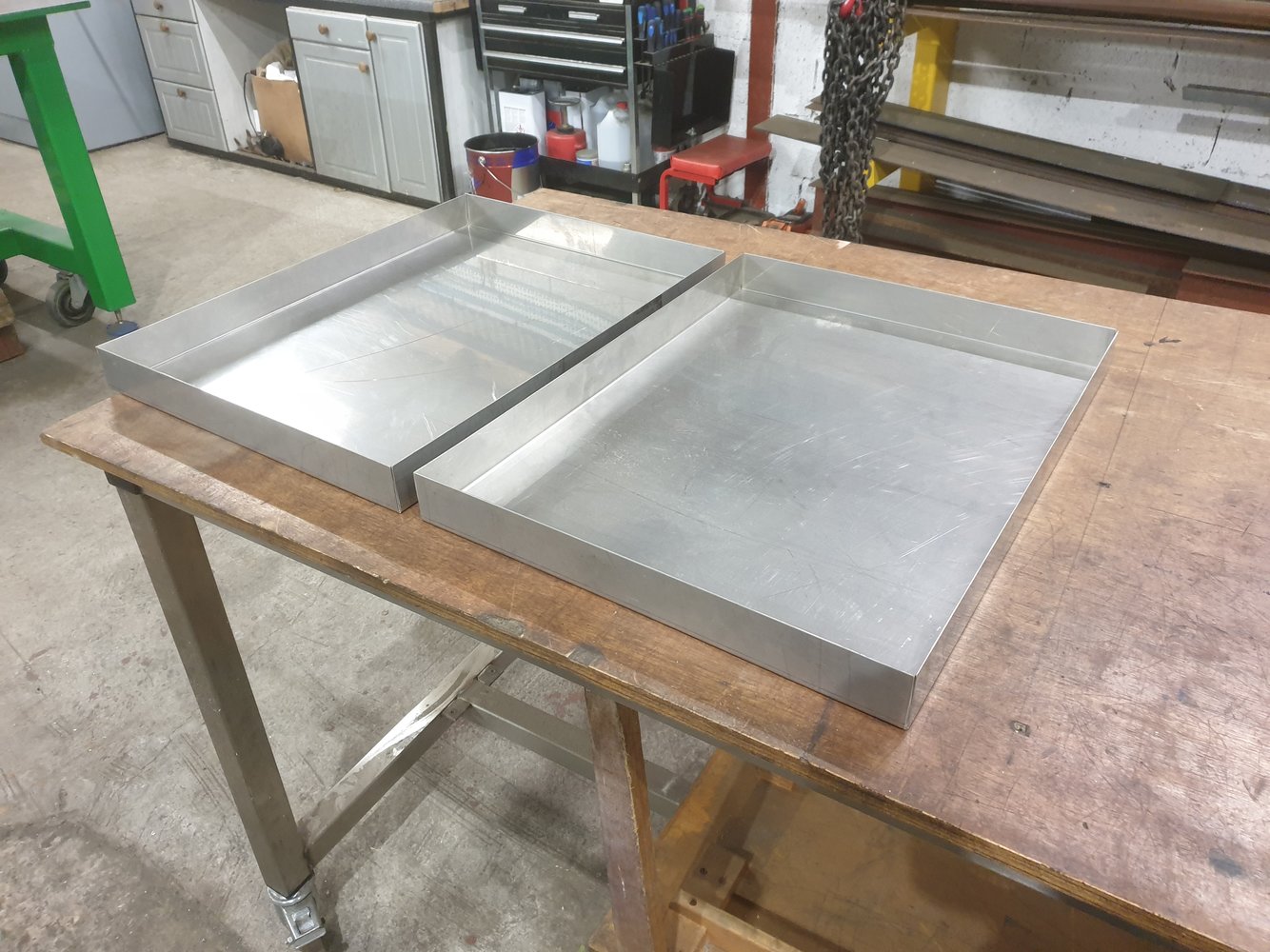

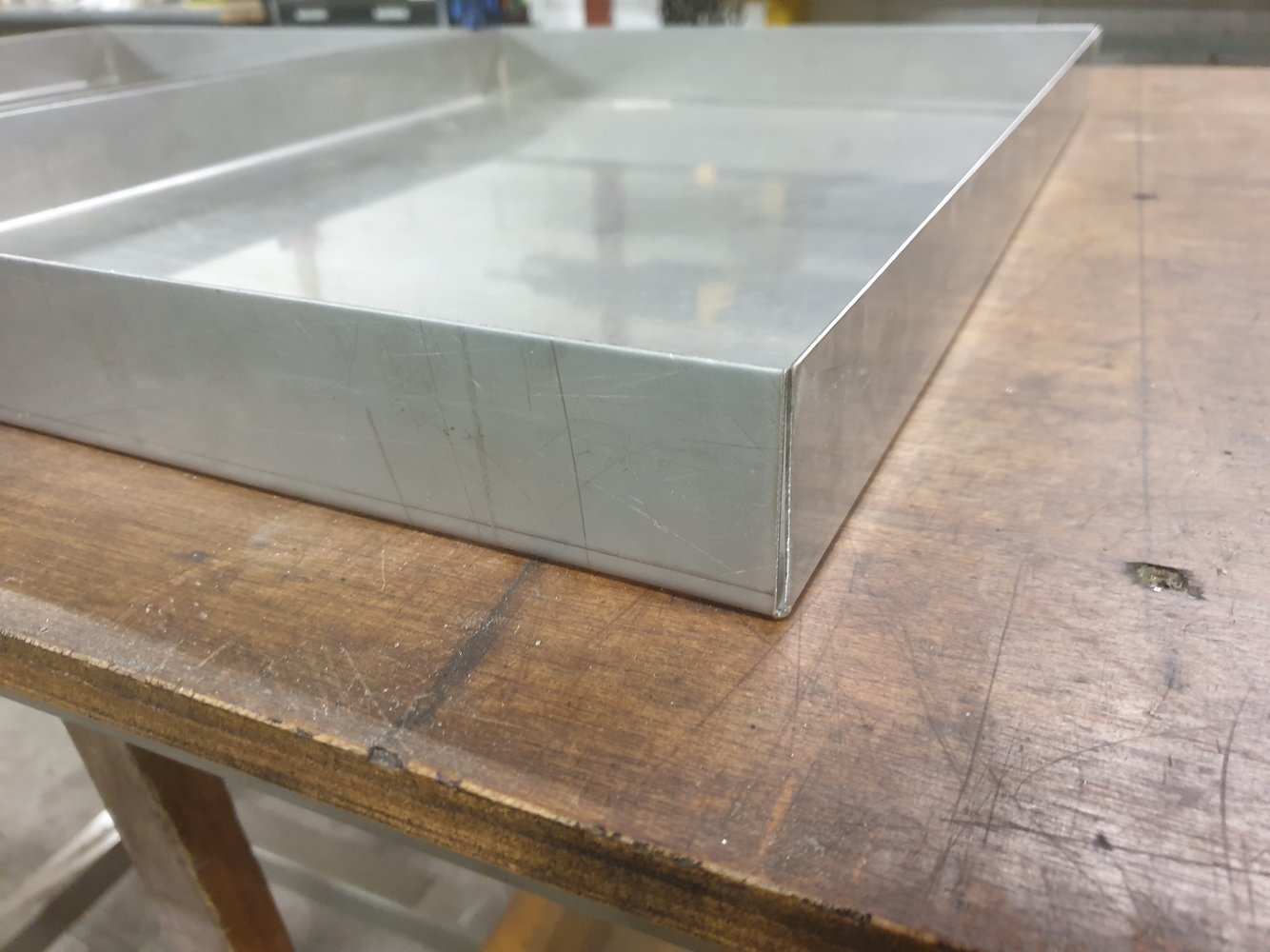

I did some 3mm stainless yesterday, full 300mm width and it breezed it, specs say 2mm mild steel so it did better than that.



[Hood]

Aye, I have a few of them

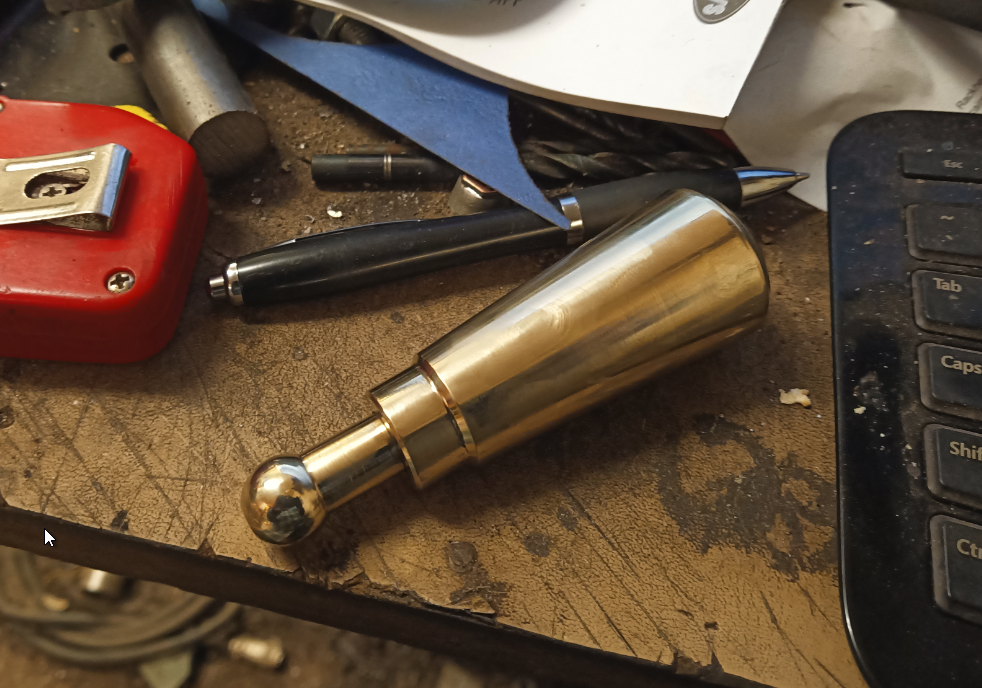

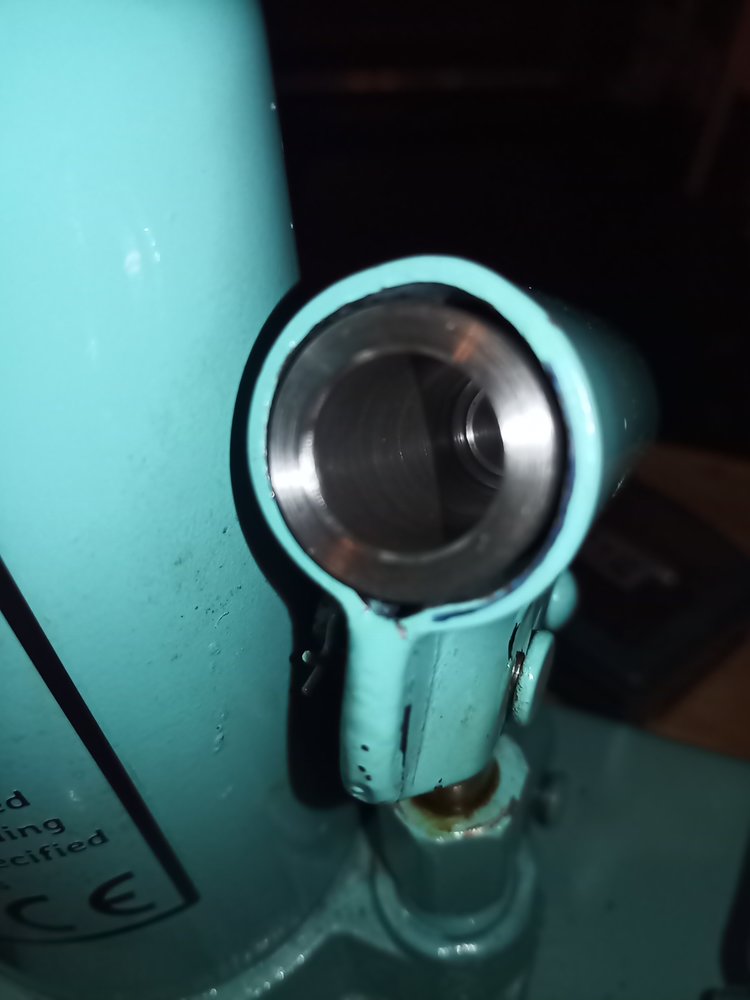

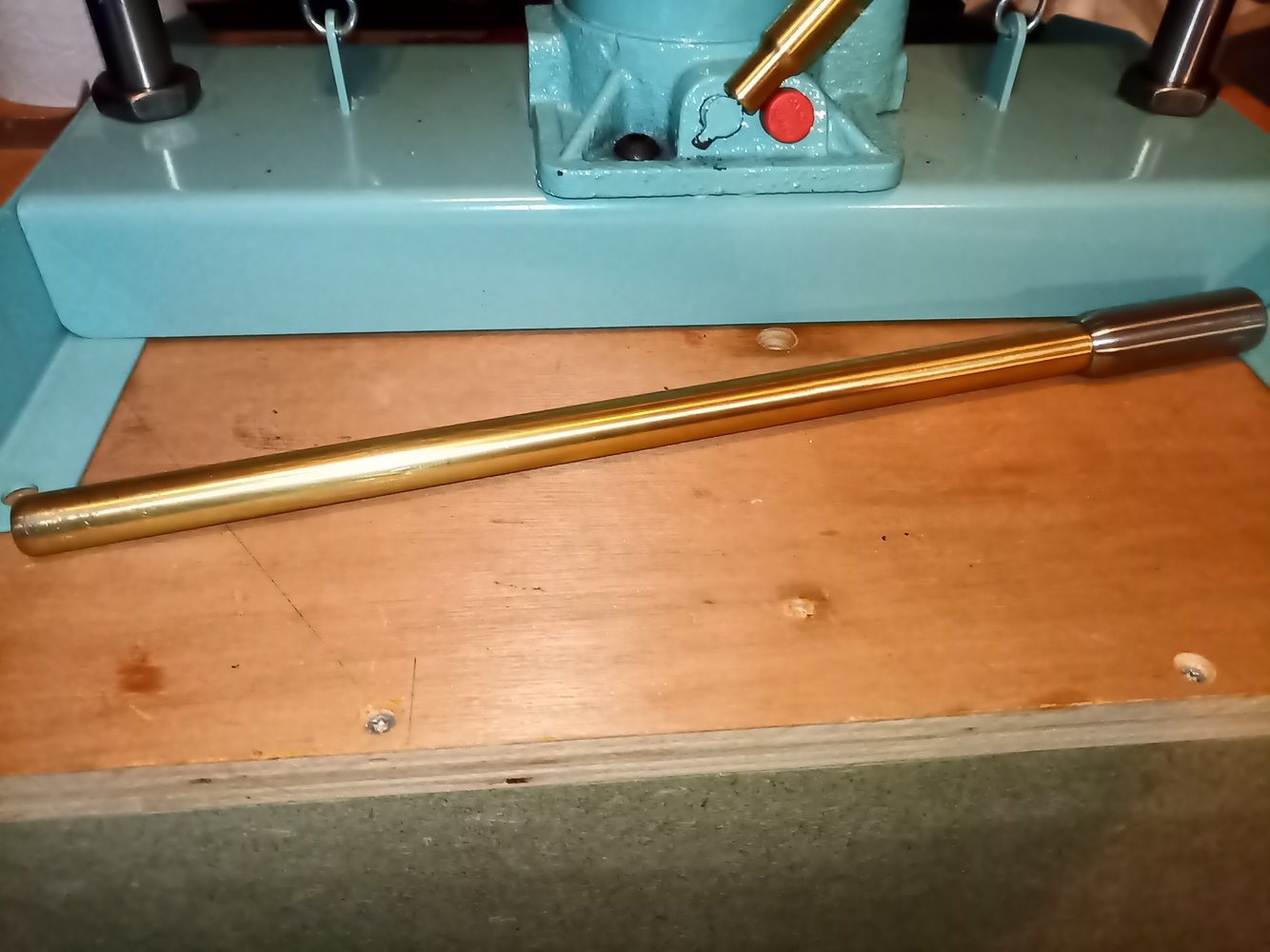

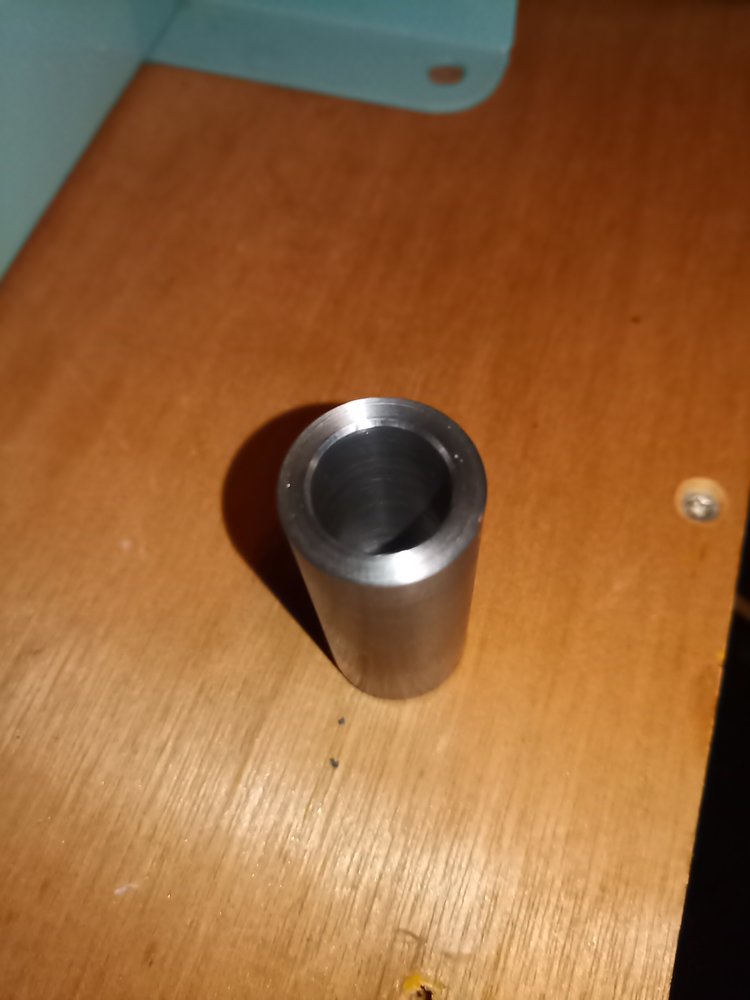

Here is one I have just done, found the original test piece for the steering rods I make for the Cheetah Cats, it is just brass, the real ones are stainless. Anyway I have been meaning to make up this wee tool for a while so a lump of phosphor bronze into the manual lathe and turn it to a sort of handle shape, bore a hole in the end and chap in the steering rod end and the tool is complete



[nickk]

I never really do steel so likely won't be able to say on that.
I did some 3mm stainless yesterday, full 300mm width and it breezed it, specs say 2mm mild steel so it did better than that.

Impressive,that could equate to 300/6.
