Made from bar Stock (EN16) and the hex cut with a rotary broach:

How Rotary Broaching Works by Polygon Solutions

Learn the basics on how rotary broaching works. Machine hexagon forms within seconds on any lathe, mill or machining center with extreme accuracy.

www.polygonsolutions.com

The Hemingway kit for rotary broaching is excellent for anyone who wants to make one for themselves.



[cheb]

The Hemingway kit for rotary broaching is excellent for anyone who wants to make one for themselves.

I looked at that out of curiosity, I'm surprised how little they cost. There's not much info on what you get though.



[Dr.Al]

I looked at that out of curiosity, I'm surprised how little they cost. There's not much info on what you get though.

You get the bar stock (which isn't very much) and the bearings. You also get drawings and a very, very detailed description of the methods they recommend for making it.

The description is fantastic and well thought out. It didn't take long to make the rotary broach and it was very straightforward with the provided instructions.



[cheb]

Thanks. I could be tempted but it'll have to wait until I've done the clearout.



[northwest]

The Hemingway kit for rotary broaching is excellent for anyone who wants to make one for themselves.

I made my rotary broach using this kit and the terrific detailed drawings. I quite simply could not afford a new industrial type broaching tool. The actual cutters are available on ebay from a guy who has set himself up as a toolmaker, very reasonable and all solid carbide but can't find any of his listings right now :-(
also, look up on Google for broach pilot drill sizes, a 4mm hex like this needs a 4.2mm pilot hole for instance and drilling undersize could well end in tears.



[Dr.Al]

I made my rotary broach using this kit and the terrific detailed drawings. I quite simply could not afford a new industrial type broaching tool. The actual cutters are available on ebay from a guy who has set himself up as a toolmaker, very reasonable and all solid carbide but can't find any of his listings right now :-(
also, look up on Google for broach pilot drill sizes, a 4mm hex like this needs a 4.2mm pilot hole for instance and drilling undersize could well end in tears.

I made all my cutters from silver steel; I didn't realise you could buy them in the right size to be honest. They weren't difficult to make.

For mild steel (EN1A) or brass, I usually pilot at the nominal AF size and haven't had any issues. I'd probably be more cautious in something like stainless.



[Windy Miller]

Would these cutters be any good for the Hemingway kit?

Pardon our interruption...



[Morris]

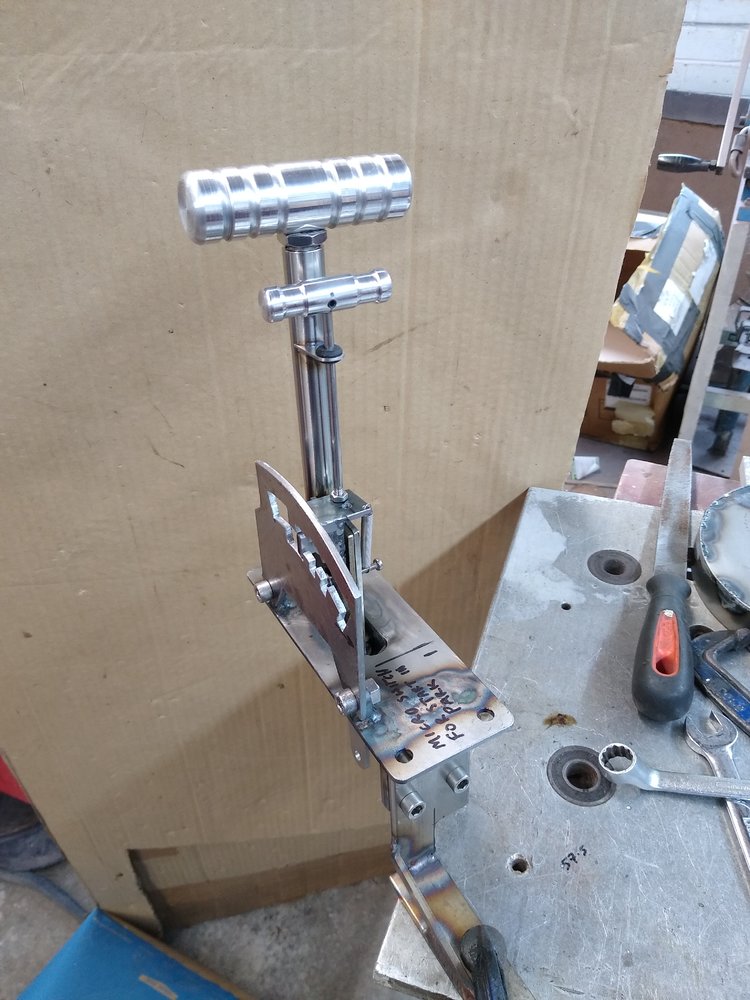

Made a shifter for my Humber Hawk. Still a bit more to do. The gearbox end is all made.



[jsf55]

I've always relayed mine through the brake switch so you need too have your foot on it too start the car, had too many finicky cheap switches on some of the hot rods i've seen and easier too wire
Bloody nice job tho !



[Morris]

I won't be using a cheap switch John, just trying to find a decent one now.



[Dr.Al]

Would these cutters be any good for the Hemingway kit?

Pardon our interruption...

Possibly, although they're expensive given how easy they are to make. The kit includes the 8 mm silver steel required and you just mill the shape onto the end (with a 2.5° clearance angle) and then heat-treat with a blowtorch.



[CaptainPugwash]

Made from bar Stock (EN16) and the hex cut with a rotary broach:

How Rotary Broaching Works by Polygon Solutions

Learn the basics on how rotary broaching works. Machine hexagon forms within seconds on any lathe, mill or machining center with extreme accuracy.

www.polygonsolutions.com

Excellent



[Johnnybravo]

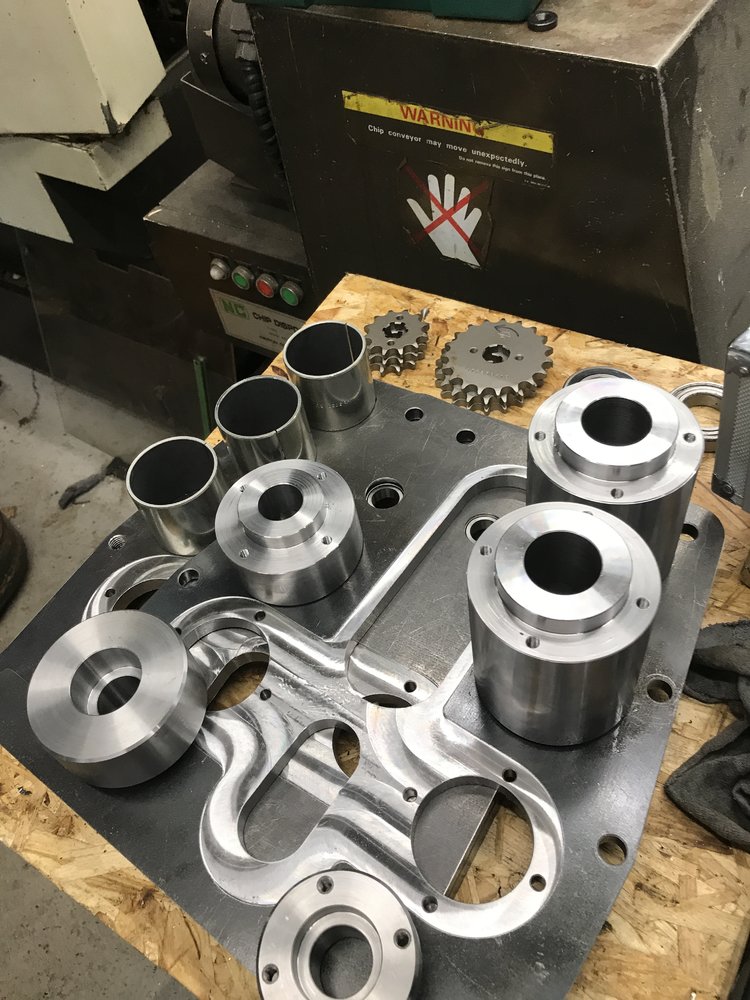

Ring roller continues. Nearly ready for final assembly. Just a couple of shafts to make now



[dan.taylor.1]

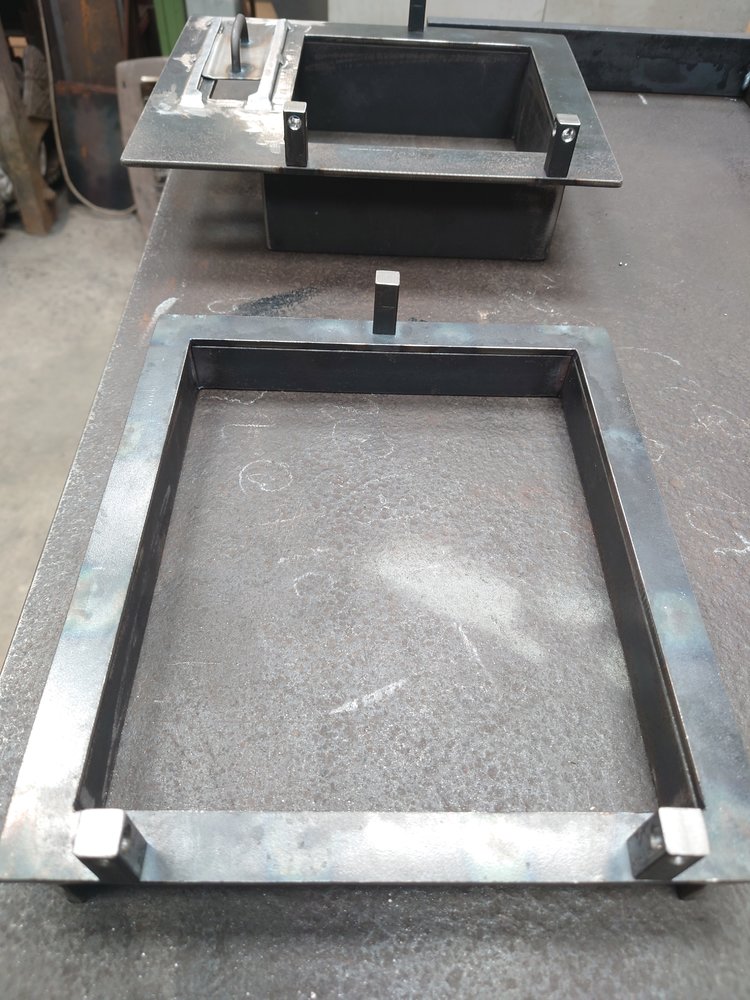

Made a frame for an inset fire last week. Very small, the openings are 200mm or so square..!

Main fire.

Bread oven warmed by the flue gas.

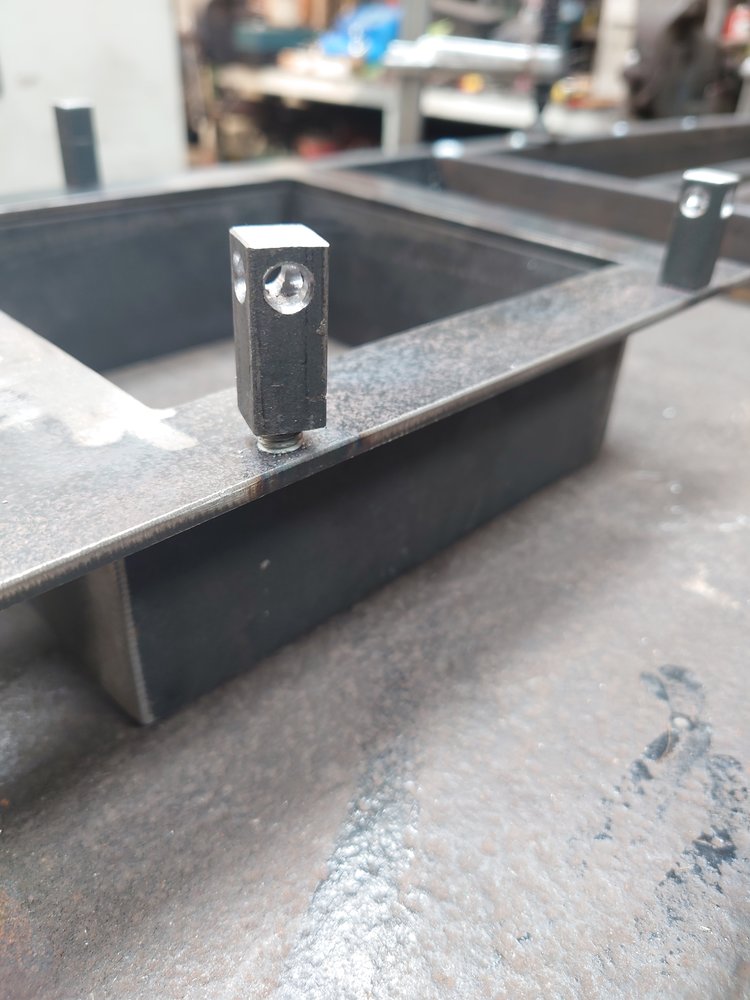

And the hinges and latch posts were all adjustable on M8 studs, hinges cross drilled so a 1/4 turn was possible.



[Morris]

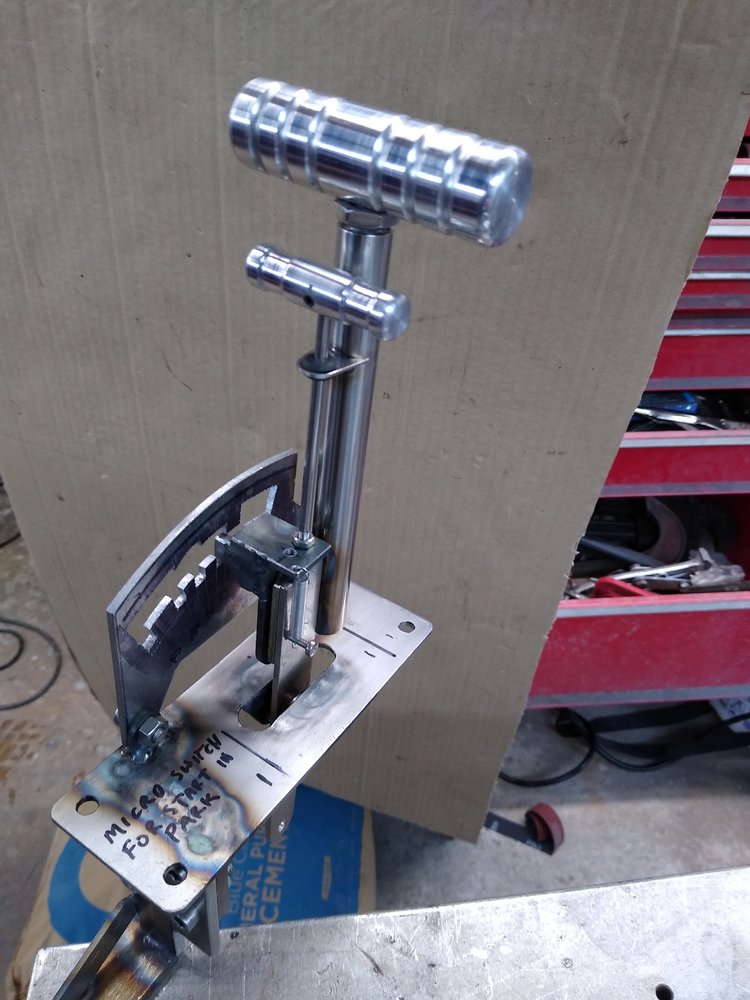

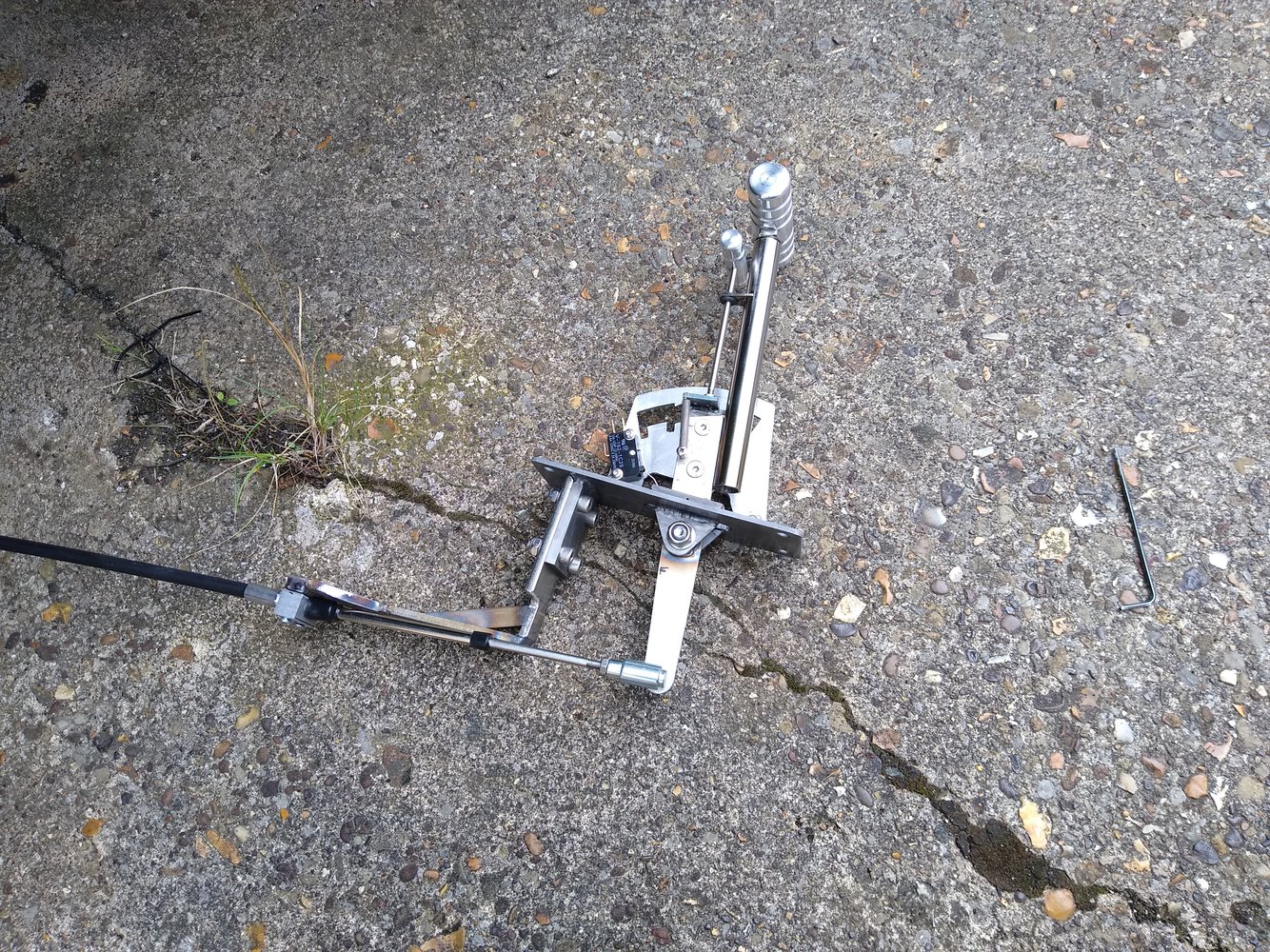

Hooked up to the transmission and tested. Works a treat. Now fitted with an Omron microswitch .
I will case harden the detent plate and stop before final fitting.



[Pete.]

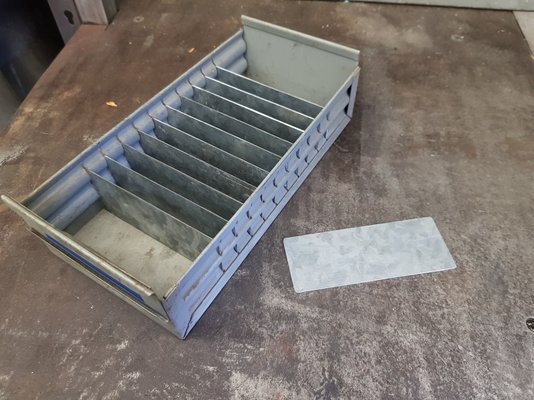

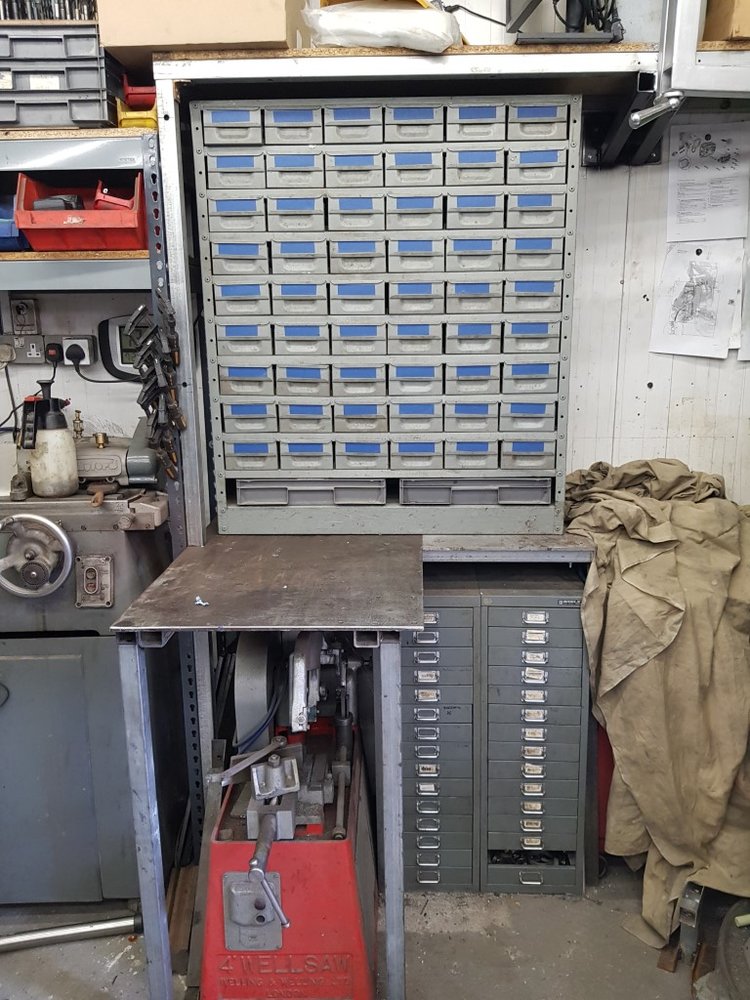

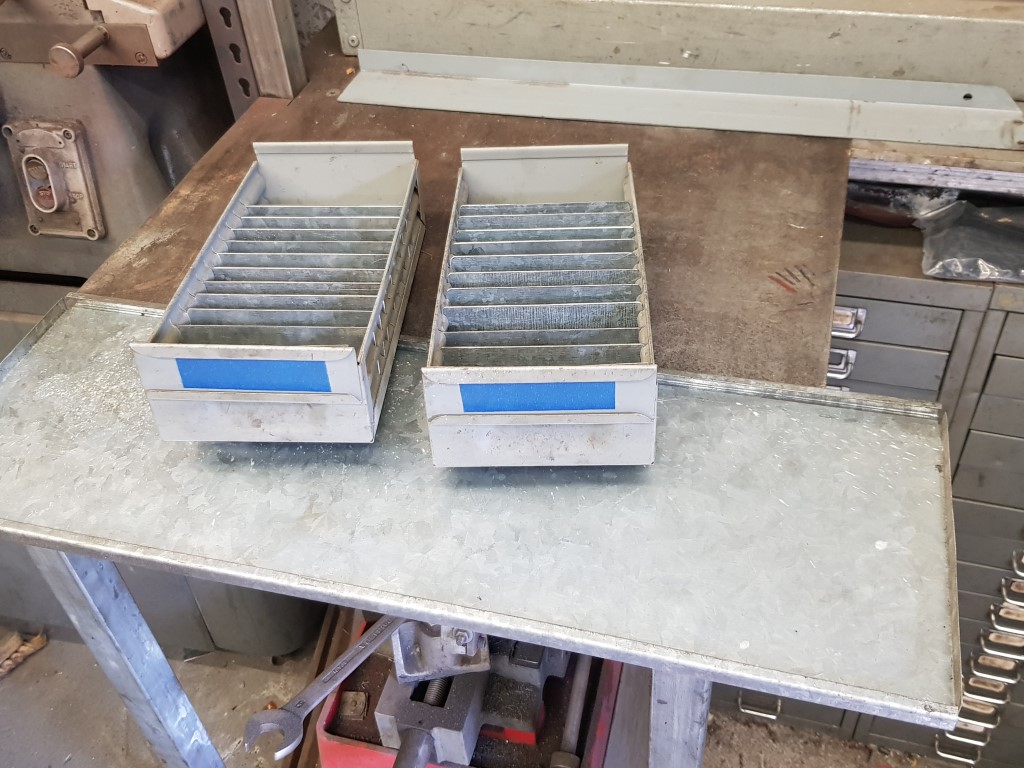

I had a rare couple of spare hours today so I got my mini grinder out and cut some drawer dividers for my recently aquired drawer unit. Cut from some old zinc coated cabinet shelves that I'd saved, and nearly threw out several times but resisted pending finding some use for them.

Well, I found it



[Johnnybravo]

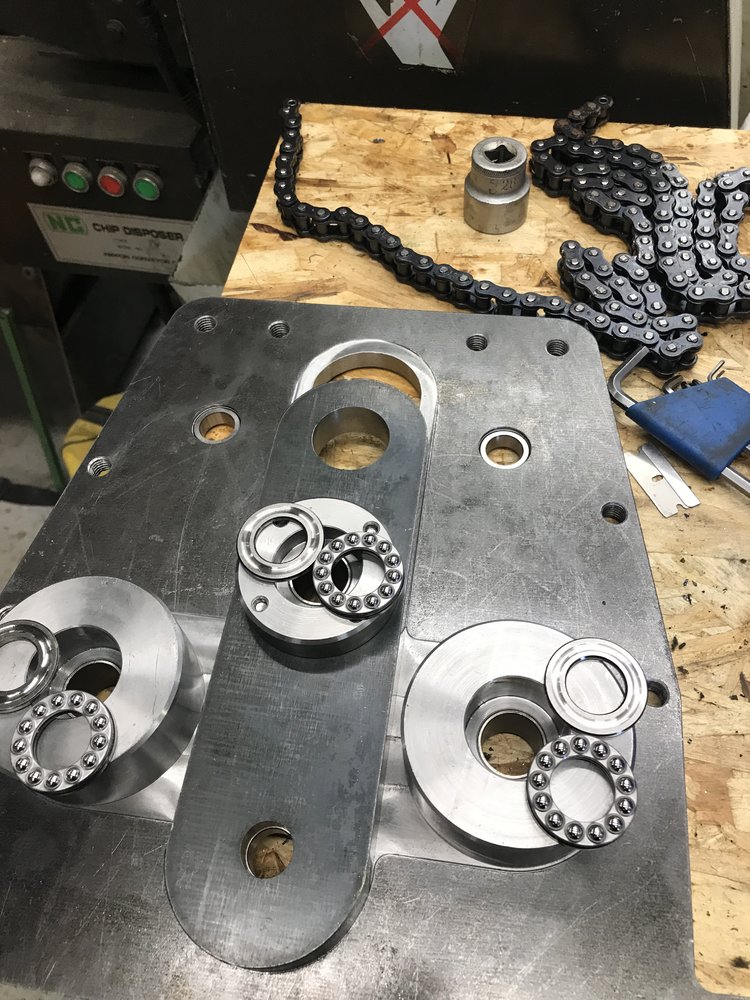

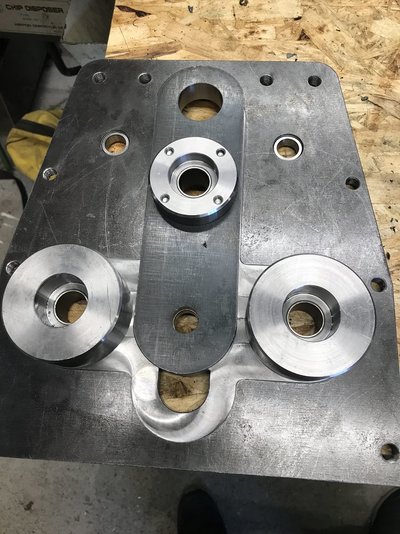

Thrust bearings fitted, glacier bushes pressed in. Back to the drawing board to design the shafts now. On the home straight



[magnet]

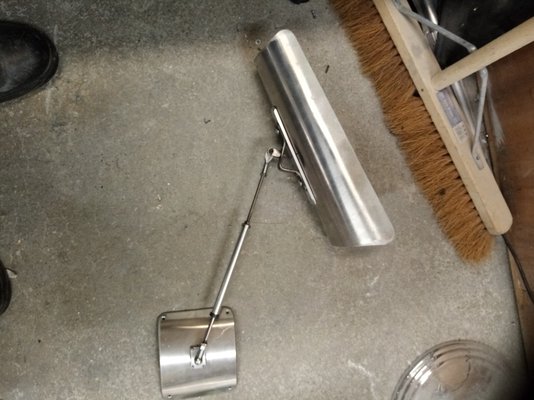

Made this today to support the arm of a disabled archer.

In the prototype stage at the moment be clearer if its any good after it's been for a trial fit.



[nickk]

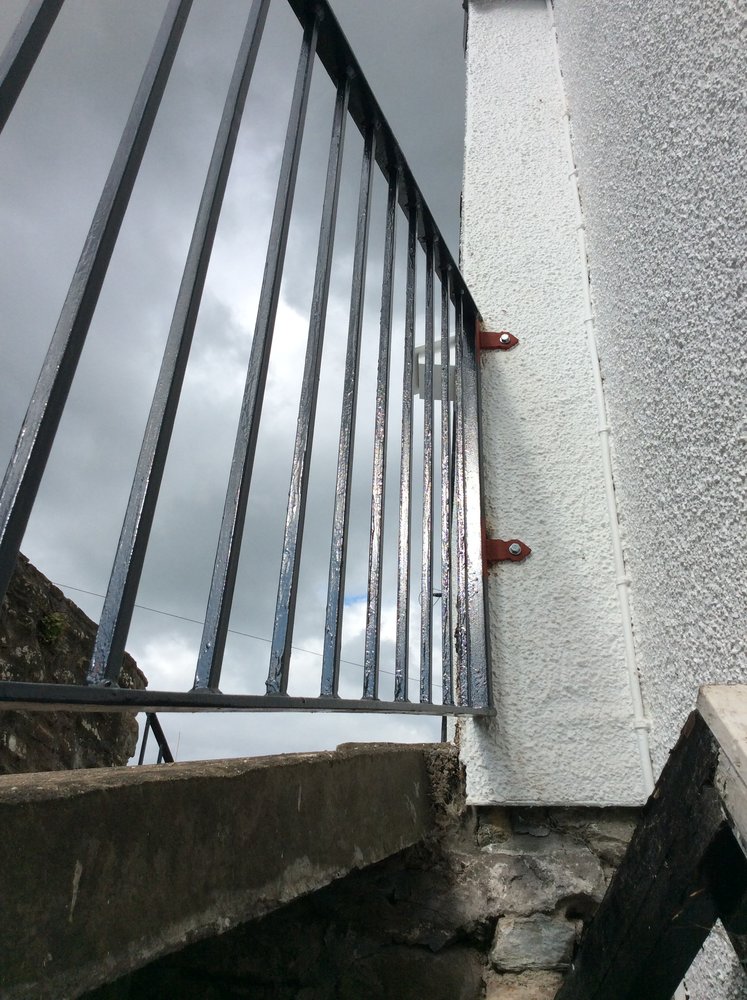

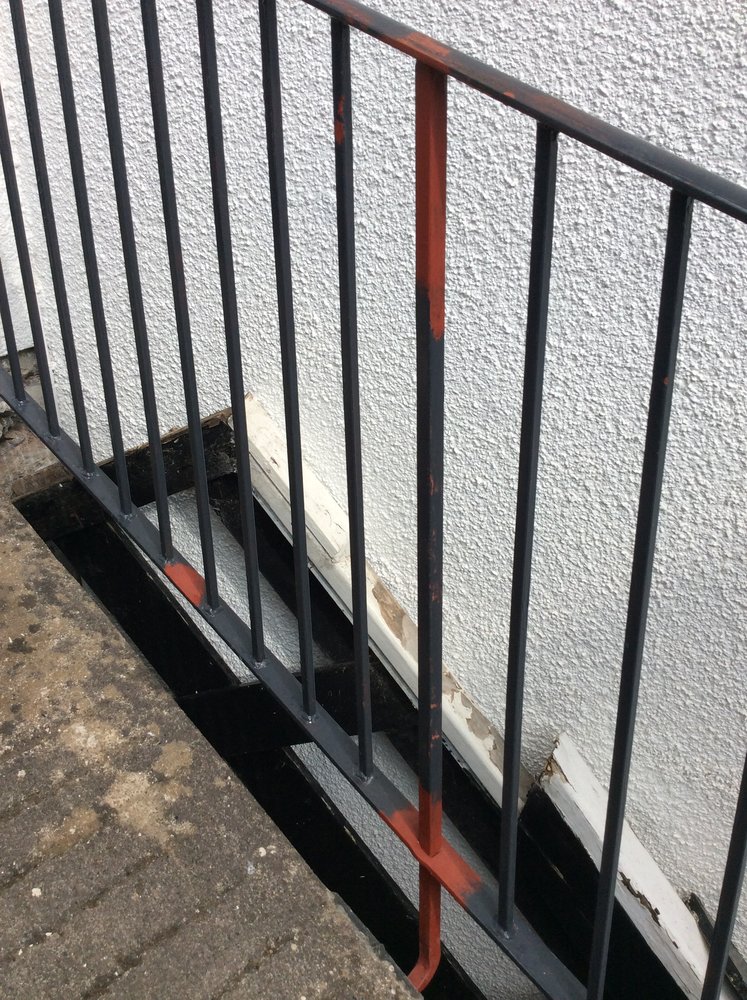

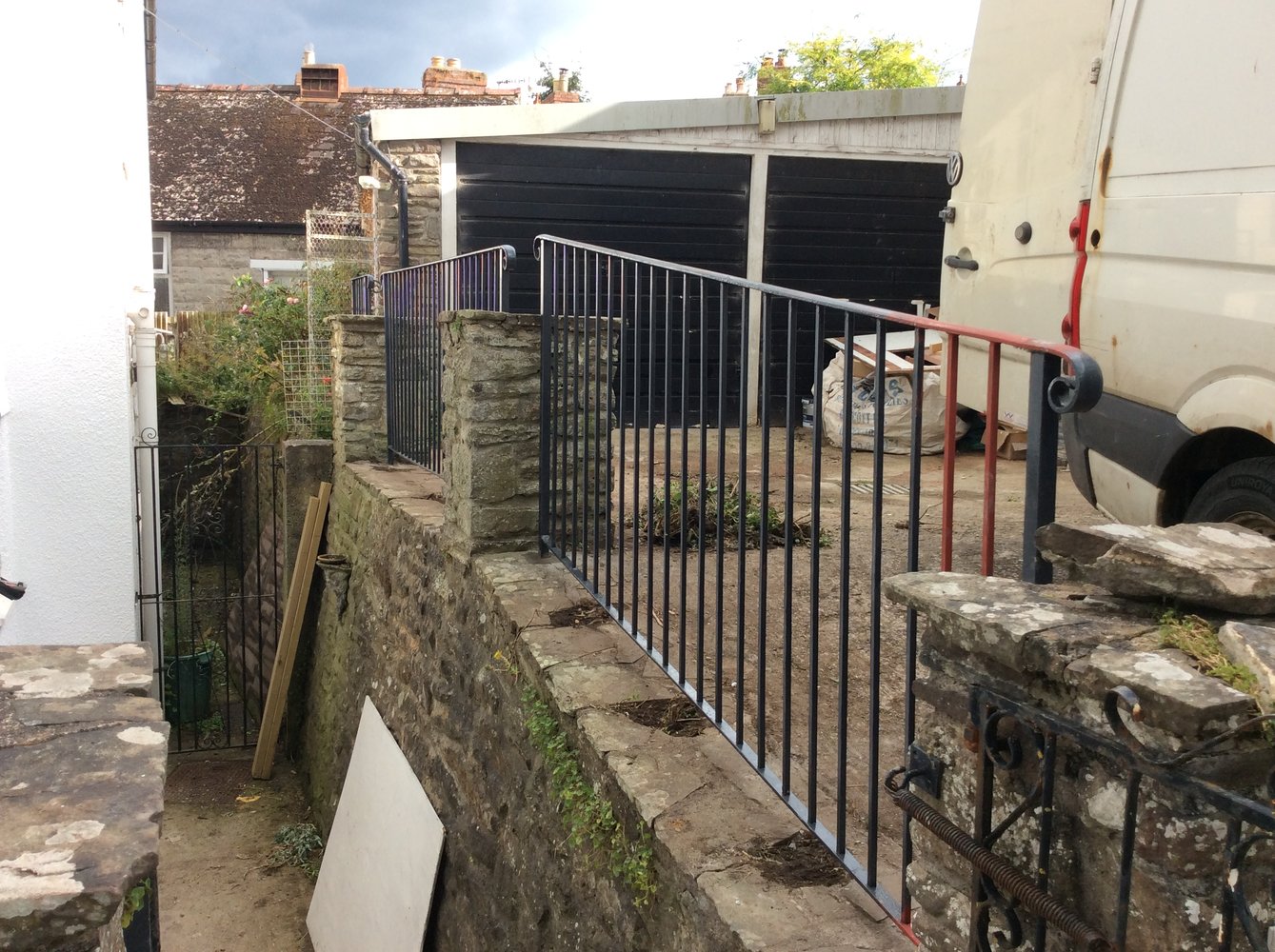

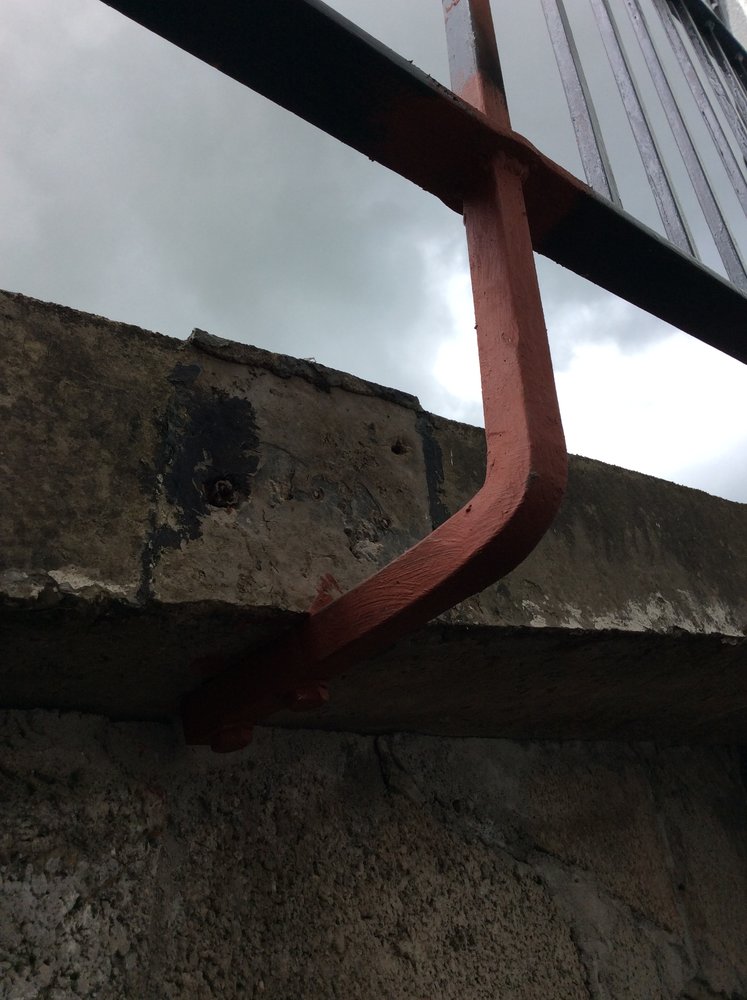

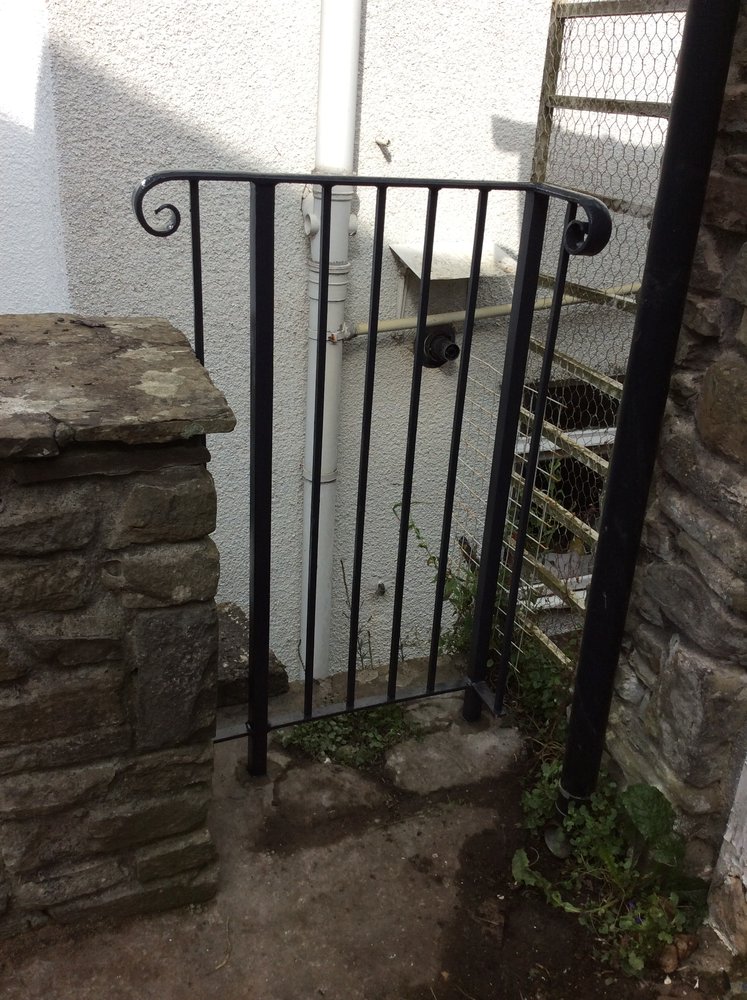

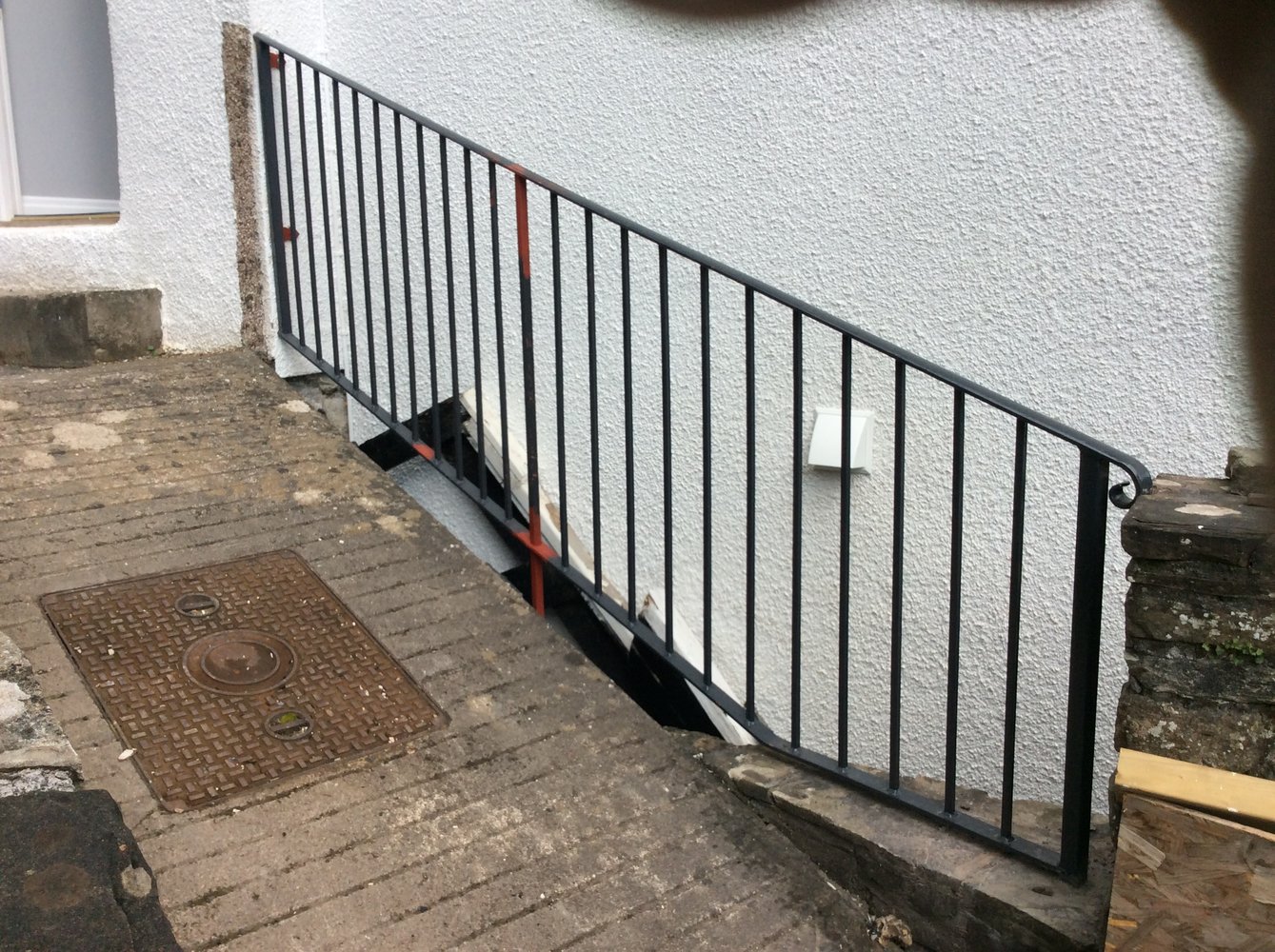

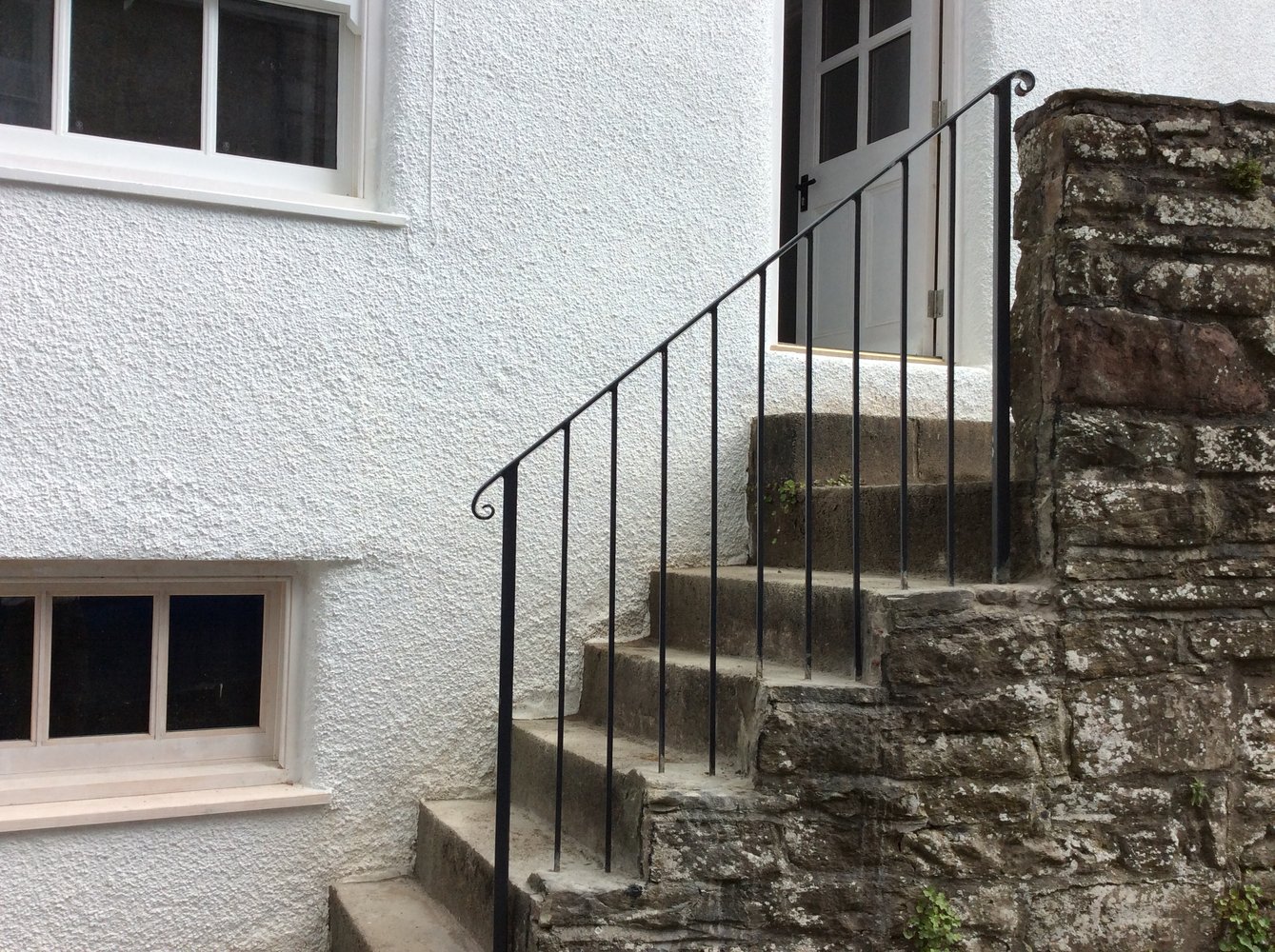

Some balustrades,just paint touch up needed now,I showed the punched bar previously.
The manhole in the ramp is a coal chute!



[Olderisbetter]

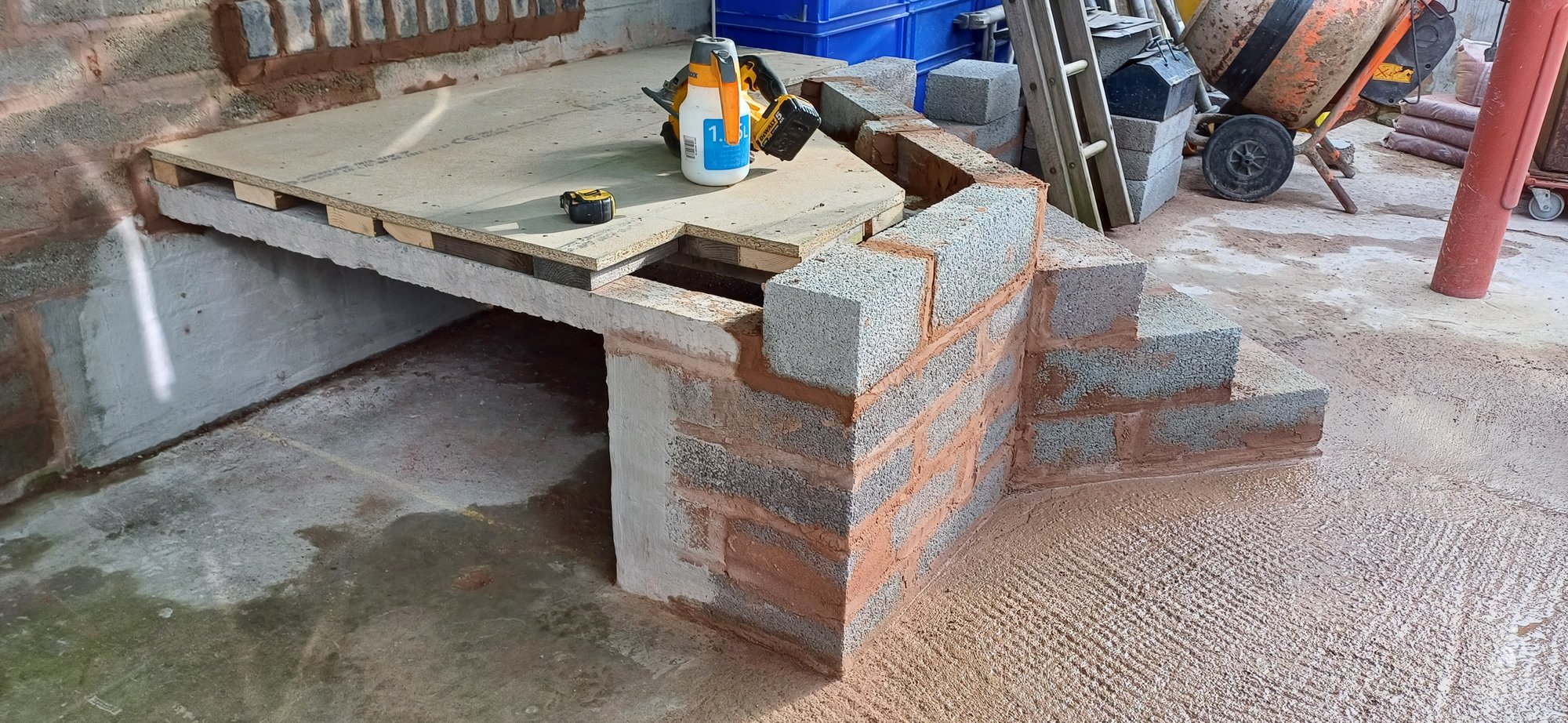

Finally got some steps up inti the garage with some starage space underneath
