... some parts for the Myfords, after a loooong way to me.

I am extraordinarily grateful to a fellow forumist helpful beyond measure for his patience, perseverance and collegiality in the face of the greatest adversity.

Thank you

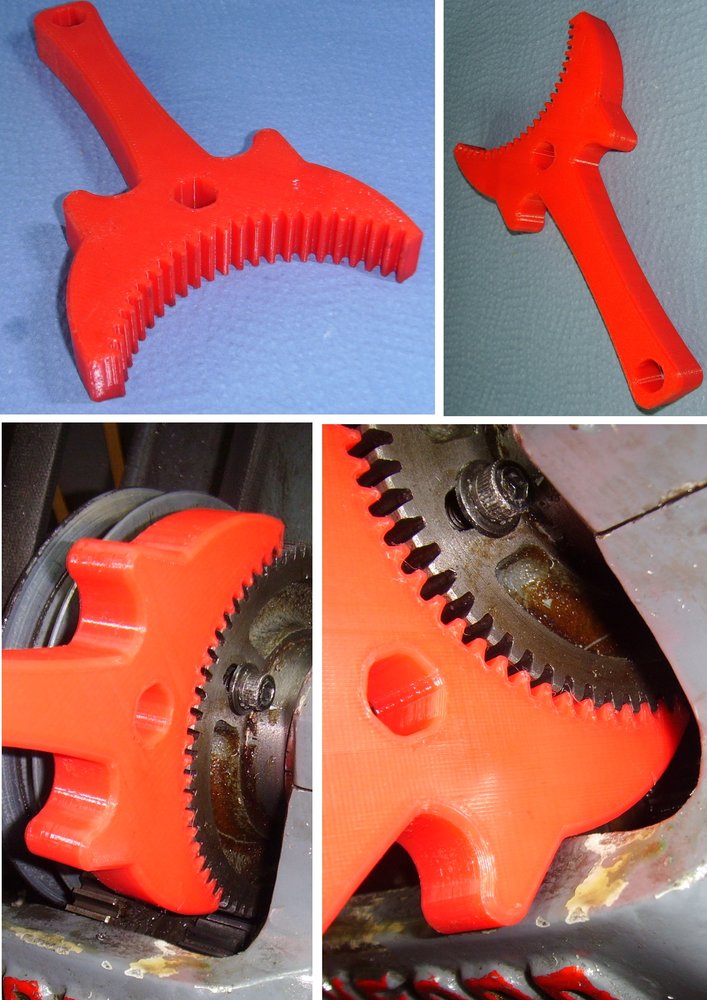

First, a 3D printed tool acquired via eBay.co.uk for fixing the bullgear on Myfords when changing jaw chucks without losing teeth on the backgear.

This part is of really remarkably poor fit ... but see for yourself:

Top tip: Don't bye it!

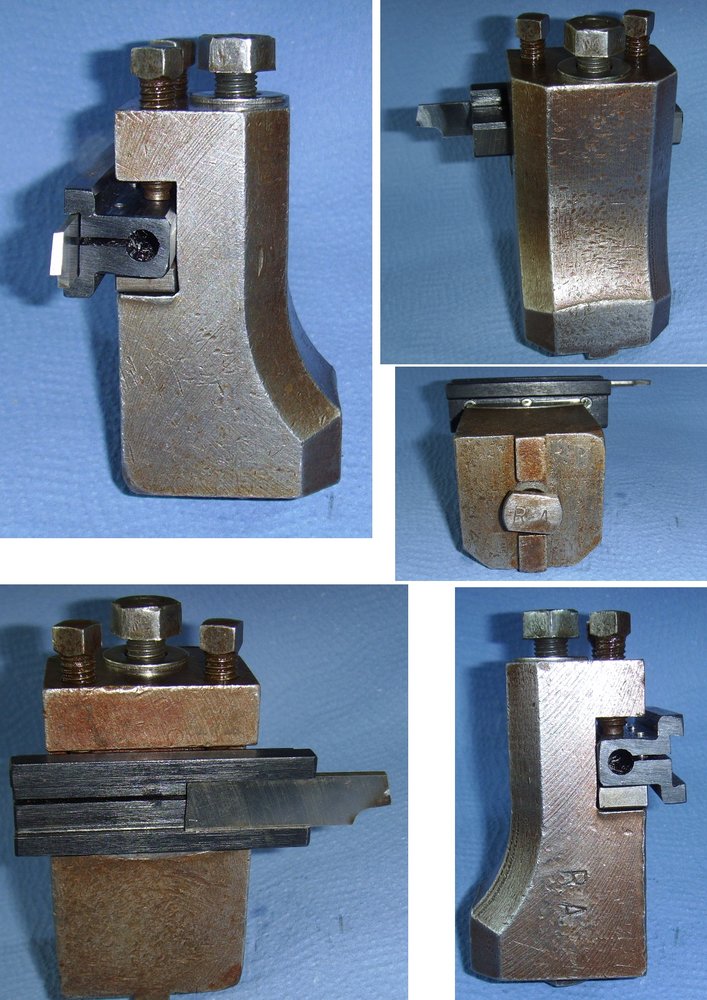

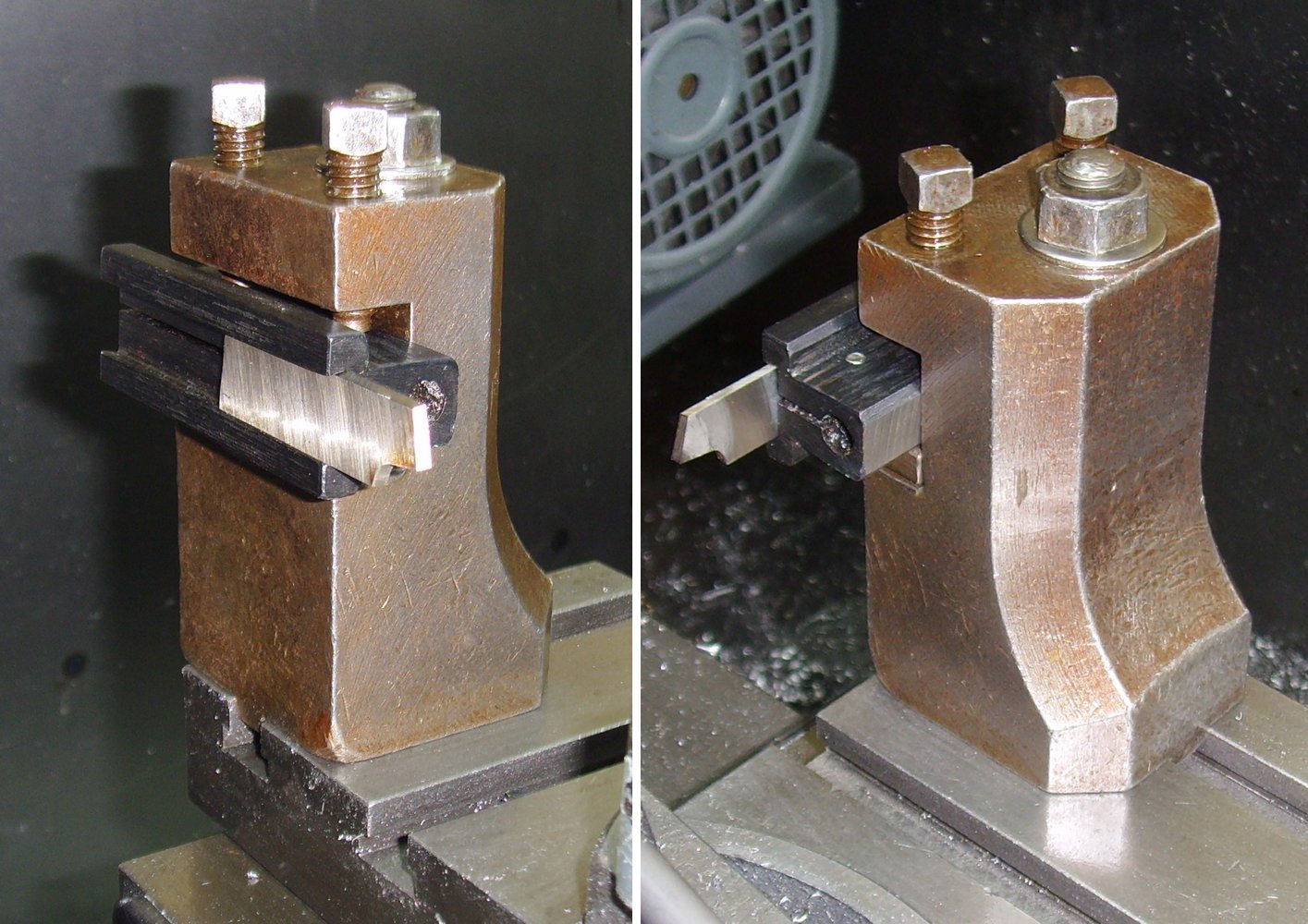

I've been desperate to get this for a while, I finally saw the advantages of using it for parting off while relieving the front spindle bearing, let's see how it does, it's an original:

Included was this parting knife holder with a remnant parting knife.

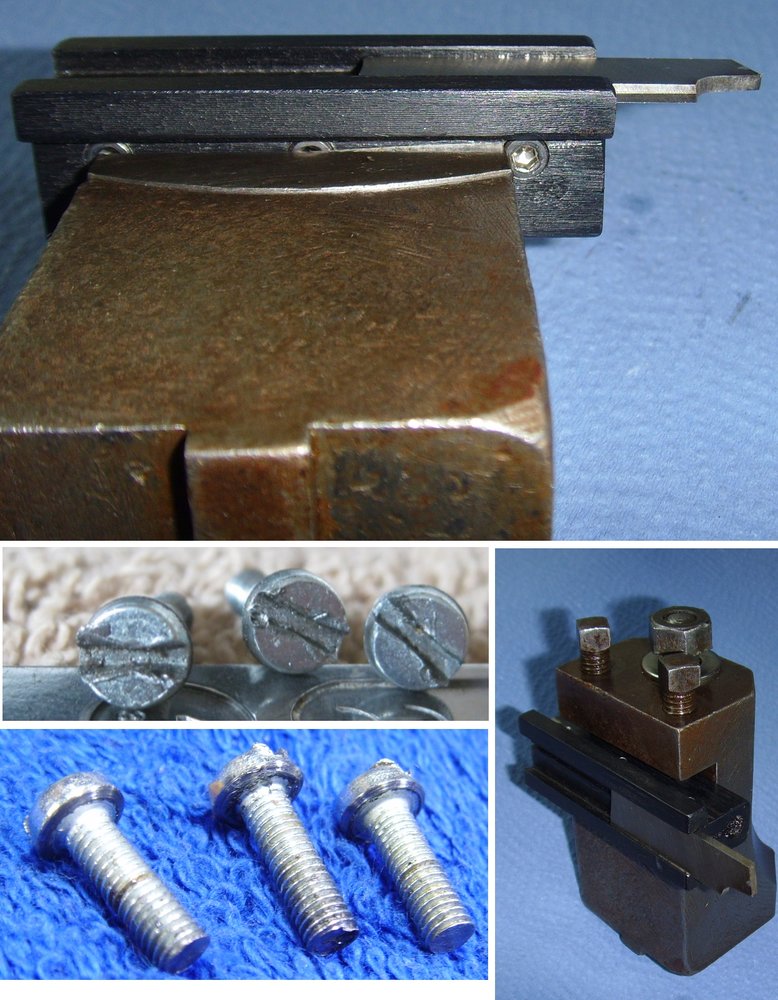

The screws are recognizably dead, certainly not there from the beginning and with their drive also completely unsuitable to apply the necessary force to clamp the knife securely.

Fortunately, the three broken screws were sent with it and I unpacked my full set of thread gauges.
Since the parts came from British lands, I started with BSW, then UNF, UNC and even "4 to 42 V-Thread" - nothing wanted to match right and the damaged threads have not made it easy.

At some point I was fed up and took from my small screw stock any somehow suitable looking screw and tried .... fit on the first try - for whatever reason,
but it is quite a normal M3x0.5mm thread in the knife holder and I have several dozen of them.

Finally also these three Allen screws in the right length in stainless .... fixed!

A little cleaning and care would do any of the items good .... comes.

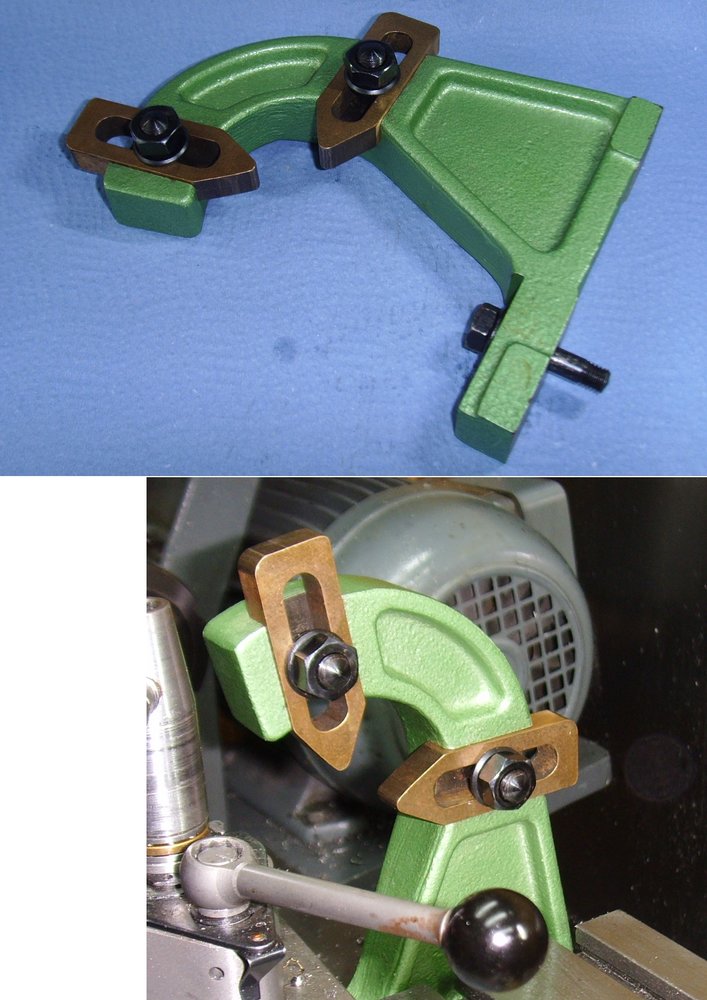

Been wanting one for a while, especially since I learned here how important a supported workpiece can be for good results:

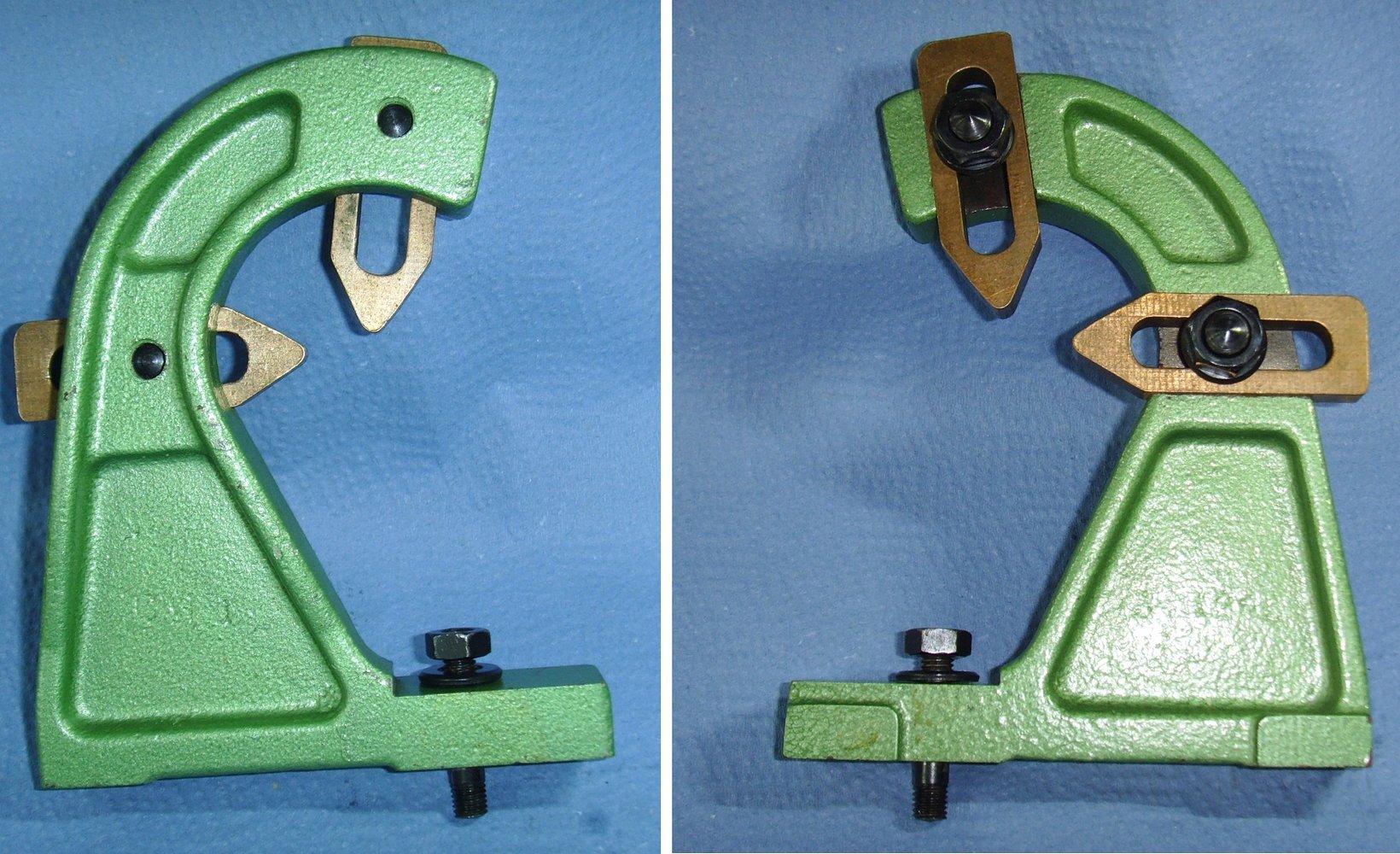

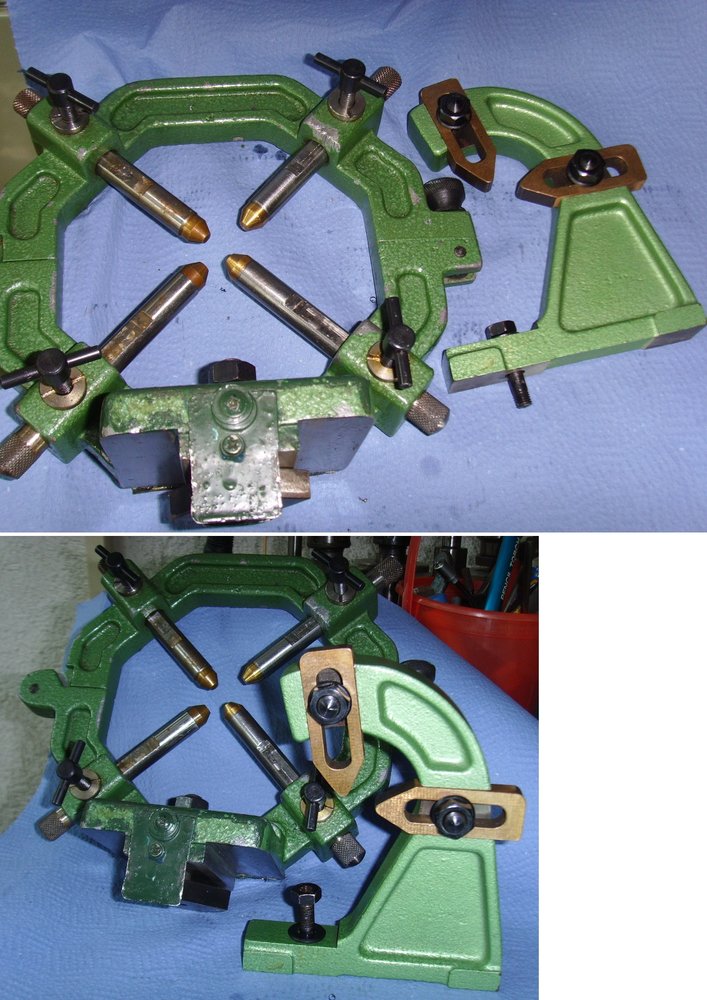

After a while ago a fellow forumist already gave me a fixed steady rest, now I have an additional traveling steady in quasi-new condition.

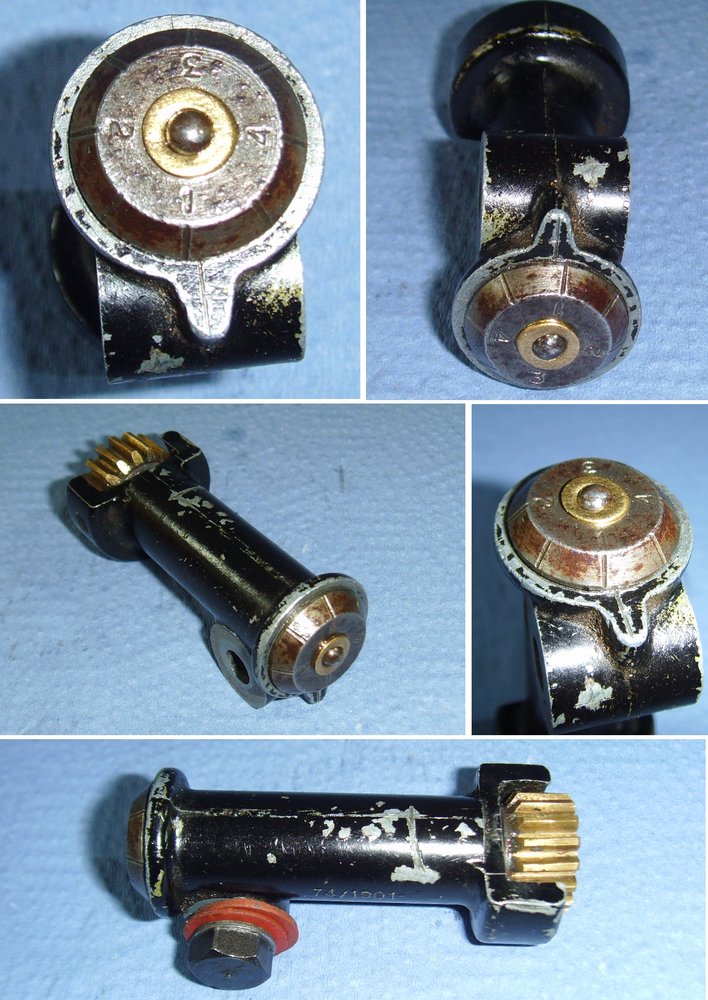

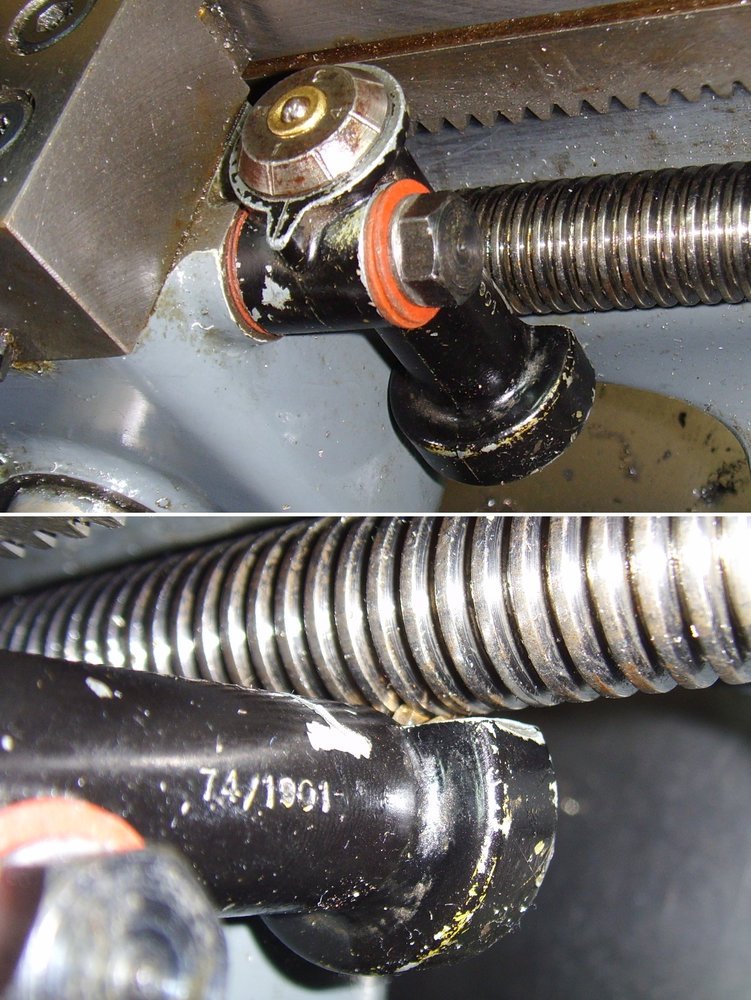

I have also wanted this one for a while:

Whether it will allow me to disengage in between when cutting metric threads - which should not be possible they say
- I will now find out, but it is a helpful extension in any case.

This part also needs attention, but after a few drops of oil, it already works without complaint.


I wish everyone a wonderful weekend and thank you again to my brave helper!
