Welding/fixture table

[grim_d]

drop me a pm and Ill send you a set of files that may just suit you.

Will do.

Can probably do something price wise on one of these, if of interest?

Traditional Welding Table ECO - 2M x 1M

Key Features 8MM thick table top Made in Europe Top quality steel Hole grid system Speeds up production 1000KG capacity Weight - 250KG Perfectly flat (+/- 0.5MM) Table working height: Adjustable between 880MM - 950MM

www.weldingsuppliesdirect.co.uk

I've had a look...to be honest I think I'm going to go with 2.4x1.2m

I think I'd be asking a lot of you get one into budget (it's a very firm and very stretched budget)



[Brad93]

You'll always wish you spent the extra on a siegmund or a demeller



[Moose McAlpine]

You'll always wish you spent the extra on a siegmund or a demeller

That's a lot extra!

Beautiful tables but they must be many thousands?



[grim_d]

You'll always wish you spent the extra on a siegmund or a demeller

What's so special about them that it would make enough of a difference to what I do to justify the extra cost?

I'd love a Hardinge but I don't regret buying my Harrison...



[Brad93]

What's so special about them that it would make enough of a difference to what I do to justify the extra cost?

I'd love a Hardinge but I don't regret buying my Harrison...

The accuracy.



[grim_d]

The accuracy.

The accuracy of what?

Length, width, height? hole diameter? Hole spacing? Flatness?

Standard Laser cut tolerance is 0.2mm WCS, the steel I'm using to make things has more deviation than that before I even put a weld anywhere near it.

Flatness could play a part I suppose if it was really bad but considering I'm getting things flat (enough) using what I can only describe as a large wooden banana, I'm not too concerned.

I'm all for mega good equipment, but it's not necessary here and would just use up money for something else that is necessary.



[Brad93]

The accuracy of what?

Length, width, height? hole diameter? Hole spacing? Flatness?

Standard Laser cut tolerance is 0.2mm WCS, the steel I'm using to make things has more deviation than that before I even put a weld anywhere near it.

Flatness could play a part I suppose if it was really bad but considering I'm getting things flat (enough) using what I can only describe as a large wooden banana, I'm not too concerned.

I'm all for mega good equipment, but it's not necessary here and would just use up money for something else that is necessary.

Quoted accuracy is 0.2mm. You won't actually see anything that accurate unless you specify the tolerance. And then watch the price go up.



[grim_d]

Quoted accuracy is 0.2mm. You won't actually see anything that accurate unless you specify the tolerance. And then watch the price go up.

Quoted tolerance is +/-0.2mm.

Let's be realistic here though. It could be 5 times that and id probably get on just fine.



[indy4x]

What about these guys

7050 Welding Plates

Our Custom Made Welding

www.7050ps.com



[grim_d]

What about these guys

7050 Welding Plates

Our Custom Made Welding

www.7050ps.com

Ha! Someone just sent me that via pm



[addjunkie]

Ha! Someone just sent me that via pm

Thats where my table top cam from. Does the job. Use the half mole clamps or 1/2 coach bolts to hold stuff.



[grim_d]

One 2.4x1.2m GPPH table ordered.

Our @Tom Orrow L did me a deal I couldn't refuse.



[Theblackbox]

Interested to hear how you get on with it. In the similar situation really need something bit wider around 1500mm for the work I do.

Considered 2 of the gpph to give 3x1.5mtr but price is eye watering.

Think I’m going to price up some material and see how it compares.



[Tom Orrow L]

Interested to hear how you get on with it. In the similar situation really need something bit wider around 1500mm for the work I do.

Considered 2 of the gpph to give 3x1.5mtr but price is eye watering.

Think I’m going to price up some material and see how it compares.

Price on the ECO 3M x 1.48M GPPH can work out very reasonable if you know the right people



[Tangledfeet]

One 2.4x1.2m GPPH table ordered.

Our @Tom Orrow L did me a deal I couldn't refuse.

High fives another GPPH welding table owner!



[grim_d]

Interested to hear how you get on with it. In the similar situation really need something bit wider around 1500mm for the work I do.

Considered 2 of the gpph to give 3x1.5mtr but price is eye watering.

Think I’m going to price up some material and see how it compares.

Definitely have a chat with @Tom Orrow L



[grim_d]

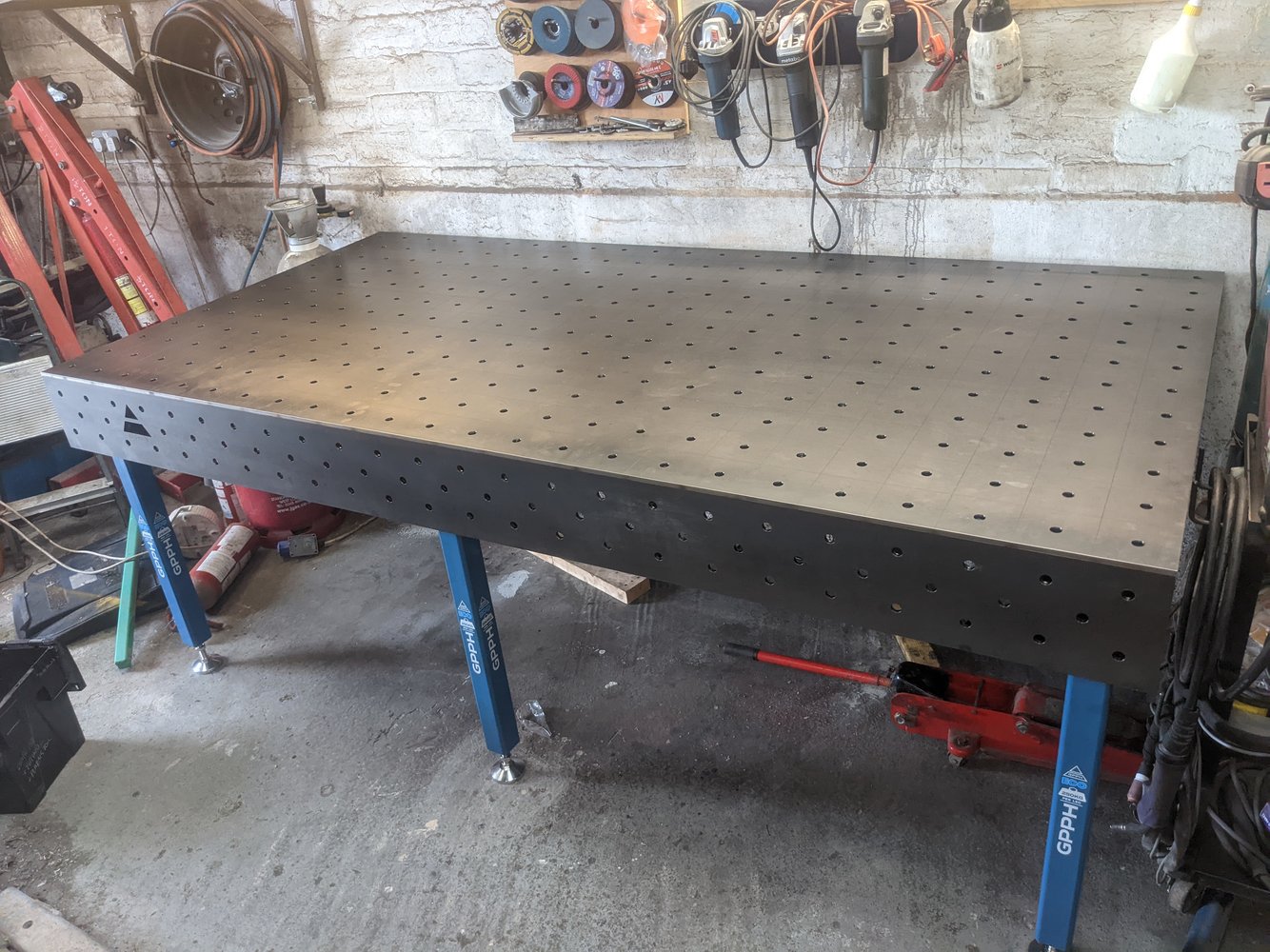

It arrived yesterday.

Lovely bit of kit. definitely can see why it's an budget model but I'm absolutely delighted. Lots of holes to chamfer...

I've quickly leveled it out and done some initial measuring with a straight edge.

Theres some sag in some areas of about 0.3mm at worst...which is well within the quoted tolerance and definitely good enough for what I'm making.

And there's a random extra grid etching line across the whole length....think someone made a booboo setting up the laser!

Thank you very much @Tom Orrow L ...I need clamps and fixtures now.



[Tom Orrow L]

It arrived yesterday.

Lovely bit of kit. definitely can see why it's an budget model but I'm absolutely delighted. Lots of holes to chamfer...

I've quickly leveled it out and done some initial measuring with a straight edge.

Theres some sag in some areas of about 0.3mm at worst...which is well within the quoted tolerance and definitely good enough for what I'm making.

And there's a random extra grid etching line across the whole length....think someone made a booboo setting up the laser!

Thank you very much @Tom Orrow L ...I need clamps and fixtures now.


View attachment 355540

Glad you’re happy with it bud! Let me know if you want some clamps and fittings quoted



[James1979]

Glad you’re happy with it bud! Let me know if you want some clamps and fittings quoted

What size holes are they please? I may do for mine.



[Brad93]

It arrived yesterday.

Lovely bit of kit. definitely can see why it's an budget model but I'm absolutely delighted. Lots of holes to chamfer...

I've quickly leveled it out and done some initial measuring with a straight edge.

Theres some sag in some areas of about 0.3mm at worst...which is well within the quoted tolerance and definitely good enough for what I'm making.

And there's a random extra grid etching line across the whole length....think someone made a booboo setting up the laser!

Thank you very much @Tom Orrow L ...I need clamps and fixtures now.


View attachment 355540

So the etch lines and holes are lasered rather than machined? Interesting. So this is basically about the same level of quality as the Mac tables then.

Certainly looks the part and 0.3mm is pretty flat over that size.
