Hello Macfun or Jan.
I am in the middle of repairing a Magicwave.
I had sorted and numbered the various mosfets/IGBT's and dual diodes, but being quite a ham fisted numpty I dropped the box.
Now all the parts are mixed up.

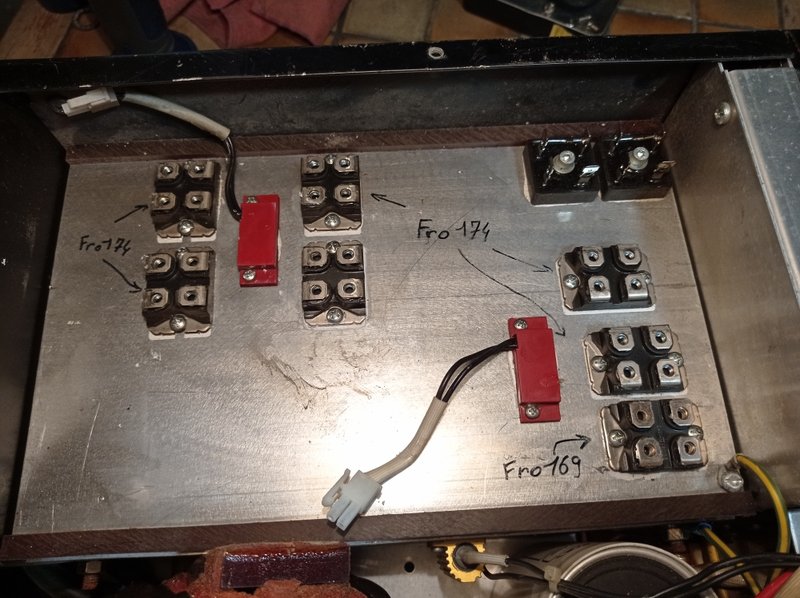

I have 6 IXyz 48n50 modules and one Fro169.
Where do they need to go?
I am in the middle of repairing a Magicwave.
I had sorted and numbered the various mosfets/IGBT's and dual diodes, but being quite a ham fisted numpty I dropped the box.
Now all the parts are mixed up.
I have 6 IXyz 48n50 modules and one Fro169.
Where do they need to go?
Dutch Welder
Member
- Messages
- 389
- Location
- Oss, The Netherlands
Thanks
BikeWelder
Member
- Messages
- 37
- Location
- Aberdeen

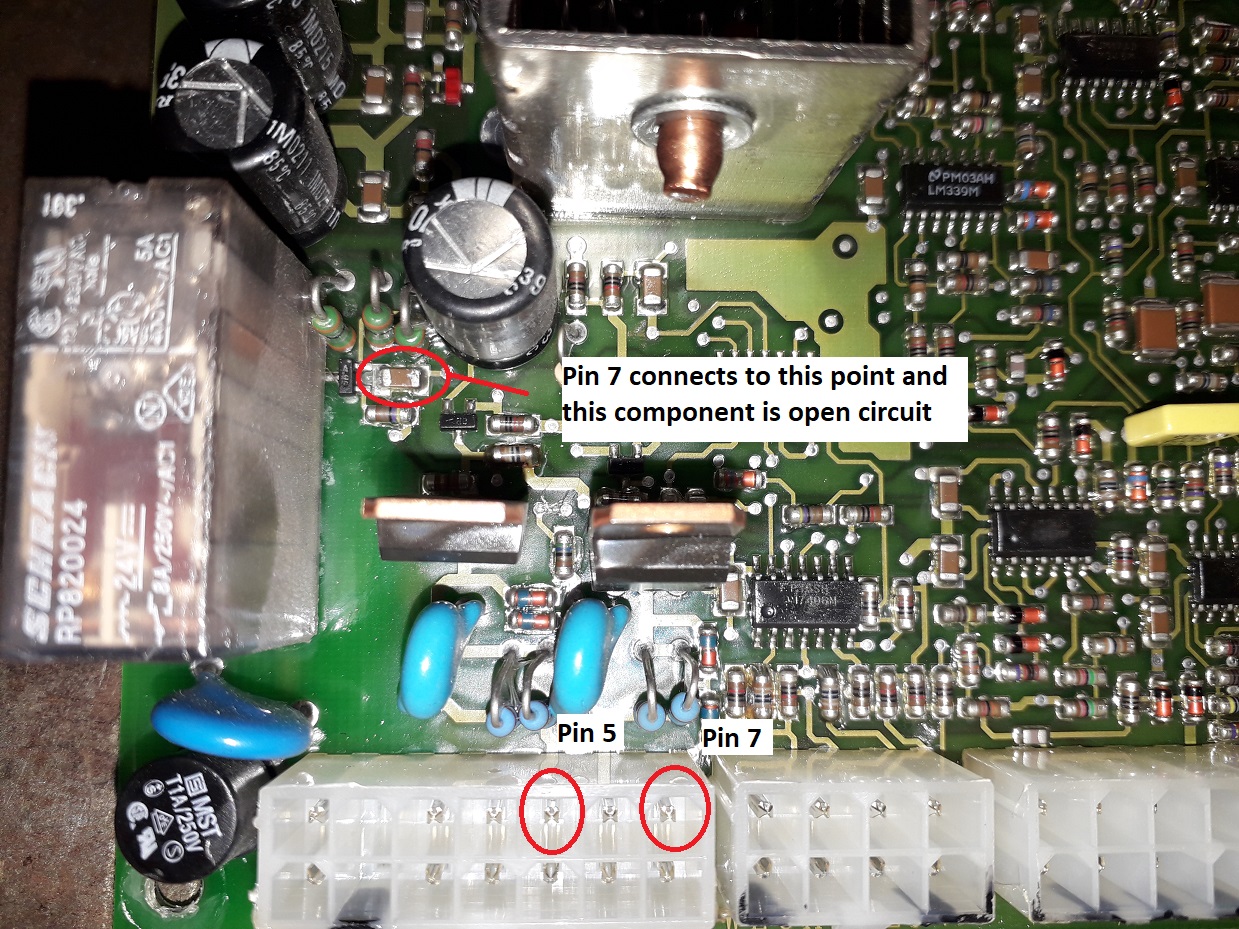

Hey Guys, I have a problem with my Castotig 2002 (again) I loaned it to a mate and they dropped it, now the gas is not working, I've traced the wiring back to the front control panel plug x2 pins 5 and 7 and have no power coming off the board. When I press the trigger the relay adjacent to x2 closes and I get weld power (HF also). Any ideas?? @Macfun @Jan-DIY
Hi @BikeWelder

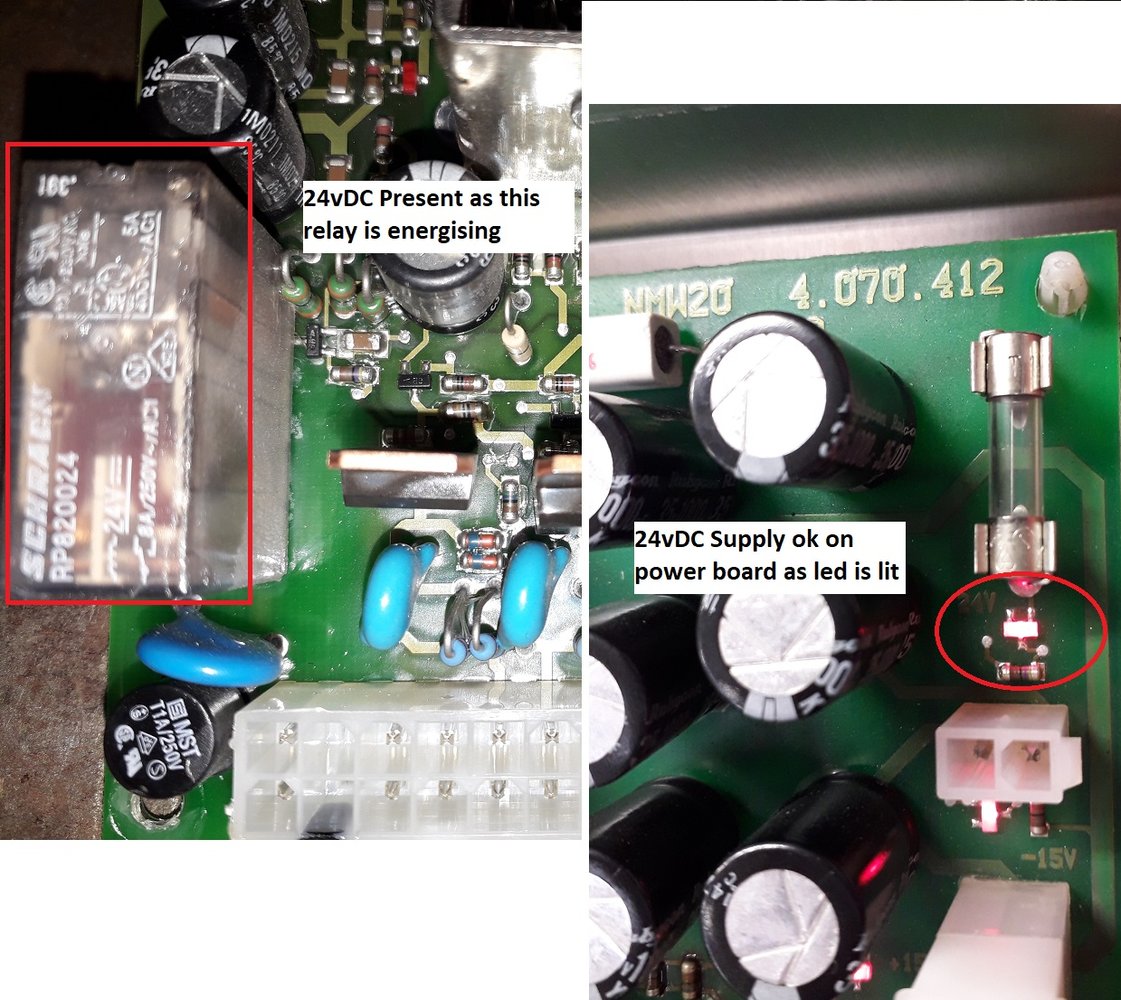

My first idea would be to check the 24V power at the valve (I believe it is 24V ...).
Then track down to the 24V transformer and/or a possible fuse, including harness welds.
I hope for you it is a simple trouble ... and you won't charge your mate too much hate and money !
I have no idea wether the trigger drives the valve directly thru a relay (does the clicking relay has 2 outputs ?) , or thru a board ...
My first idea would be to check the 24V power at the valve (I believe it is 24V ...).
Then track down to the 24V transformer and/or a possible fuse, including harness welds.
I hope for you it is a simple trouble ... and you won't charge your mate too much hate and money !
I have no idea wether the trigger drives the valve directly thru a relay (does the clicking relay has 2 outputs ?) , or thru a board ...
BikeWelder
Member
- Messages
- 37
- Location
- Aberdeen
When I press the trigger I have 5vDC at the wires of the valve when disconnected from the valve itself, when I apply load (connect to the valve) it goes to zero. Stumped....
BikeWelder
Member
- Messages
- 37
- Location
- Aberdeen
M
Member 32799
Guest

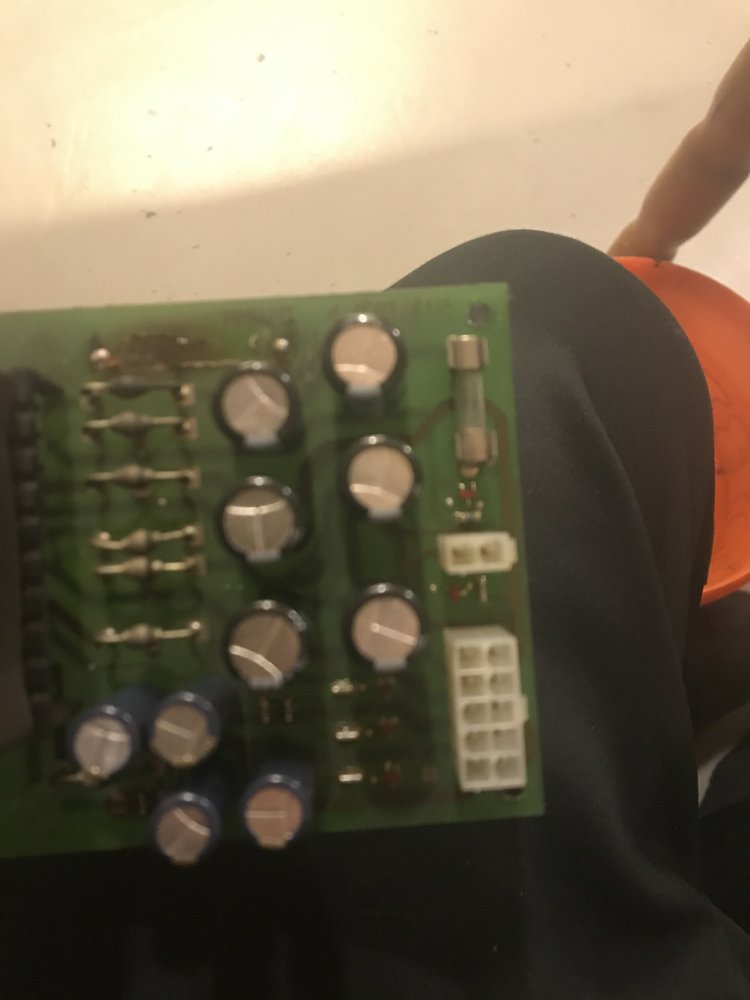

Fuse on the supplyboard
BikeWelder
Member
- Messages
- 37
- Location
- Aberdeen
M
Member 32799
Guest
I do
M
Member 32799
Guest
Have fun ... pin 5 is solenoid switch grounded by buz11 , which itself switch on by tiny smd 6b , which itself comes from mc siemens in the corner of the pcb .
(the relay switches 230 v to the grey box hf on , also uses 24 for the relay coil)
you could bridge pin 5 and 10 to check solenoid is clicking ,

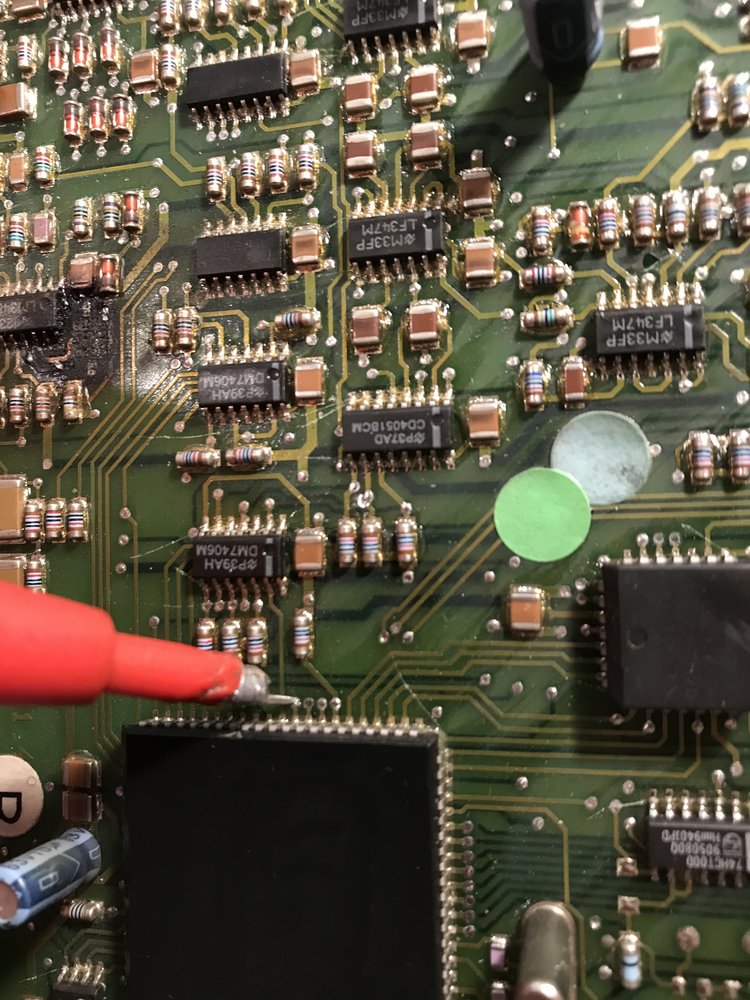

Next check 5v signal from controller
then buz 11 and the 6b Transistor and all the resistors....
You know what to do
(
(the relay switches 230 v to the grey box hf on , also uses 24 for the relay coil)
you could bridge pin 5 and 10 to check solenoid is clicking ,
Next check 5v signal from controller
then buz 11 and the 6b Transistor and all the resistors....
You know what to do
(
BikeWelder
Member
- Messages
- 37
- Location
- Aberdeen
M
Member 32799
Guest

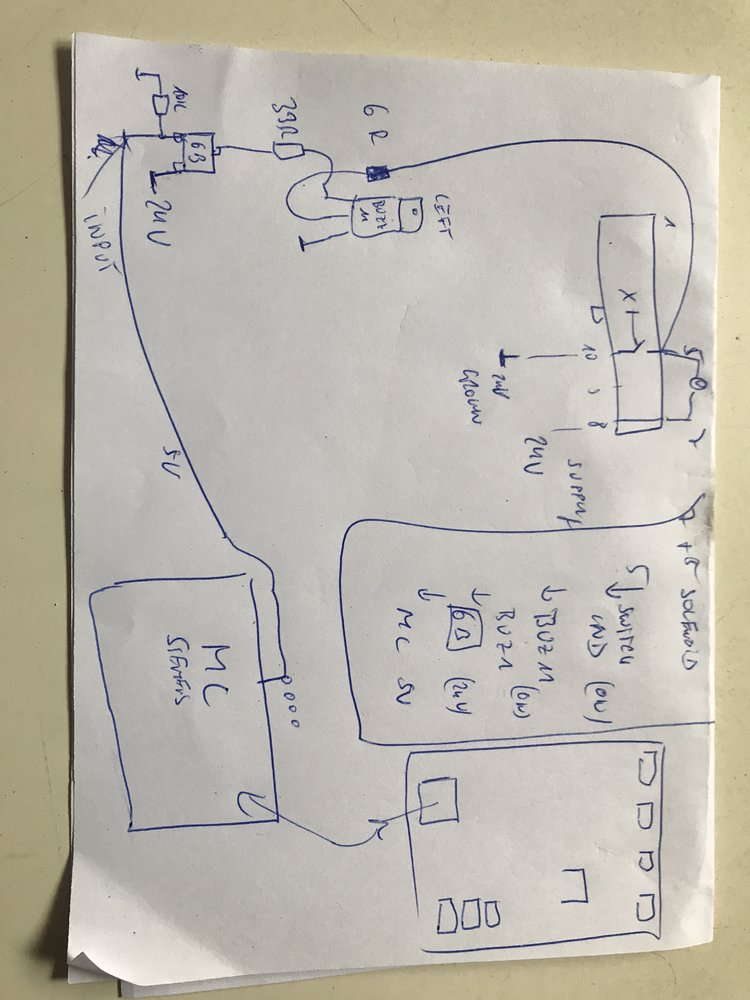

Look at my ****ty schematic .
Mc siemens gives out 5v if trigger switch is pushed. The 5v go to tiny smd Transistor with 6b on it you can see it in your picture above .
check if left buz11 mosfet , voltage between left pin and right pin changes from 0 to 10-20 v if trigger is pushed
Mc siemens gives out 5v if trigger switch is pushed. The 5v go to tiny smd Transistor with 6b on it you can see it in your picture above .
check if left buz11 mosfet , voltage between left pin and right pin changes from 0 to 10-20 v if trigger is pushed
M
Member 32799
Guest
Continuity from mc to transitor ?
M
Member 32799
Guest

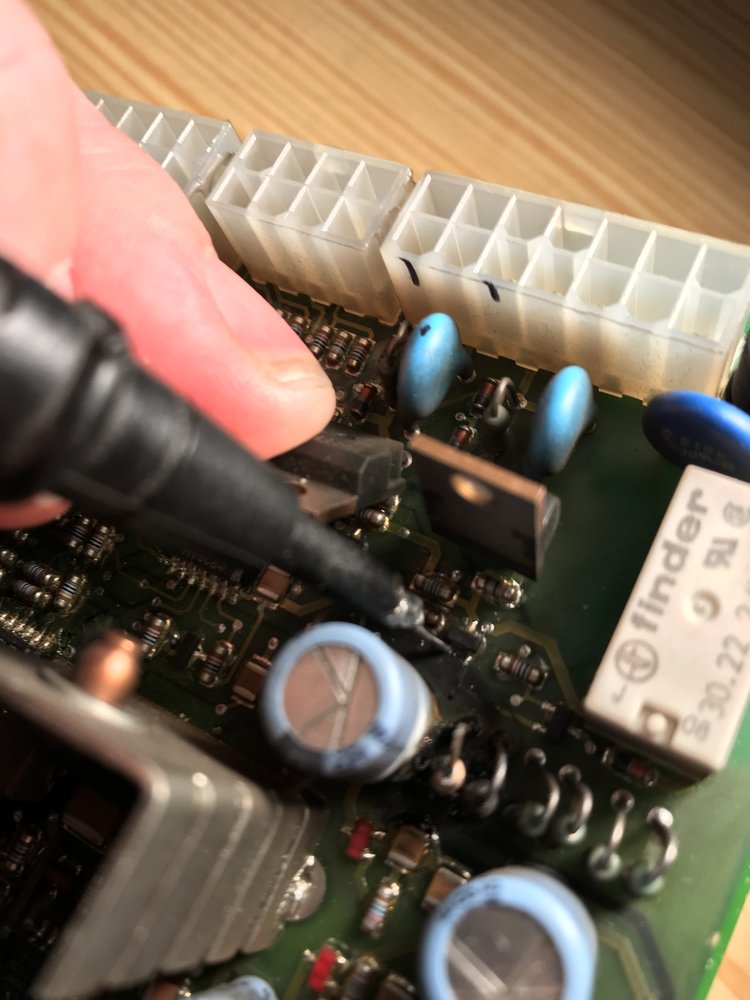

Diode test transistor and mosfet
