Elliott 10M Shaper

[Richie Griffin]

I am confused. You are asking for pictures of the toolholder, but the machine in your picture has the toolholder firmly present.

If the seller has told you the toolholder is missing, s/he is referring to a different part, so it might be worth doing some digging.

If you can get it for £300, good luck. Looking at its condition, £400 is undervaluing it. There are people who would give you north of £50 for the light on it.

It is good to try to get the cranking handle with it (fits cross feed, table height and slide rotation) as well as the square wrench that fits the toolpost bolt. Check the autofeed gear to make sure none of the teeth are sheared off.

Apologies, I guess meant the actual tool then, I thought the original might have been a holder with an insert added at the tip. Are the tools actually one piece HSS? Noted on the value and other checks. Thanks.



[Richie Griffin]

Thanks Rob,

That put’s things into perspective.

The available 10M has an asking price of £400.00 as is.

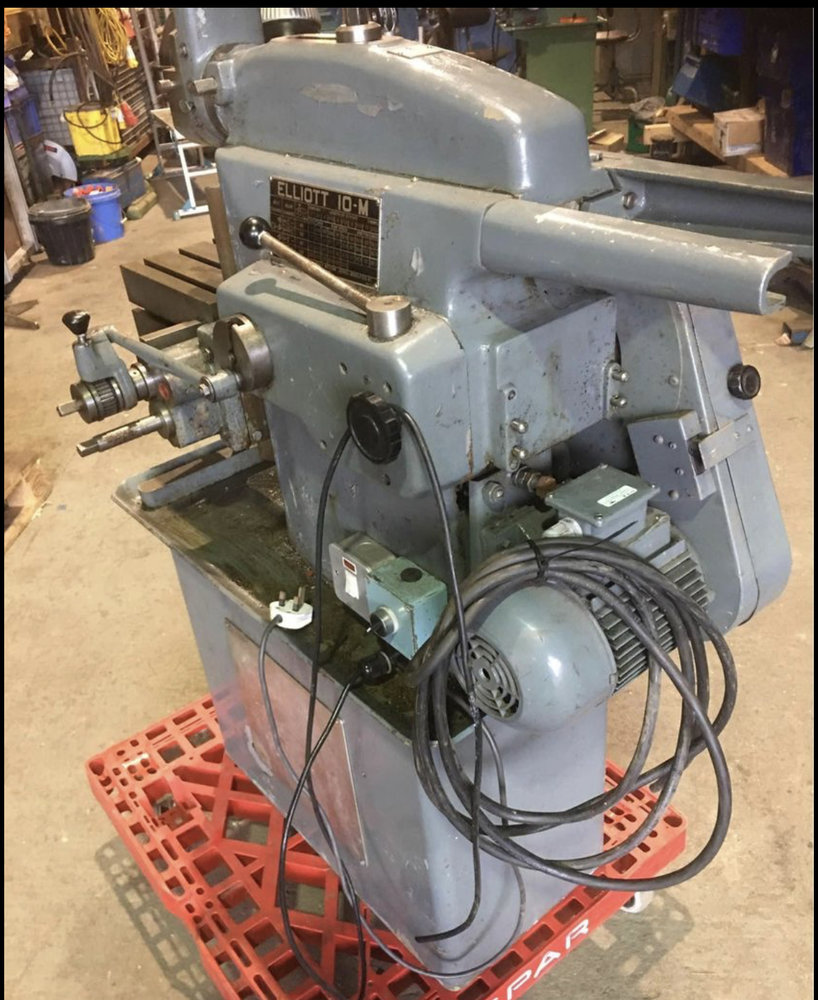

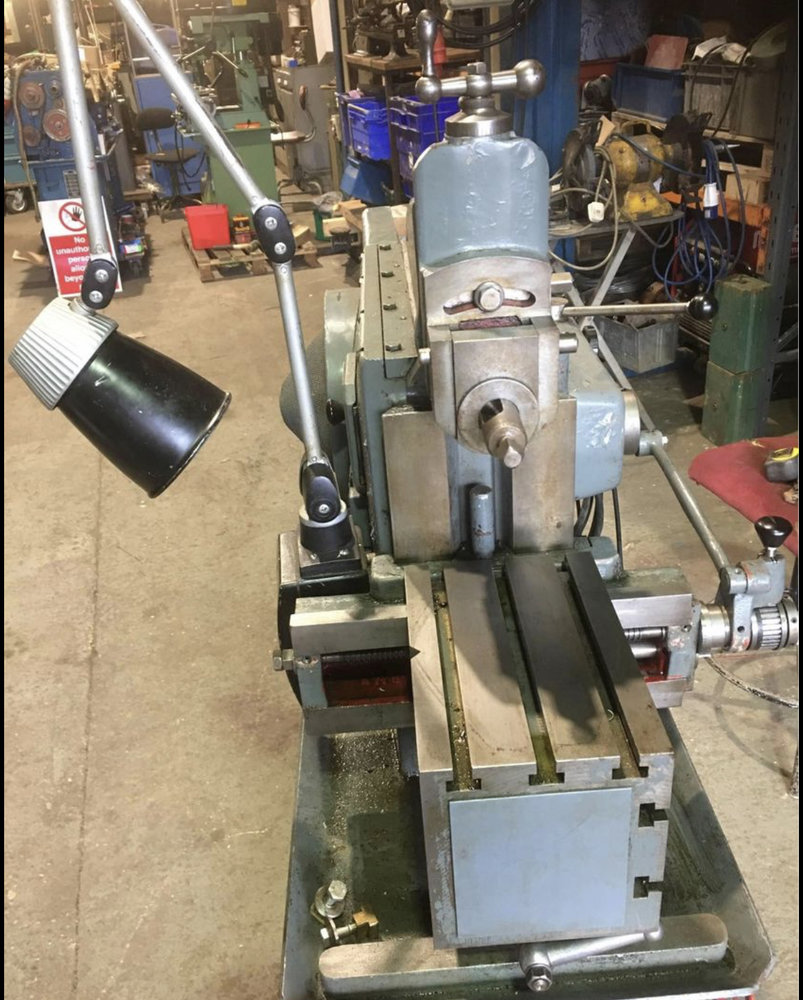

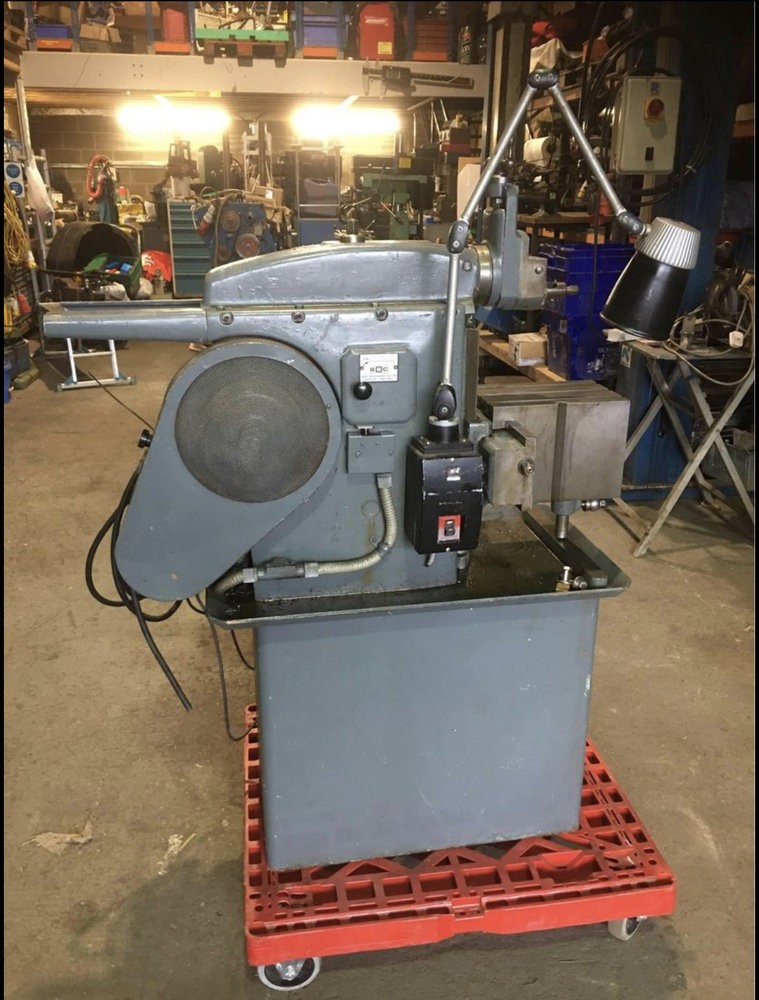

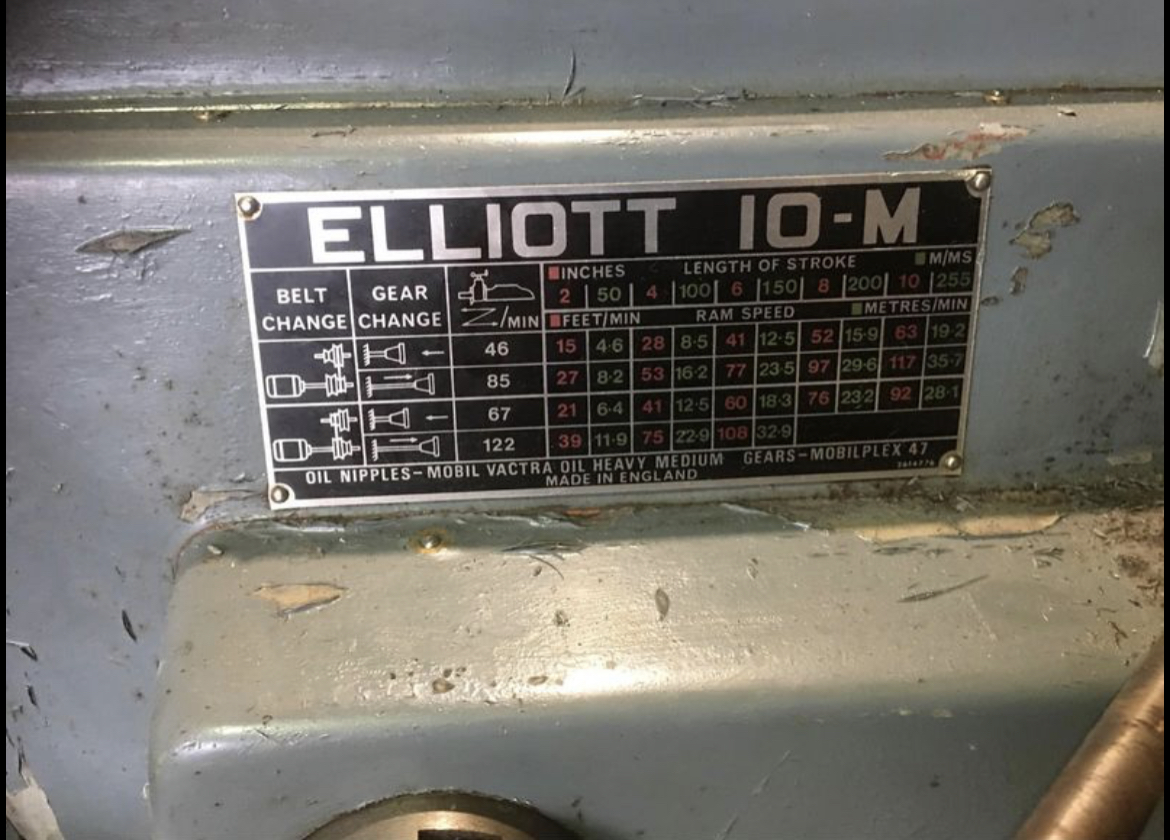

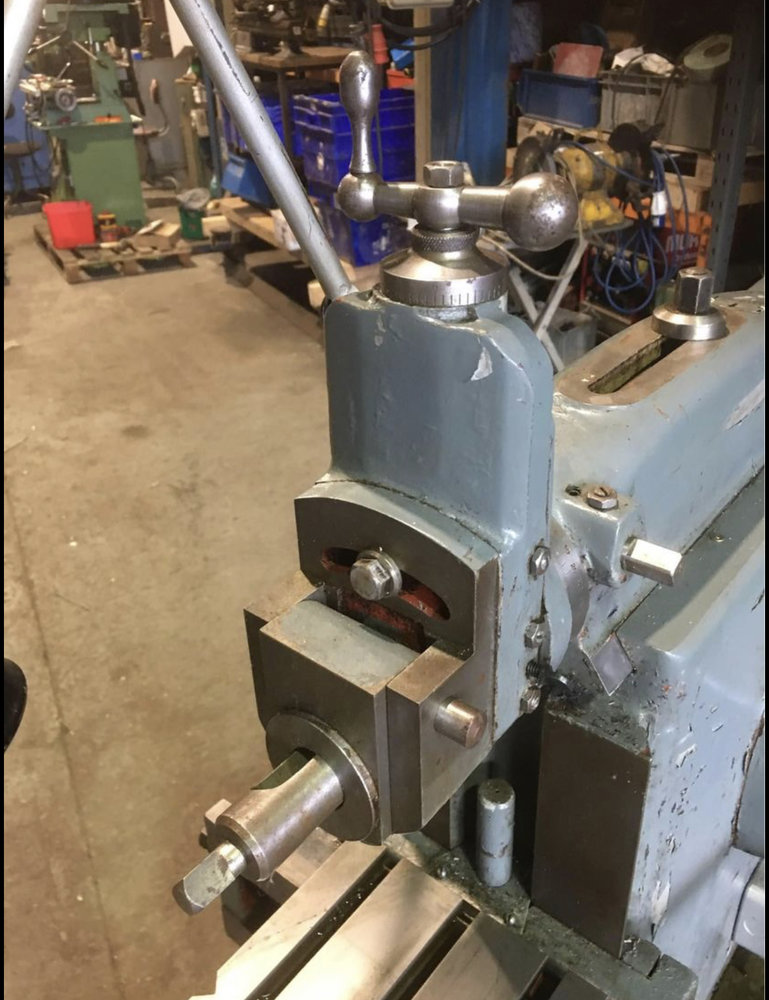

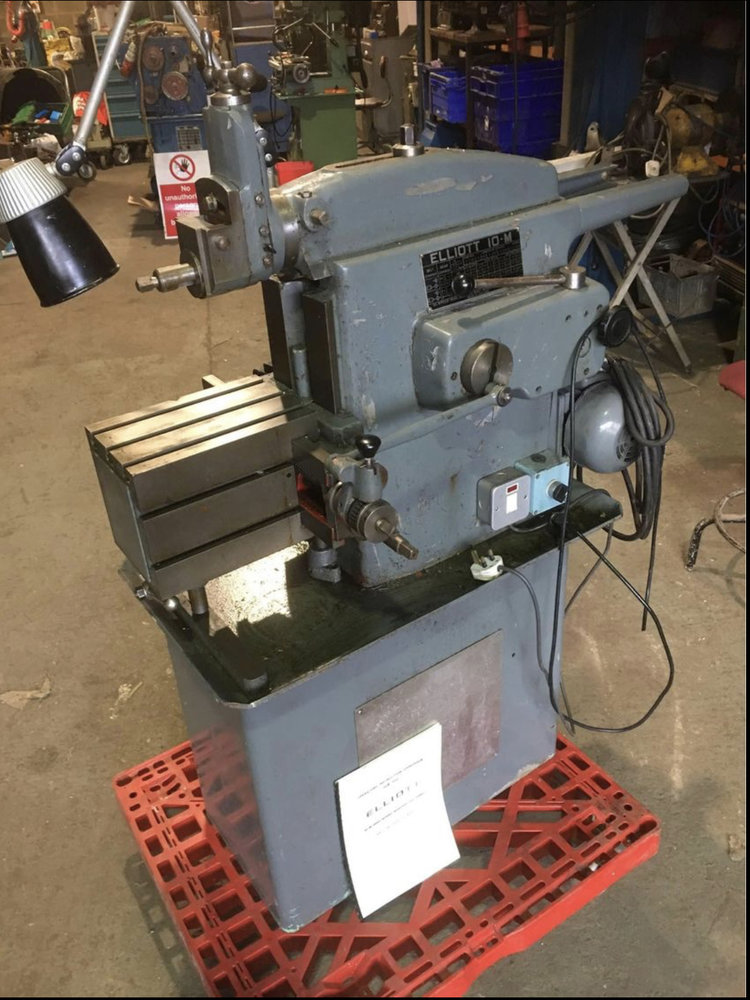

I think £300.00 would be more like it’s value. See pics.

I’m based in Ireland and travelling across with a plant trailer to collect a Harrison 140 lathe and a 2.5m x 1.2m surface table next weekend. There’s room on board for one more item and I think if I leave the 10M behind I’ll be kicking myself afterwards.

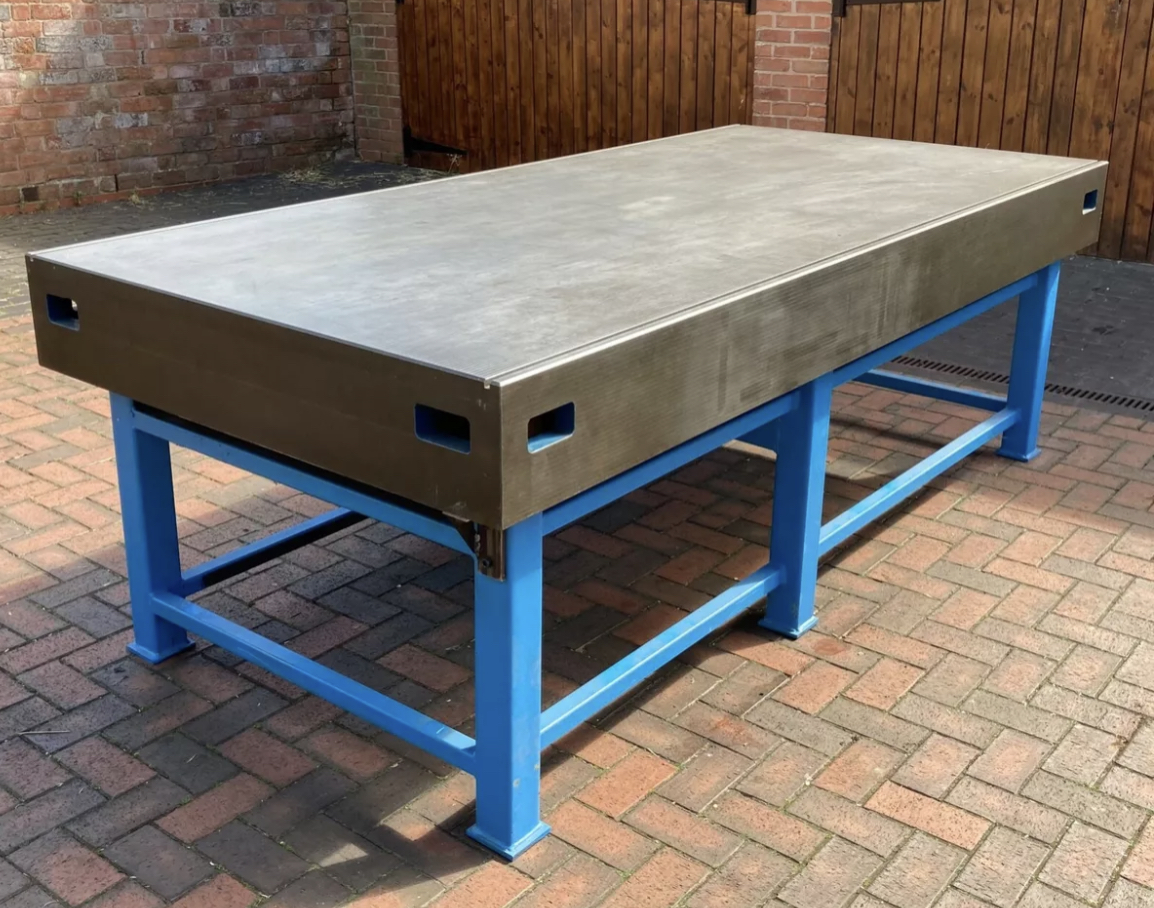

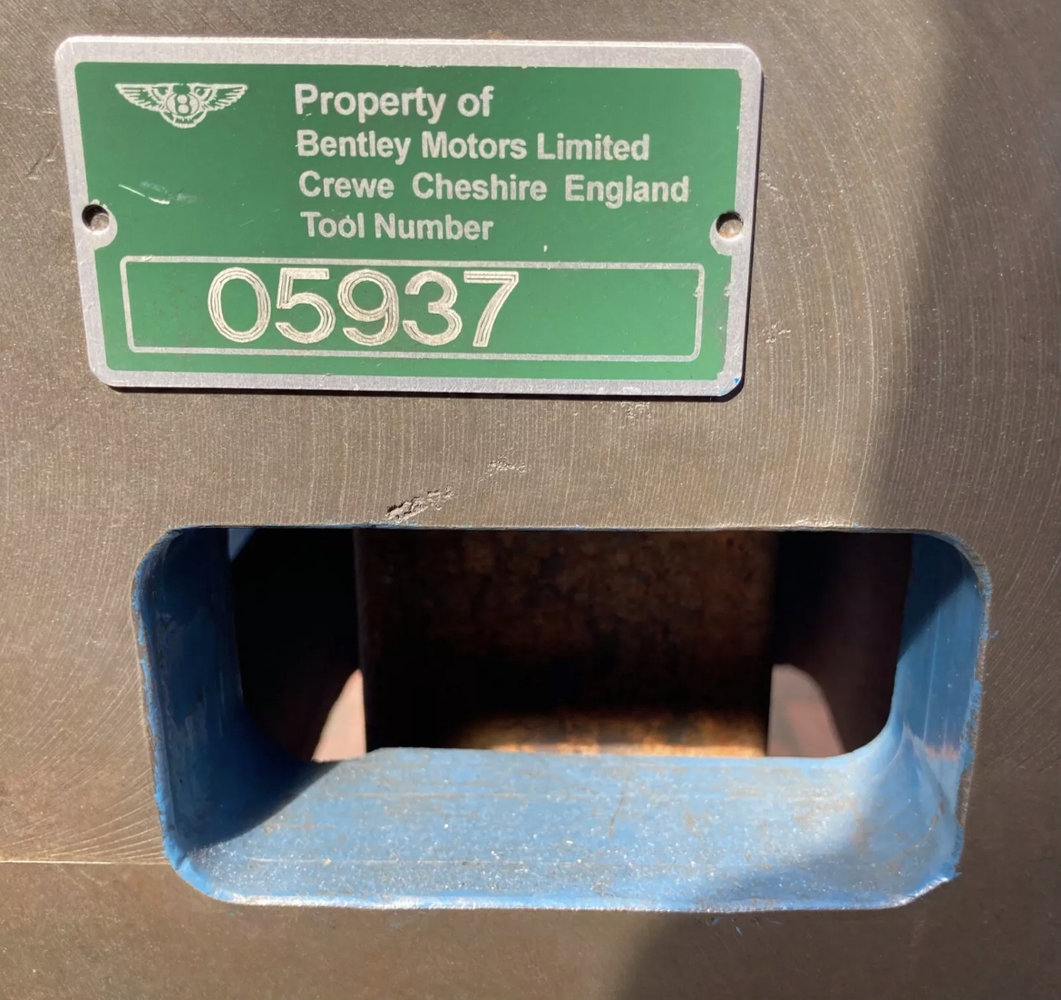

Pic of surface table attached also. It has some provenance.

R

View attachment 309442 View attachment 309443 View attachment 309444 View attachment 309445 View attachment 309446 View attachment 309447 View attachment 309448 View attachment 309449

Hi Rob, @Agroshield has highlighted that I meant the tool itself! R



[Gritineye]

I agree, looks worth at least as much as the asking price..



[RobCox]

It looks absolutely mint compared to what mine looked like when I picked in up. If you're already picking up other items, your transport is free. Mine was cheaper, but add on the van hire, the engine crane that was bought to move it, yours is a bargain.

Toolbit wise, I use either 3/4 x 1/2" or 1/2" sq toolbits without a holder . You can use the Armstrong type holders with smaller toolbits but most that pop up are angled for a lathe. It means you need more end clearance which weakens the tool edge and shapers dont give the tool an easy time (I tried carbide once... didnt take long to chip it!)



[Richie Griffin]

Thanks Rob, it’s hard to leave it behind after all that! I’ll have to cap my spending after this one though!



[Agroshield]

A few pages to keep you occupied:

Metal Shaper FAQ

Kay Fisher's Metal Shaper FAQ site.

www.neme-s.org

Kay Fisher's Metal Shaper Columns

Kay Fisher's Metal Shaper columns as published in the NEMES Gazette.

www.neme-s.org

Shaper Book Page

Metal Shaper Literature (and Sources of Information)

Armstrong Brothers Tool Co. - Publication Reprints | VintageMachinery.org



[fizzy]

I agree, looks worth at least as much as the asking price..

Yes looks very good.



[Richie Griffin]

Deal done at £350.00



[prepman]

Need to move content to it's own thread. I intend to attempt some mods. Anyone else?



[Matthew Tinker]

Need to move content to it's own thread. I intend to attempt some mods. Anyone else?

Yes, I think there are quite a few of us who own 10M shapers on this group!



[Gritineye]

I got an Alba pretty well the same :-)

What mods are you planning?

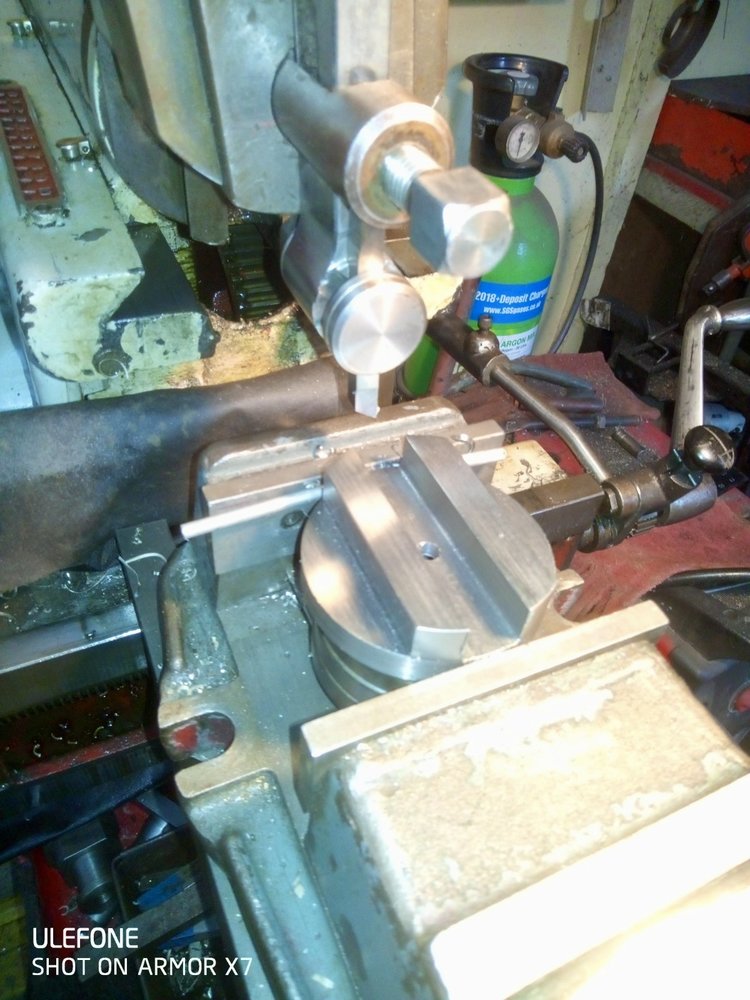

Yesterdays effort in stainless.



[prepman]

I got an Alba pretty well the same :-)

What mods are you planning?

Yesterdays effort in stainless.

View attachment 329565

Looking at the possiblity of making the stroke adjustment external, or at least improving the clamping as it slipped 3 times during a project. Quite nasty. Might prove to be physically impossible or impractical.



[RobCox]

Nice looking toolholder @Gritineye. Where did you get that or was it home made? Been thinking how to make one myself, but without a welder to hold the cylinder on the end of the bar.



[Gritineye]

Looking at the possiblity of making the stroke adjustment external, or at least improving the clamping as it slipped 3 times during a project. Quite nasty. Might prove to be physically impossible or impractical.

I'm amazed that clamping system holds as well as it does.

I'm sure you've looked at 'refreshing' or enlarging the mating surfaces for more contact area?



[Gritineye]

Nice looking toolholder @Gritineye. Where did you get that or was it home made? Been thinking how to make one myself, but without a welder to hold the cylinder on the end of the bar.

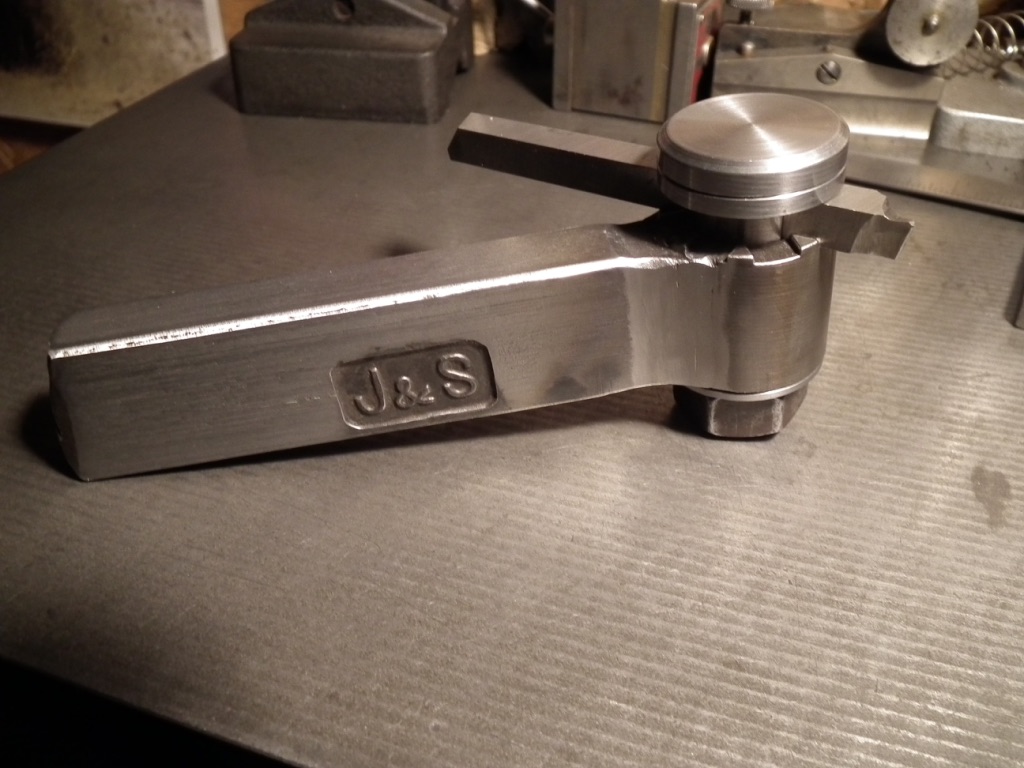

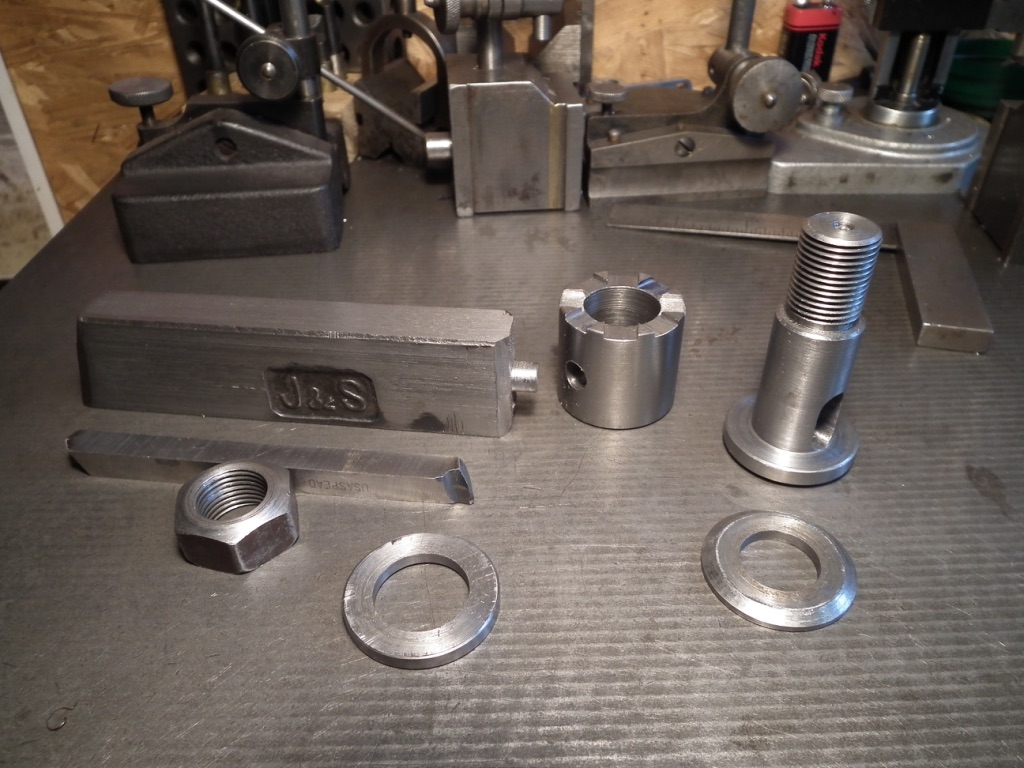

Made it, castellations done on shaper, cut down a too big old tool holder for the shank, which needs to be hard to avoid screw damage, needs a welder.



[MattF]

which needs to be hard to avoid screw damage

I pop a feeler gauge atop my holders in the lathe, to stop the securing bolts gouging the shank.



[Gritineye]

I pop a feeler gauge atop my holders in the lathe, to stop the securing bolts gouging the shank.

OK for lathes, which are very smooth and gentle compared to brutal shapers taking heavy cuts.

I have another similar home made holder I bought off a junk stall, it has an unhardened shank that has has suffered badly.



[Gritineye]

@prepman , sorry for the off topic, even though I didn't start it



[prepman]

@prepman , sorry for the off topic, even though I didn't start it

All good



[Gritineye]

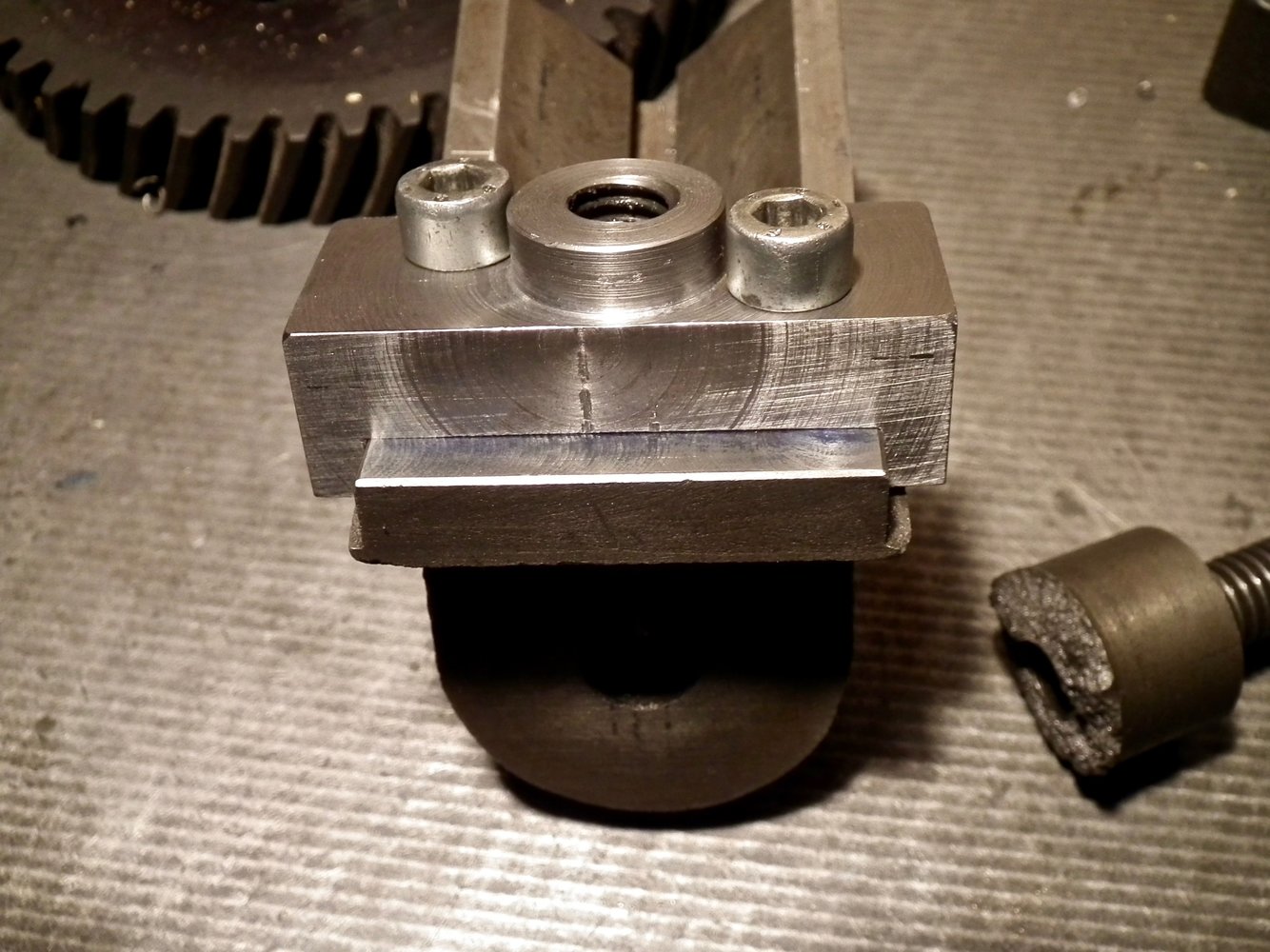

Here's an idea, here's a pic of how I repaired my Alba shaper, the part you're having trouble with broke clean of, oh what fun that was!

How about making summat simlier but incorporating a lump sticking out one side, threaded right through to take a stout threaded rod.
The threaded rod could pass through a fabricated support/thrust bearing at the back of the ram, with a wheel on the end.

Not sure how feasible this is, I'll have a look in the morning unless you beat me to it!
