Land Rover Defender 110 Rebuild

octo0072000 · Apr 19, 2015

Pete. said:
I actually like to cross the drawbar, or even put a whole turn around it if I have the slack. It helps to keep the wire from pulling tight on one turn and dangling close to (or on) the road the other. I guess if you only have to tow one thing you can make a reasonably tight arrangement but I have to tow a myriad of trailers and the lighting wire is usually quite loose.

best way to sort your problem Pete is to use coiled wagon susies with plugs on trailer and towing vehicle and keep the susies in the towing vehicle not on the trailers

KimB · Apr 19, 2015

mr migwire said:
Why are you on this forum chatting when you should be out grafting and taking pictures of said graft for us to look at, get your backside out to the garage missy and get more work dons on lou....

i am joking of course, you are doing an awesome job kim, seriously jealous......

Already am

half way through the new bracket

octo0072000 · Apr 19, 2015

KimB said:
Already am half way through the new bracket

you tell him Kim

normspanners · Apr 19, 2015

KimB said:
Slowly but surly. Just loads of painting I hate painting.

I hate painting.

is that what makes you surly burly :whistle:

KimB · Apr 19, 2015

normspanners said:
is that what makes you surly burly

I'm not sure what you mean but I'm guessing I spelt it wrong

awemawson · Apr 19, 2015

Hey cheer up - you maybe make the occasional spelling mistake, but you weld and paint like a champion :sheep:

KimB · Apr 19, 2015

Okay so again ive made the towing socket and changed it up a little bit

whether you like it or not I'm showing the photos haha

Marked it out quite quickly and decided to change it up ever so slightly. As you will see..
Marked it all out again and drilled all the holes to start as I thought it'd be easier to get that done with

can you spot the difference from the last ???

If not it's the third 13mm hole I drilled right here, Drilled to create a radius, I wonder if you can spot the problem here too...

Yup I drilled the hole in the wrong place :doh:

no bother.. I didn't put the drill away :whistle:

Anyway re drilled and cut out, my jigsawing skills are nothing to brag about so this is after filing it square and sorting the curve at the end

Then using my trusty bender (which I'm yet to finish :rolleyes:

) we have a perfect 90deg angle

Cut some gussets out and changed the dimmensions over the previous ones. Welded them on

looks good, I must confess my welder was playing up again on the one in the photo so I ground it down and re welded it

half tempted t grind it back down again and leave it flush on the end ? What's your thoughts

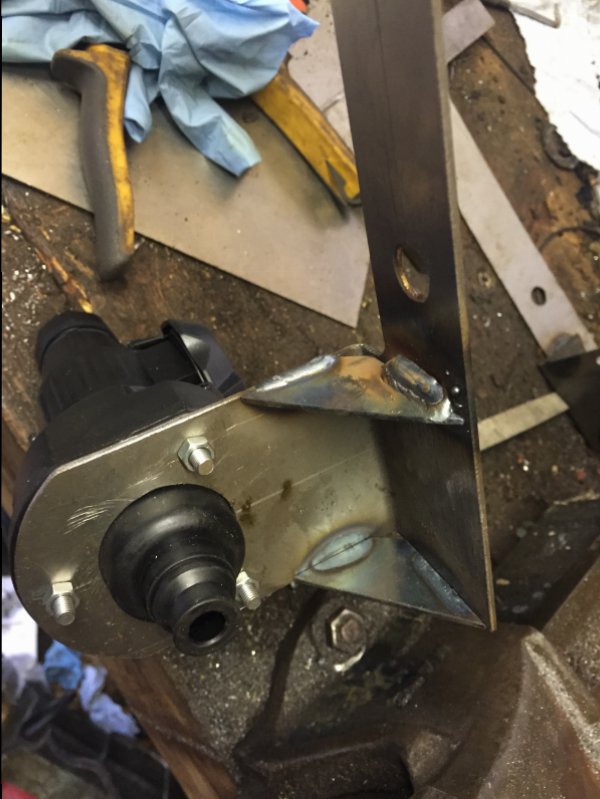

Bolted on

Test fit

Absolutely thrilled

it's so much better and so much stronger. Least that's another thing sorted now to sort wiring looms to the rear.

mr migwire · Apr 19, 2015

KimB said:
Okay so again ive made the towing socket and changed it up a little bit whether you like it or not I'm showing the photos haha
Marked it out quite quickly and decided to change it up ever so slightly. As you will see..

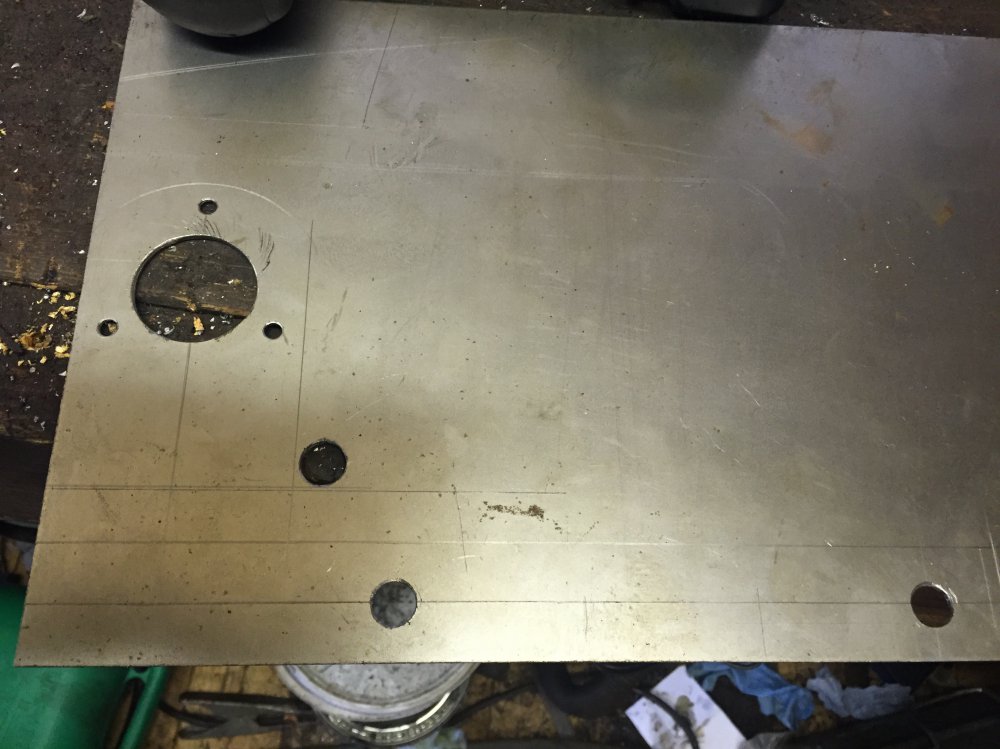

Marked it all out again and drilled all the holes to start as I thought it'd be easier to get that done with can you spot the difference from the last ???
View attachment 63722

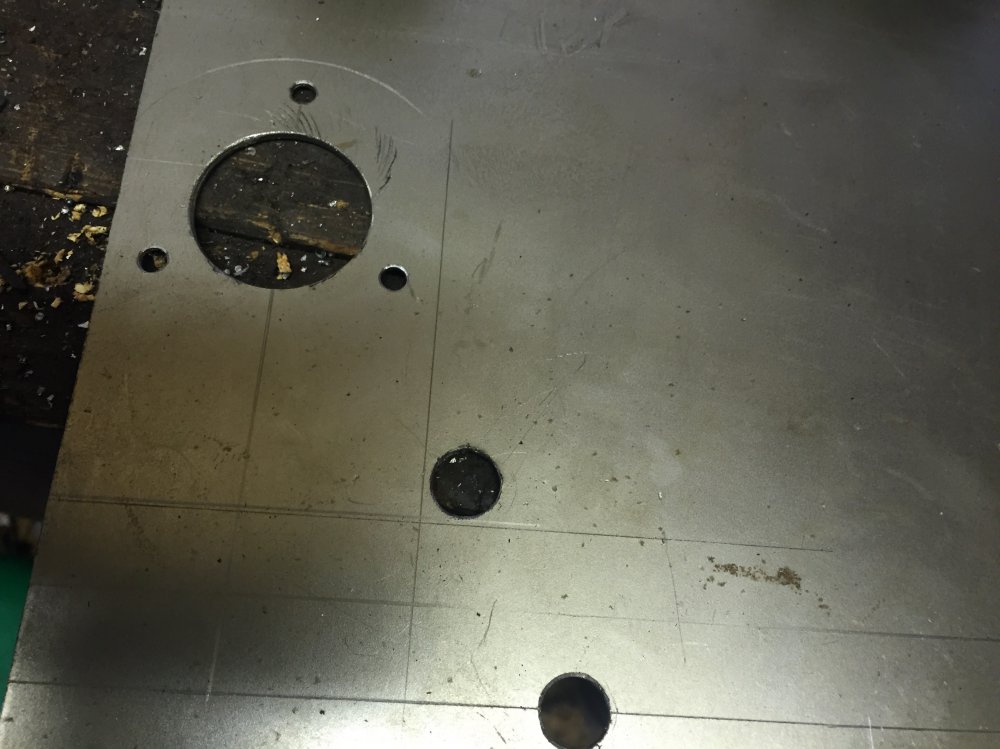

If not it's the third 13mm hole I drilled right here, Drilled to create a radius, I wonder if you can spot the problem here too...
View attachment 63723

Yup I drilled the hole in the wrong place no bother.. I didn't put the drill away

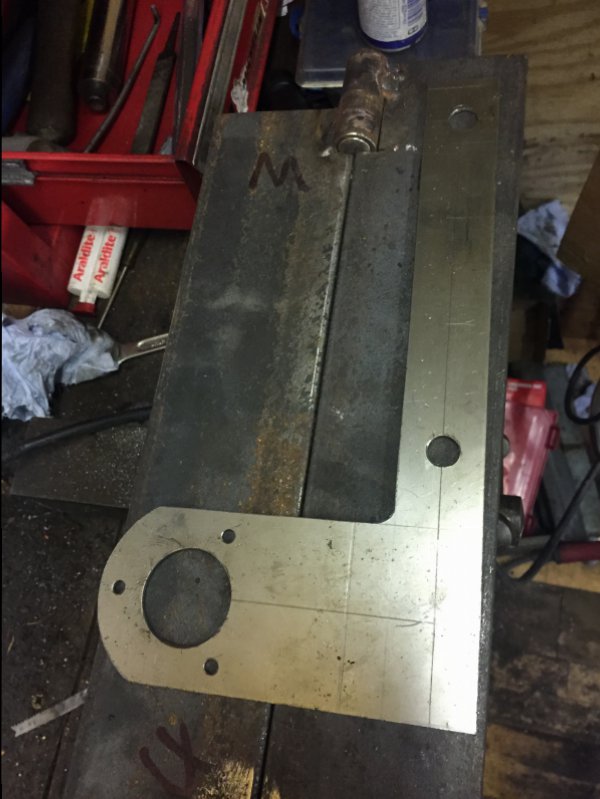

Anyway re drilled and cut out, my jigsawing skills are nothing to brag about so this is after filing it square and sorting the curve at the end
View attachment 63724

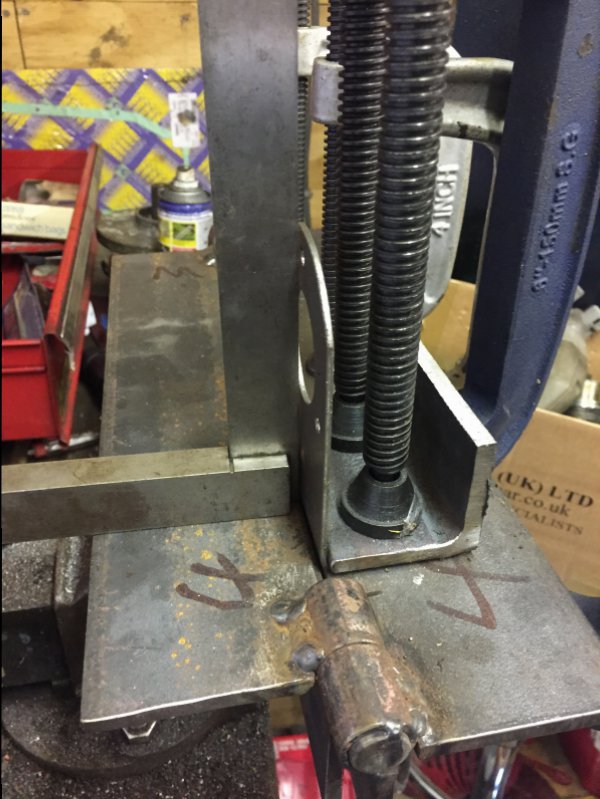

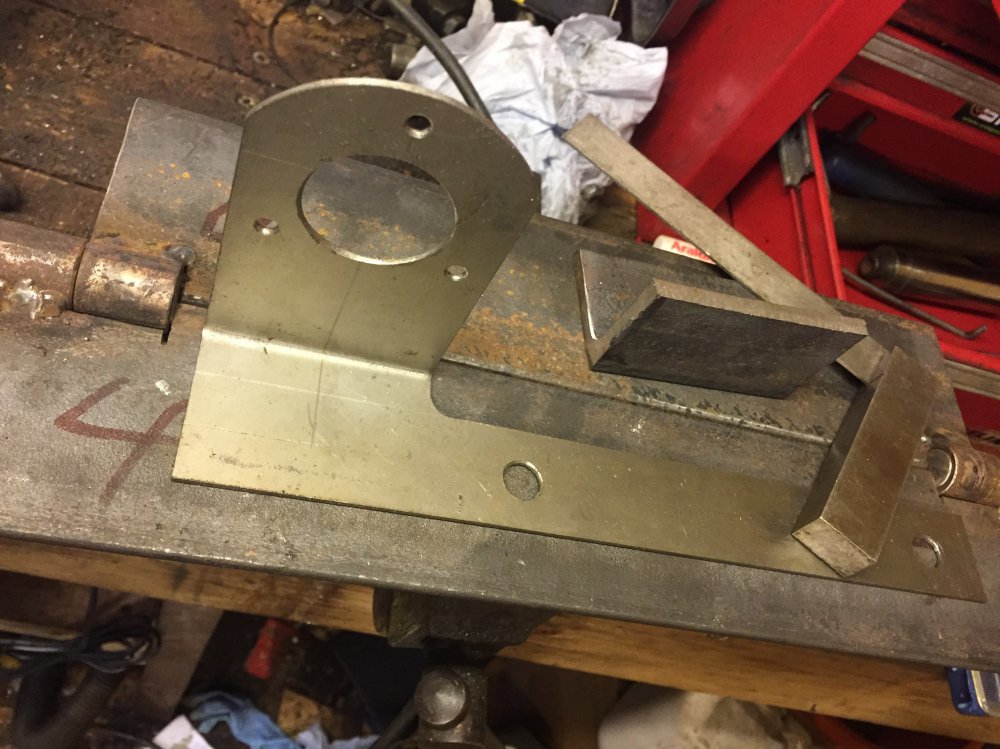

Then using my trusty bender (which I'm yet to finish ) we have a perfect 90deg angle
View attachment 63725

View attachment 63726

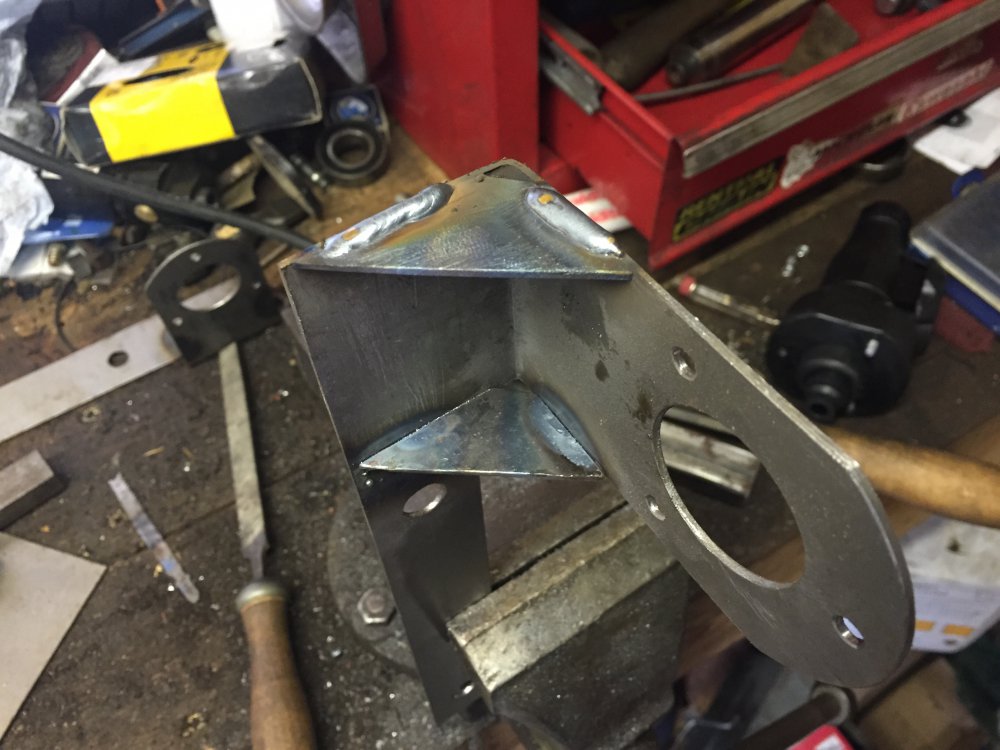

Cut some gussets out and changed the dimmensions over the previous ones. Welded them on looks good, I must confess my welder was playing up again on the one in the photo so I ground it down and re welded it half tempted t grind it back down again and leave it flush on the end ? What's your thoughts
View attachment 63727

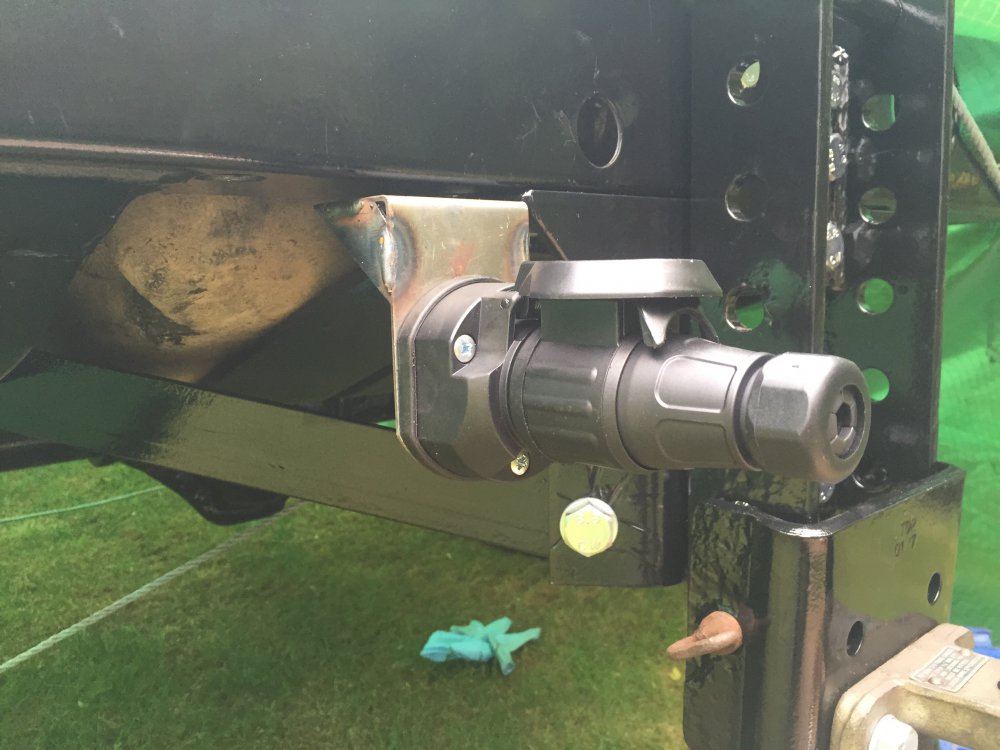

Bolted on
View attachment 63728

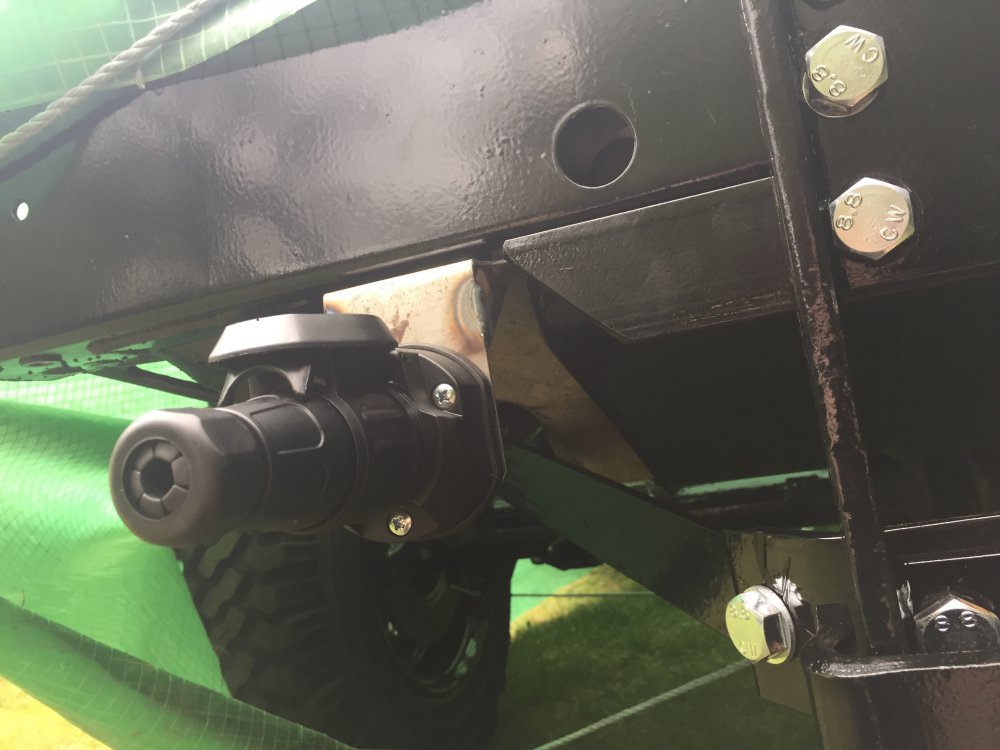

Test fit
View attachment 63729

View attachment 63730

Absolutely thrilled it's so much better and so much stronger. Least that's another thing sorted now to sort wiring looms to the rear.

love it.... looks brilliant kim...

norlander · Apr 20, 2015

Bah! I remade my towing bracket last week and yours is shedloads better than mine-flippin gurls doin weldin n stuff betterer than me-grrrrump, why dontya take up tapestry or knittin or summat :laughing:

KimB · Apr 20, 2015

norlander said:
Bah! I remade my towing bracket last week and yours is shedloads better than mine-flippin gurls doin weldin n stuff betterer than me-grrrrump, why dontya take up tapestry or knittin or summat

Hahaha, ive got no patience for knitting, far too boring. The former is a good idea though

Wallace · Apr 20, 2015

Nice job, I thought the brackets were flimsy and flexible to save the plug and socket if hit. :dontknow:

KimB · Apr 20, 2015

Wallace said:
Nice job, I thought the brackets were flimsy and flexible to save the plug and socket if hit.

Thanks and for £12 for the plug and socket if it ever does get damaged I won't care. I've never seen one get damaged yet though. As well it's high up so can't see it ever getting hit.

Robotstar5 · Apr 20, 2015

Wallace said:
Nice job, I thought the brackets were flimsy and flexible to save the plug and socket if hit.

No, KimB has made it dual purpose, can also be used as a recovery point :laughing:

colnerov · Apr 20, 2015

KimB said:
As well it's high up so can't see it ever getting hit.

Hi, I bet that's what you thought about your forehead and the welder door. :whistle:

Colin

KimB · Apr 20, 2015

colnerov said:
Hi, I bet that's what you thought about your forehead and the welder door.

Colin

Haha let's not go there again, one scar is enough thanks haha

norlander · Apr 20, 2015

Wallace said:
Nice job, I thought the brackets were flimsy and flexible to save the plug and socket if hit

Ah-see-thats why the bracket I made is flimsy, flexible and crap.

KimB said:
I've never seen one get damaged yet though. As well it's high up so can't see it ever getting hit.

Let me reverse the 110 when its finished then..................................; :ashamed:

Mikey D · Apr 20, 2015

Hi Kim , great job as usual , just out of interest seeing as you have a 13 pin socket are you going to wire it the same as you would for a caravan ie include a live feed for caravan fridge etc , might be useful if for example you had work lights on your trailer you could use that feed ? Also the rubber thingy is a grommet and you should already know what a gusset is :dontknow:

, they have them in pants and things :ashamed:

colnerov · Apr 20, 2015

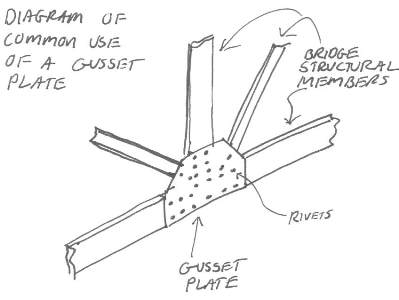

Hi, Kim, A gusset goes across the whole joint and a fillet or web goes across the corner.

colnerov · Apr 20, 2015

Mikey D said:
you should already know what a gusset is , they have them in pants and things

And sometimes they don't have them at all :whistle:

KimB · Apr 20, 2015

Mikey D said:
Hi Kim , great job as usual , just out of interest seeing as you have a 13 pin socket are you going to wire it the same as you would for a caravan ie include a live feed for caravan fridge etc , might be useful if for example you had work lights on your trailer you could use that feed ? Also the rubber thingy is a grommet and you should already know what a gusset is , they have them in pants and things

Luckily the wiring on my car is a genuine two plug loom so yes I will have it filly wired in

I did thing about work lights but the main thing for me is reverse light. And the charging as I have a winch on my trailer.
I didn't know what gussets in pants were but just looked :doh:

oops

colnerov said:
Hi, Kim, A gusset goes across the whole joint and a fillet or web goes across the corner.

Learn something new every day

thanks guys
