Looking for TR50mc

[Richard.]

Working on it mate - little steps....

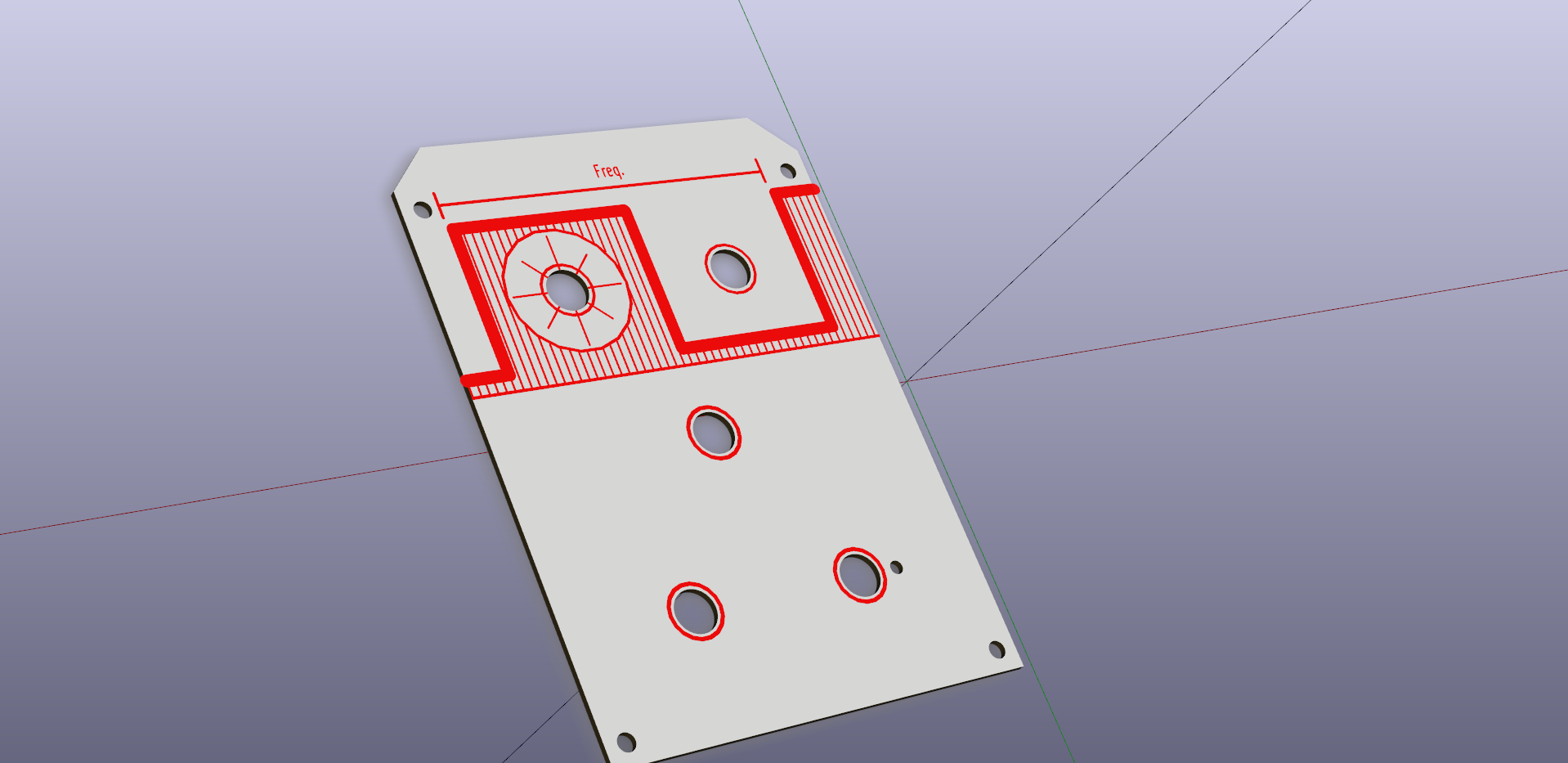

View attachment 135538

No rush mate. Do the other guys first. Happy to hang on at the back of que.
looks great by the way.



[HughF]

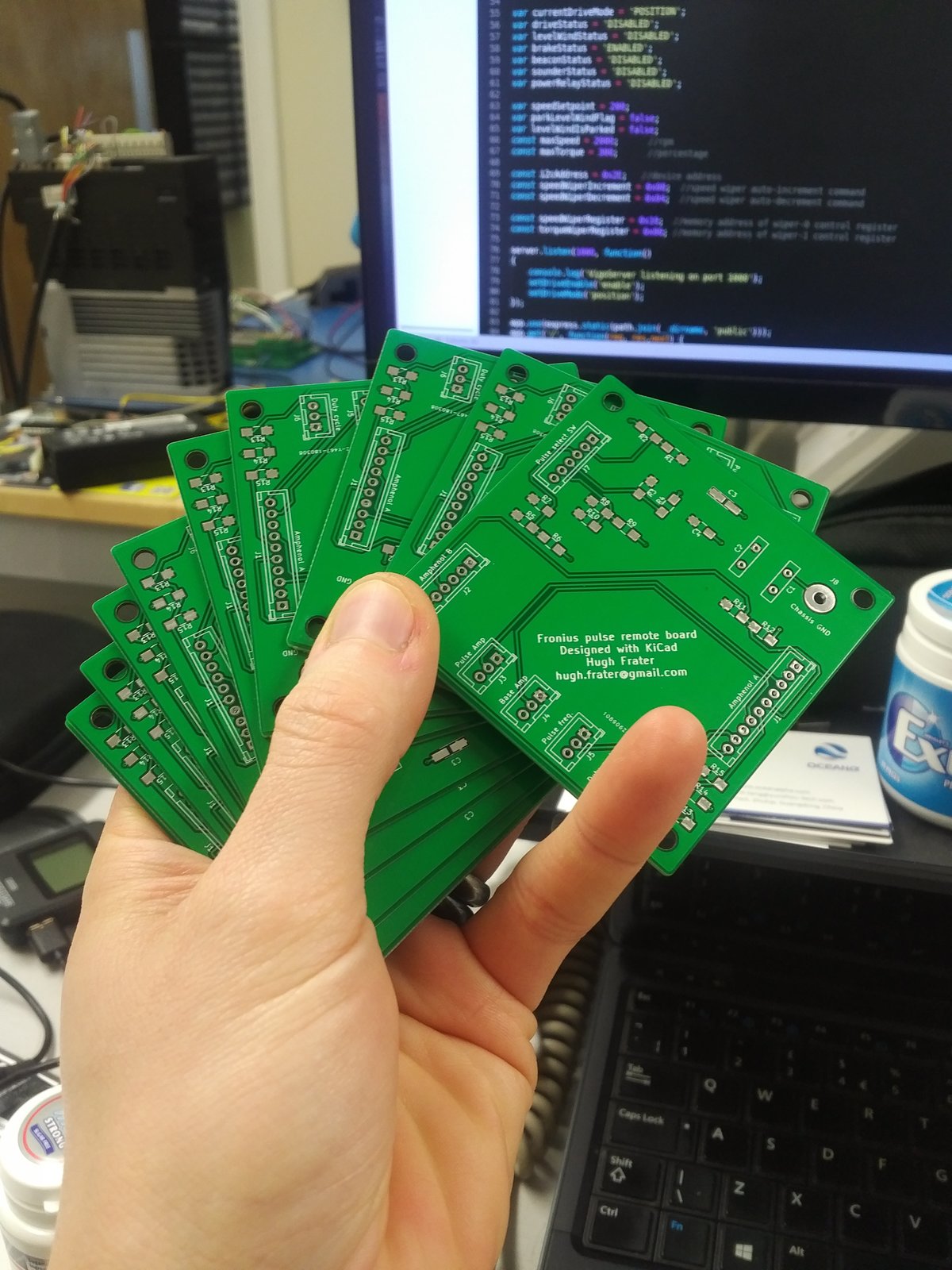

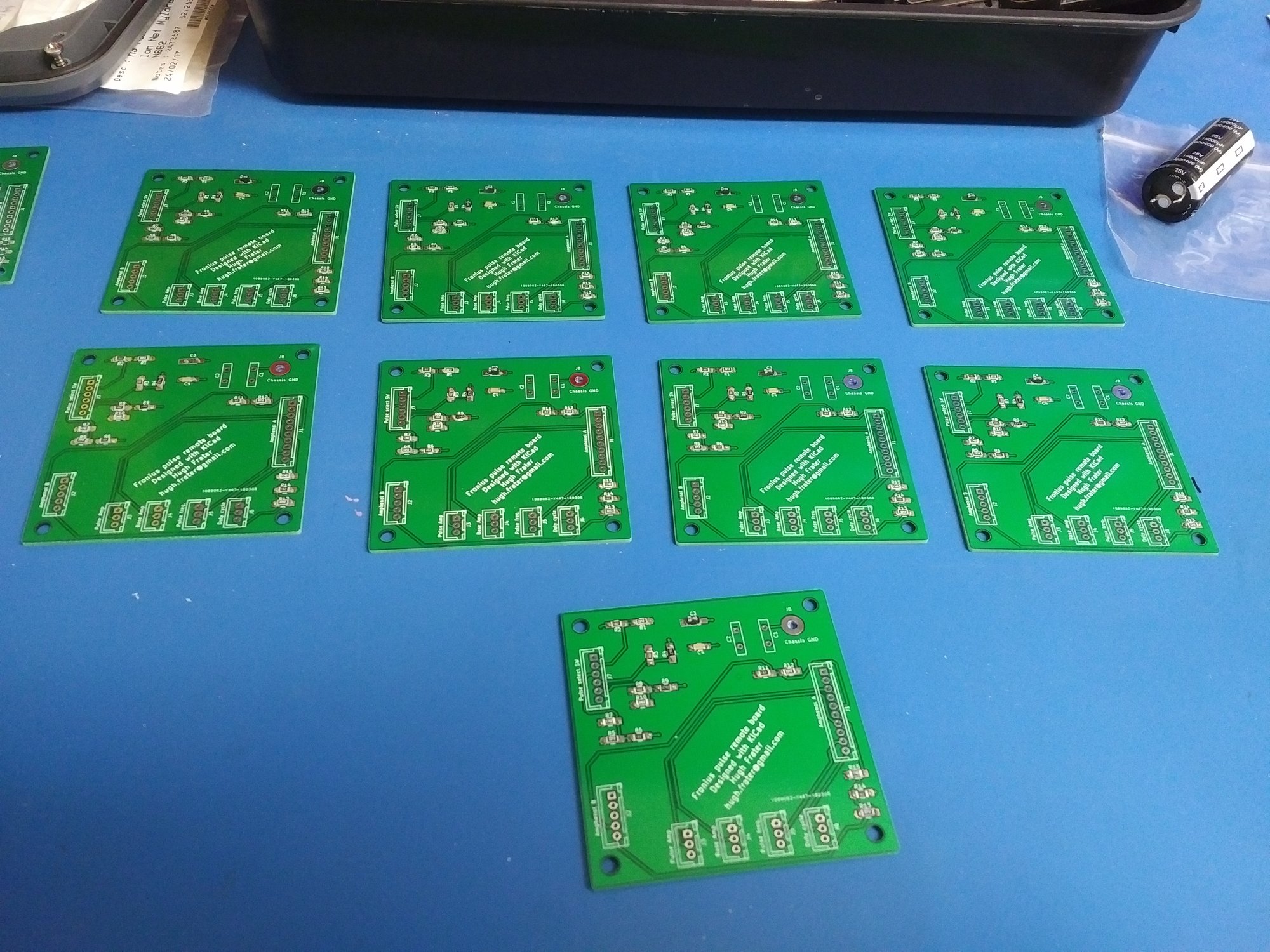

Boards have arrived folks, kit them up and get them soldered then It's press on with the front panel design and get those made.



[Richard.]

Boards have arrived folks, kit them up and get them soldered then It's press on with the front panel design and get those made.

View attachment 135581

Look forward to hearing the results when you test the first.



[eSCHEn]

Is that node.js onscreen Hugh?

Edit - looks like typescript?



[HughF]

Is that node.js onscreen Hugh?

Edit - looks like typescript?

It's node.js indeed... #dayjob

Building an embedded control system for a mechatronic device using a beaglebone black and a chunk of node.js and Pru code



[Seadog]

Building an embedded control system for a mechatronic device using a beaglebone black and a chunk of node.js and Pru code

I am I the only one that couldn't make any sense of this?

And I have a history in IT too.



[HughF]

These things better work



That was the easiest sm assembly I've done in ages. Good old aldi



[Richard.]

I am I the only one that couldn't make any sense of this?

And I have a history in IT too.

No mate you weren’t.



[eSCHEn]

Did you get a solder mask with them as well Hugh or just do it by hand as there's only a few?



[HughF]

Did you get a solder mask with them as well Hugh or just do it by hand as there's only a few?

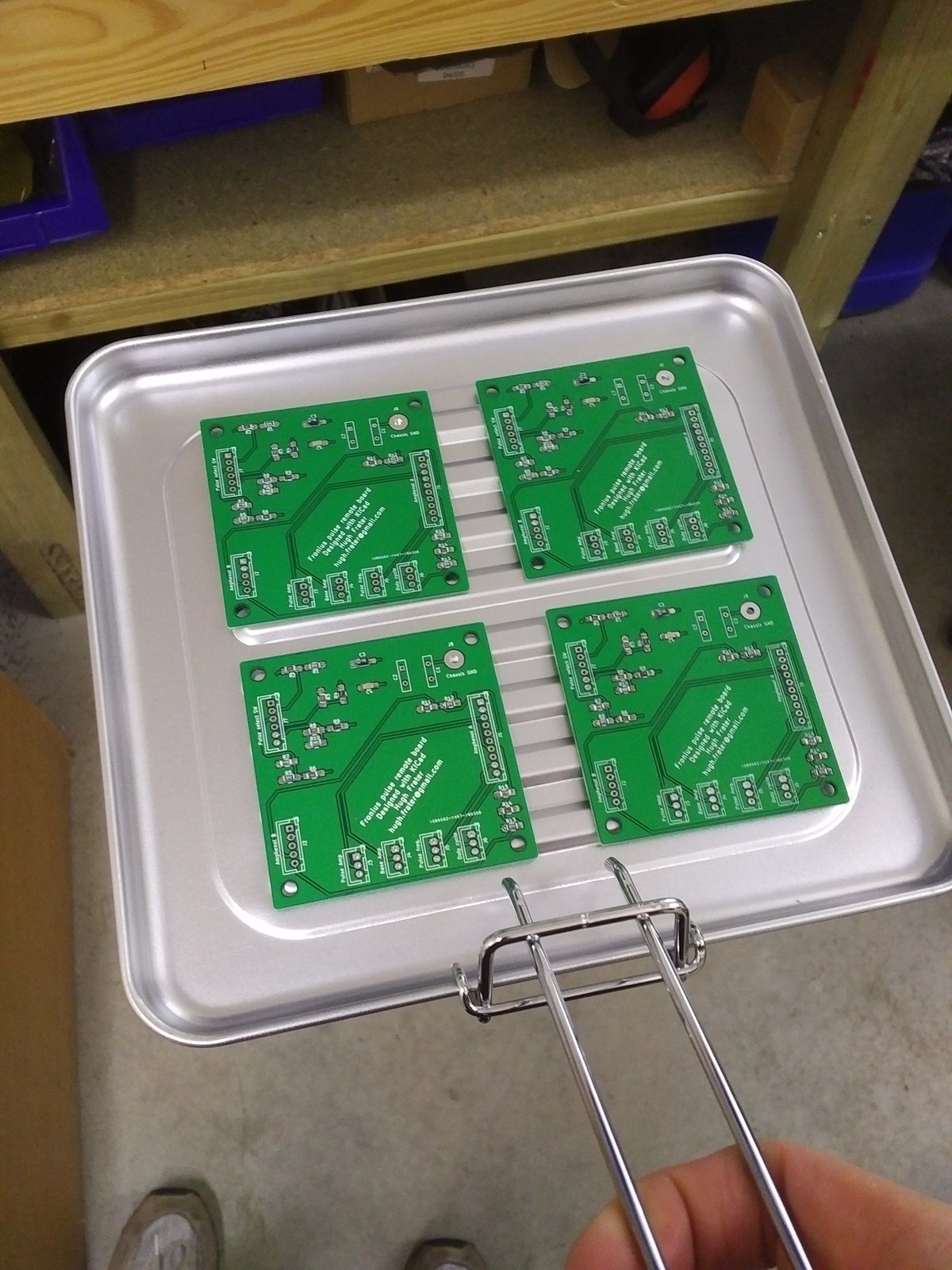

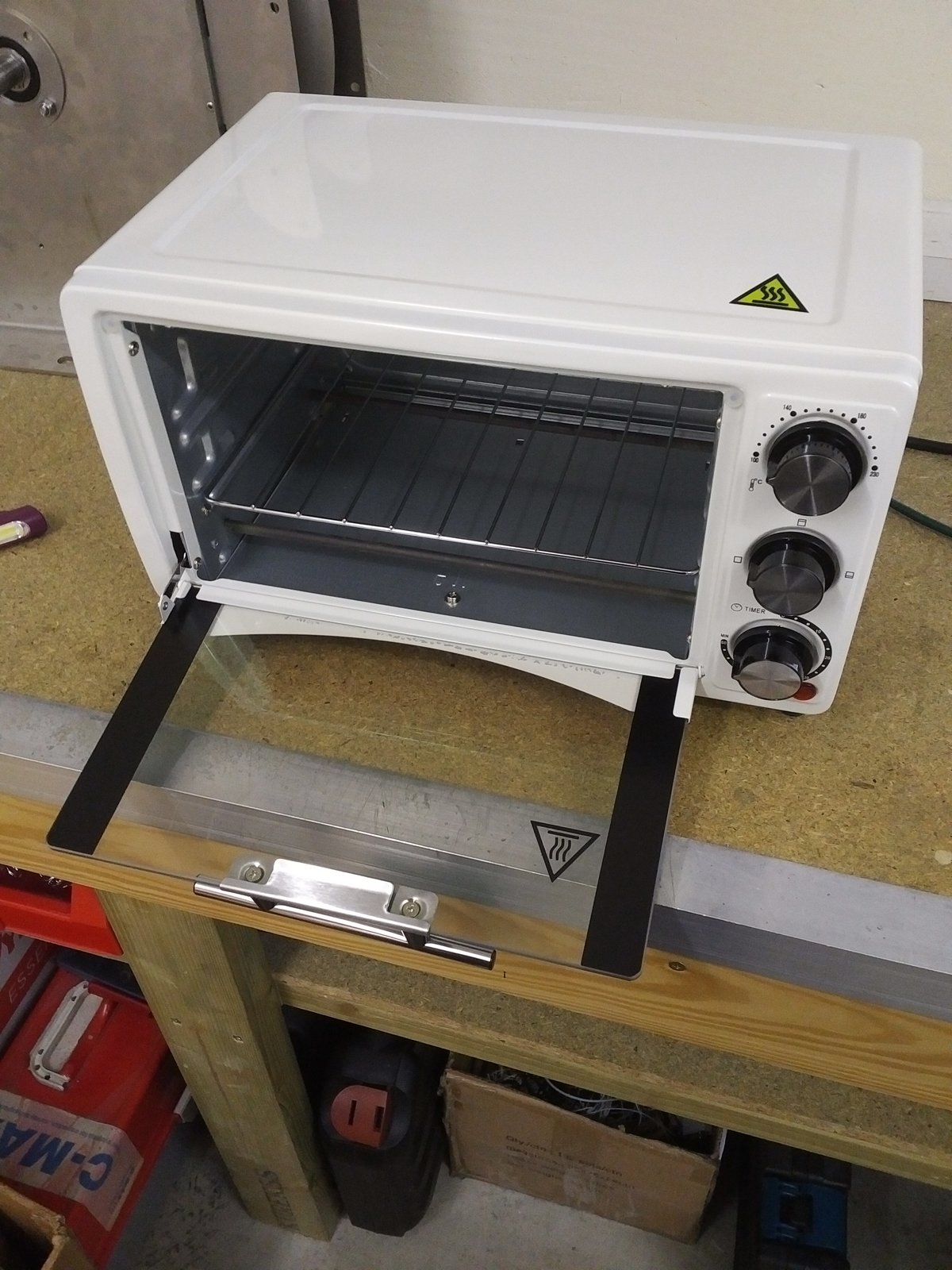

I did it by hand with a little 10cc syringe pump. If I was doing more then I'd invest in one of these:

https://www.i-extruder.com/en/

The paste is quite stiff stuff to push out of a small nozzle, and the caps can benefit from a fairly well controlled quantity of paste to ensure optimum reflow performance. I had one dry joint on the surface mount tantalum due to too-little paste.



[HughF]

So close to testing this now.....



[Richard.]

So close to testing this now.....

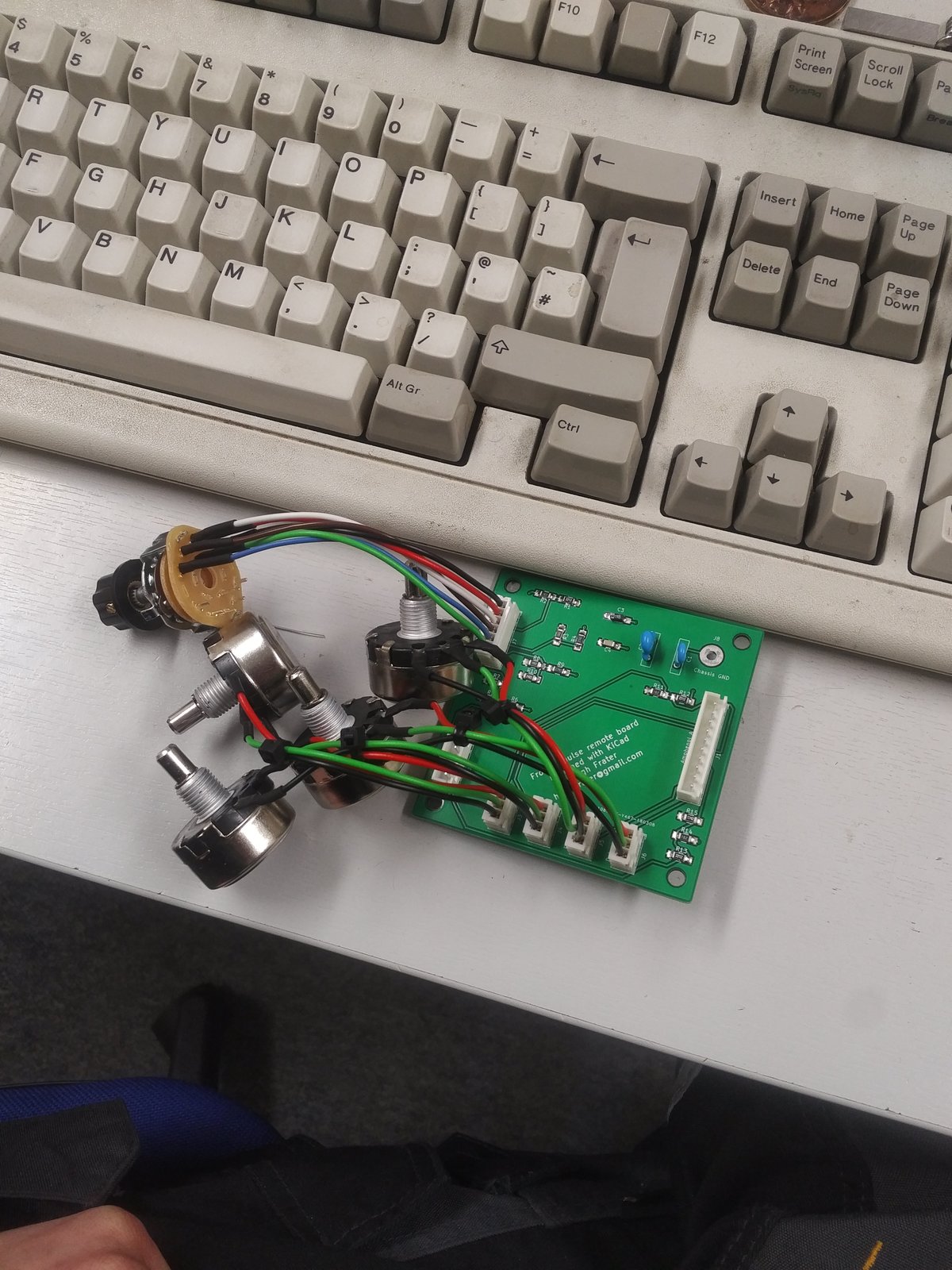

View attachment 137235

Don’t leave us in suspense Hugh.
I’m dying to know if it works or not.



[HughF]

Don’t leave us in suspense Hugh.
I’m dying to know if it works or not.

I didn't have any of the mating connectors for the 10 way connection back to the machine will probably be next week now before I can take delivery of those... the front panel design is an hour or two away from completion though. Does this look any good?



@Richard. the plan is to make a batch of 10 panels to this size and shape (the MOQ from the panel maker) but without the corners cut off. Everything else will be the same so it will fit your case. I'll leave you to trim the corners off with a saw and file them smooth. Does that sound like a plan? I can then use the others for normal sized cases (hopefully)



[Richard.]

I didn't have any of the mating connectors for the 10 way connection back to the machine will probably be next week now before I can take delivery of those... the front panel design is an hour or two away from completion though. Does this look any good?

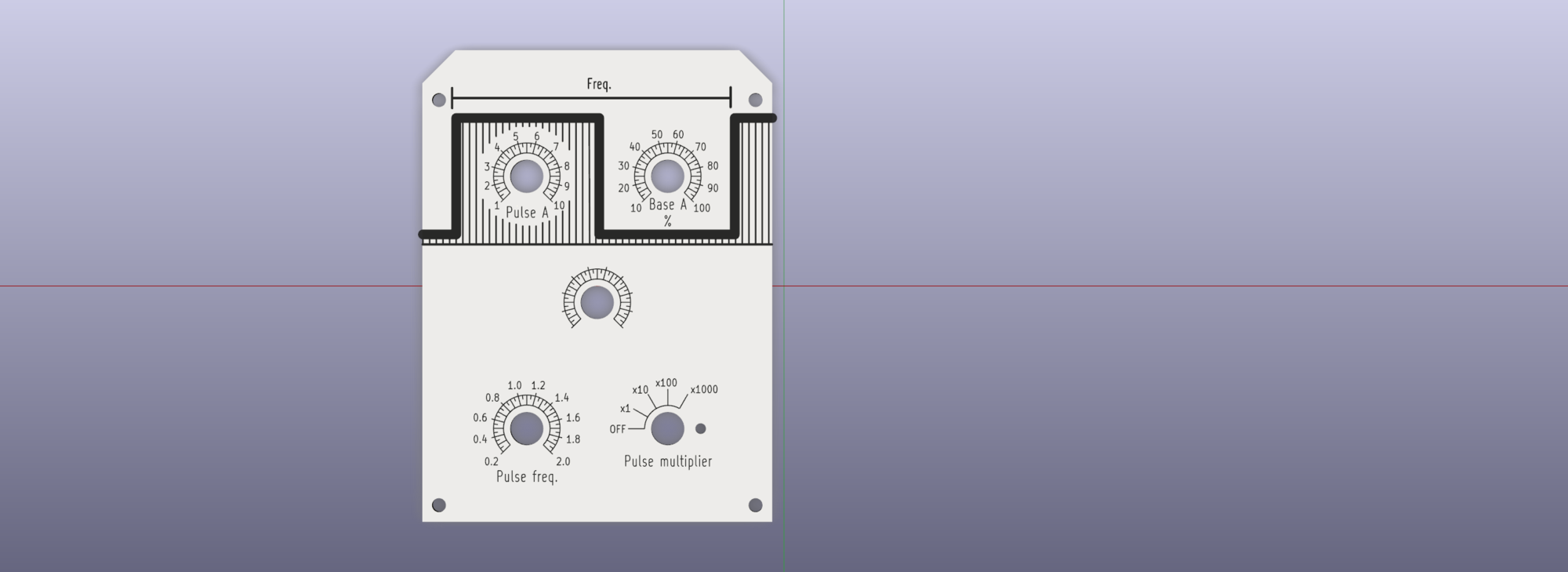

View attachment 137272

@Richard. the plan is to make a batch of 10 panels to this size and shape (the MOQ from the panel maker) but without the corners cut off. Everything else will be the same so it will fit your case. I'll leave you to trim the corners off with a saw and file them smooth. Does that sound like a plan? I can then use the others for normal sized cases (hopefully)

It looks awesome Hugh.
Proper professional job.



[HughF]

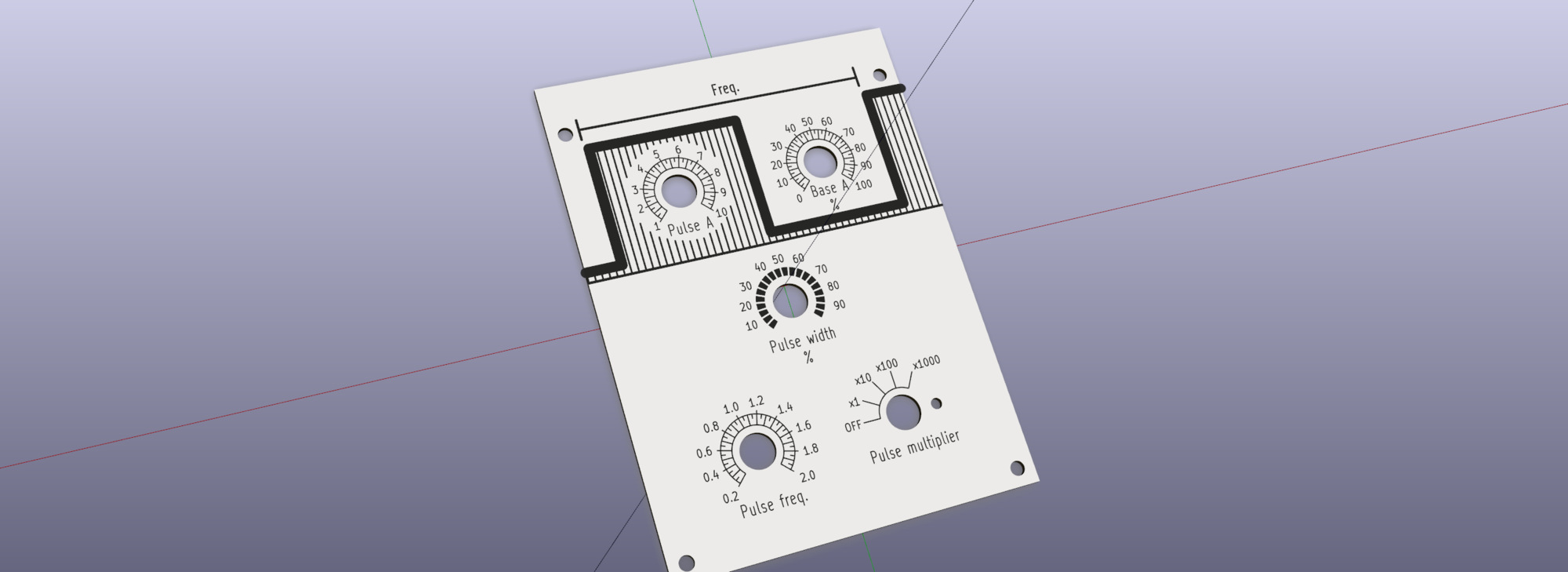

I have finished the frontpanel design and sent the files off for quoting This has been a lot of fun figuring out the intricacies of the PCB software for doing artwork on the silkscreen layer



[Richard.]

I have finished the frontpanel design and sent the files off for quoting This has been a lot of fun figuring out the intricacies of the PCB software for doing artwork on the silkscreen layer

Looks the part.
When you get round to mine mate can you send the old panel I gave you back with it so I have a template to cut the corners too.



[HughF]

Looks the part.
When you get round to mine mate can you send the old panel I gave you back with it so I have a template to cut the corners too.

Absolutely mate...



[Richard.]

How’s it going Hugh.
Have you got anywhere nearer to testing the board. Can’t wait to hear the results



[Appyasme1]

Interested to see the circuits



[_mike]

I soldered the test card. The pulse adjustment works. But there is one feature: pulsing current, background current and duty cycle depend on each other.
