Mini English wheel

[pressbrake1]

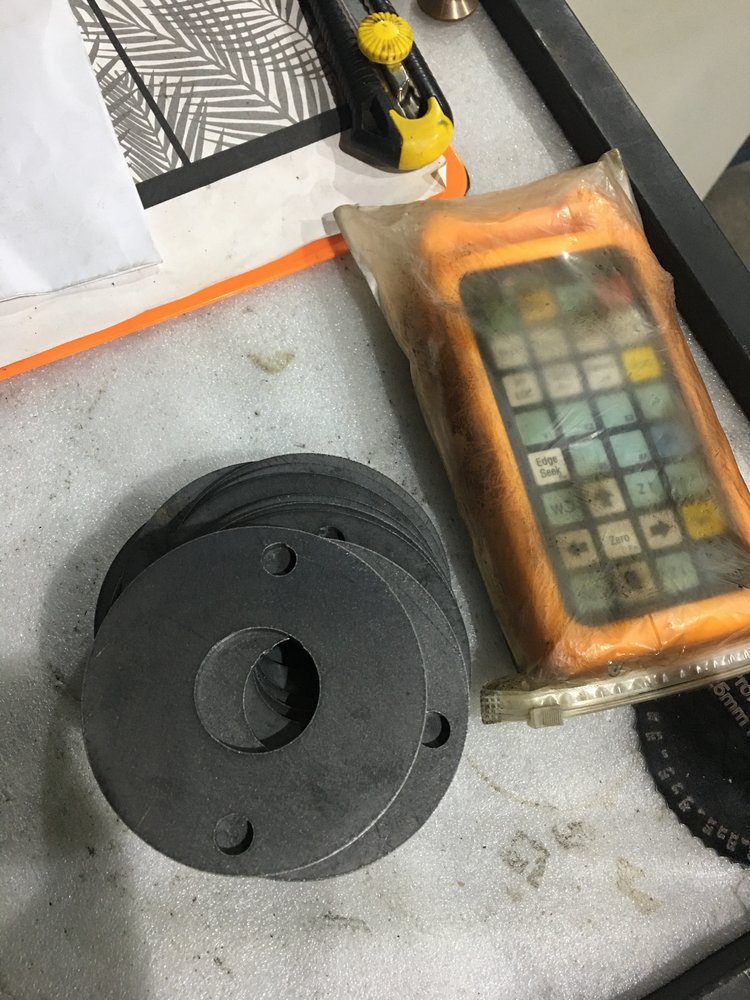

Bearing covers. My neighbour had a critical illness payout and did the only sensible thing and bought a five axis fibre laser cutter
Handy for a bit of evening work



[pressbrake1]

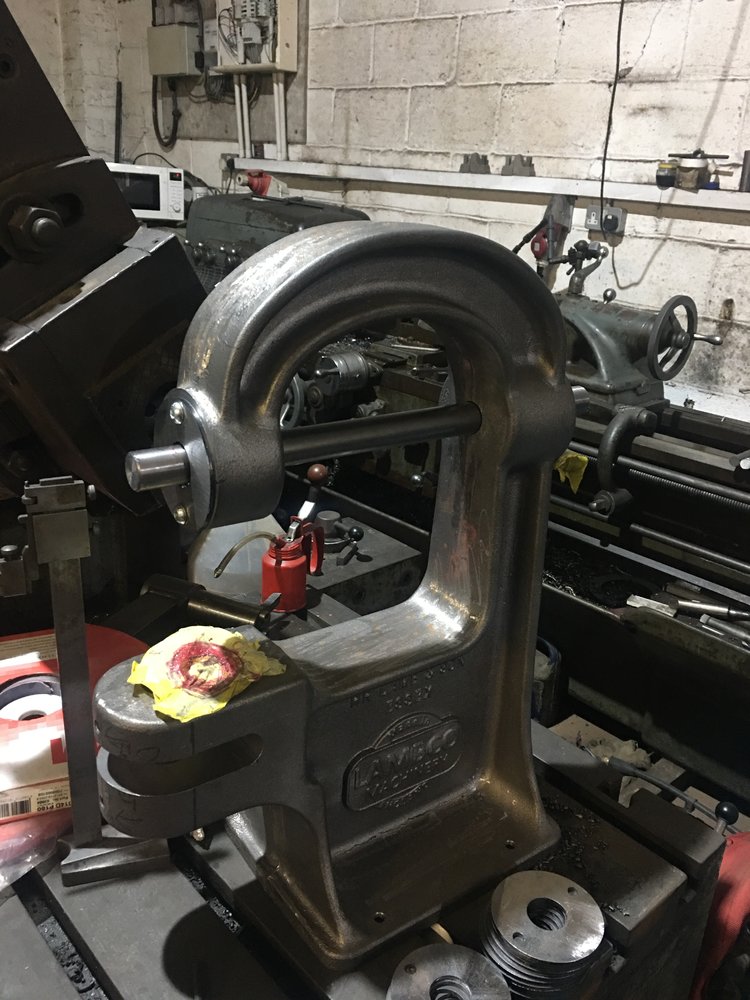

I love the smell of cast iron being machined, takes me back to my apprenticeship days.

I’m past that!



[pressbrake1]

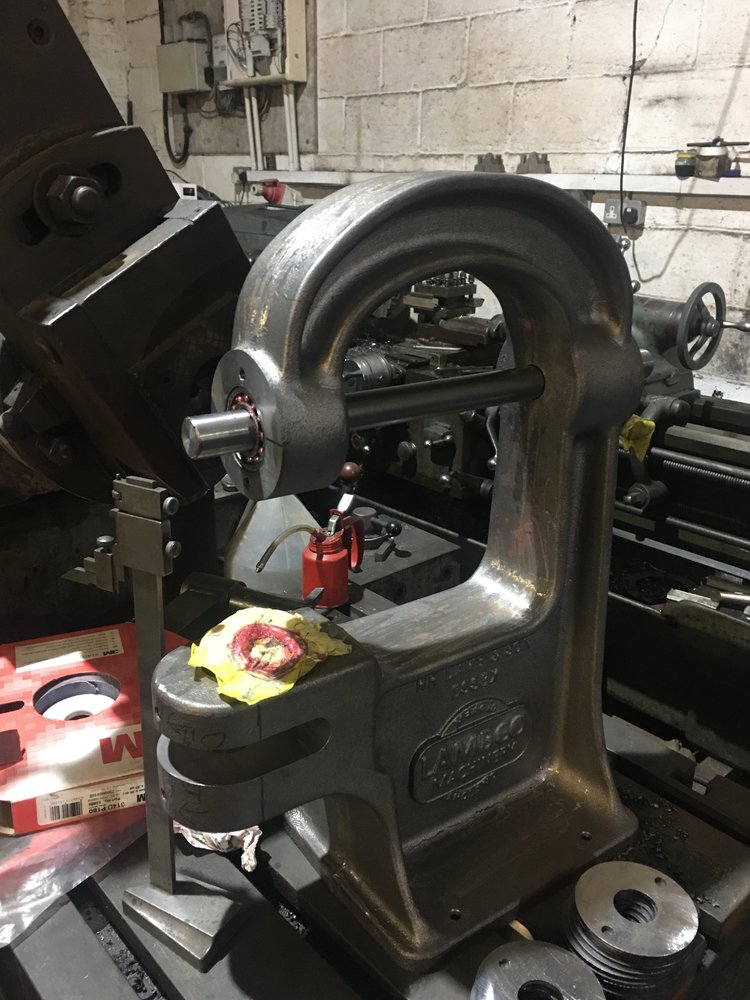

Accurate work equals easy assembly
I won’t be using those screws!



[500e]

They look superb



[pressbrake1]

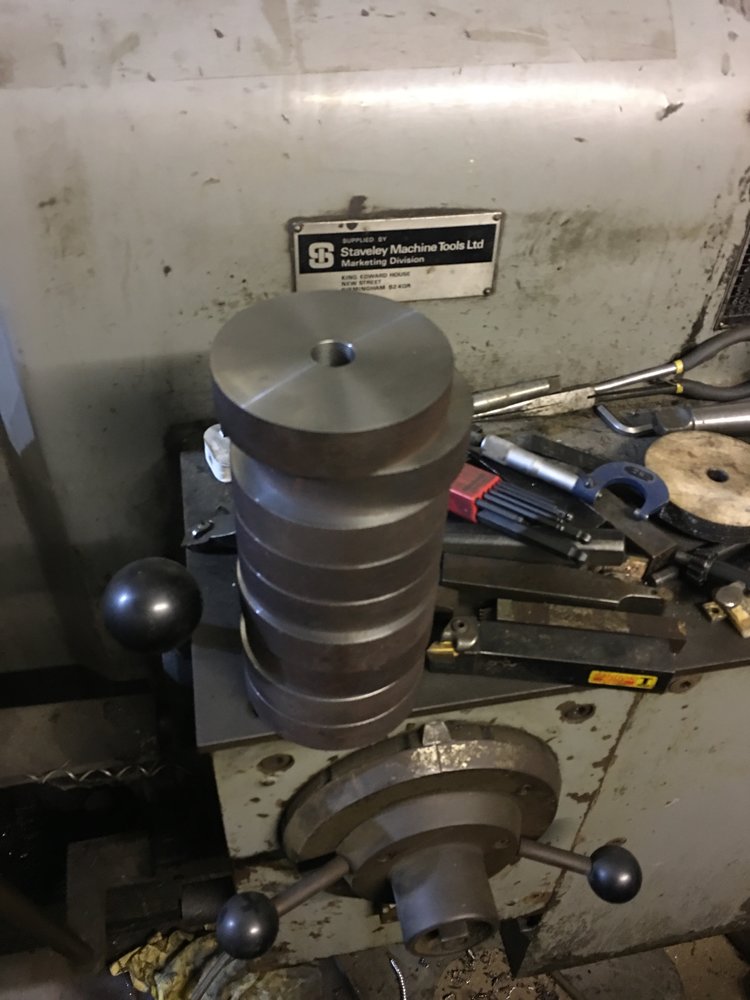

Top wheel work
Batch work is draining. On the plus it’s good steel, hardens if the drill runs for a second so I’ve ordered a u drill to punch through on max revs

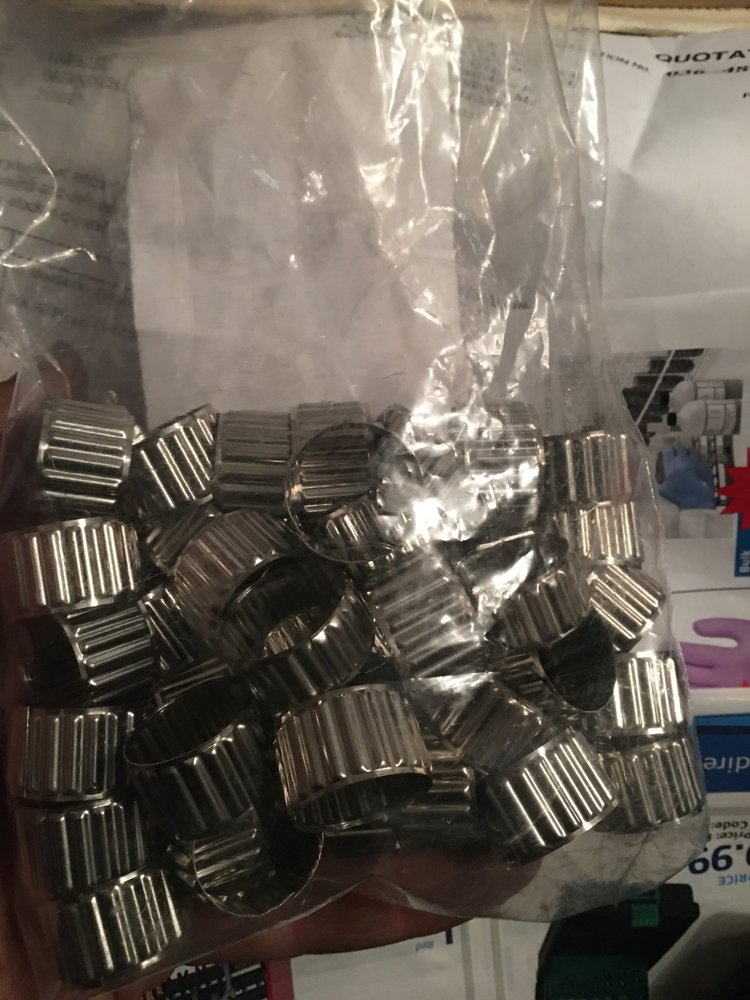

Going to centre turn shaft for wheel spigot and registers for tolerance rings to get good accuracy



[tom2207]

I really shouldnt be looking at this wheel porn ,,,

but I cant help myself ,,,,



[jonclancy]

Just fabulous, First-Class engineering. Thanks for all your effort, Clive!



[pressbrake1]

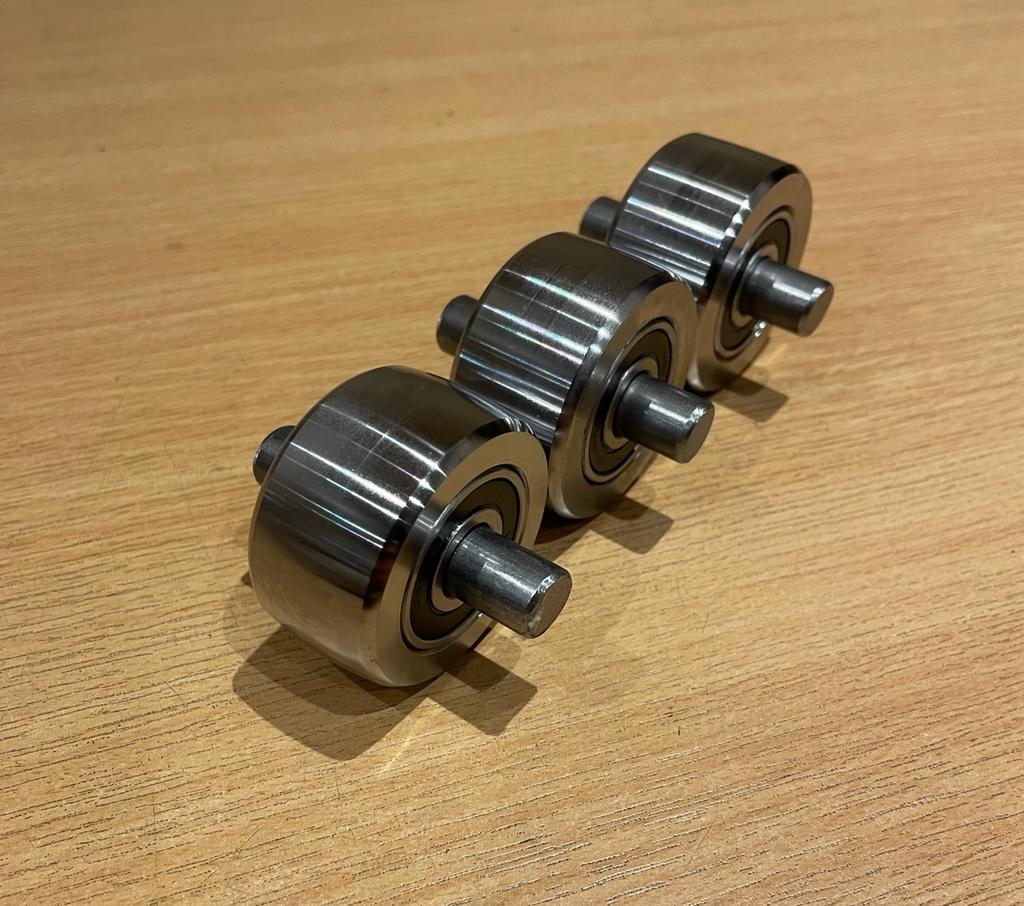

Set of wheels
Three is plenty considering all the masters I know use one or two for everything and a scrap one for welds!



[500e]

Superb shows just how good your product quality is



[pressbrake1]

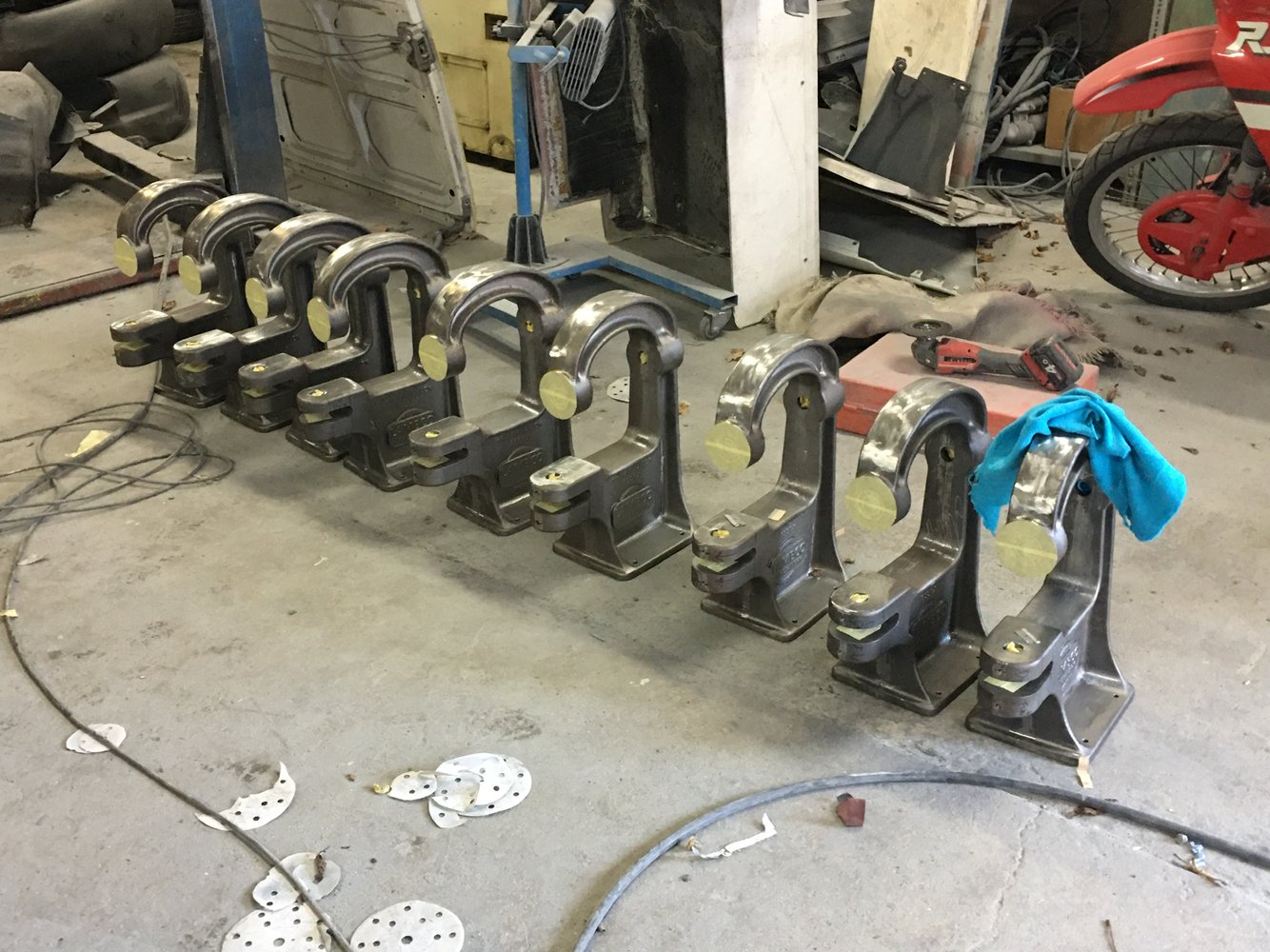

Paint shop, had to sub this out which is financially unpleasant but time is short and dust levels are high!



[scottmk1]

Which ones mine?



[pressbrake1]

Which ones mine?

The one with masking tape



[Blobber]

The one with masking tape

What all of them?! thats greedy!



[pressbrake1]

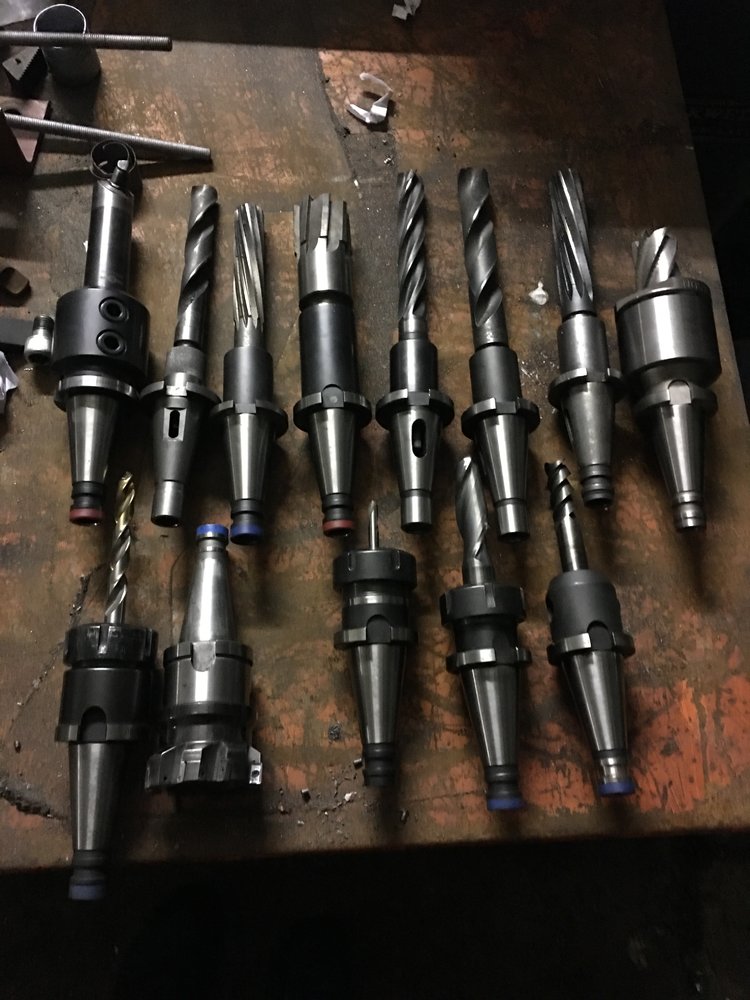

Amount of tool changes/ops in a mini wheel
One reaming operation could be omitted if I had a 26mm core but overwise I think holes that be seen with a two flute finish is vulgar



[roofman]

A lot of work goes into these things thats for sure, i never imagined the foundry has the best part of the job imho.



[pressbrake1]

There’s actually another six for taped holes a dowels



[Brad93]

blimey even using a microbore



[500e]

Just loverly work



[pressbrake1]

blimey even using a microbore

Only sensible solution for production work to repeat.01 or better consistent
Other fixed head apply as well



[addjunkie]

This is a superb example of why quality gear is so expensive. The skill and quality of this work is superb.
