Show us your bench vice(s)

[GraemeVW]

You could cut a piece of round bar in half ( length wise ) and weld it onto the back of your new jaw to simplify fettling.

Making it in 2 parts has crossed my mind.
Making a replaceable bolt in jaw is also a possibility, but a separate item I can just use for the odd job would probably be easier.



[25.4_mechanic]

You could cut a piece of round bar in half ( length wise ) and weld it onto the back of your new jaw to simplify fettling.

Brilliant idea.
You can buy so-called rounds, so to speak, sections of a very thick rod or steel wafers.
There are in almost all conceivable sizes. Is usually supplied in minimum size and you work off the excess.
When I build wheel weights for tractors I use something like this, the oversize is often very welcome without having to pay for the extra material.
Also comes in fist size and smaller.

Carsten

--



[Arc Tourist]

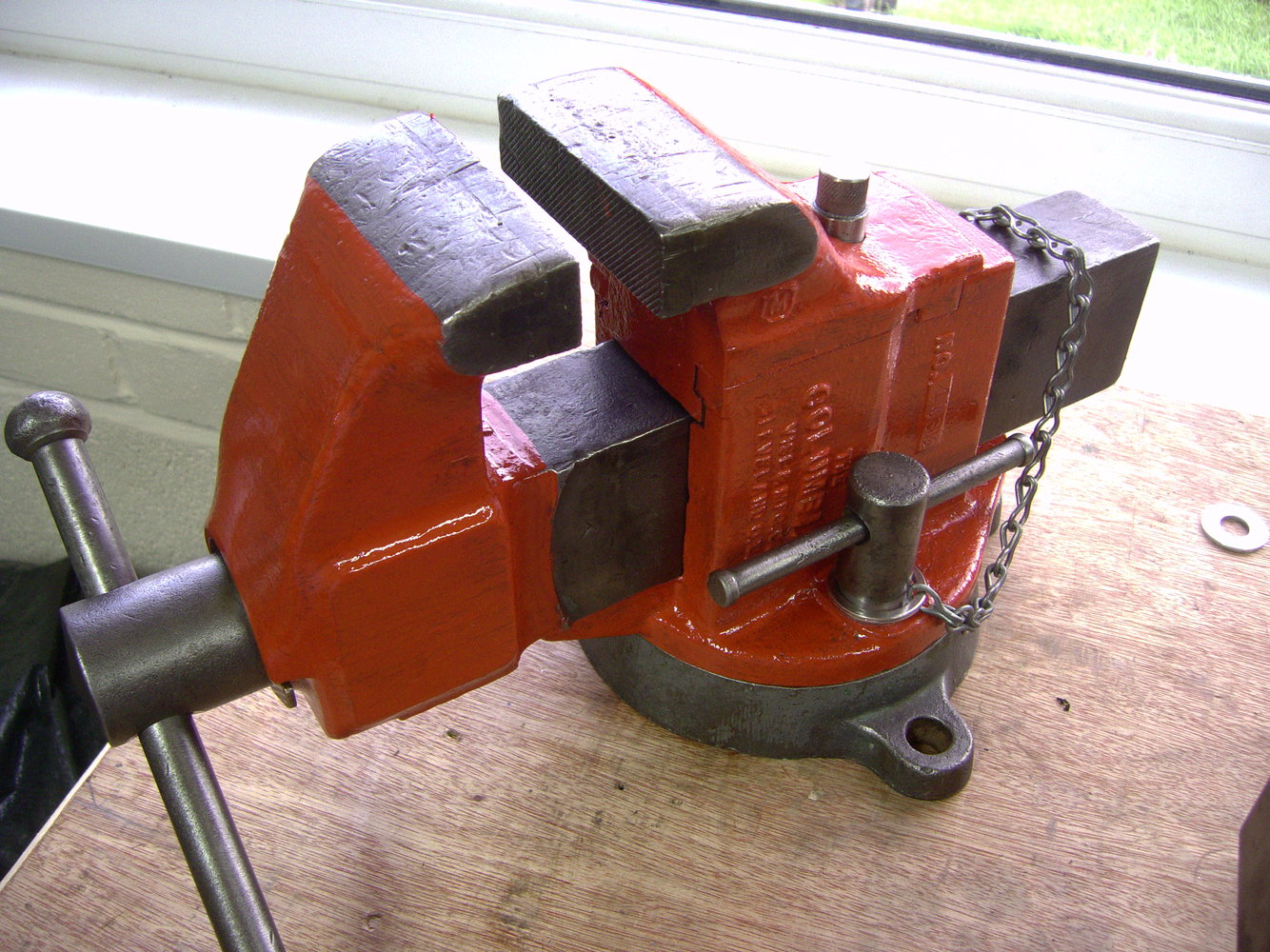

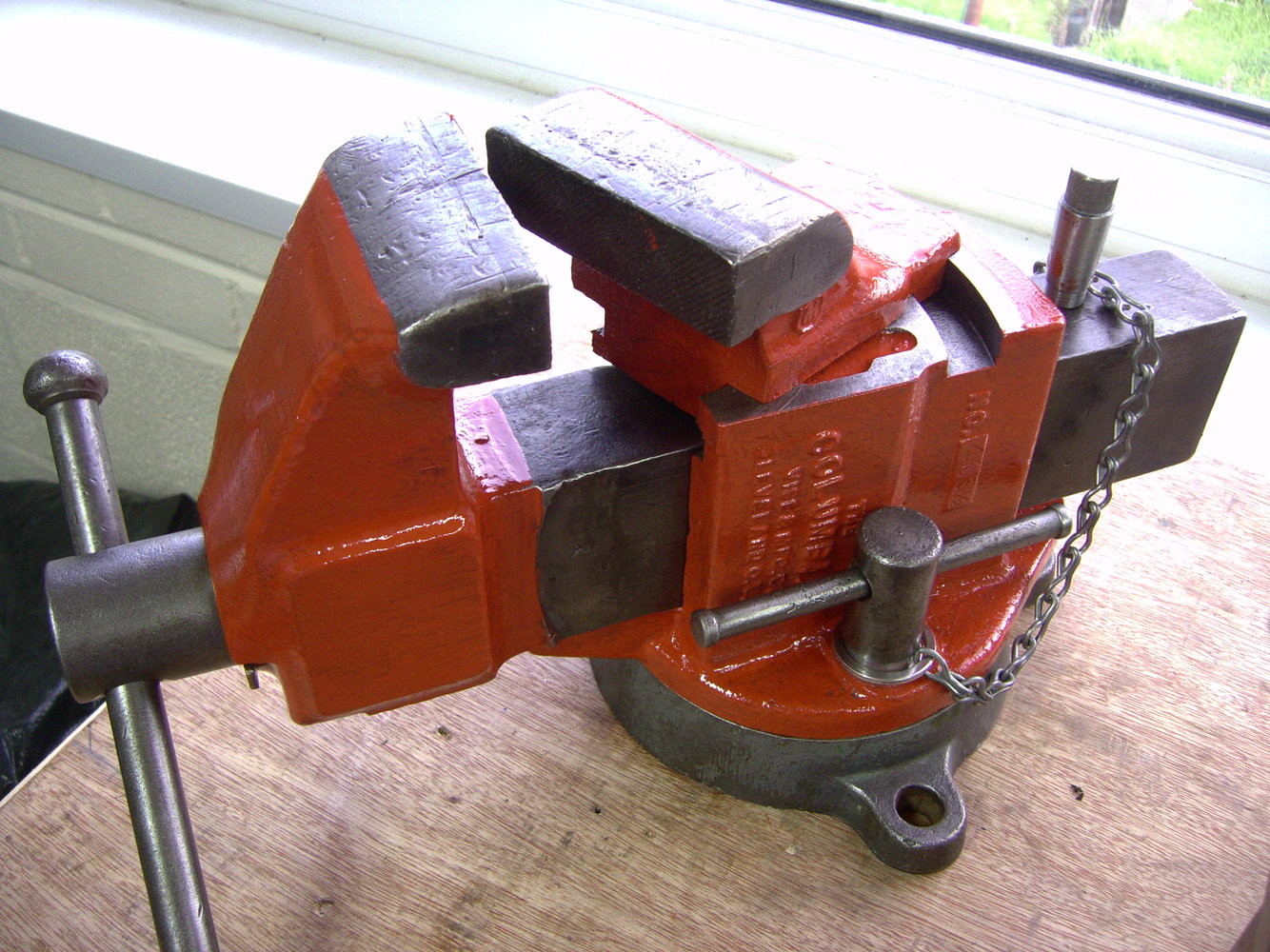

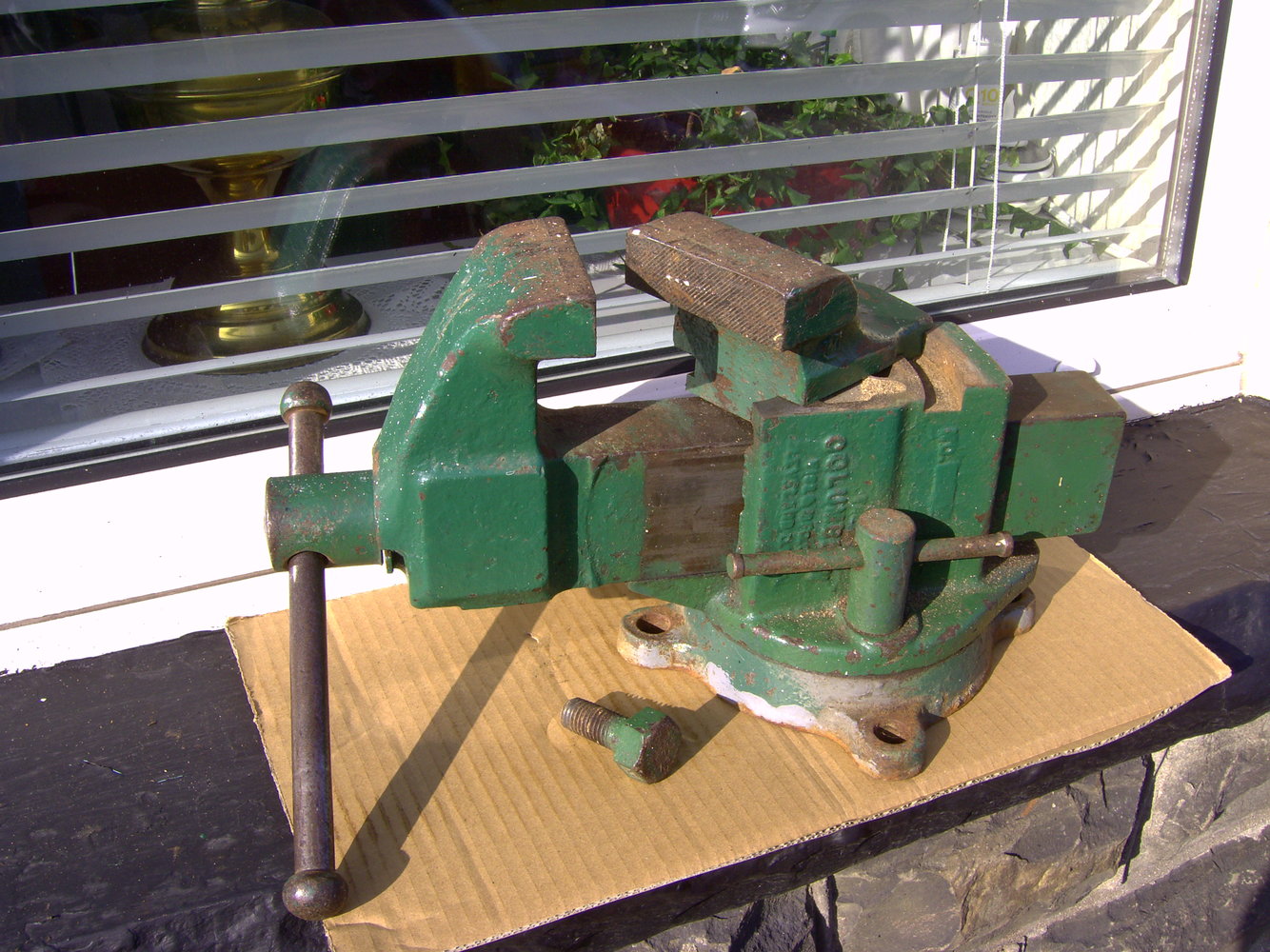

I never got around to making a wiggle jaw accessory, but solved that potential need when I saw this swivel jaw bench vise back in February.
I'm sure I posted this awhile ago, but here are a few photos. It was in very good condition, just neglected.



[25.4_mechanic]

I never got around to making a wiggle jaw accessory, but solved that potential need when I saw this swivel jaw bench vise back in February.
I'm sure I posted this awhile ago, but here are a few photos. It was in very good condition, just neglected.

Very nice. Prefer the red over the green in this case.

And not all ground away and spackled over.
You can tell it's an old vise and that's a good thing.

We don't have anything like that (as far as I know), so the question:
Is the rotating jaw clamped by vertical inclination on its back lower rim or is it the pressure of the front jaw over the workpiece that allows nothing but the rotating jaw to stop.
In that case, would it be possible for a very well oiled wedge as the workpiece to be pushed out sideways when it is clamped (just to understand the principle)?

Thank you very much,

Carsten

--



[MattF]

It's just the clamping pressure which holds the rear jaw in position, on an angled piece.



[Maker]

In that case, would it be possible for a very well oiled wedge as the workpiece to be pushed out sideways when it is clamped (just to understand the principle)?

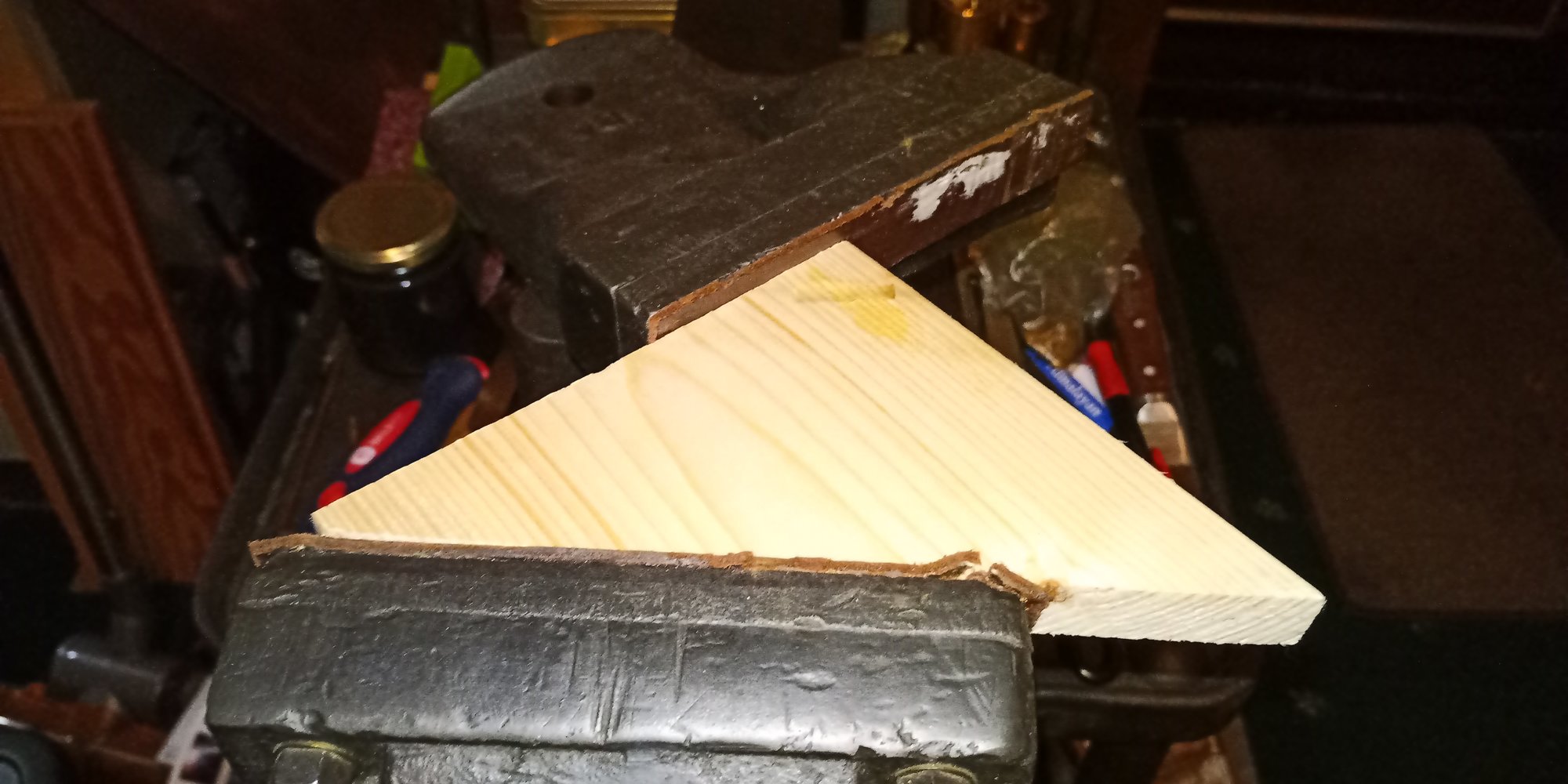

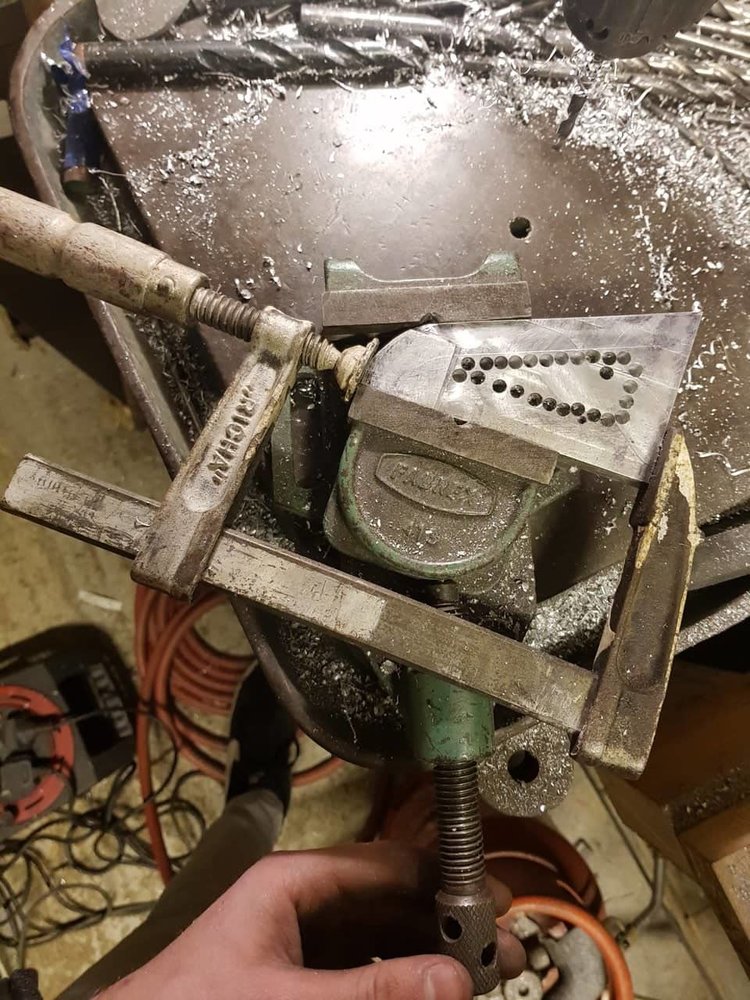

Absolutely, doesn't even have to be oiled if the wedge is steep enough. Here's a part I made a few years ago held in a drill vice with a swivelling jaw.



[W.olly]

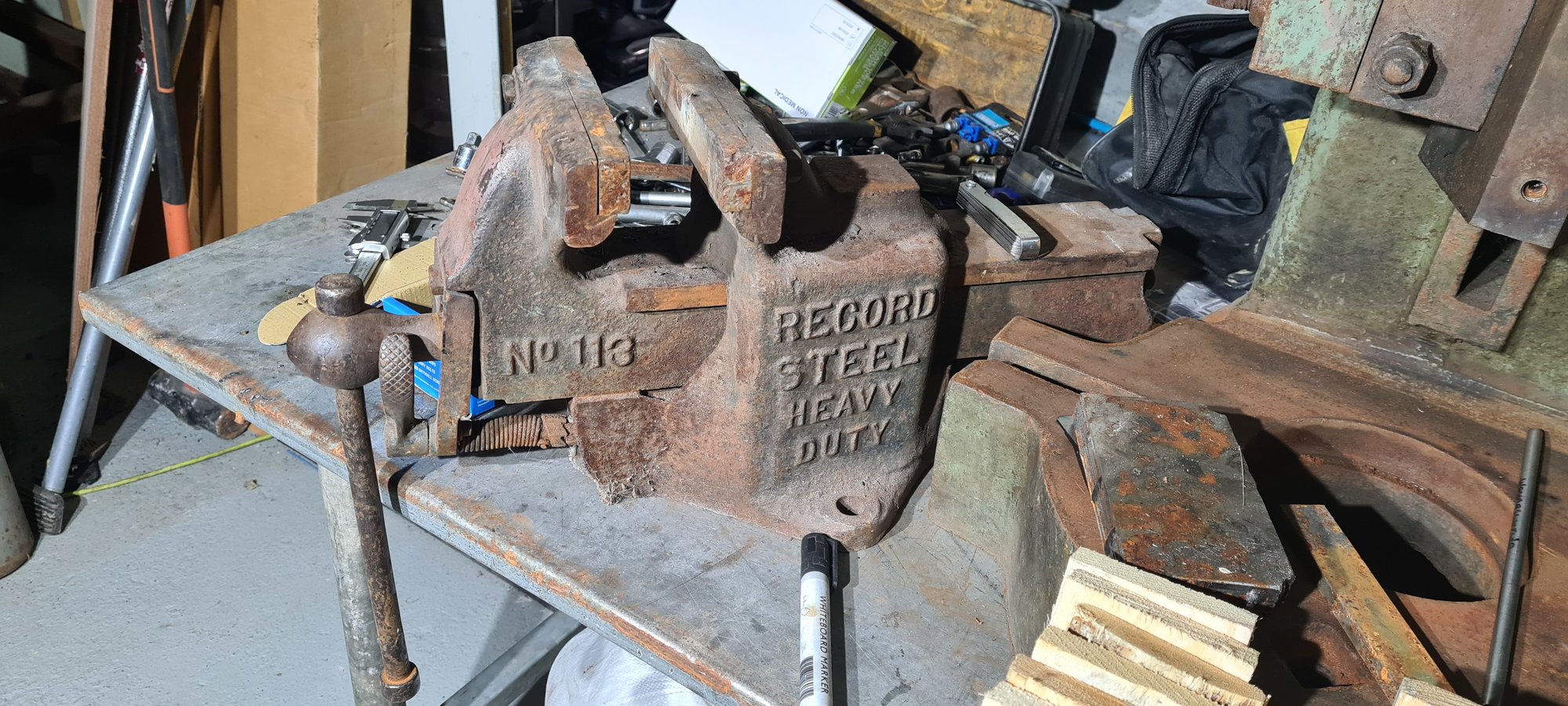

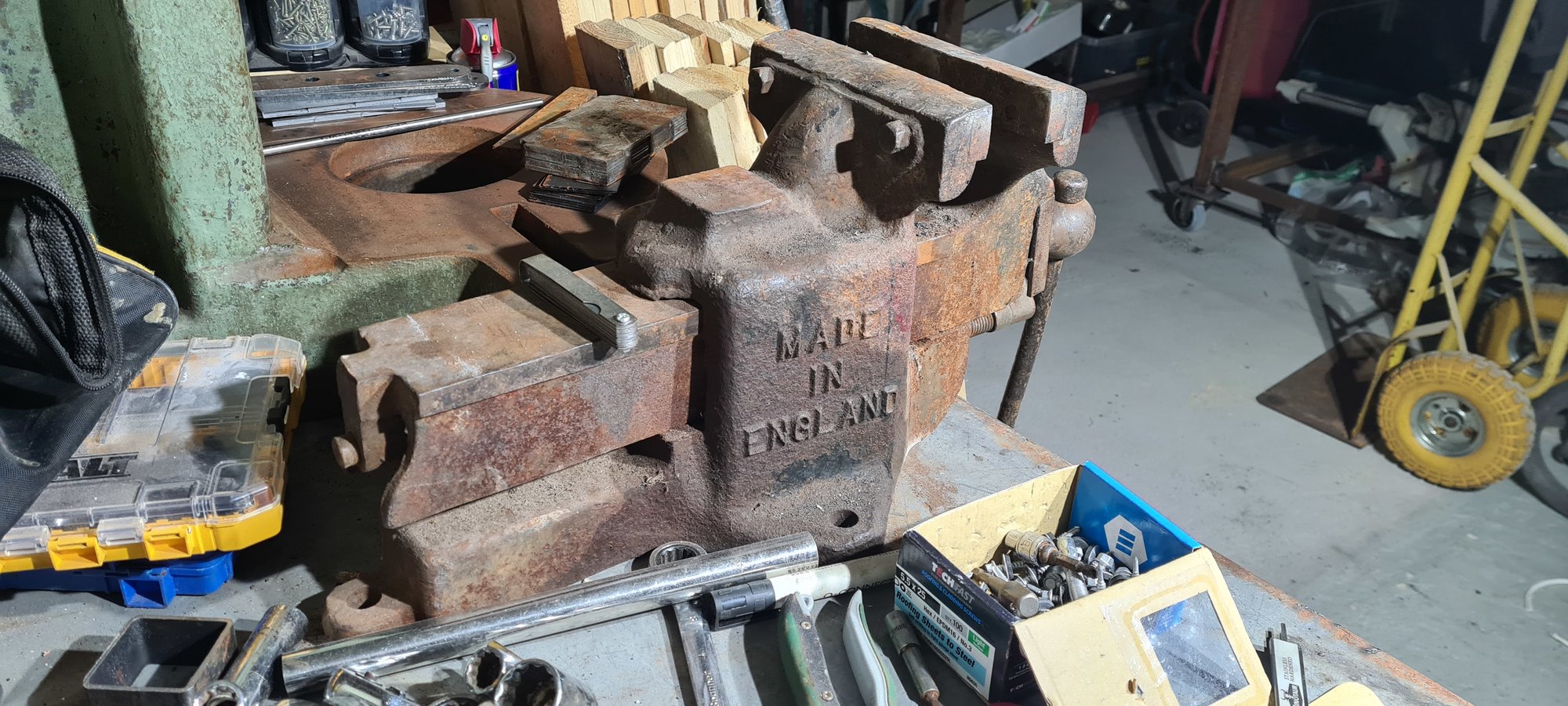

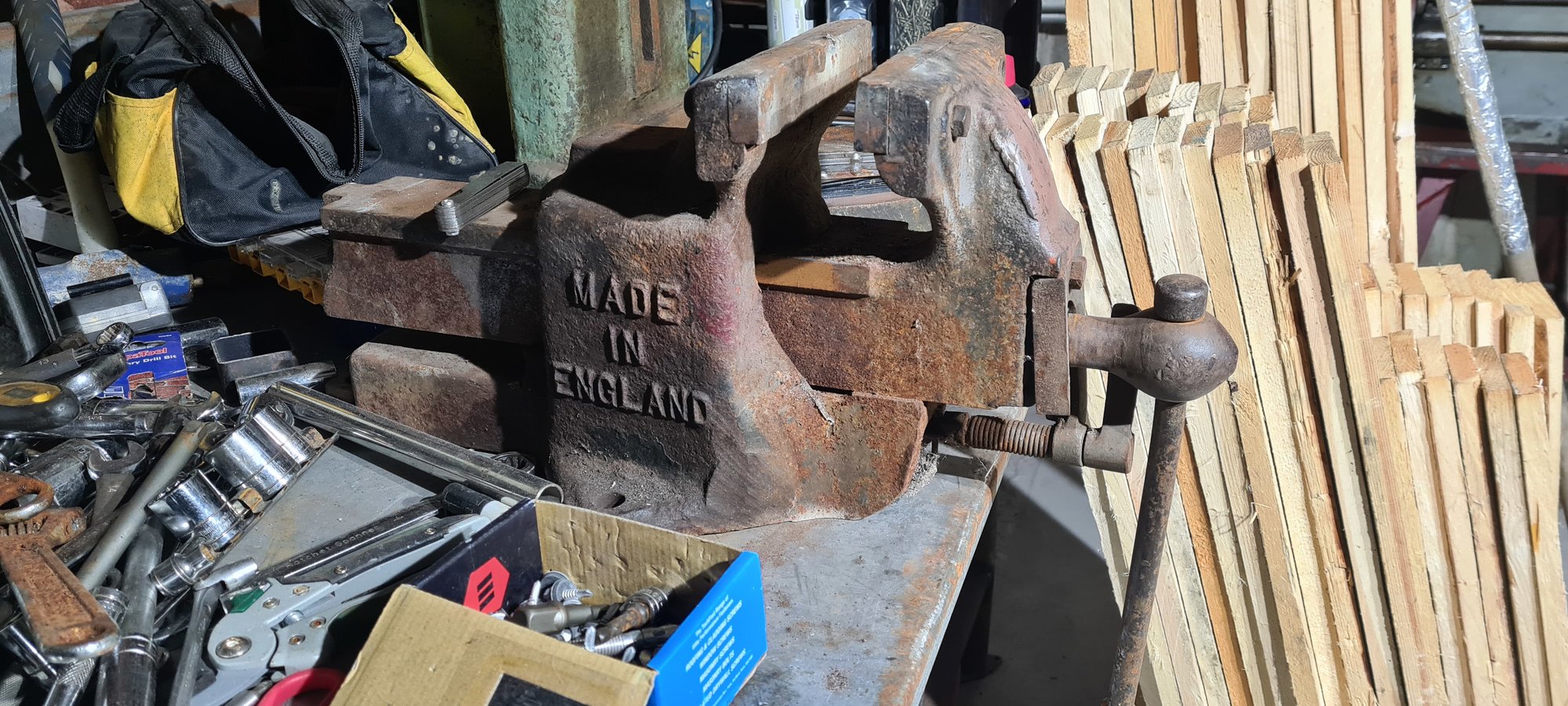

This is my thing which hav

I have had it for sòooooooo many years I forgot. And one day I'll fix the quick release and slack in it. Been good though.



[GraemeVW]

Don't see many 113.



[25.4_mechanic]

Absolutely, doesn't even have to be oiled if the wedge is steep enough

Thanks, got it.

Carsten

--



[Arc Tourist]

.............................. Is the rotating jaw clamped by vertical inclination on its back lower rim or is it the pressure of the front jaw over the workpiece that allows nothing but the rotating jaw to stop. ....................................

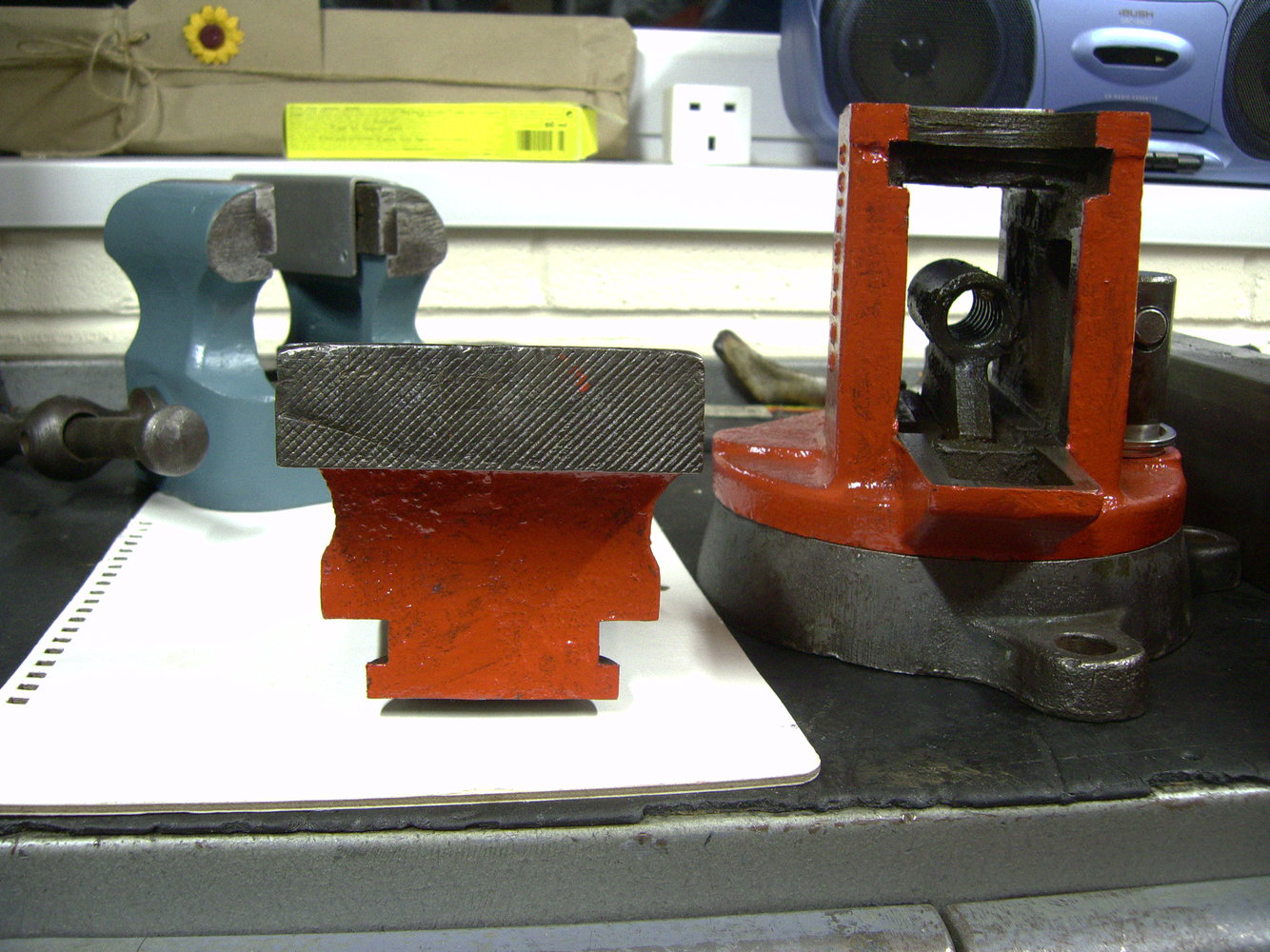

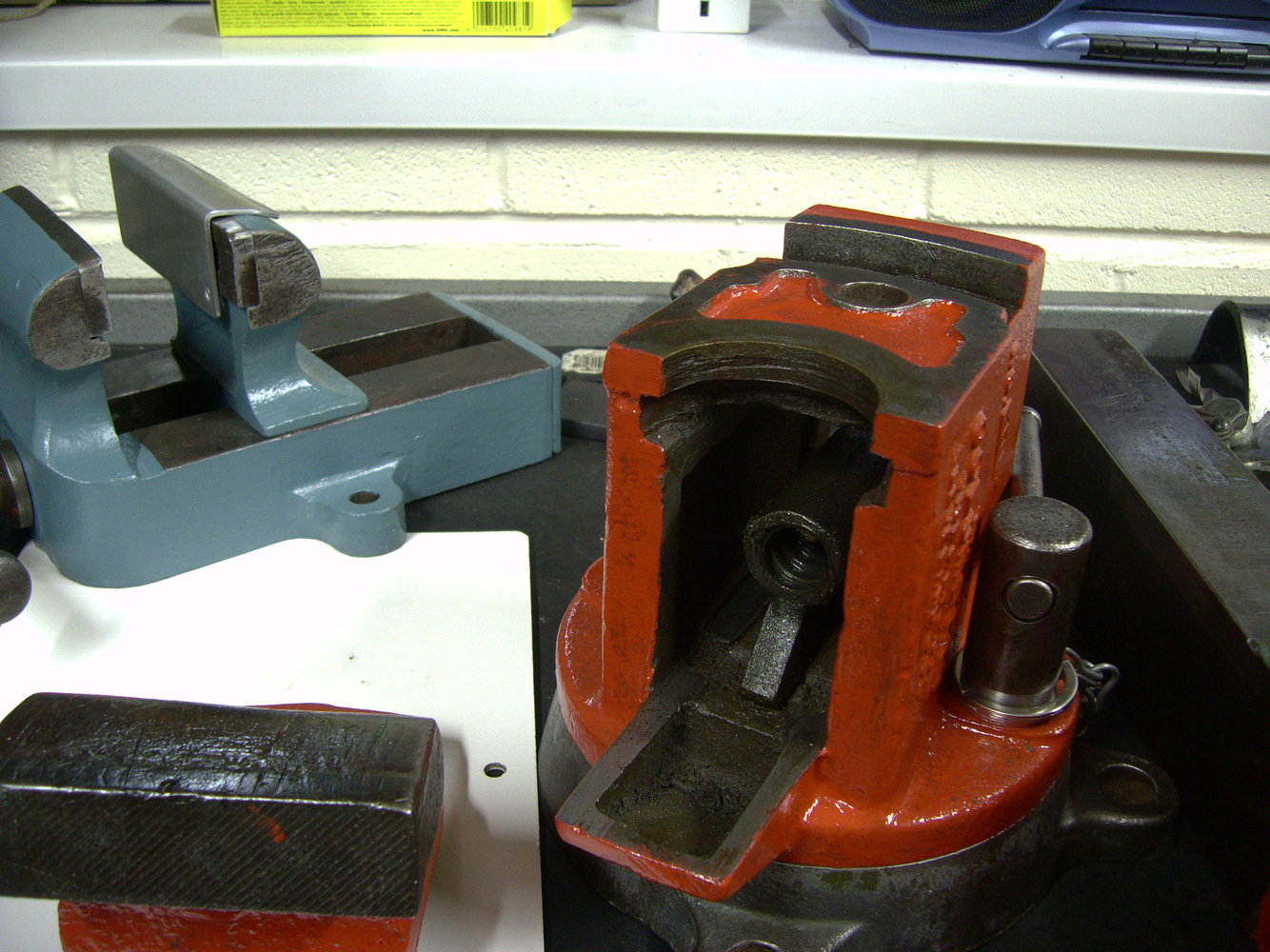

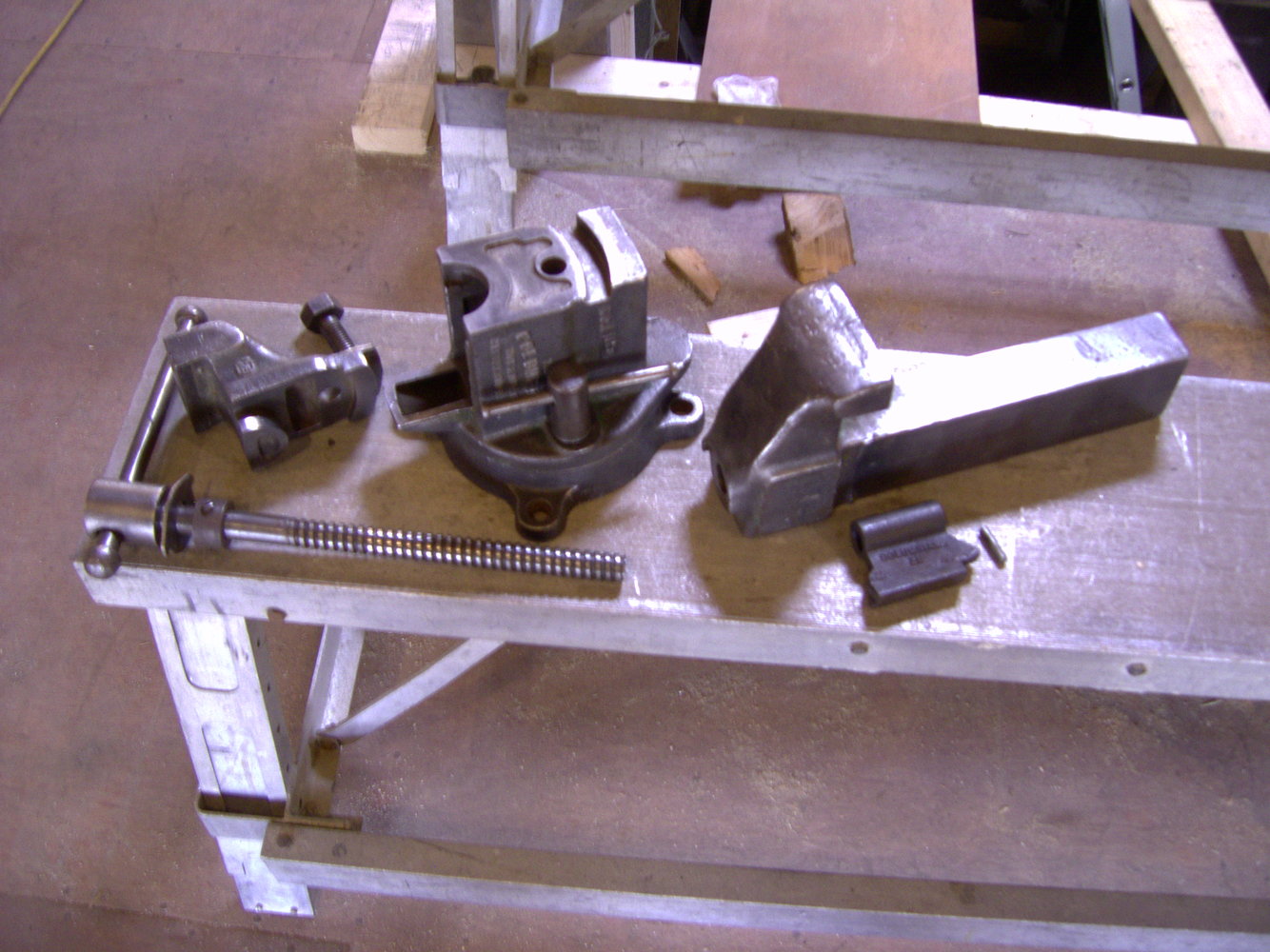

It is mounted in a T-slot fashion. The second photo also shows one of the shims I made for the Premier vice's jaws, to deal with handle position if used on the drill press table.



[W.olly]

Don't see many 113.

rare then. i dont know much and vices but this has been a good un. again with a lot of my gear i have forgot where or when i got it.



[Maker]

Thanks, got it.

Carsten

--

That drill vice has smooth jaws though, nice sharp serrated jaws on a bench vice would probably make a world of difference.



[25.4_mechanic]

It is mounted in a T-slot fashion.

These pictures make it beautifully clear, thank you.

My question - meanwhile answered with no - considered possible that perhaps from a clamping force of xN on, the rotatable jaw may tilt backwards minimally and lock there before the workpiece is properly clamped. This would then have a different effect, but after a little thought, this cannot be desired.
That's done, it was nonsense.

This principle is now understood.
I thank you for your patience with a continent dweller, where the industrial revolution had started some decades later ...

Carsten

--



[25.4_mechanic]

That drill vice has smooth jaws though, nice sharp serrated jaws on a bench vice would probably make a world of difference.

Herewith you have proved irrefutably why a multitude of vices is simply absolutely necessary for life! Thank you!!!

I will immediately print and frame your statement and then submit it to SWMBO for her consideration.


Carsten

--



[MattF]

The problem with swivel jaws is, simply, grip. An angled piece will try to shoot out of the jaws as you tighten them. Good serrations else soft, grippy faces are best. Take this example:



I've glued leather strips to the inserts. They're sacrificial. It helps gripping angled pieces, as well as allowing threaded items etc. to be clamped with minimal damage.



[MattF]

I will immediately print and frame your statement and then submit it to SWMBO for her consideration.

Good luck in expecting more than a shake of her head at that.



[25.4_mechanic]

Good luck in expecting more than a shake of her head at that.

Does anyone here know this snippet of conversation:

"A tool? More tools?? You already have tools!"

I admit, it works better in my language ....


Carsten

--



[GraemeVW]

The whole angled face thing I think depends alot o how big an angle your hoping to hold. The wider the angle, the less grip.
I see them more for things that just aren't square, rather than for holding full on triangular stuff.



[GraemeVW]

That was not easy!
I decided they were coming out tonight, and I got there eventually!



[Arc Tourist]

Does anyone here know this snippet of conversation:

"A tool? More tools?? You already have tools!"

I admit, it works better in my language ....


Carsten

--

I haven't heard that yet, as she knows that tools make money; however, I am retired now, so that may all change. ............... Nah, she's the best.
