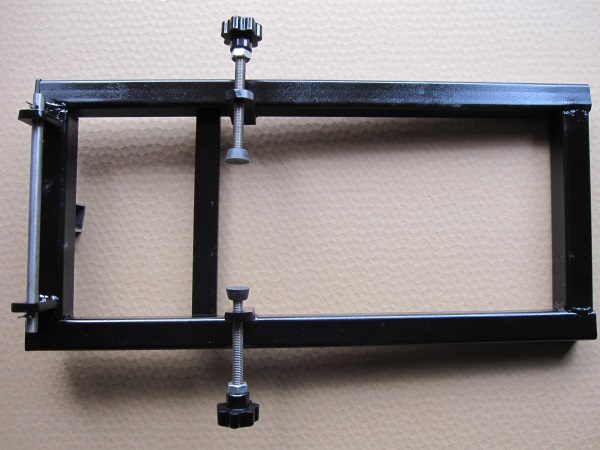

Here are some pics of my bandsaw frame build. I used what was to hand at the time, 30x30x3mm box section, 25x8mm flat bar, 10mm threaded rod.

External dimensions are 560x260mm. The handle is held by a 10mm rod passed through it and secured with R clips. There are some mouldings inside the handle that limit the diameter of rod you can use.

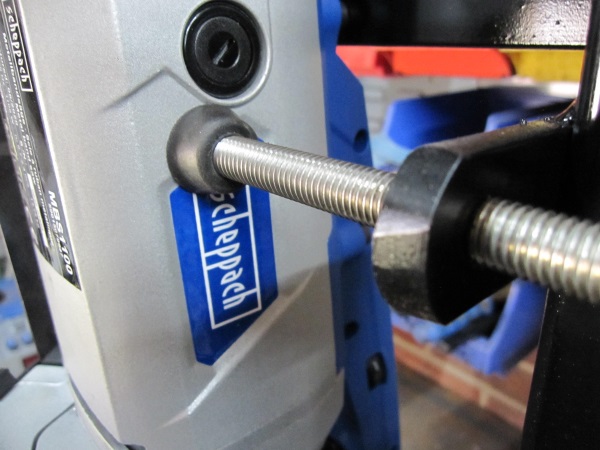

The side clamps are 10mm threaded rod with rubber buffers. They bear against the motor housing below the brushes.

There are two cap screws in the motor housing which rest against the back bar.

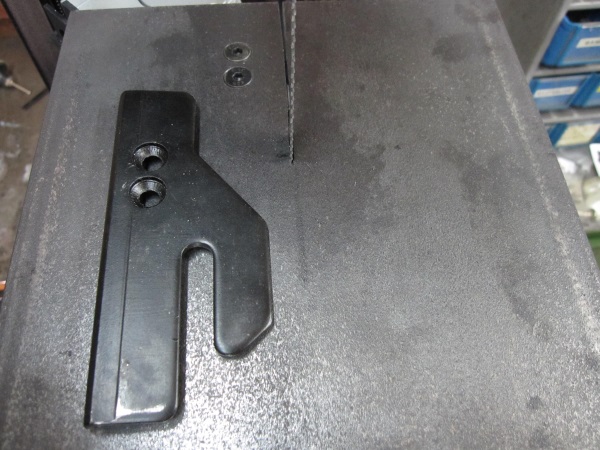

The table is 200x200x6mm mild steel. I slid the workpiece stop right forward to provide enough support to enable me to cut the blade slot with the saw. The workpiece stop was then removed and the table fixed in place using the original screws.

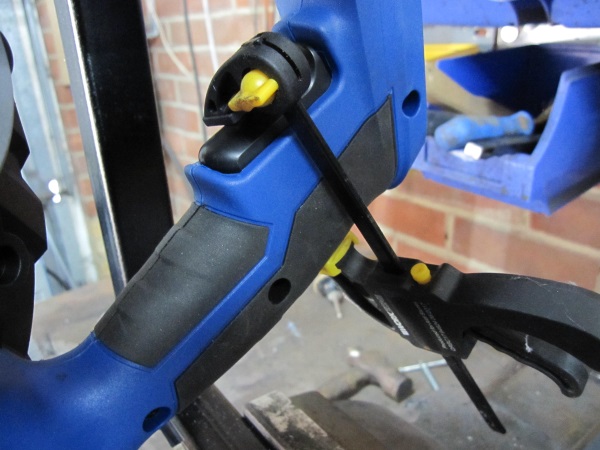

The trigger does not have a lock button so needs to be clamped down. This is not safe for the user so I plan to fit a foot switch.



[indy4x]

3D printed vice press break
View attachment 281927View attachment 281929View attachment 281928

What filament did you use?



[Cosantoir]

What filament did you use?

I used PLA for this case whole PETG is a stronger material it's less rigid and we don't want flex in these parts.

In terms of strength I went for 5mm outer wall so 7 perimeters with an infill of 75%



[Hood]

Maintenance day today.

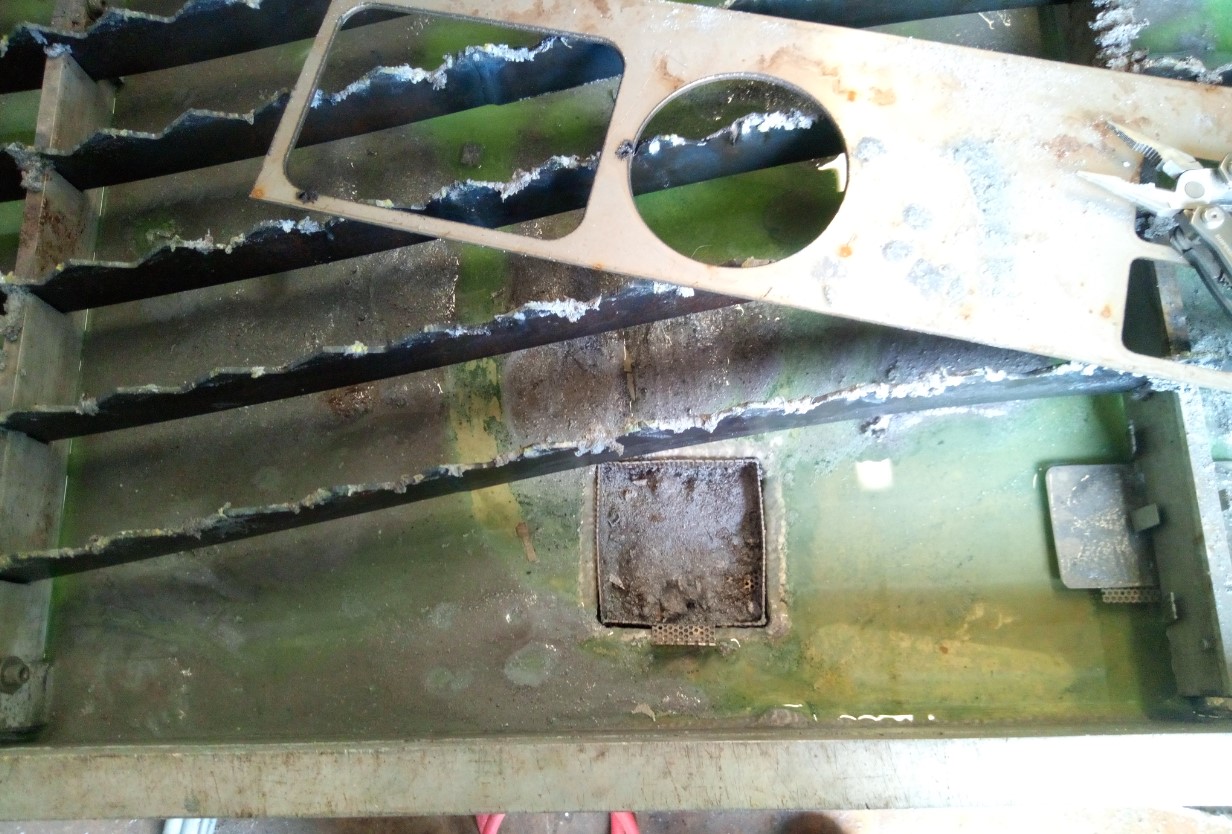

Drained plasma table and cleaned out the dross, filter works well

Replaced the bearings on 10 collet chucks for the Chiron, have another 27 that are not too bad but will likely buy some more bearings and do them at some point.

Once I cleaned the plasma and pumped the water back in I cut a couple of bits of 3mm stainless and made some hose brackets.



[zx9]

An indexing pin for the Drummond almost.


Almost because I fell at the last hurdle, silver soldering the 1/8" cross arm on the locking screw, all I ended up doing was blackening it. I will clean it up tomorrow and have a re think.
The one I made is described as the Myford ML7 one on the left which is identical to the Drummond one on the right, except no removable 'distance piece' which I don't think will be required, if it is it can be quickly turned down in a collet so not a problem.



[EM1L4]

3D printed vice press break
View attachment 281927View attachment 281929View attachment 281928

Cool, is it on thingyverse? (I can’t find it )



[Kram]

Maintenance day today.
Drained plasma table and cleaned out the dross, filter works well

View attachment 281990

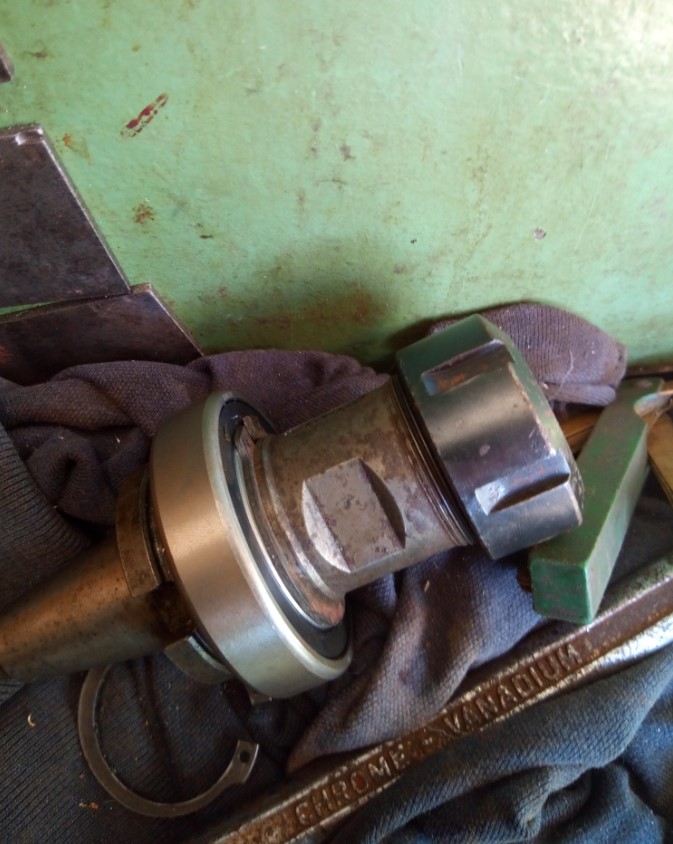

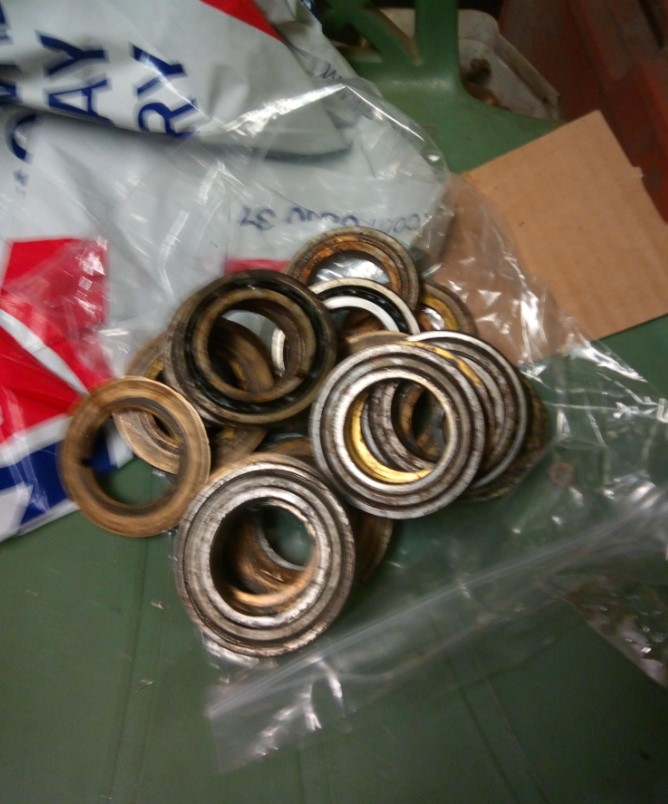

Replaced the bearings on 10 collet chucks for the Chiron, have another 27 that are not too bad but will likely buy some more bearings and do them at some point.
View attachment 281992View attachment 281991

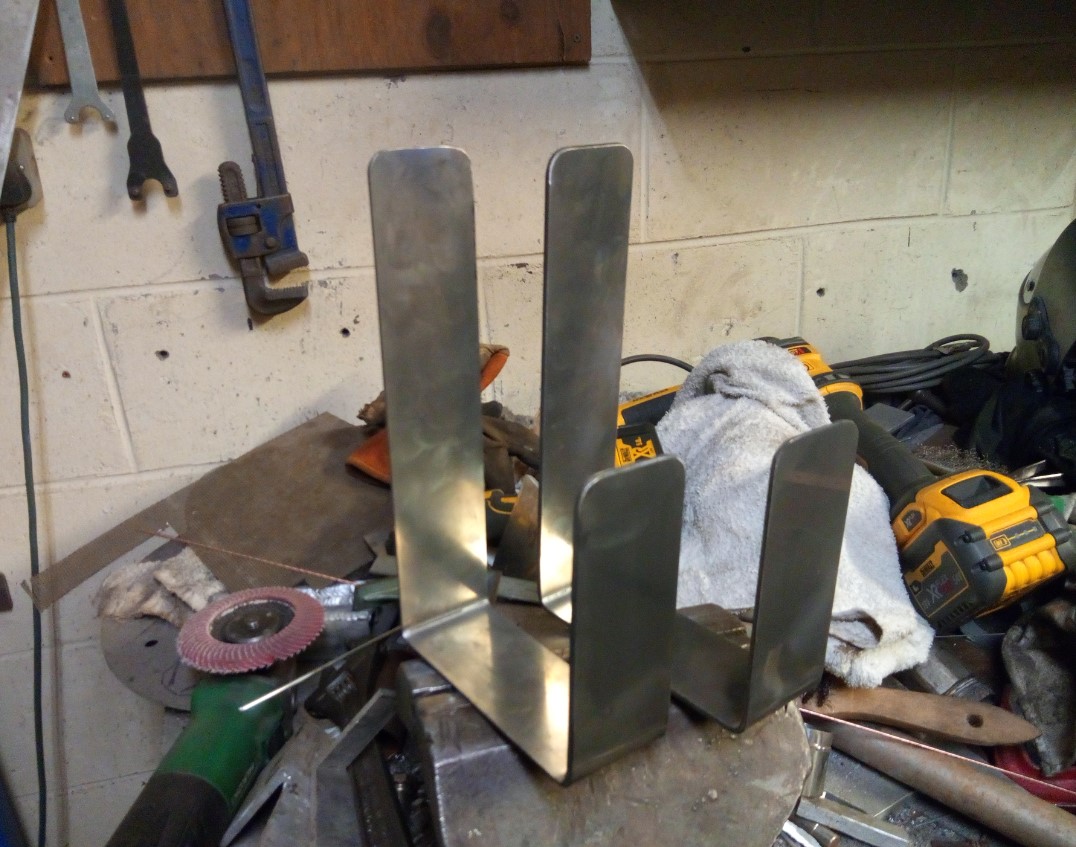

Once I cleaned the plasma and pumped the water back in I cut a couple of bits of 3mm stainless and made some hose brackets.
View attachment 281993

What are the bearings for? Looks like a normal iso40 taper type spindle? Im guessing its for a tool changer?



[optima21]

An indexing pin for the Drummond almost.
View attachment 281995

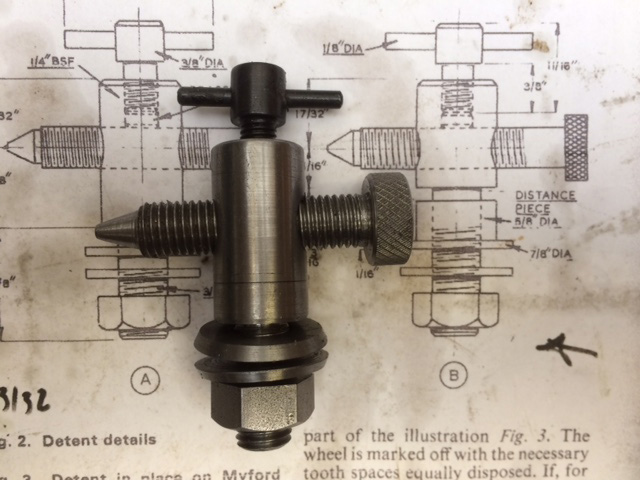

Almost because I fell at the last hurdle, silver soldering the 1/8" cross arm on the locking screw, all I ended up doing was blackening it. I will clean it up tomorrow and have a re think.
The one I made is described as the Myford ML7 one on the left which is identical to the Drummond one on the right, except no removable 'distance piece' which I don't think will be required, if it is it can be quickly turned down in a collet so not a problem.

looking good, but I'd just loctite it or glue it in place. in that application they will work as well as sliver soldering.



[Hood]

What are the bearings for? Looks like a normal iso40 taper type spindle? Im guessing its for a tool changer?

They are 30 taper and yes it is because of the basket toolchanger on the Chiron.



[zx9]

looking good, but I'd just loctite it or glue it in place. in that application they will work as well as sliver soldering.

That would get it sorted and out of the way quickly, I will probably just clean it up and use super glue.



[Kram]

They move quick!



[Hood]

They move quick!

Certainly faster than me nowadays



[Cosantoir]

Cool, is it on thingyverse? (I can’t find it )

Vise Press Brake Tools by BraunsCNC

3D printed tools are a cheap and easy way to turn any vise into a mini press brake. For more information check out https://youtu.be/crT1QBAfgNUThese .stl files are made for my vise with a jaw size of 120x25x16mm (length x height x depth). Each tool has 6 pockets for 10x2mm disc magnets.Use at...

www.thingiverse.com



[northwest]

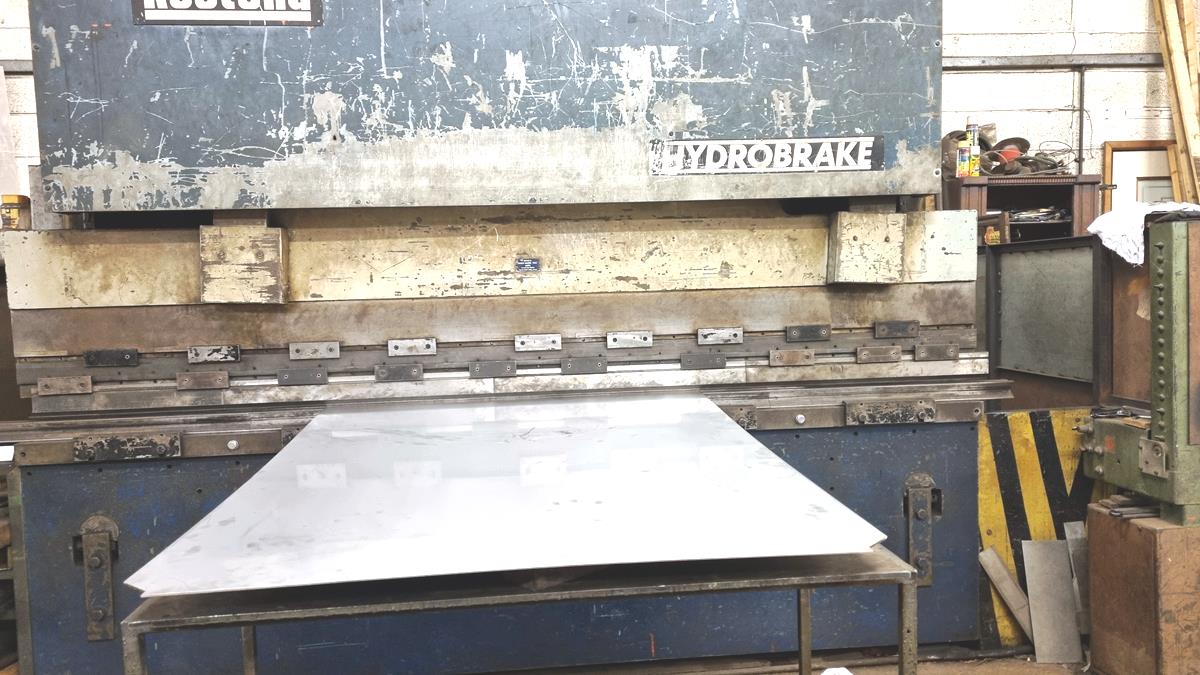

Well, I didn't actually "make" anything, but helped a pal out. I have access to and free rein in a big workshop, Folder, Rolls, Workbenches, grinder drill press and above all: Free electric. Can't be beaten. So once in a while I see my pal has a big job on that he struggles with and this morning I went over early as there were four big sheets of 3mm Stainless needed bending and he could really use a hand.

Bloody Nora, big sheets and big bends, didn't start snapping pics as we were busy but two of them were a bend at 750mm then stand the sheet up to get it out of the brake. Big sheets of 3mm Stainless are heavy, they are also eye watering expensive nowadays £295 a sheet and that is 304, not 316. I snaffled a few small offcuts too so not all bad:



That is a ten foot press so you can see the size of the sheet.



[Hood]

What size sheets?



[Paul.]

What size sheets?

Looks like a 3m x 1.5m



[northwest]

Looks like a 3m x 1.5m

They started off that size but we cut them down, 2.85m x 1.4m Not that you would notice, broke a sweat I can tell you. One other thing, I bought some quite thin supposed "cut resistant" gloves a while back and they were a godsend, going to get my pal a pair. Very sharp those cut edges were.



[bricol]

3D printed vice press break
View attachment 281927View attachment 281929View attachment 281928

I have to ask why? Material that thin you could persuade over, simply clamped in the vice?
