Is it a metal hot end? Retraction is generally far smaller for those.

Dealing with strings is a simple as pointing a hot air gun at them!

It is the metal one they gave as a 'free' upgrade. The instructions said 5mm as the Ender 5 has such a long tube from the Bowden.
It is just frustrating as I spent a couple of hours with the settings and running the samples.



[Agroshield]

It's probably worth having a play with Gearotic Motion - https://www.gearoticmotion.com/

Thanks. I had forgotten about that one.

It seems root fillet radius tweaking is available in Fusion:

Create Custom 3D Printable Gears in Fusion 360 | Practical Prints #1 - Product Design Online

Creating gears in Fusion 360 is easier than most think. Each copy of Fusion 360 includes a few sample add-ins. Fortunately, one of the sample add-ins is a Spur Gear generator. Accessing the Spur Gear Add-in Select the Tools tab > Scripts & Add-ins > Add-ins Tab > Scroll down until you can see the

productdesignonline.com

https://www.reddit.com/r/Fusion360/comments/qbckx7

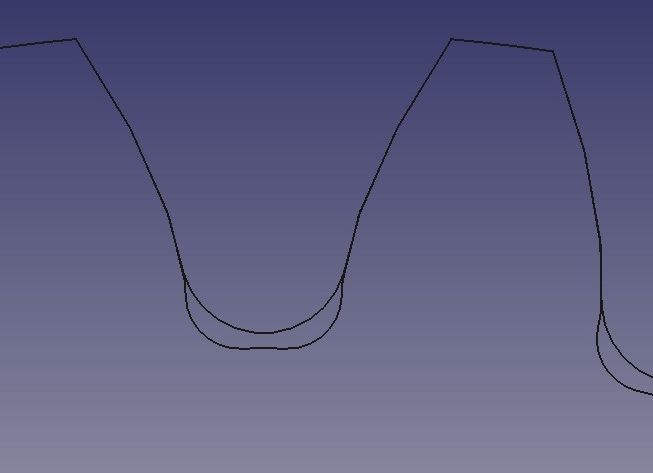

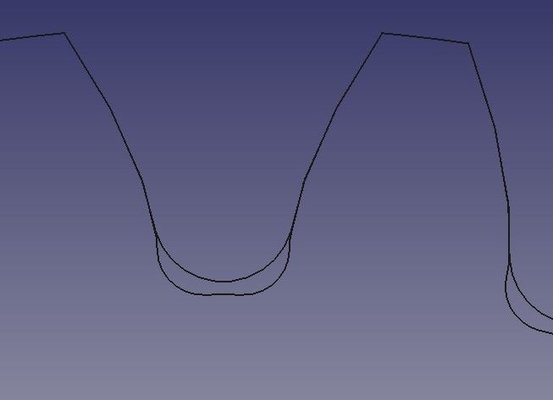

I did not read the instructions too well earlier, but it is available (along with profile shift) in FreeCAD. See below for two gears overlaid, one with standard root fillet, the other with modified fillet.



[ajlelectronics]

It is the metal one they gave as a 'free' upgrade. The instructions said 5mm as the Ender 5 has such a long tube from the Bowden.
It is just frustrating as I spent a couple of hours with the settings and running the samples.

My understanding is that it is due to the metal hot end, rather than the route of the filament. Something to research anyway.



[ChrisBailey]

The Bowden tube coupling wears itself loose and can cause retraction and extrusion issues.
Can be fixed easily. Might be whats causing your issues.



[My Old Landy]

The Bowden tube coupling wears itself loose and can cause retraction and extrusion issues.
Can be fixed easily. Might be whats causing your issues.

It's all brand new but still worth checking



[ajlelectronics]

Adjusted size, hopefully that will mean it will fit now. The shorter one is still printing.



[ajlelectronics]

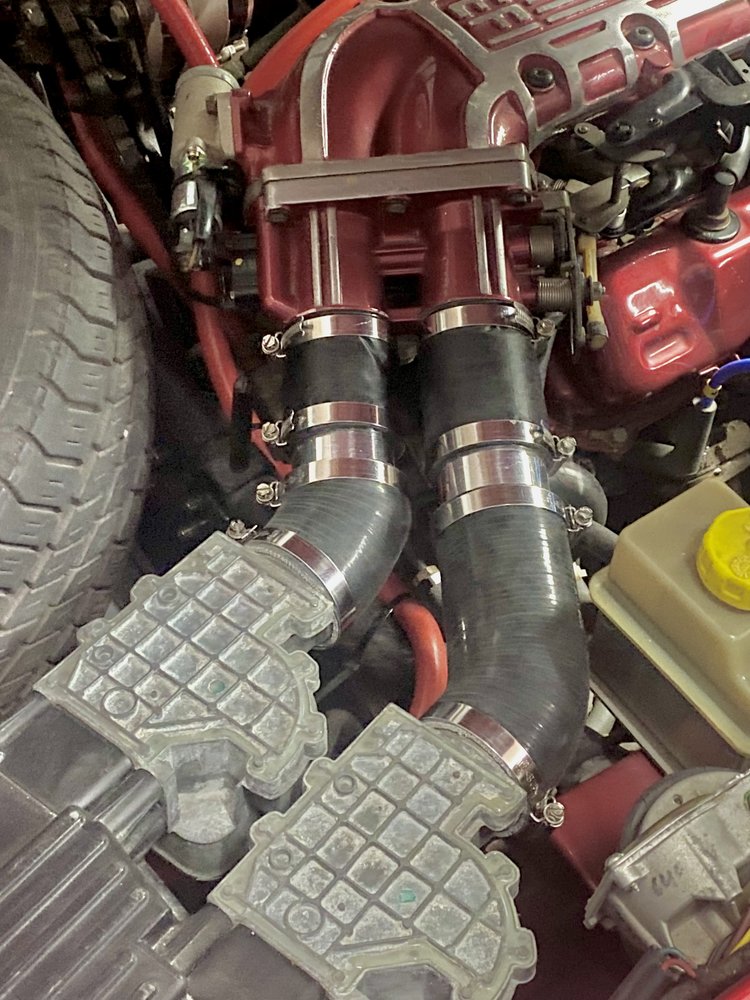

Hoses finally printed and fitted. The ones against the plenum are the TPE-83A, the elbows are conventional silicone hoses with alloy joiners.



[Cheesie]

Would anyone be able to make a decent 3d print of this



[m_c]

Would anyone be able to make a decent 3d print of this View attachment 428094

Have you got some dimensions?



[daedalusminos]

Yes if you've got a nice undistorted hi-res image and it's less that 270mm long



[Cheesie]

Have you got some dimensions?

I can give you rough dimensions but without ever seeing one it will be a guess



[Agroshield]

I can give you rough dimensions but without ever seeing one it will be a guess

Do you have the folder itself? Measure the triangular brace above the name plate. You could scale it from there from the first (green) photo. Saying that, the brace in the first photo is a different width to that in the second photo, so you would have to take that into consideration.

In the initial stages, having a good photo to copy is way more important than a size - once the artwork is done, then you can scale to any size you like.



[ukracer]

Hoses finally printed and fitted. The ones against the plenum are the TPE-83A, the elbows are conventional silicone hoses with alloy joiners.


View attachment 428056

I didn't realise how many people sold that. What's it like to print?



[ajlelectronics]

I didn't realise how many people sold that. What's it like to print?

TPE-83A?

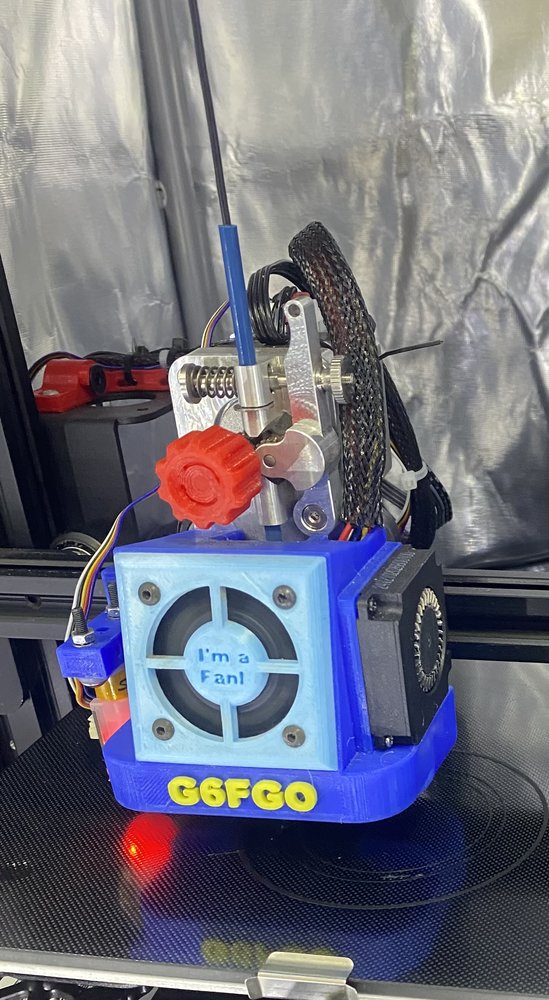

Imagine cutting an elastic band and pushing it through the eye of a needle from the end nearest you! There is zero chance of it being possible in a Bowden feeder, my Ender is modded to have an inch or so of tube before it goes into the MicroSwiss extruder, so it does work. 240C / 0C 25mm/s and top of the enclosure open. At my TPS temperature settings (228C) it got 50% through and then blocked the nozzle.

The only place I can find new rolls is Spain and the import charges make it expensive, so I was pleased to find a used roll on Ebay.


If you mean silicone, I bought those elbows ready made from my local manufacturer. I haven't tried silicone printing yet, but I'm game!



[ajlelectronics]

Silicone Filament: The Challenges Of 3D Printing.​

Such a valuable and adaptable material isn’t the most straightforward 3D print. Silicone cannot be expected to keep a perfect shape after melting and cooling; hence typical FDM printing is impossible. As a result, most procedures begin with a liquid form of silicone, which is sprayed or deposited before activation, either by UV radiation or heat, is accomplished. Most of the time, you’ll need some special equipment to get the job done.

It implies that large-scale 3D printed silicone components are not now possible. Furthermore, equipment capable of handling silicone has modest build volumes, making 3D printing an already laborious operation.

Silicone Filament: An Overview (December 2023)

What Is Silicone Filament? Silicone is an excellent polymer material that offers a lot of potential in additive manufacturing. Among its many outstanding mechanical and chemical qualities, silicone Filament is

re-filament.com



[ukracer]

TPE-83A?
Imagine cutting an elastic band and pushing it through the eye of a needle from the end nearest you! There is zero chance of it being possible in a Bowden feeder, my Ender is modded to have an inch or so of tube before it goes into the MicroSwiss extruder, so it does work. 240C / 0C 25mm/s and top of the enclosure open. At my TPS temperature settings (228C) it got 50% through and then blocked the nozzle.

I assumed bowden would not stand a chance. Have you got a photo of your modification?

The only place I can find new rolls is Spain and the import charges make it expensive, so I was pleased to find a used roll on Ebay.

II thought there was loads advertised?

If you mean silicone, I bought those elbows ready made from my local manufacturer. I haven't tried silicone printing yet, but I'm game!

I wouldn't even attempt silicon lol...



[Cheesie]

Do you have the folder itself? Measure the triangular brace above the name plate. You could scale it from there from the first (green) photo. Saying that, the brace in the first photo is a different width to that in the second photo, so you would have to take that into consideration.

In the initial stages, having a good photo to copy is way more important than a size - once the artwork is done, then you can scale to any size you like.

That's what I plan to do, I would say the bracing differences is from different sized folders



[fizzy]

TPE-83A?
Imagine cutting an elastic band and pushing it through the eye of a needle from the end nearest you! There is zero chance of it being possible in a Bowden feeder, my Ender is modded to have an inch or so of tube before it goes into the MicroSwiss extruder, so it does work. 240C / 0C 25mm/s and top of the enclosure open. At my TPS temperature settings (228C) it got 50% through and then blocked the nozzle.

The only place I can find new rolls is Spain and the import charges make it expensive, so I was pleased to find a used roll on Ebay.


If you mean silicone, I bought those elbows ready made from my local manufacturer. I haven't tried silicone printing yet, but I'm game!

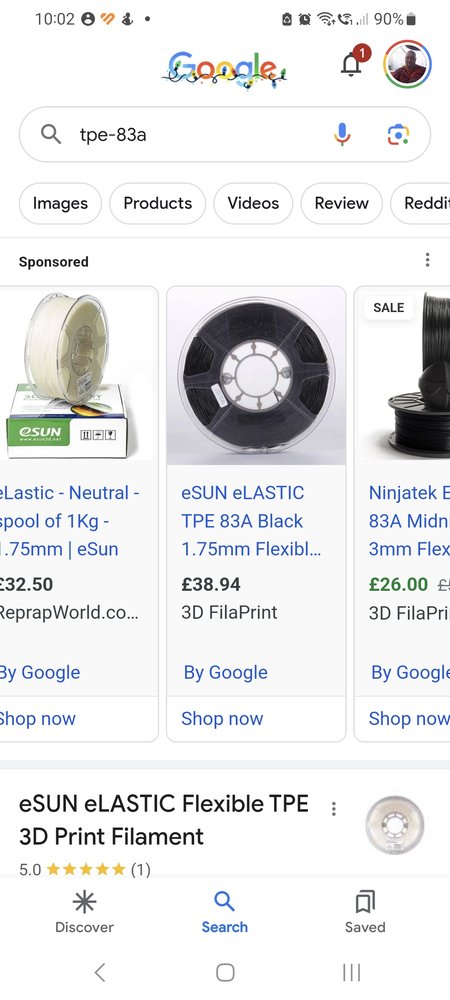

What about this stuff?
Got great reviews on Amazon - is it the same kind of stuff you have been using?

https://www.amazon.co.uk/eSUN-Flexible-Filament-Dimensional-Accuracy/dp/B07VLS8GWD?th=1



[ajlelectronics]

I assumed bowden would not stand a chance. Have you got a photo of your modification?

II thought there was loads advertised?

I couldn't find any in UK stock, either that or the total cost became uneconomic.

I wouldn't even attempt silicon lol...

It would seem that it doesn't melt, so FDM is a non starter.



[ajlelectronics]

What about this stuff?
Got great reviews on Amazon - is it the same kind of stuff you have been using?

https://www.amazon.co.uk/eSUN-Flexible-Filament-Dimensional-Accuracy/dp/B07VLS8GWD?th=1

Yes, but there is no stock at the moment.
