3D Printing

[badabec]

Apologies for reverting to basics. I am thinking of buying a 3D printer for my young grandson. He likes Pokemon figurines. If he wants to print a figurine, how does he scan the original into a computer to get the code? Or doesn't it work like that? I also have some car parts which i would like to print, again, how is it done?
Thanks
Peter



[Hopefuldave]

Apologies for reverting to basics. I am thinking of buying a 3D printer for my young grandson. He likes Pokemon figurines. If he wants to print a figurine, how does he scan the original into a computer to get the code? Or doesn't it work like that? I also have some car parts which i would like to print, again, how is it done?
Thanks
Peter

He could 3D scan existing figures, I haven't done it nor found out how but I believe it's done with webcam and a rotating table, possibly a laser pointer as well? Then I guess software to turn the images into a model - I mostly draw stuff in CAD.

OR... he could look on www.thingiverse.com, a quick search revealed upwards of 3000 printable Pokémon models, chess sets, keyrings... Have a look and see if they'd satisfy him

Most of the inexpensive 3D printers are single-extruder so only print one colour at a time, is he good at painting the models?

Dave H. (the other one)



[Onoff]

Any one know if fusion can open SKP files and edit them?
I have opened it but for some reason cant add an extrusion....its a simple one as all I need is to add two can holders into the ashtray blank for an MX5.

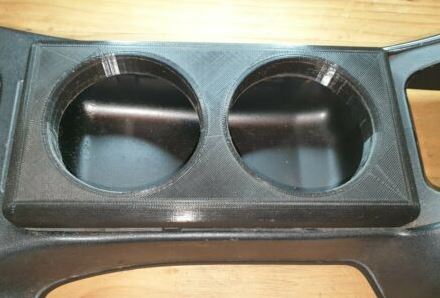

But I am not sure if its me or fusion (probably me ) lolView attachment 215605 View attachment 215604

STL blank here:

https://www.thingiverse.com/thing:2492658/files

I'll get my lad to have a go when he emerges from his pit if you want.



[ukracer]

STL blank here:

https://www.thingiverse.com/thing:2492658/files

I'll get my lad to have a go when he emerges from his pit if you want.

I did find that one but was not sure fusion can edit STL files. Lol

I am not fussed either one will be fine. just more frustrated that everytime I try to learn it something crops up....plus the wife seems to think if I am sitting down I am doing nothing.

I am getting along better printing now. I managed to print links for a drag chain that have been sticking and coming out perfect. Learnt a couple of important things that might be obvious to others.

The squish is easier to dial in on the ender 3 whilst it's printing and the bed temp for PLA varies not only between type of bed but between machines with the same bed.
Bed temp on the Anet is 60 and ender 3 is 70.



[ukracer]

Apologies for reverting to basics. I am thinking of buying a 3D printer for my young grandson. He likes Pokemon figurines. If he wants to print a figurine, how does he scan the original into a computer to get the code? Or doesn't it work like that? I also have some car parts which i would like to print, again, how is it done?
Thanks
Peter

As below......for the immediate future plan on printing pre made stuff.

Designing is not easy or intuitive and scanning is a complete new box of frogs..........simple does not exist. But the more simple you want the more you have to pay and I am talking thousands not 100's sadly.



[Onoff]

Apologies for reverting to basics. I am thinking of buying a 3D printer for my young grandson. He likes Pokemon figurines. If he wants to print a figurine, how does he scan the original into a computer to get the code? Or doesn't it work like that? I also have some car parts which i would like to print, again, how is it done?
Thanks
Peter

There are a few home brew designs where you use a 3D printer to print a turntable to which you strap your smart phone to do the scanning. Some other electronics to sort too though I think.



[badabec]

Hello, thanks for all the advice. I'm sure thingiverse will keep him busy for some time. I'll never get to have a go!



[ukracer]

Hello, thanks for all the advice. I'm sure thingiverse will keep him busy for some time. I'll never get to have a go!

Getting the bed level and the first layer squish is crucial. Not only for the model but to ensure it sticks to the build plate.
If you decide to try ABS. Then use ABS Pro from steady tech. But get some pure abs and make a slurry out of acetone and cut up bits of ABS filament using a sponge on a stick smear it on the bed. It will stick and not warp..



[Onoff]

I did find that one but was not sure fusion can edit STL files. Lol

I am not fussed either one will be fine. just more frustrated that everytime I try to learn it something crops up....plus the wife seems to think if I am sitting down I am doing nothing.

I am getting along better printing now. I managed to print links for a drag chain that have been sticking and coming out perfect. Learnt a couple of important things that might be obvious to others.

The squish is easier to dial in on the ender 3 whilst it's printing and the bed temp for PLA varies not only between type of bed but between machines with the same bed.
Bed temp on the Anet is 60 and ender 3 is 70.

What size do you want the holes and where?

Just eqi space them?



[ukracer]

What size do you want the holes and where?

Two can sized holes and any logical place is fine.



[Onoff]

Two can sized holes and any logical place is fine.

You do realise if I have to go and get a beer I'll have to drink it?



[Onoff]

@ukracer , my lad appears to have come up trumps. Done in 360. Very roughly:

- opened the stl mesh
- convert to BRep, making sure you select new component rather than new body
- make a new file
- copy the created component to the new file
- sketch the circles to make the cylinder
- extrude these making sure it's a join operation
- cut the inner cylinder

I measured a cider can at 66mm OD. Made the holes 68mm ID with a nom 5mm wall thickness. 1.5mm rad on the leading edge where the can drops in. Maybe you'll want the cylinders deeper, bigger radius on the edge? Just let me know.

STL being emailed to you now. Note you'll have to print at 10% as for some reason it exports at x10.

Cheers



[ukracer]

@ukracer , my lad appears to have come up trumps. Done in 360. Very roughly:

- opened the stl mesh
- convert to BRep, making sure you select new component rather than new body
- make a new file
- copy the created component to the new file
- sketch the circles to make the cylinder
- extrude these making sure it's a join operation
- cut the inner cylinder

View attachment 215699

View attachment 215700

I measured a cider can at 66mm OD. Made the holes 68mm ID with a nom 5mm wall thickness. 1.5mm rad on the leading edge where the can drops in. Maybe you'll want the cylinders deeper, bigger radius on the edge? Just let me know.

STL being emailed to you now. Note you'll have to print at 10% as for some reason it exports at x10.

Cheers

Cheers mate. Most of that went straight over my head. Lol but probably explains why I don't stand a chance ...
Might have to get some black abs Pro although i have black pla and the Ender 3 is printing sweet now.



[Onoff]

Cheers mate. Most of that went straight over my head. Lol but probably explains why I don't stand a chance ...
Might have to get some black abs Pro although i have black pla and the Ender 3 is printing sweet now.

No worries. I didn't have a beer or drink the cider can I measured from! Feel a bit cr@p. Bloody school close to where I work is closed due to this virus

Before my lad did it last night I tried in FreeCAD but I just can't get on with it. I found this link suggesting FreeCAD or Blender could have done it.

https://www.dobot.cc/resource/best-3-free-stl-editor.html

Don't forget to post the results up. Did you ever sort the brake caliper thing btw?



[ukracer]

No worries. I didn't have a beer or drink the cider can I measured from! Feel a bit cr@p. Bloody school close to where I work is closed due to this virus

Before my lad did it last night I tried in FreeCAD but I just can't get on with it. I found this link suggesting FreeCAD or Blender could have done it.

https://www.dobot.cc/resource/best-3-free-stl-editor.html

Don't forget to post the results up. Did you ever sort the brake caliper thing btw?

Yeah I thought I had posted the caliper situation and prints up.

I will sort out photos later today. It's the 8th anniversary of my mother in law sudden death and my wife still goes to pieces all day. Actually gets grumpy and stroppy for the past 2 weeks or so but on the date she gets real upset.



[Onoff]

Yeah I thought I had posted the caliper situation and prints up.

I will sort out photos later today. It's the 8th anniversary of my mother in law sudden death and my wife still goes to pieces all day. Actually gets grumpy and stroppy for the past 2 weeks or so but on the date she gets real upset.

I feel for you both. I've got that coming. FIRST anniversary of the MiL passing here next month. Mother's Day too this month just to rub it in for her.



[Onoff]

@ukracer , the fact the cylinders project a bit over the "lip" that fits into the centre console, is that a problem? Can move them in a bit. Only noticed just now:



[Bladevane]

Thanks to @northwest for his recommendation of Factory3D for a 3D printer. A friend and I have just bought his RepRap printer and I must say his customer service is second to none. So far the product is also.
