Alba metal shaper refurbishing

[God mode restorations]

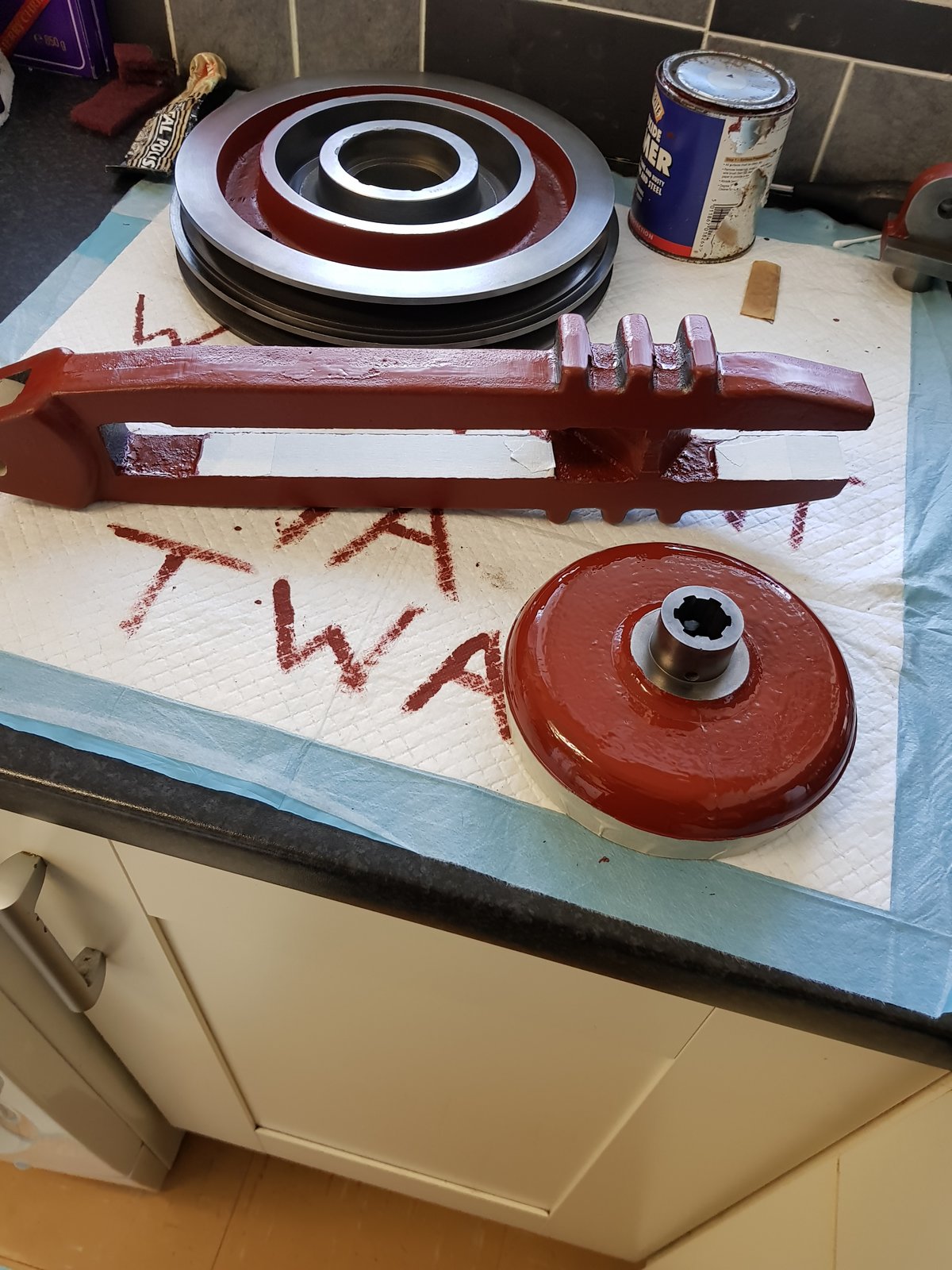

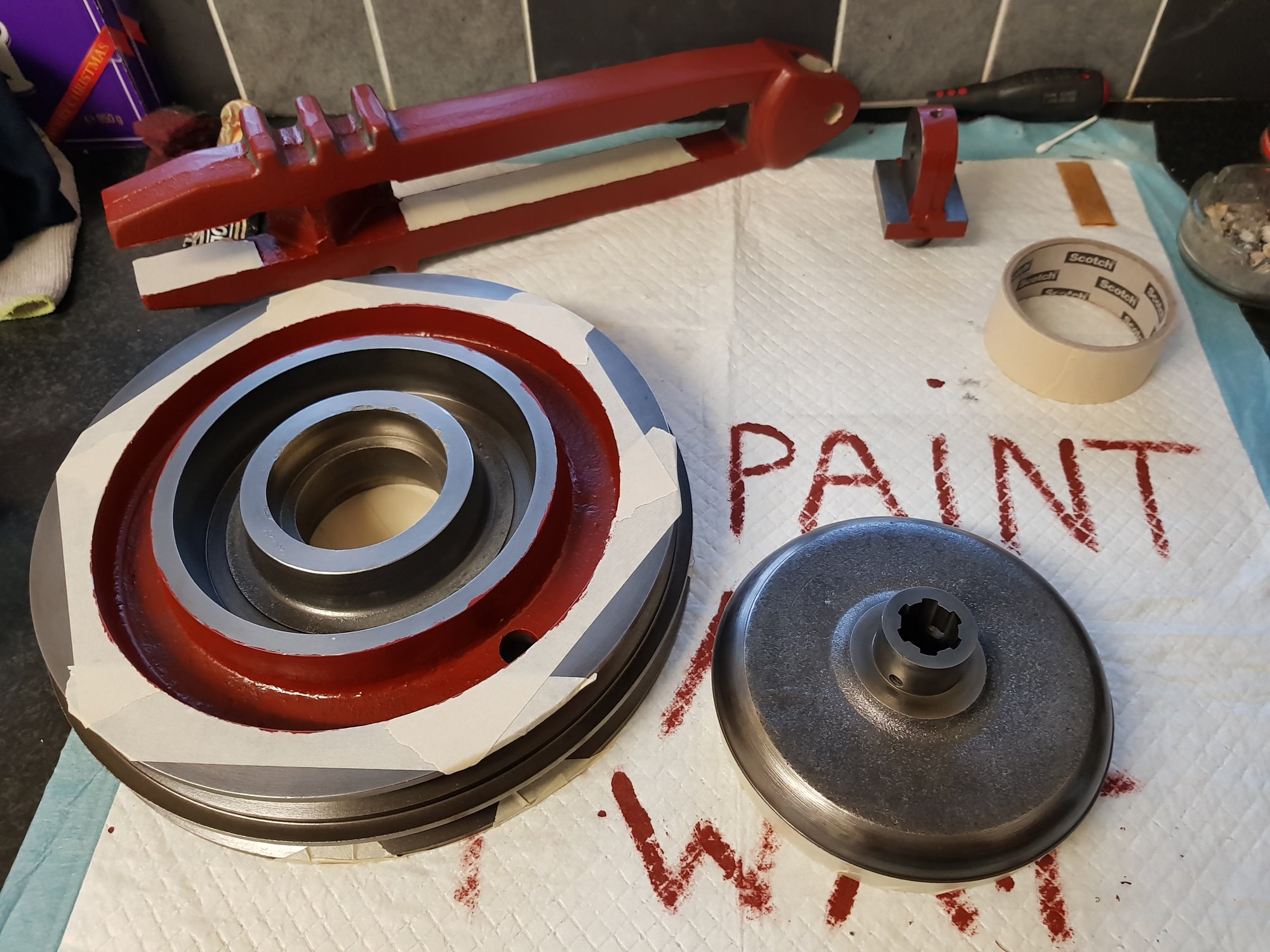

This is the boaring bit. Mask up. Paint. Wait.
New bearings on order hopefully be hear in a couple of days.



[God mode restorations]

It's doing me in. But nearly there.



[zx9]

Hats off to you for doing the painting in the kitchen, I would get strung up if Mrs. ZX9 caught me doing that.



[God mode restorations]

Hats off to you for doing the painting in the kitchen, I would get strung up if Mrs. ZX9 caught me doing that.

There was a heated discussion about it. As I put the parts in the kitchen when she was at work. But my persuasive ways won the argument. It's better to be in the kitchen painting were she can keep an eye on me. Or outside in the shed were eBay is to tempting.



[steve_s]

Any chance you can put the sizes up for this pulley as my shaper has a single (home made by the look ) pulley on a 1440 rpm motor.

Ill measure it an do a stroke count

View attachment 128862



[God mode restorations]

Any chance you can put the sizes up for this pulley as my shaper has a single (home made by the look ) pulley on a 1440 rpm motor.

Ill measure it an do a stroke count

There is an online calculater that you can use
To determine pulley size and speed and so on. I found it yesterday and its good



[God mode restorations]

Any chance you can put the sizes up for this pulley as my shaper has a single (home made by the look ) pulley on a 1440 rpm motor.

Ill measure it an do a stroke count

The original motor should spin at 940 rpm.



[God mode restorations]

It's great, it'll do v belt pulleys, polyvee, chain and sprockets, lathe changegears, acceleration, electrical load calcs - loads of stuff

With the authorised extension plugin below there's not a huge amount it can't do

View attachment 129138

With today's technology I would of thought that plug in would of been wireless



[steve_s]

The original motor should spin at 940 rpm.

I think it been replaced at some time before my ownership

so the pulley is 50mm od and 34 id and the belt is on the larger groove it does 33 strokes per min in low range and 66 in top gear.

pdg far easer to switch shaper on and count than faf with measurements



[Gritineye]



[God mode restorations]

View attachment 129140

Intresting. Mine didn't come with that.



[God mode restorations]

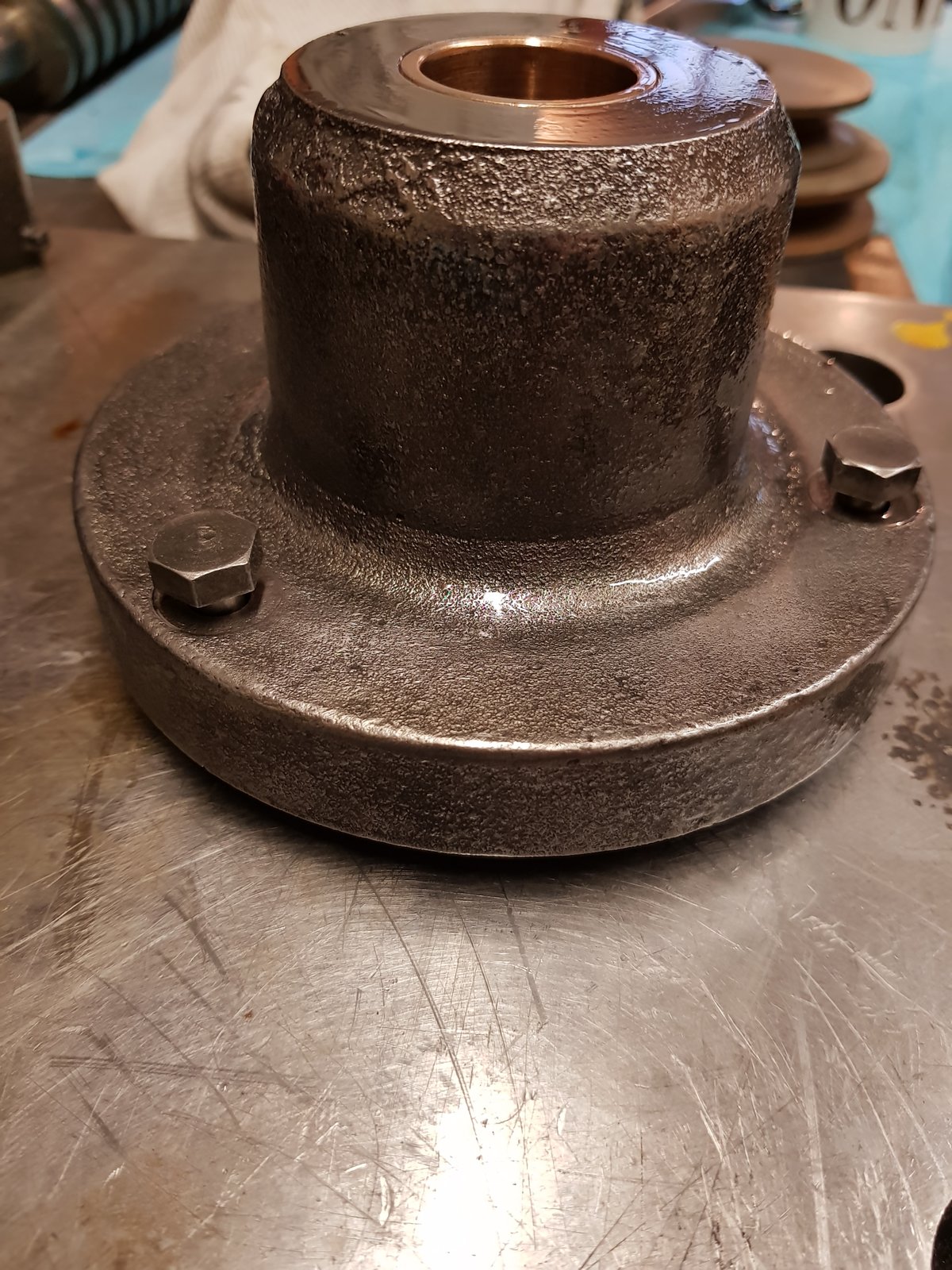

Another part done. No paint on these parts. Just clean oiled raw cast.



[Gritineye]

It's great, it'll do v belt pulleys, polyvee, chain and sprockets, lathe changegears, acceleration, electrical load calcs - loads of stuff

With the authorised extension plugin below there's not a huge amount it can't do

View attachment 129138

Some folk that read this stuff, including me, have a form of number dyslexia, it can take me quite a few tries to dial a phone number on a keypad, I say 'Sorry wrong number' a lot.

My brain doesn't retain numbers very well, often transposes them or reverses the order of a string.

Therefore I will use all the help I can get to avoid any sort of mathematics.

Your scornful replies on the subject of maths do not show your best side.



[Gritineye]

Intresting. Mine didn't come with that.

Neither did mine, found on the web :-)



[steve_s]

So looking at that chart mine is running slow

View attachment 129140



[gaz1]

heres a good one for pulleys and belts

https://www.blocklayer.com/pulley-belteng.aspx



[God mode restorations]

heres a good one for pulleys and belts

https://www.blocklayer.com/pulley-belteng.aspx

That's the one I found yesterday.



[Pete.]

https://archive.org/download/elementarymachin00palmrich/elementarymachin00palmrich.pdf

Pages 18-30 contain some handy elementary info on running a shaper.



[MattF]

There was a heated discussion about it. As I put the parts in the kitchen when she was at work. But my persuasive ways won the argument. It's better to be in the kitchen painting were she can keep an eye on me. Or outside in the shed were eBay is to tempting.

Is that why there appears to be a rather uncomplimentary message painted on that kitchen towel?



[God mode restorations]

https://archive.org/download/elementarymachin00palmrich/elementarymachin00palmrich.pdf

Pages 18-30 contain some handy elementary info on running a shaper.

Thanks Pete. Really good information in there.
