I have just purchased a Boxford Lathe

[123hotchef]

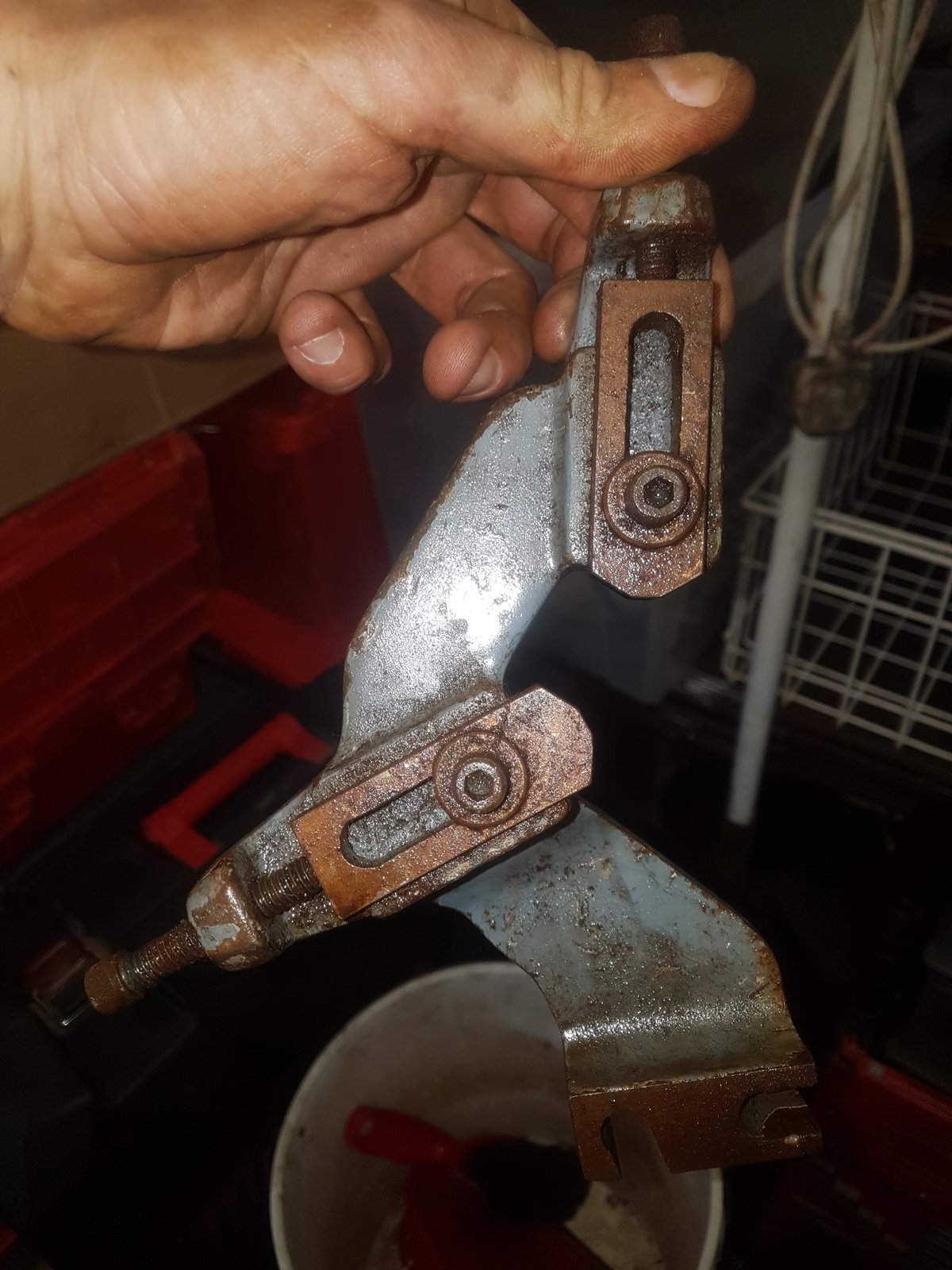

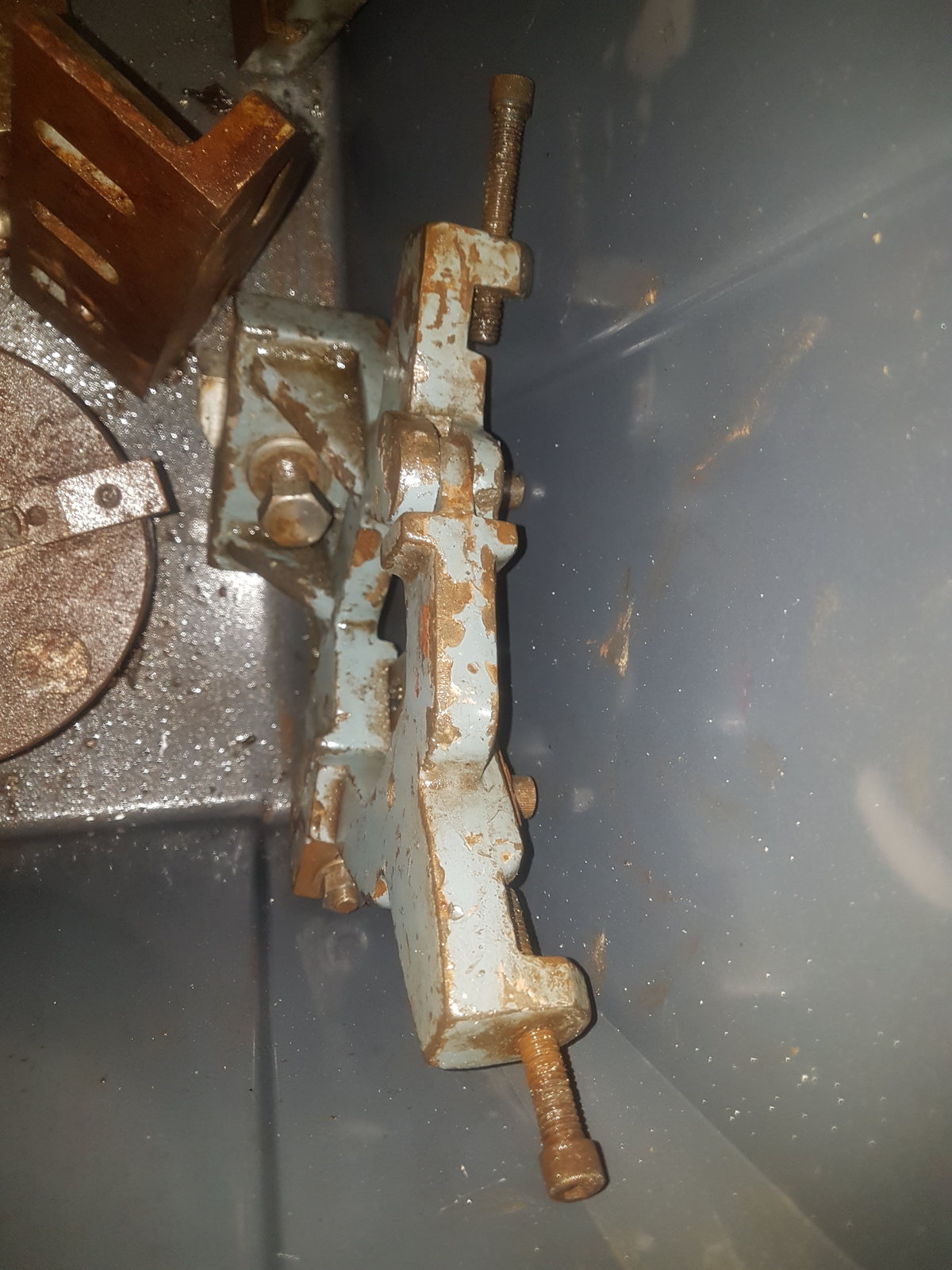

Well i have a fixed steady and a traveling steady a verticle mill plate and a horizontal slotted plate I need to find a smaller chuck key for the 2 smaller chucks too



[Brad93]

Dog face plate too



[123hotchef]

what one is that?

are the chuck keys 5/16 and 7/16?



[Seadog]

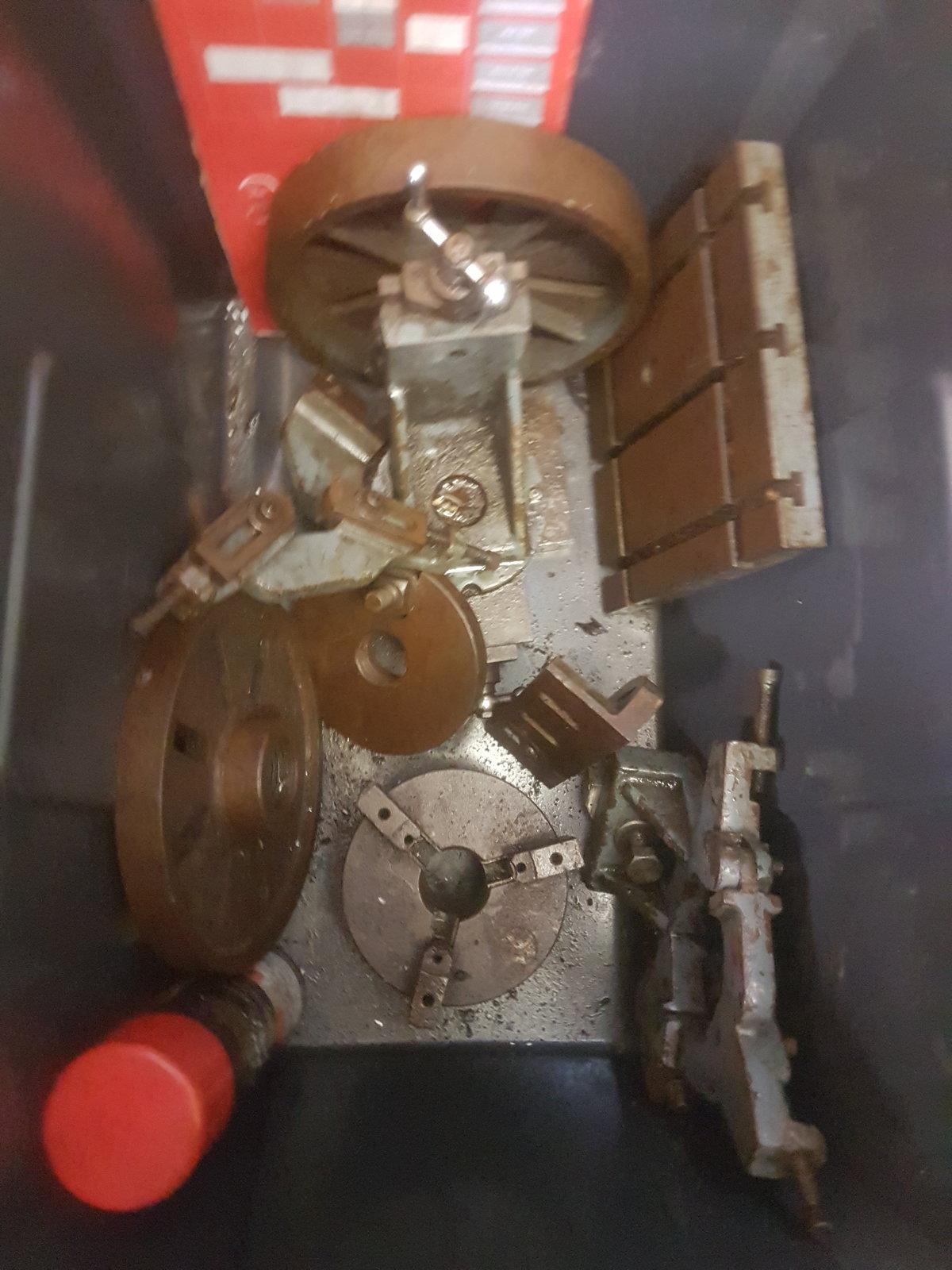

Two face plates, a catch plate, fixed and travelling steadies, a vertical milling attachment and a boring table. A nice little cache



[123hotchef]

I think 3/8" and 5/16



[123hotchef]

Two face plates, a catch plate, fixed and travelling steadies, a vertical milling attachment and a boring table. A nice little cache

what is the catch plate for and the boring table come to think of it is that to bore irregular shaped stuff



[eLuSiVeMiTe]

what is the catch plate for and the boring table come to think of it is that to bore irregular shaped stuff

Catchplate is used to drive drive dogs.

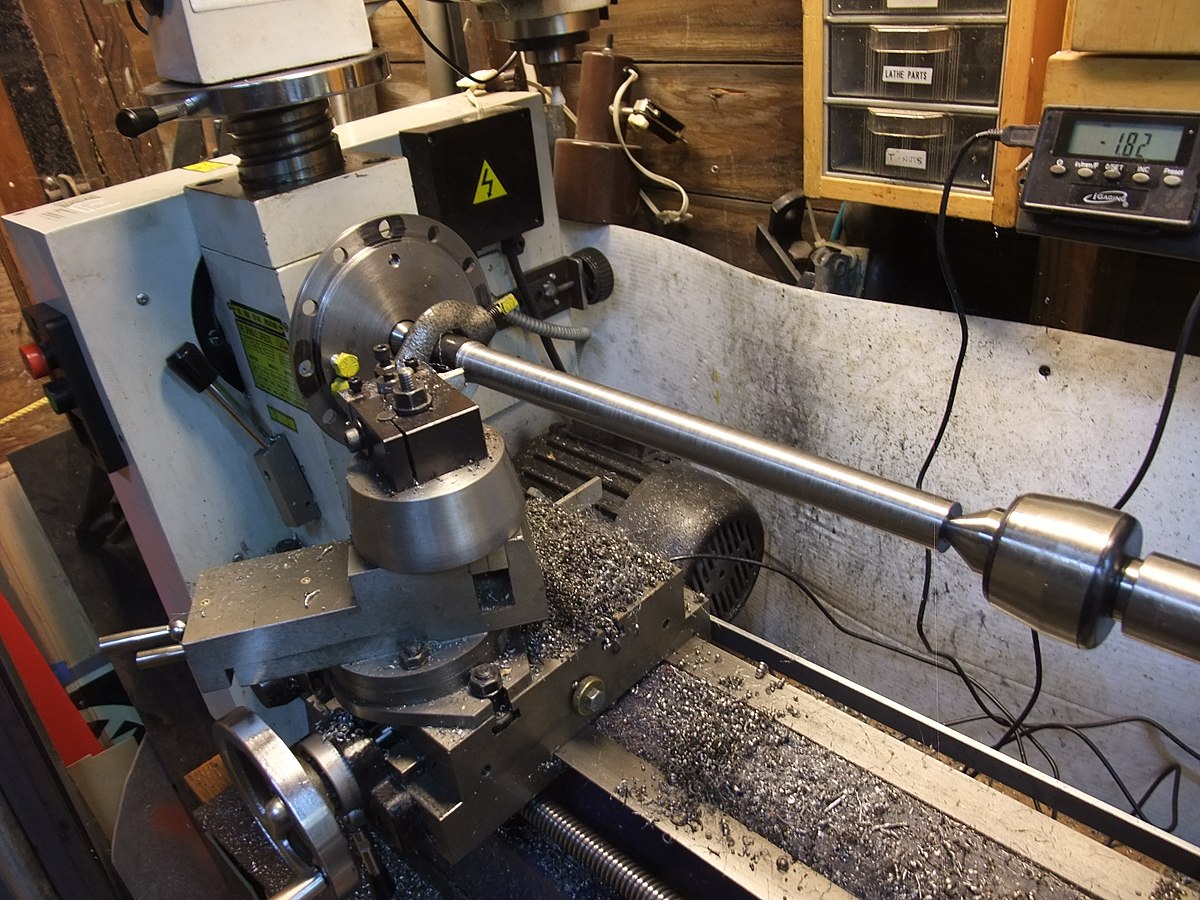

When turning between centers it's used to transfer the power from spindle to part



[Seadog]

The catch plate is used when turning between centres. You mount a stud in the slot which then provides drive to the part via a lathe dog. The boring table replaces the cross slide and is used for line boring. Worth £150-200. I sold a spare to someone in Australia for £175.



[123hotchef]

wow the possibilities are endless



[Seadog]

Oh they are. Limited only by your imagination



[eLuSiVeMiTe]

Oh they are. Limited only by your imagination

Found with milling and turning often deciding how to mount or hold the part is harder than the job itself



[123hotchef]

Found with milling and turning often deciding how to mount or hold the part is harder than the job itself

Weld it



[123hotchef]

How do the work.drives come out once the jaws are out



[Brad93]

Screws on the back mate



[123hotchef]

There were none just the 4 bolts and the back plate come off



[123hotchef]

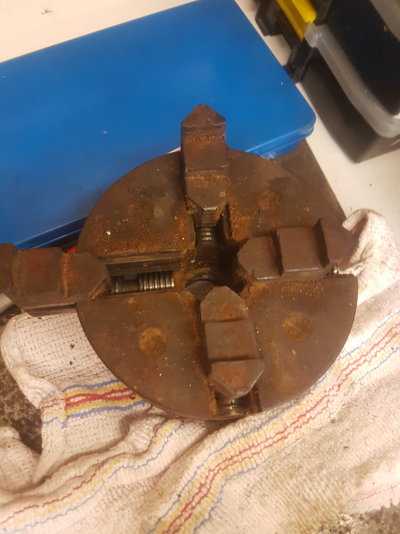

Looks like the plugs have to be punched out i shall clean it as it is I think



[Brad93]

Right,

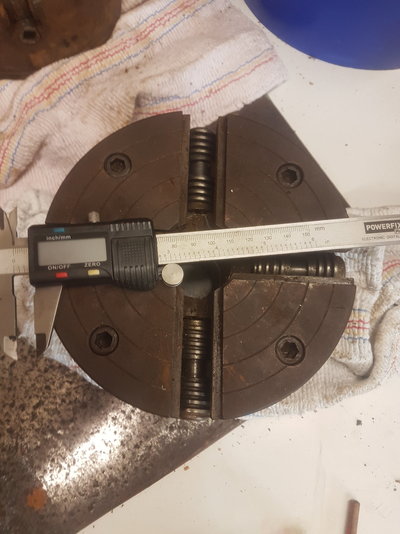

1.) Reference the part with a centre punch. Put a dot on the back plate and chuck so you know where they line up.
2.) Undo the 4 bolts on the front of the chuck. The backplate will need to be prised apart with a small lever.
3.) There are 4 bolts, one for each jaw. Remove those.
4.) A round cam/pin should now be able to wiggle out.

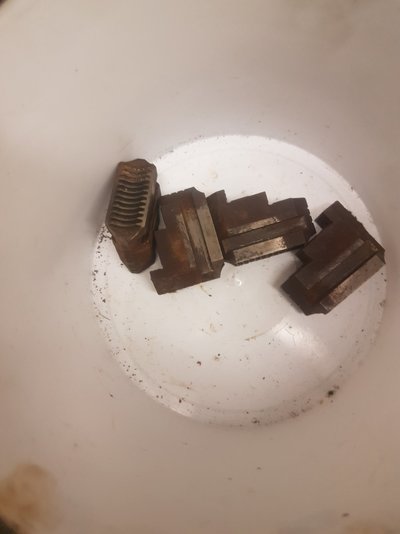

5.) The screws for the jaws will now fall out



[Seadog]

The plain section on each screw is how it is retained in the body. There's a dowel with a concave end that locates around the plain section.



[Brad93]

The plain section on each screw is how it is retained in the body. There's a dowel with a concave end that locates around the plain section.

There's the technical words i couldn't think of. Dowel, retained and concave haha.



[123hotchef]

The plain section on each screw is how it is retained in the body. There's a dowel with a concave end that locates around the plain section.

Yes i saw.that. that is the part that needs punching out
